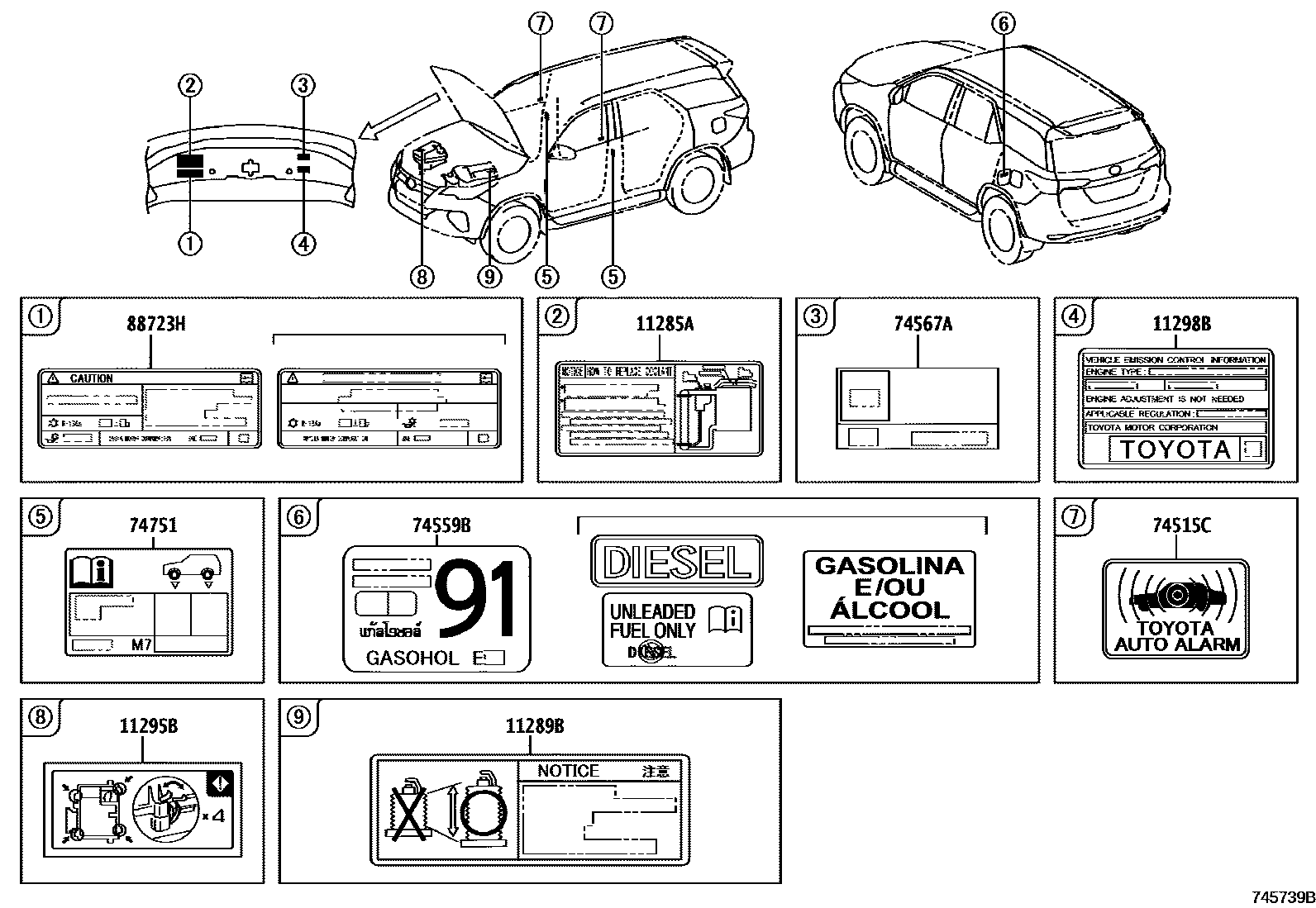

CAUTION PLATE

0001 1ENGINE ROOM & EXTERIOR 0002 1INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-0E010i1GDFTV,2GDFTV..GUN15#,16#..PKNP,SAP,VNP202108-202303

11289BLABEL, SPARK PLUG NOTICE

main11289-31011i1GRFE..GGN155..THP202108-202207

11295BLABEL, ENGINE SERVICE NOTICE, NO.1

main11295-0E010i1G#,2GDFTV,2TRFE..GGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-0E030i1GDFTV..GUN156,166..PH202108-202208

main11298-0E040i2GDFTV..GUN165..PH202108-202208

74515CLABEL, THEFT WARNING INFORMATION

main74515-0K020×2iGGN155,GUN15#,LAN155,TGN156..LHD..(EPT,SA)202109-202304

main74515-42010×2iGUN15#,TGN156..MA202109-202208

74559BLABEL, FUEL INFORMATION

main74559-02040iTGN168202111-202210

main74559-0K020iGUN15#,16#,LAN155..SA202109-202301

main74559-20140iGGN155,TGN156,166..THP202108-202207

main74559-89101iGUN156,166..IND202108-202209

main74559-YE010iGUN15#,16#..TH202108-202207

74567APLATE, E.C.E APPROVED NUMBER

main74567-25041iGUN156..IDNP..ARL202108-202208

74751LABEL, TIRE PRESSURE INFORMATION

main42661-0KP40iGGN155,GUN15#,165,TGN156,166..THP..(L,S)..(ARL,GCC)202108-202207

TIRE & DISC WHEEL-265/65R17 ALUMINUM

main42661-0KP50iGGN155..GEN;GGN155,GUN15#,165,TGN156,166..IDNP..(L,S)202108-202208

TIRE & DISC WHEEL-265/65R17 ALUMINUM

main42661-0KP60iGUN156..LHD..SA;GUN155,165,LAN155,TGN156..SA202109-202301

main42661-0KP70iGUN156..AGTP..(L,S);GUN165,TGN168..AGTP..L;GUN166,TGN156,166..AGTP202111-202210

main42661-0KP80iGUN166,TGN166..IND202110-202209

main42661-0KS60iGGN155,GUN156,TGN156..EPT,PKN202108-202304

main42661-0KS70iGUN156,165..VNP..H202108-202209

TIRE & DISC WHEEL-265/60R18, ALUMINUM

main42661-0KS80iGUN155,165..SA;GUN156..LHD..6FC..SA202109-202301

MLM BASIC PACKAGE

main42661-0KS90iGUN156..S..BZAGT202111-202210

TIRE & DISC WHEEL-265/60R18 ALUMINUM

main42661-0KT00iGUN166..6FC..IND202110-202209

MLM PACKAGE & ACCESSORY

main42661-0KT40iGUN155,16#..TH;GUN156..RHD..THP..H202108-202207

88723HLABEL, COOLER SERVICE CAUTION

main88723-0K230iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main88723-0K240iGUN156,166,TGN166..IND202110-202209

main88723-0K280iGGN155,GUN15#,165,TGN156,166..THP..(ARL,GCC,GEN)202108-202207

main88723-0K290iGUN15#,16#..TH202108-202207

main88723-0K310iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main88723-0K330iGUN15#,16#,LAN155,TGN156..SA202109-202301

main88723-0K370iGUN15#,TGN156..MA202110-202208

main88723-0K400iGUN156,TGN156,166..PKN202202

9 parts on this diagram · 2 diagrams in section
