E
EPC Data

ARMREST & VISOR

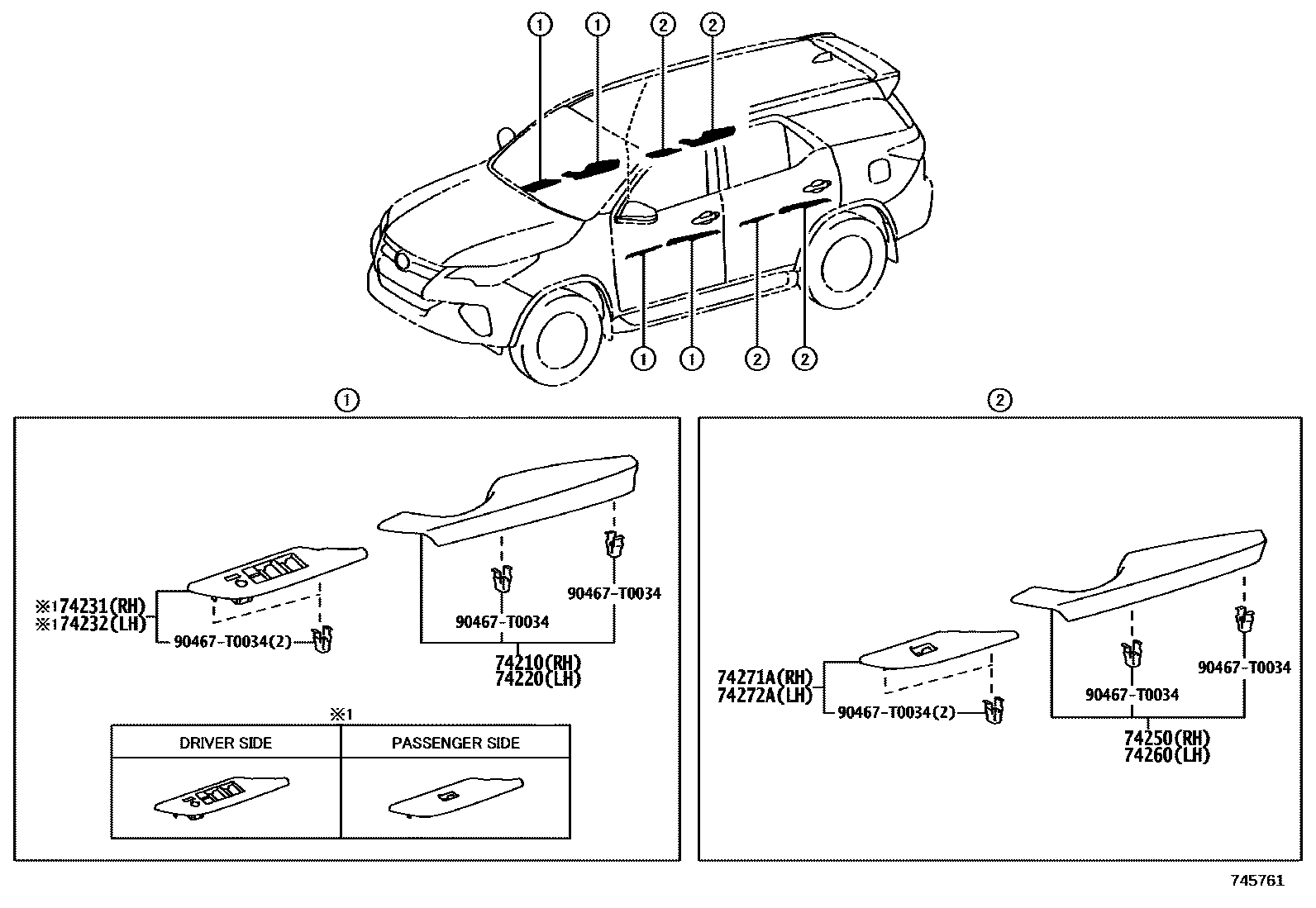

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-0K090-C0i202108-202304
BLACK,TRIM2#
main74210-0K090-E6i202108-202207
CHAMOIS,TRIM4#
main74210-0K100-C2i202108-202304
BLACK,TRIM3#
main74210-0K100-C3i202108-202207
BLACK,TRIM0#,2#
main74210-0K100-C3i202108-202304
BLACK,TRIM2#
main74210-0K100-C3i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main74210-0K100-C3i202108-202207
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#
main74210-0K100-C3i202108-202207
BLACK,TRIM0#,22
main74210-0K100-C3i202202-202304
BLACK,TRIM22
main74210-0K100-C4i202108-202304
BLACK/GR RED,TRIM24
main74210-0K100-E7i202108-202207
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#
main74210-0K100-E7i202108-202304
CHAMOIS,TRIM4#
main74210-0K100-E7i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
main74210-0K110-C0i202108-202208
BLACK,TRIM2#
main74210-0K110-E7i202108-202208
CHAMOIS,TRIM4#
main74210-0K130-C0i202108-202208
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main74210-0K130-C0i202108-202208
BLACK,TRIM22
main74210-0K130-C0i202108-202208
BLACK,TRIM0#,2#
main74210-0K130-C0i202108-202208
BLACK,TRIM2#
main74210-0K130-C0i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#
main74210-0K130-C1i202108-202208
BLACK/CRIMSON,TRIM3#
main74210-0K130-C2i202108-202208
BLACK/GR RED,TRIM24
main74210-0K130-E7i202108-202208
SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
main74210-0K130-E7i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#
main74210-0K130-E7i202108-202208
CHAMOIS,TRIM4#
main74210-0K200-C0i202111-202210
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74210-0K200-C0i202111-202210
BLACK,TRIM2#
main74210-0K220-A1i202111-202210
FROMARGE,TRIM0#
main74210-0K220-C1i202111-202210
BLACK,TRIM2#
main74210-0K220-C1i202111-202210
BLACK,TRIM22
main74210-0K220-C1i202111-202210
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main74210-0K220-C2i202111-202210
BLACK/GR RED,TRIM24
main74210-0K300-C0i202109-202301
BLACK,TRIM2#
main74210-0K320-C0i202110-202209
BLACK,TRIM22
sub74210-0K320
main74210-0K320-C0i202110-202209
BLACK,TRIM2#
sub74210-0K320
main74210-0K320-C1i202110-202209
BLACK/CRIMSON,TRIM3#
sub74210-0K320
main74210-0K320-C2i202110-202209
BLACK/GR RED,TRIM24
sub74210-0K320
main74210-0K320-E6i202110-202209
CHAMOIS,TRIM4#
sub74210-0K320
main74210-0K400-C0i202108-202207
BLACK,TRIM2#
main74210-0K400-C0i202108-202207
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74210-0K400-E9i202108-202207
SEAT COVER MATERIAL-FABLIC(HI),CHAMOIS,TRIM4#
main74210-0K400-E9i202108-202207
CHAMOIS,TRIM4#
main74210-0K410-C0i202108-202208
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74210-0K410-C0i202108-202208
BLACK,TRIM2#
main74210-0K410-E9i202108-202208
CHAMOIS,TRIM4#
main74210-0K410-E9i202108-202208
SEAT COVER MATERIAL-FABLIC(HI),CHAMOIS,TRIM4#
main74210-0K420-C0i202111-202210
BLACK,TRIM2#
main74210-0K480-C0i202205-202209
BLACK,TRIM2#
main74210-0K490-C0i202205-202209
BLACK,TRIM2#
main74210-0K490-C1i202205-202209
BLACK/CRIMSON,TRIM3#
74220ARMREST ASSY, FRONT, LH
main74220-0K090-C0i202108-202304
BLACK,TRIM2#
main74220-0K090-E6i202108-202207
CHAMOIS,TRIM4#
main74220-0K100-C2i202108-202304
BLACK,TRIM3#
main74220-0K100-C3i202108-202304
BLACK,TRIM2#
main74220-0K100-C3i202108-202207
BLACK,TRIM0#,22
main74220-0K100-C3i202108-202207
BLACK,TRIM0#,2#
main74220-0K100-C3i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main74220-0K100-C3i202108-202207
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#
main74220-0K100-C3i202202-202304
BLACK,TRIM22
main74220-0K100-C4i202108-202304
BLACK/GR RED,TRIM24
main74220-0K100-E7i202108-202304
CHAMOIS,TRIM4#
main74220-0K100-E7i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
main74220-0K100-E7i202108-202207
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#
main74220-0K110-C0i202108-202208
BLACK,TRIM2#
main74220-0K110-E7i202108-202208
CHAMOIS,TRIM4#
main74220-0K130-C0i202108-202208
BLACK,TRIM0#,2#
main74220-0K130-C0i202108-202208
BLACK,TRIM22
main74220-0K130-C0i202108-202208
BLACK,TRIM2#
main74220-0K130-C0i202108-202208
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main74220-0K130-C0i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#
main74220-0K130-C1i202108-202208
BLACK/CRIMSON,TRIM3#
main74220-0K130-C2i202108-202208
BLACK/GR RED,TRIM24
main74220-0K130-E7i202108-202208
CHAMOIS,TRIM4#
main74220-0K130-E7i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#
main74220-0K130-E7i202108-202208
SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
main74220-0K200-C0i202111-202210
BLACK,TRIM2#
main74220-0K200-C0i202111-202210
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74220-0K220-A1i202111-202210
FROMARGE,TRIM0#
main74220-0K220-C1i202111-202210
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main74220-0K220-C1i202111-202210
BLACK,TRIM22
main74220-0K220-C1i202111-202210
BLACK,TRIM2#
main74220-0K220-C2i202111-202210
BLACK/GR RED,TRIM24
main74220-0K300-C0i202109-202301
BLACK,TRIM2#
main74220-0K320-C0i202110-202209
BLACK,TRIM22
sub74220-0K320
main74220-0K320-C0i202110-202209
BLACK,TRIM2#
sub74220-0K320
main74220-0K320-C1i202110-202209
BLACK/CRIMSON,TRIM3#
sub74220-0K320
main74220-0K320-C2i202110-202209
BLACK/GR RED,TRIM24
sub74220-0K320
main74220-0K320-E6i202110-202209
CHAMOIS,TRIM4#
sub74220-0K320
main74220-0K400-C0i202108-202207
BLACK,TRIM2#
main74220-0K400-C0i202108-202207
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74220-0K400-E9i202108-202207
SEAT COVER MATERIAL-FABLIC(HI),CHAMOIS,TRIM4#
main74220-0K400-E9i202108-202207
CHAMOIS,TRIM4#
main74220-0K410-C0i202108-202208
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74220-0K410-C0i202108-202208
BLACK,TRIM2#
main74220-0K410-E9i202108-202208
CHAMOIS,TRIM4#
main74220-0K410-E9i202108-202208
SEAT COVER MATERIAL-FABLIC(HI),CHAMOIS,TRIM4#
main74220-0K420-C0i202111-202210
BLACK,TRIM2#
main74220-0K480-C0i202205-202209
BLACK,TRIM2#
main74220-0K490-C0i202205-202209
BLACK,TRIM2#
main74220-0K490-C1i202205-202209
BLACK/CRIMSON,TRIM3#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-0K600i202108-202304
main74231-0K611i202108-202304
main74231-0K640i202108-202208
main74231-0K651i202108-202207
main74231-0K710i202111-202210
main74231-0K720i202111-202210
SEAT COVER MATERIAL-NATURAL LEATHER
main74231-0K800i202109-202301
main74231-0K810i202109-202301
main74231-0K850i202110-202209
main74231-0K870i202108-202208
main74231-0K880i202108-202209
main74231-0K890i202108-202209
main74231-0KB80i202110-202208
main74231-0KC00i202202
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-0K600i202108-202208
main74232-0K611i202108-202207
main74232-0K640i202108-202304
main74232-0K651i202108-202304
main74232-0K700i202111-202210
SEAT COVER MATERIAL-NATURAL LEATHER
main74232-0K800i202109-202301
main74232-0K810i202109-202301
main74232-0K860i202110-202209
main74232-0K870i202108-202209
main74232-0KA30i202108-202208
main74232-0KA40i202108-202209
main74232-0KA80i202111-202210
main74232-0KB70i202110-202208
main74232-0KB90i202202
74250ARMREST ASSY, REAR RH
main74250-0K050-C0i202108-202304
BLACK,TRIM2#
main74250-0K050-E6i202108-202207
CHAMOIS,TRIM4#
main74250-0K060-C2i202108-202304
BLACK,TRIM3#
main74250-0K060-C3i202108-202207
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#
main74250-0K060-C3i202108-202207
BLACK,TRIM0#,22
main74250-0K060-C3i202108-202207
BLACK,TRIM0#,2#
main74250-0K060-C3i202108-202304
BLACK,TRIM2#
main74250-0K060-C3i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main74250-0K060-C3i202202-202304
BLACK,TRIM22
main74250-0K060-C4i202108-202304
BLACK/GR RED,TRIM24
main74250-0K060-E7i202108-202207
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#
main74250-0K060-E7i202108-202304
CHAMOIS,TRIM4#
main74250-0K060-E7i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
main74250-0K070-C0i202108-202208
BLACK,TRIM2#
main74250-0K070-E7i202108-202208
CHAMOIS,TRIM4#
main74250-0K090-C0i202108-202208
BLACK,TRIM2#
main74250-0K090-C0i202108-202208
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main74250-0K090-C0i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#
main74250-0K090-C0i202108-202208
BLACK,TRIM22
main74250-0K090-C0i202108-202208
BLACK,TRIM0#,2#
main74250-0K090-C1i202108-202208
BLACK/CRIMSON,TRIM3#
main74250-0K090-C2i202108-202208
BLACK/GR RED,TRIM24
main74250-0K090-E7i202108-202208
CHAMOIS,TRIM4#
main74250-0K090-E7i202108-202208
SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
main74250-0K090-E7i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#
main74250-0K140-C0i202111-202210
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74250-0K140-C0i202111-202210
BLACK,TRIM2#
main74250-0K160-A1i202111-202210
FROMARGE,TRIM0#
main74250-0K160-C1i202111-202210
BLACK,TRIM22
main74250-0K160-C1i202111-202210
BLACK,TRIM2#
main74250-0K160-C1i202111-202210
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main74250-0K160-C2i202111-202210
BLACK/GR RED,TRIM24
main74250-0K210-C0i202109-202301
BLACK,TRIM2#
main74250-0K230-C0i202110-202209
BLACK,TRIM22
sub74250-0K230
main74250-0K230-C0i202110-202209
BLACK,TRIM2#
sub74250-0K230
main74250-0K230-C1i202110-202209
BLACK/CRIMSON,TRIM3#
sub74250-0K230
main74250-0K230-C2i202110-202209
BLACK/GR RED,TRIM24
sub74250-0K230
main74250-0K230-E6i202110-202209
CHAMOIS,TRIM4#
sub74250-0K230
main74250-0K310-C0i202108-202207
BLACK,TRIM2#
main74250-0K310-C0i202108-202207
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74250-0K310-E9i202108-202207
CHAMOIS,TRIM4#
main74250-0K310-E9i202108-202207
SEAT COVER MATERIAL-FABLIC(HI),CHAMOIS,TRIM4#
main74250-0K320-C0i202108-202208
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74250-0K320-C0i202108-202208
BLACK,TRIM2#
main74250-0K320-E9i202108-202208
SEAT COVER MATERIAL-FABLIC(HI),CHAMOIS,TRIM4#
main74250-0K320-E9i202108-202208
CHAMOIS,TRIM4#
main74250-0K330-C0i202111-202210
BLACK,TRIM2#
main74250-0K370-C0i202205-202209
BLACK,TRIM2#
main74250-0K380-C0i202205-202209
BLACK,TRIM2#
main74250-0K380-C1i202205-202209
BLACK/CRIMSON,TRIM3#
74260ARMREST ASSY, REAR LH
main74260-0K050-C0i202108-202304
BLACK,TRIM2#
main74260-0K050-E6i202108-202207
CHAMOIS,TRIM4#
main74260-0K060-C2i202108-202304
BLACK,TRIM3#
main74260-0K060-C3i202108-202207
BLACK,TRIM0#,2#
main74260-0K060-C3i202108-202304
BLACK,TRIM2#
main74260-0K060-C3i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main74260-0K060-C3i202108-202207
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#
main74260-0K060-C3i202108-202207
BLACK,TRIM0#,22
main74260-0K060-C3i202202-202304
BLACK,TRIM22
main74260-0K060-C4i202108-202304
BLACK/GR RED,TRIM24
main74260-0K060-E7i202108-202207
SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
main74260-0K060-E7i202108-202304
CHAMOIS,TRIM4#
main74260-0K060-E7i202108-202207
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#
main74260-0K070-C0i202108-202208
BLACK,TRIM2#
main74260-0K070-E7i202108-202208
CHAMOIS,TRIM4#
main74260-0K090-C0i202108-202208
BLACK,TRIM22
main74260-0K090-C0i202108-202208
BLACK,TRIM0#,2#
main74260-0K090-C0i202108-202208
BLACK,TRIM2#
main74260-0K090-C0i202108-202208
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main74260-0K090-C0i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#
main74260-0K090-C1i202108-202208
BLACK/CRIMSON,TRIM3#
main74260-0K090-C2i202108-202208
BLACK/GR RED,TRIM24
main74260-0K090-E7i202108-202208
CHAMOIS,TRIM4#
main74260-0K090-E7i202108-202208
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#
main74260-0K090-E7i202108-202208
SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
main74260-0K140-C0i202111-202210
BLACK,TRIM2#
main74260-0K140-C0i202111-202210
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74260-0K160-A1i202111-202210
FROMARGE,TRIM0#
main74260-0K160-C1i202111-202210
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main74260-0K160-C1i202111-202210
BLACK,TRIM22
main74260-0K160-C1i202111-202210
BLACK,TRIM2#
main74260-0K160-C2i202111-202210
BLACK/GR RED,TRIM24
main74260-0K210-C0i202109-202301
BLACK,TRIM2#
main74260-0K230-C0i202110-202209
BLACK,TRIM22
sub74260-0K230
main74260-0K230-C0i202110-202209
BLACK,TRIM2#
sub74260-0K230
main74260-0K230-C1i202110-202209
BLACK/CRIMSON,TRIM3#
sub74260-0K230
main74260-0K230-C2i202110-202209
BLACK/GR RED,TRIM24
sub74260-0K230
main74260-0K230-E6i202110-202209
CHAMOIS,TRIM4#
sub74260-0K230
main74260-0K310-C0i202108-202207
BLACK,TRIM2#
main74260-0K310-C0i202108-202207
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74260-0K310-E9i202108-202207
SEAT COVER MATERIAL-FABLIC(HI),CHAMOIS,TRIM4#
main74260-0K310-E9i202108-202207
CHAMOIS,TRIM4#
main74260-0K320-C0i202108-202208
BLACK,TRIM2#
main74260-0K320-C0i202108-202208
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74260-0K320-E9i202108-202208
SEAT COVER MATERIAL-FABLIC(HI),CHAMOIS,TRIM4#
main74260-0K320-E9i202108-202208
CHAMOIS,TRIM4#
main74260-0K330-C0i202111-202210
BLACK,TRIM2#
main74260-0K370-C0i202205-202209
BLACK,TRIM2#
main74260-0K380-C0i202205-202209
BLACK,TRIM2#
main74260-0K380-C1i202205-202209
BLACK/CRIMSON,TRIM3#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-0K310i202108-202304
main74271-0K321i202108-202304
main74271-0K340i202108-202209
main74271-0K350i202108-202209
main74271-0K360i202111-202210
main74271-0K370i202111-202210
SEAT COVER MATERIAL-NATURAL LEATHER
main74271-0K400i202109-202301
main74271-0K420i202110-202209
main74271-0K480i202110-202208
main74271-0K510i202202
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-0K310i202108-202304
main74272-0K321i202108-202304
main74272-0K340i202108-202209
main74272-0K350i202108-202209
main74272-0K360i202111-202210
main74272-0K370i202111-202210
SEAT COVER MATERIAL-NATURAL LEATHER
main74272-0K400i202109-202301
main74272-0K420i202110-202209
main74272-0K480i202110-202208
main74272-0K500i202202
90467T0034
main90467-T0034

9 parts on this diagram · 2 diagrams in section

ARMREST & VISOR — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
