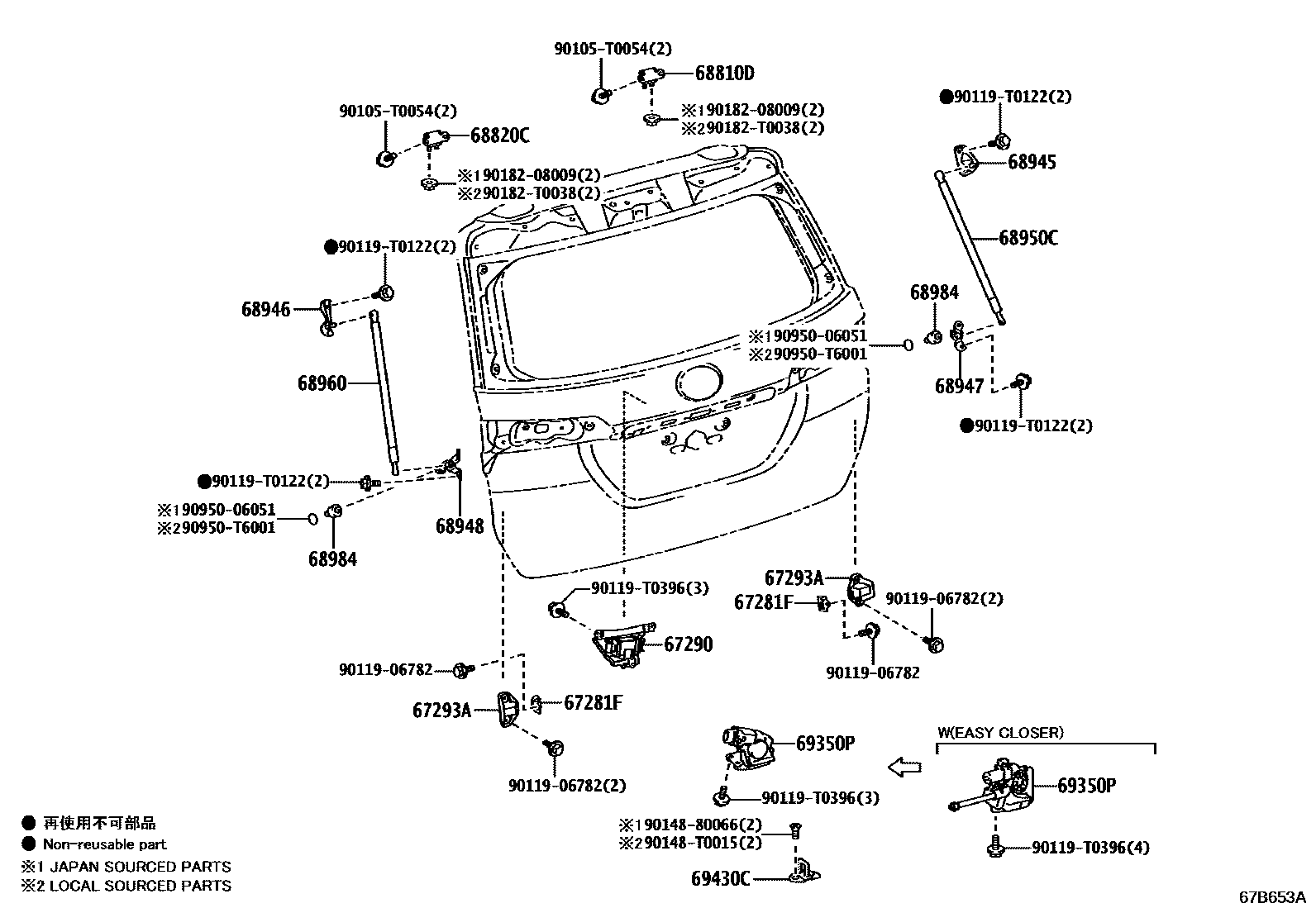

BACK DOOR LOCK & HINGE
67281FSTOPPER, BACK DOOR, LOWER
67290DAMPER ASSY, BACK DOOR
67293ACUSHION, BACK DOOR STOPPER
68810DHINGE ASSY, BACK DOOR, RH
PAD T=1.6
PAD T=1.6
PAD T=2.0
PAD T=1.0
PAD T=1.6
PAD T=2.0
68820CHINGE ASSY, BACK DOOR, LH
PAD T=1.6
PAD T=1.6
PAD T=2.0
PAD T=1.0
PAD T=1.6
PAD T=2.0
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
POWER BACK DOOR-WITH
POWER BACK DOOR-WITH&SPEAKER-11SPEAKER & JBL
POWER BACK DOOR-WITH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
POWER BACK DOOR-WITH
POWER BACK DOOR-WITH
POWER BACK DOOR-WITH&SPEAKER-11SPEAKER & JBL
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
ASEAN GENERAL SPEC
main68950-0K381iGUN165..LHD..IDNP..(GCC,GEN);GGN155,GUN15#,TGN156,166..IDNP..(L,S)..(ARL,GCC,GEN)202108-202304
POWER BACK DOOR-WITHOUT & WITH(EASY CLOSER)
68960STAY ASSY, BACK DOOR, LH
ASEAN GENERAL SPEC
POWER BACK DOOR-WITHOUT & WITH(EASY CLOSER)
68984STOPPER, BACK DOOR STAY
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&POWER BACK DOOR-WITHOUT & WITH(EASY CLOSER)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&POWER BACK DOOR-WITHOUT & WITH(EASY CLOSER)
69430CSTRIKER ASSY, BACK DOOR LOCK
THAILAND PRODUCT
INDIA PRODUCT
90105T0054
main90105-T0054
9011906782
main90119-06782
90119T0122
main90119-T0122
90119T0396
main90119-T0396
9014880066
main90148-80066
90148T0015
main90148-T0015
9018208009
main90182-08009
90182T0038
main90182-T0038
9095006051
main90950-06051
90950T6001
main90950-T6001
24 parts on this diagram · 2 diagrams in section
