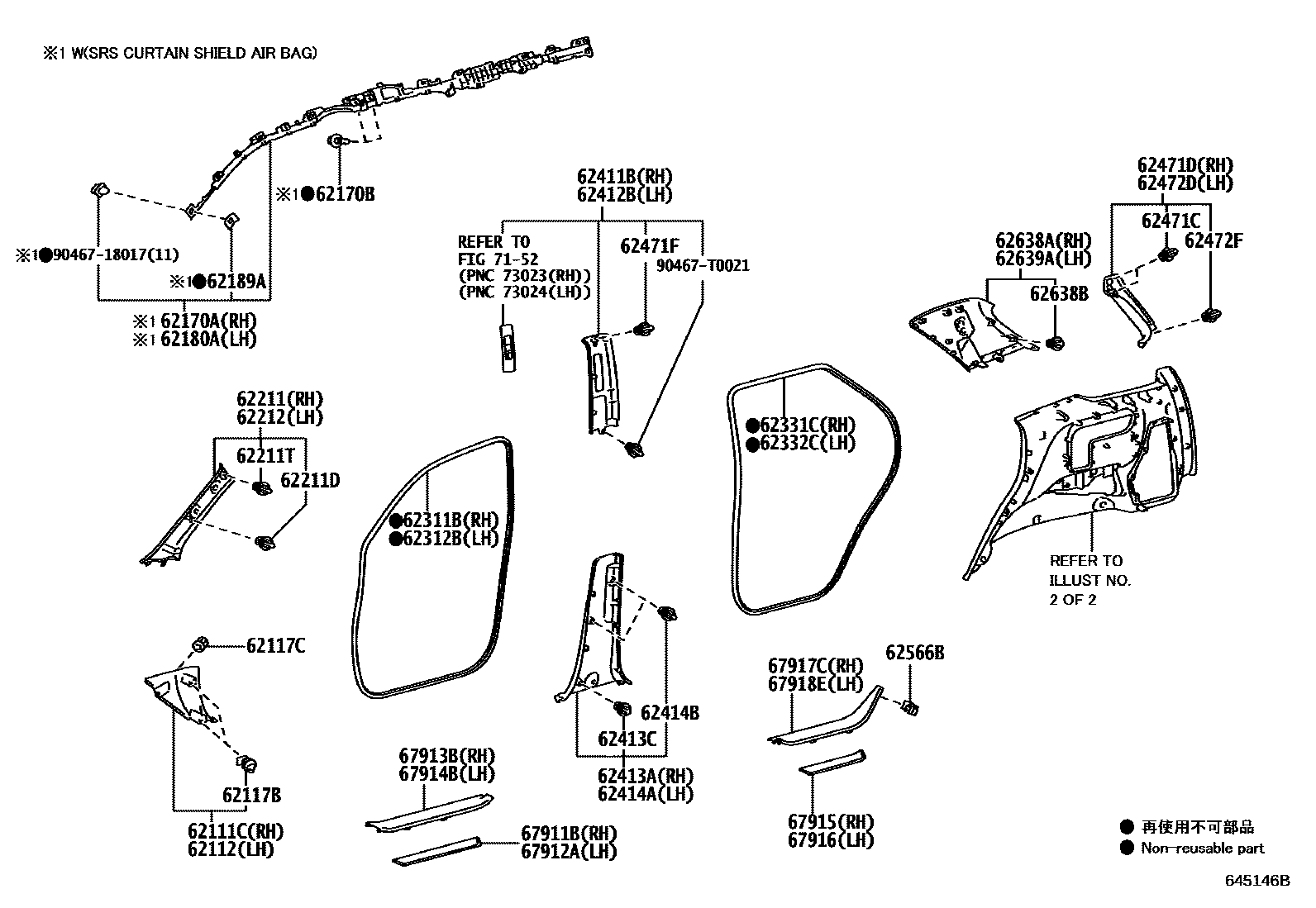

INSIDE TRIM BOARD

0001 1 0002 1 0003 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-0K210-C0iGUN156..THP..GEN202108-202207

BLACK,TRIM2#,4#

main62111-0K210-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM4#

main62111-0K210-C0iGUN15#,16#..H..TH202108-202304

BLACK,TRIM2#

main62111-0K210-C0iGUN156..THP..GEN202108-202207

BLACK,TRIM0#,2#,3#

main62111-0K210-C0iGUN156..THP..GEN202108-202207

BLACK,TRIM0#,2#,3#,4#

main62111-KK010-C0iTGN156,166..GEN;GUN156..RHD..IDNP..(ARL,GEN);GUN156,TGN156..IDNP..(H,S)..GCC;GGN155,GUN155,165..IDNP..(H,S)..(GCC,GEN)202108-202208

BLACK,TRIM2#,4#

main62111-KK010-C0iGUN156..LHD..IDNP..GEN202108-202208

BLACK,TRIM4#

main62111-KK010-C0iGUN156..LHD..IDNP..GEN202108-202208

BLACK,TRIM0#,2#,3#,4#

main62111-KK010-C0iGUN156..LHD..IDNP..GEN202108-202301

BLACK,TRIM2#,3#

main62111-KK010-C0iGUN156..LHD..IDNP..GEN202108-202301

BLACK,TRIM2#

main62111-KK010-C0iGUN156..IND;GUN166..6FC..IND202110-202203

BLACK,TRIM2#,3#,4#

main62111-KK010-C0iGGN155,GUN156..AGTP..H202111-202210

BLACK,TRIM0#,2#

main62111-KK030-C0iGUN165,TGN166..VNP..(L,S)202205-202209

BLACK,TRIM2#,3#

main62111-KK030-C0iGUN165,TGN166..VNP..(L,S)202205-202209

BLACK,TRIM2#

main62111-KK030-C0iGUN156,166..6FC..IND202203-202209

BLACK,TRIM2#,3#,4#

main62111-KK030-C0iGUN156,166..6FC..IND202203-202209

BLACK,TRIM2#,4#

62112BOARD, COWL SIDE TRIM, LH

main62112-0K210-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#,4#

main62112-0K210-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM4#

main62112-0K210-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM2#,4#

main62112-0K210-C0iGUN15#,16#..H..TH202108-202304

BLACK,TRIM2#

main62112-0K210-C0iGUN156..THP..GEN202108-202207

BLACK,TRIM0#,2#,3#

main62112-KK010-C0iGUN156,166..MA,PH202108-202208

BLACK,TRIM0#,2#,3#,4#

main62112-KK010-C0iTGN166..IND;GUN166..6F..IND202108-202208

BLACK,TRIM2#,4#

main62112-KK010-C0iGUN156..IND;GUN166..6FC..IND202110-202203

BLACK,TRIM2#,3#,4#

main62112-KK010-C0iGUN156..LHD..IDNP..GEN202108-202208

BLACK,TRIM4#

main62112-KK010-C0iGUN156..LHD..IDNP..GEN202108-202301

BLACK,TRIM2#,3#

main62112-KK010-C0iGUN156..LHD..IDNP..GEN202108-202301

BLACK,TRIM2#

main62112-KK010-C0iGGN155,GUN156..AGTP..H202111-202210

BLACK,TRIM0#,2#

main62112-KK030-C0iGUN165,TGN166..VNP..(L,S)202205-202209

BLACK,TRIM2#,3#

main62112-KK030-C0iTGN166..IND;GUN156,166..6F..IND202203-202209

BLACK,TRIM2#,3#,4#

main62112-KK030-C0iTGN166..IND;GUN156,166..6F..IND202203-202209

BLACK,TRIM2#,4#

main62112-KK030-C0iGUN156,165..VNP..H202205-202209

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-11089-A0iGGN155,TGN166..EPT202108-202304

IVORY

sub90467-11089

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-06147iGUN156,166,TGN166..IND202108-202304

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0K110iGUN165..TH;GUN156,166..THP;GGN155,GUN155..THP..H202108-202210

sub62170-0K111

main62170-0K110iGUN155..S..IDN;GUN16#,TGN166..IDN,PH;GGN155,GUN156..H..GCC202108-202203

SRS AIR BAG-WITH(*DRP)

sub62170-0K111

main62170-0K130iGUN15#,LAN155,TGN156..LHD..SA202109-202301

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main62170-0K180iGUN156,166,TGN166..IND202110-202209

sub62170-0K181

62170BBOLT, W/WASHER

main91673-80616iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202301

main91673-80616iGUN155..S..IDN;GUN16#,TGN166..IDN,PH;GGN155,GUN156..H..GCC202108-202203

SRS AIR BAG-WITH(*DRP)

main91673-80616iGUN15#,LAN155,TGN156..LHD..SA202109-202301

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0K110iGUN165..TH;GUN156,166..THP;GGN155,GUN155..THP..H202108-202210

sub62180-0K111

main62180-0K110iGUN155..S..IDN;GUN16#,TGN166..IDN,PH;GGN155,GUN156..H..GCC202108-202203

SRS AIR BAG-WITH(*DRP)

sub62180-0K111

main62180-0K130iGUN15#,LAN155,TGN156..LHD..SA202109-202301

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main62180-0K180iGUN156,166,TGN166..IND202110-202209

sub62180-0K181

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iGUN165..TH;GUN156,166..THP;GGN155,GUN155..THP..H202108-202301

main62189-42010iGUN155..S..IDN;GUN16#,TGN166..IDN,PH;GGN155,GUN156..H..GCC202108-202203

SRS AIR BAG-WITH(*DRP)

main62189-42010iGUN15#,LAN155,TGN156..LHD..SA202109-202301

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

62211GARNISH, FRONT PILLAR, RH

main62211-0K190-B0iGUN156..TH202108-202208

LT.GRAY,TRIM2#

main62211-0K190-B0iGGN155,GUN155..THP..H..GCC;GUN156..THP..(ARL,GCC,GEN)202108-202207

LT.GRAY,TRIM22

main62211-0K190-B0iGGN155,GUN155..THP..H..GCC;GUN156..THP..(ARL,GCC,GEN)202108-202207

LT.GRAY,TRIM2#,4#

main62211-0K190-C0iGUN156..TH202108-202207

BLACK,TRIM0#,3#

main62211-0K190-C0iGUN156..THP..GEN;GUN155,16#..H..TH202108-202207

BLACK,TRIM0#,24,3#

main62211-0K190-C0iGUN156..MA202110-202208

BLACK,TRIM3#

main62211-0K190-C0iGUN156..6FC..IND202204-202209

GR SPORT & ACCESSORY,BLACK,TRIM2#

main62211-0K200-B0iGGN155,GUN156..THP..H..GCC202108-202207

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62211-0K200-B0iGUN156..PKN202202-202304

LT.GRAY,TRIM22,4#

main62211-0K200-B0iGGN155,TGN166..EPT202110-202304

LT.GRAY,TRIM2#

main62211-0K200-B0iTGN156,166..PKN202108-202304

LT.GRAY,TRIM2#,4#

main62211-0K200-B0iGUN155,165,TGN156..THP..L202108-202207

LT.GRAY,TRIM4#

main62211-0K200-C0iGUN156..PKN202202-202304

BLACK,TRIM24,3#

main62211-KK020-B0iGUN155,165,TGN156,166..IDNP..L..GCC202108-202208

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62211-KK020-B0iGUN155,165,TGN156,166..IDNP..L..GCC202108-202208

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#

main62211-KK020-B0iGGN155,GUN156..IDNP..H..GCC202108-202208

LT.GRAY,TRIM2#,4#

main62211-KK020-B0iGGN155,GUN156..IDNP..H..GCC202108-202208

LT.GRAY,TRIM4#

main62211-KK020-B0iGUN15#,LAN155,TGN156..LHD..SA202109-202301

LT.GRAY,TRIM2#

main62211-KK020-C0iGUN166..PH202108-202208

SRS AIR BAG-WITH(*DRP),BLACK,TRIM3#

main62211-KK030-B0iGUN156..AGTP..6F;GUN156..AGTP..6FC..(L,S);GGN155,GUN16#,TGN156,16#..AGTP202108-202210

LT.GRAY,TRIM22

main62211-KK030-B0iGUN156..IDNP..(PH,VN)202108-202208

LT.GRAY,TRIM4#

main62211-KK030-B0iGUN156..IDNP..(PH,VN)202108-202301

LT.GRAY,TRIM2#

main62211-KK030-B0iGUN156..IDNP..(PH,VN)202108-202209

LT.GRAY,TRIM2#,4#

main62211-KK030-B0iGUN156..6FC..IND202110-202209

LT.GRAY,TRIM22,4#

main62211-KK030-B0iGUN15#,LAN155,TGN156..LHD..SA202109-202301

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#

main62211-KK030-C0iGUN166..PH202108-202208

BLACK,TRIM24

main62211-KK030-C0iGUN156..IDNP..VN202108-202209

BLACK,TRIM24,3#

main62211-KK030-C0iGUN156..IDNP..VN202108-202301

BLACK,TRIM3#

main62211-KK030-C0iGUN156..PH202108-202208

BLACK,TRIM0#,3#

main62211-KK030-C0iGUN156..AGTP..6FC..H202111-202210

BLACK,TRIM0#,24

main62211-KK030-C0iGUN156..AGTP..6FC..H202111-202210

BLACK,TRIM0#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-T0021iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10188iGGN155,GUN155,165,TGN156,166..IDNP..(L,S)..GCC202108-202208

SRS AIR BAG-WITH(*DRP)

main90467-10188iGUN156..PKN;GUN15#..LHD..SA;GGN155,LAN155,TGN156,166..EPT,PKN,SA202108-202304

main90467-T0021iGUN155..IDNP..H..GCC;GGN155,GUN156,166..(IDNP,MAP)..(H,L);GUN155,165,TGN156,166..(IDNP,MAP)..(GEN,IDN,MA,PH,VN)202108-202301

main90467-T0021iGUN15#,LAN155,TGN156..LHD..SA202109-202301

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

62212GARNISH, FRONT PILLAR, LH

main62212-0K190-B0iGUN155,16#..TH202108-202208

LT.GRAY,TRIM2#

main62212-0K190-B0iGUN156..TH202108-202207

LT.GRAY,TRIM22

main62212-0K190-B0iGUN156..TH202108-202207

LT.GRAY,TRIM2#,4#

main62212-0K190-C0iGUN156..TH202108-202207

BLACK,TRIM0#,24,3#

main62212-0K190-C0iGUN156..THP..GEN;GUN155,16#..H..TH202108-202207

BLACK,TRIM0#,3#

main62212-0K190-C0iGUN156..MA202110-202208

BLACK,TRIM3#

main62212-0K190-C0iGUN156..6FC..IND202204-202209

GR SPORT & ACCESSORY,BLACK,TRIM2#

main62212-0K200-B0iGUN155,165,TGN156..THP..L202108-202207

LT.GRAY,TRIM4#

sub62212-0K201

main62212-0K200-B0iGUN155,165,TGN156..THP..L202108-202304

LT.GRAY,TRIM2#,4#

sub62212-0K201

main62212-0K200-B0iGUN155,165,TGN156..THP..L202108-202207

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

sub62212-0K201

main62212-0K200-B0iGGN155,TGN166..EPT202110-202304

LT.GRAY,TRIM2#

sub62212-0K201

main62212-0K200-B0iGUN156..PKN202202-202304

LT.GRAY,TRIM22,4#

sub62212-0K201

main62212-0K200-C0iGUN156..PKN202202-202304

BLACK,TRIM24,3#

sub62212-0K201

main62212-KK020-B0iGGN155,GUN155,TGN156..IDNP..S..GCC202108-202208

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62212-KK020-B0iGGN155,GUN155,TGN156..IDNP..S..GCC202108-202208

LT.GRAY,TRIM2#,4#

main62212-KK020-B0iGGN155,GUN155,TGN156..IDNP..S..GCC202108-202208

LT.GRAY,TRIM4#

main62212-KK020-B0iGGN155,GUN155,TGN156..IDNP..S..GCC202108-202208

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#

main62212-KK020-B0iGUN15#,LAN155,TGN156..LHD..SA202109-202301

LT.GRAY,TRIM2#

main62212-KK020-C0iGUN166..PH202108-202208

SRS AIR BAG-WITH(*DRP),BLACK,TRIM3#

main62212-KK030-B0iGUN155..L..GEN202108-202209

LT.GRAY,TRIM2#,4#

main62212-KK030-B0iGUN156..IDNP..(PH,VN)202108-202208

LT.GRAY,TRIM4#

main62212-KK030-B0iGUN156..IDNP..(PH,VN)202108-202301

LT.GRAY,TRIM2#

main62212-KK030-B0iGUN155..L..GEN202108-202210

LT.GRAY,TRIM22

main62212-KK030-B0iGUN156..6FC..IND202110-202209

LT.GRAY,TRIM22,4#

main62212-KK030-B0iGUN15#,LAN155,TGN156..LHD..SA202109-202301

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#

main62212-KK030-C0iGUN156..AGTP..6FC..H202111-202210

BLACK,TRIM0#

main62212-KK030-C0iGGN155..LA;GUN156..6F..H..BZAGT202111-202210

BLACK,TRIM0#,24

main62212-KK030-C0iGUN156,165..VNP..H;GUN156,166..RHD..SA202108-202301

BLACK,TRIM3#

main62212-KK030-C0iGUN166..PH202108-202208

BLACK,TRIM0#,3#

main62212-KK030-C0iGUN156..LHD..IDNP..GEN202108-202208

BLACK,TRIM24

main62212-KK030-C0iGUN156..LHD..IDNP..GEN202108-202209

BLACK,TRIM24,3#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0K111iGGN155,GUN156,TGN156,166..EPT,PKN202108-202304

main62311-0K141iGUN15#,16#,LAN155,TGN156..SA202109-202301

main62311-0K151iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main62311-0K170iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202209

main62311-0K180iGUN156,166,TGN166..IND202110-202209

main62311-0K211iGUN15#,TGN156..MA202110-202208

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0K111iGGN155,GUN156,TGN156,166..EPT,PKN202108-202304

main62312-0K141iGUN15#,16#,LAN155,TGN156..SA202109-202301

main62312-0K151iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main62312-0K170iGUN156,165,TGN166..VNP202108-202209

main62312-0K180iGUN156,166,TGN166..IND202110-202209

main62312-0K211iGUN15#,TGN156..MA202110-202208

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0K130iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

main62331-0K160iGUN15#,16#,LAN155,TGN156..SA202109-202301

main62331-0K170iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main62331-0K180iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202209

main62331-0K190iGUN156,166,TGN166..IND202110-202209

main62331-0K220iGUN15#,TGN156..MA202110-202208

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0K130iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

main62332-0K160iGUN15#,16#,LAN155,TGN156..SA202109-202301

main62332-0K170iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main62332-0K180iGUN156,165,TGN166..VNP202108-202209

main62332-0K190iGUN156,166,TGN166..IND202110-202209

main62332-0K220iGUN15#,TGN156..MA202110-202208

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-0K120-B0iGUN155,TGN156..THP..(H,S)..GCC;GGN155,GUN156,TGN166..THP..(ARL,GCC,GEN)202108-202207

LT.GRAY,TRIM4#

main62411-0K120-B0iGUN156..TH202108-202210

LT.GRAY,TRIM22

main62411-0K120-B0iGUN156..TH202108-202304

LT.GRAY,TRIM2#,4#

main62411-0K120-B0iGUN156..TH202108-202304

LT.GRAY,TRIM2#

main62411-0K120-B0iGUN156..6FC..IND202110-202304

LT.GRAY,TRIM22,4#

main62411-0K120-C0iGUN156..AGTP..6FC..H202111-202210

BLACK,TRIM0#,24

main62411-0K120-C0iGUN156..THP..GEN;GUN155,16#..H..TH202108-202207

BLACK,TRIM0#,3#

main62411-0K120-C0iGUN156..THP..GEN;GUN155,16#..H..TH202108-202207

BLACK,TRIM0#,24,3#

main62411-0K120-C0iGUN156..PKN202110-202304

BLACK,TRIM24,3#

main62411-0K120-C0iGGN155..LA;GUN156..6F..H..BZAGT202111-202210

BLACK,TRIM0#

main62411-0K120-C0iGUN156..6F..IND;GUN166..6FC..IND202110-202209

BLACK,TRIM3#

main62411-KK010-B0iGUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN)202108-202208

LT.GRAY,TRIM4#

main62411-KK010-B0iGUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN)202108-202301

LT.GRAY,TRIM2#

main62411-KK010-B0iGUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN)202108-202208

LT.GRAY,TRIM2#,4#

main62411-KK010-B0iGUN15#..IDN;GUN16#,TGN156,166..IDNP..(IDN,PH,VN)202108-202208

LT.GRAY,TRIM22

main62411-KK010-C0iGUN156..IDNP..VN202108-202208

BLACK,TRIM24,3#

main62411-KK010-C0iGUN156..IDNP..VN202108-202301

BLACK,TRIM3#

main62411-KK010-C0iGUN156..PH202108-202208

BLACK,TRIM0#,3#

main62411-KK010-C0iGUN156..PH202108-202208

BLACK,TRIM24

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-0K120-B0iGUN155,TGN156..THP..(H,S)..GCC;GGN155,GUN156,TGN166..THP..(ARL,GCC,GEN)202108-202304

LT.GRAY,TRIM2#

main62412-0K120-B0iGUN156..TH202108-202210

LT.GRAY,TRIM22

main62412-0K120-B0iGUN156..TH202108-202207

LT.GRAY,TRIM4#

main62412-0K120-B0iGUN156..TH202108-202304

LT.GRAY,TRIM2#,4#

main62412-0K120-B0iGUN156..6FC..IND202110-202304

LT.GRAY,TRIM22,4#

main62412-0K120-C0iGUN156..PKN202110-202304

BLACK,TRIM24,3#

main62412-0K120-C0iGGN155..LA;GUN156..6F..H..BZAGT202111-202210

BLACK,TRIM0#

main62412-0K120-C0iGGN155..LA;GUN156..6F..H..BZAGT202111-202210

BLACK,TRIM0#,24

main62412-0K120-C0iGUN156..TH202108-202207

BLACK,TRIM0#,24,3#

main62412-0K120-C0iGUN156..TH202108-202207

BLACK,TRIM0#,3#

main62412-0K120-C0iGUN156..6F..IND;GUN166..6FC..IND202110-202209

BLACK,TRIM3#

main62412-KK010-B0iTGN156,166..GEN;TGN156..IDNP..S;GUN156..IDNP..(ARL,GCC,GEN);GGN155,GUN155,165..IDNP..(H,S)..(GCC,GEN)202108-202208

LT.GRAY,TRIM2#,4#

main62412-KK010-B0iGUN156..IDNP..(PH,VN)202108-202208

LT.GRAY,TRIM22

main62412-KK010-B0iGUN156..IDNP..(PH,VN)202108-202208

LT.GRAY,TRIM4#

main62412-KK010-B0iGUN156..IDNP..(PH,VN)202108-202301

LT.GRAY,TRIM2#

main62412-KK010-C0iGUN156..LHD..IDNP..GEN202108-202208

BLACK,TRIM0#,3#

main62412-KK010-C0iGUN156..LHD..IDNP..GEN202108-202208

BLACK,TRIM24

main62412-KK010-C0iGUN156..LHD..IDNP..GEN202108-202208

BLACK,TRIM24,3#

main62412-KK010-C0iGUN156..LHD..IDNP..GEN202108-202301

BLACK,TRIM3#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0K110-C0iGUN155,165,TGN156..THP..L202108-202304

BLACK,TRIM2#

main62413-0K110-C0iTGN156,166..PKN202108-202304

BLACK,TRIM2#,4#

main62413-0K110-C0iGUN156..PKN202202-202304

BLACK,TRIM2#,3#,4#

main62413-0K110-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#

main62413-0K110-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#,4#

main62413-0K110-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM4#

main62413-KK010-C0iGUN156,165..VNP..H;GUN156,166..RHD..SA202108-202301

BLACK,TRIM2#,3#

main62413-KK010-C0iGUN156,166..MA,PH202108-202208

BLACK,TRIM0#,2#,3#,4#

main62413-KK010-C0iGUN156,166..MA,PH202108-202208

BLACK,TRIM4#

main62413-KK010-C0iGUN156,166..MA,PH202108-202301

BLACK,TRIM2#

main62413-KK010-C0iGUN156,166..MA,PH202108-202209

BLACK,TRIM2#,4#

main62413-KK010-C0iGUN156..IND;GUN166..6FC..IND202110-202209

BLACK,TRIM2#,3#,4#

main62413-KK010-C0iGGN155,GUN156..AGTP..H202111-202210

BLACK,TRIM0#,2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10167iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202304

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0K110-C0iGUN155,TGN156..THP..(H,S)..GCC;GGN155,GUN156,TGN166..THP..(ARL,GCC)202108-202207

BLACK,TRIM4#

main62414-0K110-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#

main62414-0K110-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#,4#

main62414-0K110-C0iGUN15#,16#..H..TH202108-202304

BLACK,TRIM2#,4#

main62414-0K110-C0iGUN15#,16#..H..TH202108-202304

BLACK,TRIM2#

main62414-0K110-C0iGUN156..PKN202202-202304

BLACK,TRIM2#,3#,4#

main62414-KK010-C0iGUN156,165..VNP..H;GUN156,166..RHD..SA202108-202301

BLACK,TRIM2#

main62414-KK010-C0iTGN156,166..GEN;GUN156..RHD..IDNP..(ARL,GEN);GUN156,TGN156..IDNP..(H,S)..GCC;GGN155,GUN155,165..IDNP..(H,S)..(GCC,GEN)202108-202301

BLACK,TRIM2#,3#

main62414-KK010-C0iGUN156..IDNP..(IDN,VN);GUN165..IDNP..(IDN,PH,VN);GUN155,166,TGN156,166..(IDNP,MAP)..(IDN,MA,VN)202108-202208

BLACK,TRIM4#

main62414-KK010-C0iGUN156..IDNP..(IDN,VN);GUN165..IDNP..(IDN,PH,VN);GUN155,166,TGN156,166..(IDNP,MAP)..(IDN,MA,VN)202108-202209

BLACK,TRIM2#,4#

main62414-KK010-C0iTGN156,166..GEN;GUN156..RHD..IDNP..(ARL,GEN);GUN156,TGN156..IDNP..(H,S)..GCC;GGN155,GUN155,165..IDNP..(H,S)..(GCC,GEN)202108-202208

BLACK,TRIM0#,2#,3#,4#

main62414-KK010-C0iGUN156..IND;GUN166..6FC..IND202110-202209

BLACK,TRIM2#,3#,4#

main62414-KK010-C0iGGN155,GUN156..AGTP..H202111-202210

BLACK,TRIM0#,2#

62414BCLIP (FOR CENTER LOWER GARNISH)

main90467-10188iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

62471CCLIP(FOR REAR PILLAR COVER)

main90467-10188iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTP,PKNP,SAP,VNP202108-202304

62471DGARNISH, REAR PILLAR, UPPER RH

main62471-0K170-B0iGUN156..6FC..H..BZAGT202111-202210

REAR NO.2 SEAT-WITHOUT,LT.GRAY,TRIM22

main62471-0K170-B0iGUN156..6FC..H..BZAGT202111-202210

REAR NO.2 SEAT-WITHOUT,LT.GRAY,TRIM2#

main62471-0K170-C0iGUN156..6FC..H..BZAGT202111-202210

REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,24

main62471-0K170-C0iGUN156..6FC..H..BZAGT202111-202210

REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#

main62471-0K200-B0iGUN155,TGN156..THP..(H,S)..GCC;GGN155,GUN156,TGN166..THP..(ARL,GCC,GEN)202108-202304

LT.GRAY,TRIM2#

main62471-0K200-B0iGUN156..PKN202202-202304

LT.GRAY,TRIM22,4#

main62471-0K200-B0iGGN155,TGN166..EPT202108-202304

LT.GRAY,TRIM2#,4#

main62471-0K200-B0iGUN155,16#..TH202108-202207

LT.GRAY,TRIM22

main62471-0K200-B0iGUN155,TGN156..THP..(H,S)..GCC;GGN155,GUN156,TGN166..THP..(ARL,GCC,GEN)202108-202207

LT.GRAY,TRIM4#

main62471-0K200-C0iGUN156..TH202108-202207

BLACK,TRIM0#,3#

main62471-0K200-C0iGUN156..THP..GEN;GUN155,16#..H..TH202108-202207

BLACK,TRIM0#,24,3#

main62471-0K200-C0iGUN156..PKN202202-202304

BLACK,TRIM24,3#

main62471-0K280-B0iGUN156..AGTP..6F;GUN156..AGTP..6FC..(L,S);GGN155,GUN16#,TGN156,16#..AGTP202111-202210

LT.GRAY,TRIM22

main62471-0K280-B0iGUN156..AGTP..6F;GUN156..AGTP..6FC..(L,S);GGN155,GUN16#,TGN156,16#..AGTP202111-202210

LT.GRAY,TRIM2#

main62471-0K280-C0iGUN156..AGTP..6FC..H202111-202210

BLACK,TRIM0#

main62471-0K280-C0iGUN156..AGTP..6FC..H202111-202210

BLACK,TRIM0#,24

main62471-KK010-B0iGUN156..6F..IND;GUN166,TGN166..IND202108-202209

LT.GRAY,TRIM2#,4#

main62471-KK010-B0iGUN156..IDNP..(PH,VN)202108-202208

LT.GRAY,TRIM22

main62471-KK010-B0iGUN156..IDNP..(PH,VN)202108-202208

LT.GRAY,TRIM4#

main62471-KK010-B0iGUN156..IDNP..(PH,VN)202108-202301

LT.GRAY,TRIM2#

main62471-KK010-B0iGUN156..6FC..IND202110-202209

LT.GRAY,TRIM22,4#

main62471-KK010-C0iGUN156..IDNP..VN202108-202208

BLACK,TRIM0#,3#

main62471-KK010-C0iGUN156..LHD..IDNP..GEN202108-202208

BLACK,TRIM24

main62471-KK010-C0iGUN156..LHD..IDNP..GEN202108-202209

BLACK,TRIM24,3#

main62471-KK010-C0iGUN156..LHD..IDNP..GEN202108-202301

BLACK,TRIM3#

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-10188iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTP,PKNP,SAP,VNP202108-202304

62472DGARNISH, REAR PILLAR, UPPER LH

main62472-0K130-B0iGUN156..6FC..H..BZAGT202111-202210

REAR NO.2 SEAT-WITHOUT,LT.GRAY,TRIM22

main62472-0K130-B0iGUN156..6FC..H..BZAGT202111-202210

REAR NO.2 SEAT-WITHOUT,LT.GRAY,TRIM2#

main62472-0K130-C0iGUN156..6F..H..BZAGT202111-202210

REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,24

main62472-0K130-C0iGUN156..6FC..H..BZAGT202111-202210

REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#

main62472-0K200-B0iGUN155,16#..TH202108-202304

LT.GRAY,TRIM2#,4#

main62472-0K200-B0iGUN155,16#..TH202108-202304

LT.GRAY,TRIM2#

main62472-0K200-B0iGUN155,TGN156..THP..(H,S)..GCC;GGN155,GUN156,TGN166..THP..(ARL,GCC,GEN)202108-202207

LT.GRAY,TRIM4#

main62472-0K200-B0iGUN155,16#..TH202108-202207

LT.GRAY,TRIM22

main62472-0K200-B0iGUN156..PKN202202-202304

LT.GRAY,TRIM22,4#

main62472-0K200-C0iGUN156..TH202108-202207

BLACK,TRIM0#,3#

main62472-0K200-C0iGUN156..TH202108-202207

BLACK,TRIM0#,24,3#

main62472-0K200-C0iGUN156..PKN202202-202304

BLACK,TRIM24,3#

main62472-0K280-B0iGUN156..AGTP..6F;GUN156..AGTP..6FC..(L,S);GGN155,GUN16#,TGN156,16#..AGTP202111-202210

LT.GRAY,TRIM2#

main62472-0K280-B0iGUN156..AGTP..6FC..H202111-202210

LT.GRAY,TRIM22

main62472-0K280-C0iGUN156..AGTP..6FC..H202111-202210

BLACK,TRIM0#,24

main62472-0K280-C0iGUN156..AGTP..6FC..H202111-202210

BLACK,TRIM0#

main62472-KK010-B0iTGN156,166..GEN;TGN156..IDNP..S;GUN156..IDNP..(ARL,GCC,GEN);GGN155,GUN155,165..IDNP..(H,S)..(GCC,GEN)202108-202209

LT.GRAY,TRIM2#,4#

main62472-KK010-B0iTGN156,166..GEN;TGN156..IDNP..S;GUN156..IDNP..(ARL,GCC,GEN);GGN155,GUN155,165..IDNP..(H,S)..(GCC,GEN)202108-202301

LT.GRAY,TRIM2#

main62472-KK010-B0iGUN15#..IDN,MA;GUN16#,TGN156,166..(IDNP,MAP)..(IDN,MA,PH,VN)202108-202208

LT.GRAY,TRIM22

main62472-KK010-B0iGUN15#..IDN,MA;GUN16#,TGN156,166..(IDNP,MAP)..(IDN,MA,PH,VN)202108-202208

LT.GRAY,TRIM4#

main62472-KK010-B0iGUN156..6FC..IND202110-202209

LT.GRAY,TRIM22,4#

main62472-KK010-C0iGUN156..MA;GUN166..PH202108-202209

BLACK,TRIM24,3#

main62472-KK010-C0iGUN156..LHD..IDNP..GEN202108-202208

BLACK,TRIM0#,3#

main62472-KK010-C0iGUN156..LHD..IDNP..GEN202108-202208

BLACK,TRIM24

main62472-KK010-C0iGUN156..LHD..IDNP..GEN202108-202301

BLACK,TRIM3#

62472FCLIP(FOR REAR PILLAR GARNISH)

main90467-T0021iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202304

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-71010iGUN156,166,TGN166..IND202108-202304

62638AGARNISH, QUARTER PILLAR, RH

main62638-0K170-B0iGGN155,GUN156..THP..H..GCC202108-202207

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62638-0K170-B0iGUN155,TGN156..THP..S;GGN155,TGN166..THP..(L,S)202108-202207

LT.GRAY,TRIM2#,4#

main62638-0K170-B0iGUN155,TGN156..THP..S;GGN155,TGN166..THP..(L,S)202108-202207

LT.GRAY,TRIM4#

main62638-0K170-B0iGGN155,TGN166..EPT202110-202304

LT.GRAY,TRIM2#

main62638-0K180-B0iGUN155,16#..TH202108-202208

LT.GRAY,TRIM2#

main62638-0K180-B0iGUN156..TH202108-202207

LT.GRAY,TRIM22

main62638-0K180-B0iGUN156..TH202108-202207

LT.GRAY,TRIM2#,4#

main62638-0K180-C0iGUN156..MA202110-202208

BLACK,TRIM3#

main62638-0K180-C0iGUN156..THP..GEN;GUN155,16#..H..TH202108-202207

BLACK,TRIM0#,3#

main62638-0K180-C0iGUN156..THP..GEN;GUN155,16#..H..TH202108-202207

BLACK,TRIM0#,24,3#

main62638-KK010-B0iGUN155..S..IDN;GUN16#,TGN166..IDN,PH202108-202208

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62638-KK010-B0iGUN155..S..IDN;GUN16#,TGN166..IDN,PH202108-202208

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#

main62638-KK010-B0iGGN155,GUN155,TGN156..IDNP..S..GCC202108-202208

LT.GRAY,TRIM2#,4#

main62638-KK010-B0iGUN156..PKN202202

LT.GRAY,TRIM22,4#

main62638-KK010-B0iGUN15#,LAN155,TGN156..LHD..SA202109-202301

LT.GRAY,TRIM2#

main62638-KK010-B0iGGN155,GUN155,TGN156..IDNP..S..GCC202108-202208

LT.GRAY,TRIM4#

main62638-KK010-C0iGUN166..PH202108-202208

SRS AIR BAG-WITH(*DRP),BLACK,TRIM3#

main62638-KK010-C0iGUN156..PKN202202

BLACK,TRIM24,3#

main62638-KK020-B0iGUN156..IDNP..(PH,VN)202108-202301

LT.GRAY,TRIM2#

main62638-KK020-B0iGUN156..IDNP..(PH,VN)202108-202210

LT.GRAY,TRIM22

main62638-KK020-B0iGUN156..IDNP..(PH,VN)202108-202208

LT.GRAY,TRIM4#

main62638-KK020-B0iGUN156..IDNP..(PH,VN)202108-202209

LT.GRAY,TRIM2#,4#

main62638-KK020-B0iGUN156..6FC..IND202110-202209

LT.GRAY,TRIM22,4#

main62638-KK020-B0iGUN15#,LAN155,TGN156..LHD..SA202109-202301

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#

main62638-KK020-C0iGUN156..IDNP..VN202108-202208

BLACK,TRIM0#,3#

main62638-KK020-C0iGUN156..IDNP..VN202108-202208

BLACK,TRIM24

main62638-KK020-C0iGUN156..IDNP..VN202108-202209

BLACK,TRIM24,3#

main62638-KK020-C0iGUN156..IDNP..VN202108-202301

BLACK,TRIM3#

main62638-KK020-C0iGUN156..AGTP..6FC..H202111-202210

BLACK,TRIM0#,24

main62638-KK020-C0iGUN156..AGTP..6FC..H202111-202210

BLACK,TRIM0#

62638BCLIP

main90467-T0021iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

62639AGARNISH, QUARTER PILLAR, LH

main62639-0K170-B0iGUN155,TGN156..THP..S;GGN155,TGN166..THP..(L,S)202108-202207

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62639-0K170-B0iGGN155,TGN166..EPT202110-202304

LT.GRAY,TRIM2#

main62639-0K170-B0iGUN155,165,TGN156..THP..L202108-202207

LT.GRAY,TRIM4#

main62639-0K170-B0iGUN155,165,TGN156..THP..L202108-202207

LT.GRAY,TRIM2#,4#

main62639-0K180-B0iGUN155,16#..TH202108-202207

LT.GRAY,TRIM22

main62639-0K180-B0iGUN155,16#..TH202108-202207

LT.GRAY,TRIM2#,4#

main62639-0K180-B0iGUN155,16#..TH202108-202208

LT.GRAY,TRIM2#

main62639-0K180-C0iGUN156..MA202110-202208

BLACK,TRIM3#

main62639-0K180-C0iGUN156..TH202108-202207

BLACK,TRIM0#,24,3#

main62639-0K180-C0iGUN156..TH202108-202207

BLACK,TRIM0#,3#

main62639-KK010-B0iGUN155,165,TGN156,166..IDNP..L..GCC202108-202208

LT.GRAY,TRIM2#,4#

main62639-KK010-B0iGUN155,165,TGN156,166..IDNP..L..GCC202108-202208

LT.GRAY,TRIM4#

main62639-KK010-B0iGUN155,165,TGN156,166..IDNP..L..GCC202108-202208

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#

main62639-KK010-B0iGUN155,165,TGN156,166..IDNP..L..GCC202108-202208

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#

main62639-KK010-B0iGUN156..PKN202202

LT.GRAY,TRIM22,4#

main62639-KK010-B0iGUN15#,LAN155,TGN156..LHD..SA202109-202301

LT.GRAY,TRIM2#

main62639-KK010-C0iGUN166..PH202108-202208

SRS AIR BAG-WITH(*DRP),BLACK,TRIM3#

main62639-KK010-C0iGUN156..PKN202202

BLACK,TRIM24,3#

main62639-KK020-B0iGUN156..IDNP..(PH,VN)202108-202301

LT.GRAY,TRIM2#

main62639-KK020-B0iGUN155..L..GEN202108-202208

LT.GRAY,TRIM4#

main62639-KK020-B0iGUN155..L..GEN202108-202210

LT.GRAY,TRIM22

main62639-KK020-B0iGUN155..L..GEN202108-202209

LT.GRAY,TRIM2#,4#

main62639-KK020-B0iGUN156..6FC..IND202110-202209

LT.GRAY,TRIM22,4#

main62639-KK020-B0iGUN15#,LAN155,TGN156..LHD..SA202109-202301

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#

main62639-KK020-C0iGUN156..IDNP..VN202108-202209

BLACK,TRIM24,3#

main62639-KK020-C0iGUN156..PH202108-202208

BLACK,TRIM0#,3#

main62639-KK020-C0iGUN156..PH202108-202208

BLACK,TRIM24

main62639-KK020-C0iGUN156..AGTP..6FC..H202111-202210

BLACK,TRIM0#,24

main62639-KK020-C0iGUN156..AGTP..6FC..H202111-202210

BLACK,TRIM0#

main62639-KK020-C0iGUN156,165..VNP..H;GUN156,166..RHD..SA202108-202301

BLACK,TRIM3#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-0K030-C0iGUN165..S..TH202108-202207

BLACK,TRIM0#,2#,3#

main67911-0K030-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#,4#

main67911-0K030-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM4#

main67911-0K030-C0iGUN15#,16#..H..TH202108-202304

BLACK,TRIM2#,4#

main67911-0K030-C0iGUN15#,16#..H..TH202108-202304

BLACK,TRIM2#

main67911-0K030-C0iGUN156..PKN202202-202304

BLACK,TRIM2#,3#,4#

main67911-KK010-C0iGUN156,166..MA,PH202108-202301

BLACK,TRIM2#,3#

main67911-KK010-C0iGUN156,166..MA,PH202108-202301

BLACK,TRIM2#

main67911-KK010-C0iGUN156,166..MA,PH202108-202209

BLACK,TRIM2#,4#

main67911-KK010-C0iGUN156..IDNP..(IDN,VN);GUN165..IDNP..(IDN,PH,VN);GUN155,166,TGN156,166..(IDNP,MAP)..(IDN,MA,VN)202108-202208

BLACK,TRIM0#,2#,3#,4#

main67911-KK010-C0iGUN156..IDNP..(IDN,VN);GUN165..IDNP..(IDN,PH,VN);GUN155,166,TGN156,166..(IDNP,MAP)..(IDN,MA,VN)202108-202208

BLACK,TRIM4#

main67911-KK010-C0iGUN156..IND;GUN166..6FC..IND202110-202209

BLACK,TRIM2#,3#,4#

main67911-KK010-C0iGGN155,GUN156..AGTP..H202111-202210

BLACK,TRIM0#,2#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-0K010-C0iGUN155,TGN156..THP..(H,S)..GCC;GGN155,GUN156,TGN166..THP..(ARL,GCC)202108-202304

BLACK,TRIM2#,4#

main67912-0K010-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#

main67912-0K010-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#,4#

main67912-0K010-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM4#

main67912-0K010-C0iGUN15#,16#..H..TH202108-202304

BLACK,TRIM2#

main67912-0K010-C0iGUN156..PKN202202-202304

BLACK,TRIM2#,3#,4#

main67912-KK010-C0iGUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN)202108-202209

BLACK,TRIM2#,4#

main67912-KK010-C0iGUN156,166..MA,PH202108-202208

BLACK,TRIM0#,2#,3#,4#

main67912-KK010-C0iGUN156,166..MA,PH202108-202208

BLACK,TRIM4#

main67912-KK010-C0iGUN156,166..MA,PH202108-202301

BLACK,TRIM2#,3#

main67912-KK010-C0iGUN156,166..MA,PH202108-202301

BLACK,TRIM2#

main67912-KK010-C0iGUN156..IND;GUN166..6FC..IND202110-202209

BLACK,TRIM2#,3#,4#

main67912-KK010-C0iGGN155,GUN156..AGTP..H202111-202210

BLACK,TRIM0#,2#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-0K150-C0iGUN155,TGN156..THP..(H,S)..GCC;GGN155,GUN156,TGN166..THP..(ARL,GCC)202108-202207

BLACK,TRIM4#

main67913-0K150-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#

main67913-0K150-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#,4#

main67913-0K150-C0iGUN15#,16#..H..TH202108-202304

BLACK,TRIM2#,4#

main67913-0K150-C0iGUN15#,16#..H..TH202108-202304

BLACK,TRIM2#

main67913-0K150-C0iGUN156..PKN202202-202304

BLACK,TRIM2#,3#,4#

main67913-KK010-C0iGUN156..IDNP..(IDN,VN);GUN165..IDNP..(IDN,PH,VN);GUN155,166,TGN156,166..(IDNP,MAP)..(IDN,MA,VN)202108-202209

BLACK,TRIM2#,4#

main67913-KK010-C0iTGN156,166..GEN;GUN156..RHD..IDNP..(ARL,GEN);GUN156,TGN156..IDNP..(H,S)..GCC;GGN155,GUN155,165..IDNP..(H,S)..(GCC,GEN)202108-202208

BLACK,TRIM0#,2#,3#,4#

main67913-KK010-C0iTGN156,166..GEN;GUN156..RHD..IDNP..(ARL,GEN);GUN156,TGN156..IDNP..(H,S)..GCC;GGN155,GUN155,165..IDNP..(H,S)..(GCC,GEN)202108-202208

BLACK,TRIM4#

main67913-KK010-C0iTGN156,166..GEN;GUN156..RHD..IDNP..(ARL,GEN);GUN156,TGN156..IDNP..(H,S)..GCC;GGN155,GUN155,165..IDNP..(H,S)..(GCC,GEN)202108-202301

BLACK,TRIM2#,3#

main67913-KK010-C0iTGN156,166..GEN;GUN156..RHD..IDNP..(ARL,GEN);GUN156,TGN156..IDNP..(H,S)..GCC;GGN155,GUN155,165..IDNP..(H,S)..(GCC,GEN)202108-202301

BLACK,TRIM2#

main67913-KK010-C0iGUN156..IND;GUN166..6FC..IND202110-202209

BLACK,TRIM2#,3#,4#

main67913-KK010-C0iGGN155,GUN156..AGTP..H202111-202210

BLACK,TRIM0#,2#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-0K150-C0iGUN155,TGN156..THP..(H,S)..GCC;GGN155,GUN156,TGN166..THP..(ARL,GCC)202108-202304

BLACK,TRIM2#,4#

main67914-0K150-C0iTGN156,166..PKN202108-202304

BLACK,TRIM2#

main67914-0K150-C0iGUN156..PKN202202-202304

BLACK,TRIM2#,3#,4#

main67914-0K150-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#

main67914-0K150-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#,4#

main67914-0K150-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM4#

main67914-KK010-C0iGUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN)202108-202209

BLACK,TRIM2#,4#

main67914-KK010-C0iGUN156,166..MA,PH202108-202208

BLACK,TRIM0#,2#,3#,4#

main67914-KK010-C0iGUN156,166..MA,PH202108-202208

BLACK,TRIM4#

main67914-KK010-C0iGUN156,166..MA,PH202108-202301

BLACK,TRIM2#,3#

main67914-KK010-C0iGUN156,166..MA,PH202108-202301

BLACK,TRIM2#

main67914-KK010-C0iGUN156..IND;GUN166..6FC..IND202110-202209

BLACK,TRIM2#,3#,4#

main67914-KK010-C0iGGN155,GUN156..AGTP..H202111-202210

BLACK,TRIM0#,2#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-0K100-C0iGUN155,TGN156..THP..(H,S)..GCC;GGN155,GUN156,TGN166..THP..(ARL,GCC)202108-202207

BLACK,TRIM4#

main67915-0K100-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#

main67915-0K100-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#,4#

main67915-0K100-C0iGUN15#,16#..H..TH202108-202304

BLACK,TRIM2#,4#

main67915-0K100-C0iGUN15#,16#..H..TH202108-202304

BLACK,TRIM2#

main67915-0K100-C0iGGN155,GUN156..AGTP..H202111-202210

BLACK,TRIM0#,2#

main67915-0K100-C0iGUN156..PKN202202-202304

BLACK,TRIM2#,3#,4#

main67915-KK020-C0iGUN156,166..MA,PH202108-202301

BLACK,TRIM2#

main67915-KK020-C0iGUN156,166..MA,PH202108-202209

BLACK,TRIM2#,4#

main67915-KK020-C0iGUN156..IDNP..(IDN,VN);GUN165..IDNP..(IDN,PH,VN);GUN155,166,TGN156,166..(IDNP,MAP)..(IDN,MA,VN)202108-202208

BLACK,TRIM0#,2#,3#,4#

main67915-KK020-C0iGUN156..IDNP..(IDN,VN);GUN165..IDNP..(IDN,PH,VN);GUN155,166,TGN156,166..(IDNP,MAP)..(IDN,MA,VN)202108-202208

BLACK,TRIM4#

main67915-KK020-C0iGUN156..IDNP..(IDN,VN);GUN165..IDNP..(IDN,PH,VN);GUN155,166,TGN156,166..(IDNP,MAP)..(IDN,MA,VN)202108-202301

BLACK,TRIM2#,3#

main67915-KK020-C0iGUN156..IND;GUN166..6FC..IND202110-202209

BLACK,TRIM2#,3#,4#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-0K100-C0iGUN155,TGN156..THP..(H,S)..GCC;GGN155,GUN156,TGN166..THP..(ARL,GCC)202108-202304

BLACK,TRIM2#,4#

main67916-0K100-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#

main67916-0K100-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#,4#

main67916-0K100-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM4#

main67916-0K100-C0iGUN15#,16#..H..TH202108-202304

BLACK,TRIM2#

main67916-0K100-C0iGGN155,GUN156..AGTP..H202111-202210

BLACK,TRIM0#,2#

main67916-0K100-C0iGUN156..PKN202202-202304

BLACK,TRIM2#,3#,4#

main67916-KK020-C0iGUN156,166..MA,PH202108-202208

BLACK,TRIM4#

main67916-KK020-C0iGUN156,166..MA,PH202108-202301

BLACK,TRIM2#,3#

main67916-KK020-C0iGUN156,166..MA,PH202108-202301

BLACK,TRIM2#

main67916-KK020-C0iGUN156,166..MA,PH202108-202209

BLACK,TRIM2#,4#

main67916-KK020-C0iGUN156..IDNP..(IDN,VN);GUN165..IDNP..(IDN,PH,VN);GUN155,166,TGN156,166..(IDNP,MAP)..(IDN,MA,VN)202108-202208

BLACK,TRIM0#,2#,3#,4#

main67916-KK020-C0iGUN156..IND;GUN166..6FC..IND202110-202209

BLACK,TRIM2#,3#,4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-0K160-C0iGUN155,TGN156..THP..(H,S)..GCC;GGN155,GUN156,TGN166..THP..(ARL,GCC)202108-202304

BLACK,TRIM2#,4#

main67917-0K160-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#

main67917-0K160-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#,4#

main67917-0K160-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM4#

main67917-0K160-C0iGUN15#,16#..H..TH202108-202304

BLACK,TRIM2#

main67917-0K160-C0iGUN156..PKN202202-202304

BLACK,TRIM2#,3#,4#

main67917-KK040-C0iGUN156..IDNP..(IDN,VN);GUN165..IDNP..(IDN,PH,VN);GUN155,166,TGN156,166..(IDNP,MAP)..(IDN,MA,VN)202108-202301

BLACK,TRIM2#,3#

main67917-KK040-C0iGUN156..IDNP..(IDN,VN);GUN165..IDNP..(IDN,PH,VN);GUN155,166,TGN156,166..(IDNP,MAP)..(IDN,MA,VN)202108-202301

BLACK,TRIM2#

main67917-KK040-C0iGUN156..IDNP..(IDN,VN);GUN165..IDNP..(IDN,PH,VN);GUN155,166,TGN156,166..(IDNP,MAP)..(IDN,MA,VN)202108-202209

BLACK,TRIM2#,4#

main67917-KK040-C0iTGN156,166..GEN;GUN156..RHD..IDNP..(ARL,GEN);GUN156,TGN156..IDNP..(H,S)..GCC;GGN155,GUN155,165..IDNP..(H,S)..(GCC,GEN)202108-202208

BLACK,TRIM0#,2#,3#,4#

main67917-KK040-C0iTGN156,166..GEN;GUN156..RHD..IDNP..(ARL,GEN);GUN156,TGN156..IDNP..(H,S)..GCC;GGN155,GUN155,165..IDNP..(H,S)..(GCC,GEN)202108-202208

BLACK,TRIM4#

main67917-KK040-C0iGUN156..IND;GUN166..6FC..IND202110-202209

BLACK,TRIM2#,3#,4#

main67917-KK040-C0iGGN155,GUN156..AGTP..H202111-202210

BLACK,TRIM0#,2#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-0K160-C0iGUN155,TGN156..THP..(H,S)..GCC;GGN155,GUN156,TGN166..THP..(ARL,GCC)202108-202304

BLACK,TRIM2#,4#

main67918-0K160-C0iGGN155,TGN166..EPT202108-202304

BLACK,TRIM2#

main67918-0K160-C0iGUN156..PKN202202-202304

BLACK,TRIM2#,3#,4#

main67918-0K160-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#

main67918-0K160-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM0#,2#,3#,4#

main67918-0K160-C0iGUN15#,16#..H..TH202108-202207

BLACK,TRIM4#

main67918-KK040-C0iGUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN)202108-202209

BLACK,TRIM2#,4#

main67918-KK040-C0iGUN156,166..MA,PH202108-202208

BLACK,TRIM0#,2#,3#,4#

main67918-KK040-C0iGUN156,166..MA,PH202108-202208

BLACK,TRIM4#

main67918-KK040-C0iGUN156,166..MA,PH202108-202301

BLACK,TRIM2#,3#

main67918-KK040-C0iGUN156,166..MA,PH202108-202301

BLACK,TRIM2#

main67918-KK040-C0iGUN156..IND;GUN166..6FC..IND202110-202209

BLACK,TRIM2#,3#,4#

main67918-KK040-C0iGGN155,GUN156..AGTP..H202111-202210

BLACK,TRIM0#,2#

7152

9046718017

main90467-18017

90467T0021

main90467-T0021

42 parts on this diagram · 3 diagrams in section
