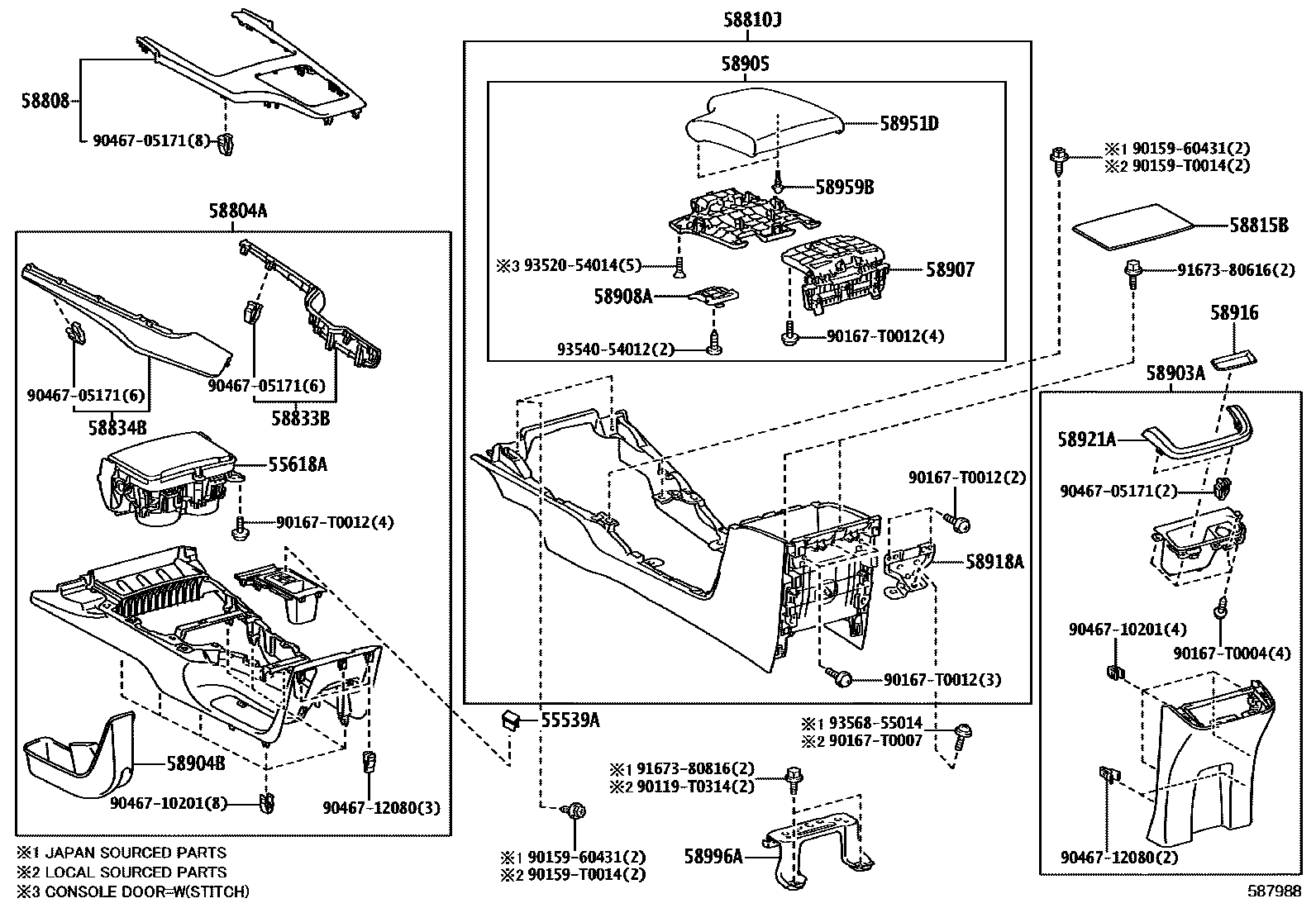

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

55539ACOVER, SPARE SWITCH HOLE

main55539-KK030-C0iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

BLACK

55618AHOLDER, CONSOLE BOX CUP

main55620-0K010-B3iGUN156..TH202108-202301

SILVER,TRIM2#

main55620-0K010-B3iGUN155,16#..TH202108-202208

SILVER,TRIM2#,4#

main55620-0K010-B3iGUN155,16#..TH202108-202207

SILVER,TRIM22

main55620-0K010-B3iGUN156,166,TGN166..6FC..IND202110-202209

SILVER,TRIM22,42

main55620-0K010-B3iGUN156..PKN202202

SILVER,TRIM22,4#

main55620-0K010-B4iGUN156..6FC..IND202108-202209

SMOKE SILVER METALLIC,TRIM24

main55620-0K010-B5iGUN156,166,TGN166..6FC..IND202110-202209

GRAY/SILVER,TRIM22,42

main55620-0K010-C2iGUN156..MA202109-202209

GALAXY BLACK/SILVER,TRIM3#

main55620-0K010-C2iGUN15#,16#..H..TH202108-202207

GALAXY BLACK/SILVER,TRIM0#,3#

main55620-0K020-B2iGUN156..IDNP..ARL202108-202208

SILVER,TRIM2#,4#

main55620-0K020-B2iGUN155..MA202109-202301

SILVER,TRIM2#

main55620-0K050-B3iGUN16#,TGN156,166..IDNP..(H,S)..(PH,VN)202108-202210

SILVER,TRIM22

main55620-0K050-B3iGUN16#,TGN156,166..IDNP..(H,S)..(PH,VN)202108-202208

SILVER,TRIM2#,4#

main55620-0K050-B3iGUN16#,TGN156,166..IDNP..(H,S)..(PH,VN)202108-202304

SILVER,TRIM2#

main55620-0K050-B4iGUN156..IDNP..(PH,VN)202108-202210

SMOKE SILVER METALLIC,TRIM24

main55620-0K050-C2iGUN156..THP..GEN202108-202208

GALAXY BLACK,TRIM0#,3#

main55620-0K050-C2iGUN156,166..PH202108-202210

GALAXY BLACK,TRIM3#

main55620-0K050-C2iGGN155,GUN156..AGTP..6FC..H202111-202210

GALAXY BLACK,TRIM0#

main55620-0K060-B1iGUN165..6FC..L..PH202108-202208

SILVER,TRIM4#

main55620-0K060-B1iGUN155,165,TGN156,166..IDNP..L..GCC202108-202304

SILVER,TRIM2#

main55620-0K060-B1iTGN166..THP202108-202207

SILVER,TRIM2#,4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-KK480-C0iGUN156,166..6FC..IND202108-202209

BLACK/CRIMSON,TRIM3#

main58804-KK480-C1iGUN15#,16#..H..TH202108-202207

BLACK/GALAXY BLACK,TRIM0#

main58804-KK480-C2iGUN156,166..RHD..6FC..SA202108-202301

BLACK/GRAY,TRIM2#

main58804-KK480-C2iTGN156,166..PKN202108-202207

BLACK/GRAY,TRIM2#,4#

main58804-KK480-C2iGUN155,16#..TH202108-202207

BLACK/GRAY,TRIM22

main58804-KK480-C2iGUN156..PKN202202

BLACK/GRAY,TRIM22,4#

main58804-KK480-C2iGUN156,166,TGN166..6FC..IND202110-202209

BLACK/GRAY,TRIM22,42

main58804-KK480-C3iGUN156..PKN202108-202209

BLACK/GR RED,TRIM24

main58804-KK490-C0iGUN156,166..RHD..6F..SA202109-202301

BLACK/CRIMSON,TRIM3#

main58804-KK490-C1iGUN156,166..RHD..6F..SA202109-202301

BLACK/GRAY,TRIM2#

main58804-KK490-C1iGUN156,166,TGN166..MTM..IND202110-202209

BLACK/GRAY,TRIM22,42

main58804-KK500-C0iGUN165..6F..SA202109-202301

BLACK/GRAY,TRIM2#

main58804-KK520-C0iGUN155..MA202109-202301

BLACK/SILVER,TRIM2#

main58804-KK520-C0iGUN156..THP..(L,S)202108-202207

BLACK/SILVER,TRIM2#,4#

main58804-KK530-C0iGUN156..6F..H..BZAGT202111-202210

BLACK/GALAXY BLACK,TRIM0#

main58804-KK530-C1iGUN156,LAN155..LHD..MTM..SA202109-202301

BLACK/GRAY,TRIM2#

main58804-KK540-C0iGUN156,166,TGN166..AGTP..MTM..(L,S)202111-202210

BLACK/GRAY,TRIM2#

main58804-KK550-C0iGUN156..THP..GEN202108-202207

BLACK/CRIMSON,TRIM3#

main58804-KK550-C1iGUN156..THP..GEN202108-202207

BLACK/GALAXY BLACK,TRIM0#

main58804-KK550-C2iGGN155,GUN15#,TGN156..LHD..6FC..(EPT,SA)202109-202304

BLACK/GRAY,TRIM2#

main58804-KK550-C2iGGN155,GUN15#,TGN156..LHD..THP..(H,S)202108-202207

BLACK/GRAY,TRIM2#,4#

main58804-KK560-C0iGUN155,165,TGN156..THP..L202108-202207

BLACK/SILVER,TRIM2#,4#

main58804-KK560-C0iTGN166..THP202108-202207

BLACK/SILVER,TRIM4#

main58804-KK560-C0iTGN166..EPT202203-202304

BLACK/SILVER,TRIM2#

main58804-KK570-C0iGGN155,GUN156..AGTP..6FC..H202111-202210

BLACK/GALAXY BLACK,TRIM0#

main58804-KK570-C1iGUN156..AGTP..6FC..H202111-202210

BLACK/GRAY,TRIM2#

main58804-KK570-C1iGUN156..AGTP..6FC..H202111-202210

BLACK/GRAY,TRIM22

main58804-KK570-C2iGUN156..AGTP..6FC..H202111-202210

BLACK/GR RED,TRIM24

main58804-KK580-C0iGUN165,TGN168..AGTP..L;GUN156,166,TGN156,166..AGTP..6FC..(L,S)202111-202210

BLACK/SILVER,TRIM2#

main58804-KK590-C0iGUN165..6F..IDN202108-202208

BLACK,TRIM2#

main58804-KK600-C0iGUN15#,165,TGN156,166..RHD..GEN202108-202208

BLACK,TRIM2#

main58804-KK600-C0iGUN15#,165,TGN156,166..RHD..GEN202108-202208

BLACK,TRIM2#,4#

main58804-KK610-C0iGUN165..IDNP..6F..L202108-202209

BLACK,TRIM2#

main58804-KK610-C0iGUN165..IDNP..6F..L202108-202208

BLACK,TRIM4#

main58804-KK610-C0iGUN155..L..GEN202108-202208

BLACK,TRIM2#,4#

main58804-KK620-C0iGUN165..6FC..L..PH202108-202208

BLACK,TRIM4#

main58804-KK620-C0iGUN155,165,TGN156,166..IDNP..L..GCC202108-202208

BLACK,TRIM2#

main58804-KK630-C0iGUN156,166..LHD..IDNP..(GEN,PH)202108-202209

BLACK/CRIMSON,TRIM3#

main58804-KK630-C1iGUN156..LHD..IDNP..GEN202108-202208

BLACK/GRAY,TRIM0#

main58804-KK630-C2iGGN155,GUN15#,165,TGN156..LHD..IDNP..(H,S)..(GCC,GEN)202108-202209

BLACK/GRAY,TRIM2#

main58804-KK630-C2iGUN156..IDNP..(PH,VN)202108-202208

BLACK/GRAY,TRIM2#,4#

main58804-KK630-C2iGUN156..IDNP..(PH,VN)202108-202208

BLACK/GRAY,TRIM22

main58804-KK630-C3iGUN156..IDNP..(PH,VN)202108-202208

BLACK/GR RED,TRIM24

main58804-KK720-C0iGUN156..IDNP..ARL202202-202208

BLACK/GRAY,TRIM2#,4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-KK020-B1iGUN156..H..ARL202108-202207

GRAY,TRIM22

main58808-KK020-B1iGUN156..H..ARL202108-202208

GRAY,TRIM2#,4#

main58808-KK020-B1iGUN156..H..ARL202108-202301

GRAY,TRIM2#

main58808-KK020-B1iGUN156,166,TGN166..6FC..IND202110-202209

GRAY,TRIM22,42

main58808-KK020-B1iGUN156..PKN202202

GRAY,TRIM22,4#

main58808-KK020-B2iGUN156..PKN202108-202209

MATTE CARBON PATTERN PRIN,TRIM24

main58808-KK020-C1iGUN156..MA202109-202209

GALAXY BLACK,TRIM3#

main58808-KK020-C1iGUN15#,16#..H..TH202108-202207

GALAXY BLACK,TRIM0#,3#

main58808-KK030iGUN15#..RHD..(IDNP,MAP)..L202108-202301

main58808-KK050-B1iGUN156..IDNP..(PH,VN)202108-202210

GRAY,TRIM22

main58808-KK050-B1iGUN156..IDNP..(PH,VN)202108-202208

GRAY,TRIM2#,4#

main58808-KK050-B1iGUN156..IDNP..(PH,VN)202108-202304

GRAY,TRIM2#

main58808-KK050-B2iGUN156..AGTP..6FC..H202108-202210

MATTE CARBON PATTERN PRIN,TRIM24

main58808-KK050-C2iGUN156,165..VNP..H202108-202210

GALAXY BLACK,TRIM3#

main58808-KK050-C2iGGN155,GUN156..AGTP..6FC..H202111-202210

GALAXY BLACK,TRIM0#

main58808-KK050-C2iGUN156,166..PH202108-202208

GALAXY BLACK,TRIM0#,3#

main58808-KK060iGUN165,TGN168..AGTP..L;GUN156,166,TGN156,166..AGTP..6FC..(L,S)202108-202304

58810JBOX ASSY, CONSOLE

main58810-KK090-C0iGUN156..IDNP..ARL202202-202208

BLACK,TRIM2#,4#

main58810-KK110-C0iGUN166,TGN166..MTM..IND202110-202209

BLACK,TRIM2#,3#,4#

main58810-KK110-C0iGUN156..6F..IND202110-202209

BLACK,TRIM2#,4#

main58810-KK110-C0iGUN156,166,TGN166..AGTP..MTM..(L,S)202109-202301

BLACK,TRIM2#

main58810-KK110-C0iGUN156..6F..H..BZAGT202111-202210

BLACK,TRIM0#,2#

main58810-KK110-C0iGUN156,166..RHD..6F..SA202109-202301

BLACK,TRIM2#,3#

main58810-KK180-C0iGUN15#,16#..H..TH202108-202301

BLACK,TRIM2#

main58810-KK180-C0iGUN156..MA202109-202301

BLACK,TRIM2#,3#

main58810-KK180-C0iGUN156..PKN202110-202209

BLACK,TRIM2#,3#,4#

main58810-KK180-C0iGUN156..PKN202110-202209

BLACK,TRIM2#,4#

main58810-KK180-C0iGUN165..S..TH202108-202207

BLACK,TRIM0#,2#,3#

main58810-KK210-C0iGUN156..THP..GEN202108-202207

BLACK,TRIM2#,4#

main58810-KK210-C0iGUN155,165,TGN156..THP..L202108-202207

BLACK,TRIM0#,2#,3#,4#

main58810-KK210-C0iGUN156..THP..GEN202108-202207

BLACK,TRIM4#

main58810-KK210-C0iGUN156..AGTP..6FC..(L,S);GUN16#,TGN156,16#..AGTP..6FC202109-202304

BLACK,TRIM2#

main58810-KK210-C0iGGN155,GUN156..AGTP..6FC..H202111-202210

BLACK,TRIM0#,2#

main58810-KK250-C0iGUN156..THP..ARL202108-202207

BLACK,TRIM2#,4#

main58810-KK431-C2iGUN165..6F..IDN202108-202208

BLACK/GRAY,TRIM2#

main58810-KK451-C2iGUN15#,165,TGN156,166..RHD..GEN202108-202208

BLACK/CHAMOIS,TRIM4#

main58810-KK451-C4iGUN15#,16#,TGN156,166..RHD..6FC..(GEN,IDN)202108-202208

BLACK/GRAY,TRIM2#

main58810-KK460-C2iGUN165..IDNP..6F..L202108-202209

BLACK,TRIM2#

main58810-KK460-C2iGUN155..L..GEN202108-202208

BLACK,TRIM2#,4#

main58810-KK460-C2iTGN156,166..L..GEN202108-202208

BLACK,TRIM4#

main58810-KK480-C2iGUN165..6FC..L..PH202108-202208

BLACK,TRIM2#

main58810-KK480-C2iGUN155,165,TGN156,166..IDNP..L..GCC202108-202208

BLACK,TRIM4#

main58810-KK491-C2iGGN155,GUN15#,165,TGN156..LHD..IDNP..(H,S)..(GCC,GEN)202108-202208

BLACK/CHAMOIS,TRIM4#

main58810-KK491-C4iGUN156..LHD..IDNP..GEN202108-202208

BLACK/GRAY,TRIM0#,2#

main58810-KK491-C4iGUN156..IDNP..GCC;GGN155,GUN155,16#,TGN156,166..LHD..IDNP..(H,S)202108-202208

BLACK/GRAY,TRIM22

main58810-KK491-C4iGUN156..IDNP..GCC;GGN155,GUN155,16#,TGN156,166..LHD..IDNP..(H,S)202108-202209

BLACK/GRAY,TRIM2#

main58810-KK491-C5iGUN156,166..LHD..IDNP..(GEN,PH)202108-202209

BLACK/CRIMSON,TRIM3#

main58810-KK491-C6iGUN156..IDNP..(PH,VN)202108-202208

BLACK/GR RED,TRIM24

58815BCARPET, CONSOLE BOX

main58815-KK010iGUN156,166,TGN166..IND202108-202304

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-KK040iGUN156,166..RHD..6F..SA202108-202301

main58833-KK050iGUN165..6F..SA202109-202301

main58833-KK060iGUN156..6F..H..BZAGT202109-202301

main58833-KK070iGUN155,165,TGN156,166..IDNP..MTM..L202108-202210

main58833-KK130-B0iGUN165..S..TH202108-202207

SILVER,TRIM0#,2#,3#

main58833-KK130-B0iGUN165..S..TH202108-202208

SILVER,TRIM2#

main58833-KK130-B0iGUN156..H..ARL202108-202209

SILVER,TRIM2#,4#

main58833-KK130-B0iGUN156..H..ARL202108-202207

SILVER,TRIM0#,22,3#

main58833-KK130-B0iGUN156..PKN202110-202209

SILVER,TRIM22,3#,4#

main58833-KK130-B0iGUN156..MA202109-202301

SILVER,TRIM2#,3#

main58833-KK130-B0iGUN166..6FC..IND202110-202209

SILVER,TRIM2#,3#,4#

main58833-KK130-B2iGUN156..6FC..IND202108-202209

SMOKE SILVER METALLIC,TRIM24

main58833-KK140iGUN155,165..6FC..L..SA202108-202301

main58833-KK150-B1iGUN166..PH202108-202208

SILVER,TRIM22,3#

main58833-KK150-B1iGUN156..THP..GEN202108-202208

SILVER,TRIM0#,2#,3#,4#

main58833-KK150-B1iGUN156..THP..GEN202108-202208

SILVER,TRIM2#,4#

main58833-KK150-B1iGUN156..LHD..IDNP..GEN202108-202208

SILVER,TRIM22

main58833-KK150-B1iGUN156..LHD..IDNP..GEN202108-202209

SILVER,TRIM2#,3#

main58833-KK150-B1iGUN156..LHD..IDNP..GEN202108-202304

SILVER,TRIM2#

main58833-KK150-B1iGUN156..AGTP..6FC..H202111-202210

SILVER,TRIM0#,22

main58833-KK150-B1iGUN156..AGTP..6FC..H202111-202210

SILVER,TRIM0#,2#

main58833-KK150-B2iGUN156..AGTP..6FC..H202108-202210

SMOKE SILVER METALLIC,TRIM24

main58833-KK160iGUN165,TGN168..AGTP..L;GUN156,166,TGN156,166..AGTP..6FC..(L,S)202108-202304

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-KK040iGUN165..6F..IDN202108-202301

main58834-KK050iGUN165..6F..SA202109-202301

main58834-KK060iGUN156,LAN155..LHD..MTM..SA202109-202301

main58834-KK070iGUN156,16#,TGN166..(AGTP,VNP)..MTM..(L,S)202108-202210

main58834-KK080-B0iGUN165..S..TH202108-202209

SILVER,TRIM2#,4#

main58834-KK080-B0iGUN165..S..TH202108-202207

SILVER,TRIM0#,22,3#

main58834-KK080-B0iGUN165..S..TH202108-202207

SILVER,TRIM0#,2#,3#

main58834-KK080-B0iGUN165..S..TH202108-202208

SILVER,TRIM2#

main58834-KK080-B0iGUN156,166..RHD..6FC..SA202109-202301

SILVER,TRIM2#,3#

main58834-KK080-B0iGUN156..6FC..IND202110-202209

SILVER,TRIM22,3#,4#

main58834-KK080-B0iGUN166..6FC..IND202110-202209

SILVER,TRIM2#,3#,4#

main58834-KK080-B2iGUN156..PKN202108-202209

SMOKE SILVER METALLIC,TRIM24

main58834-KK090iGUN155,165..6FC..L..SA202108-202301

main58834-KK100-B1iGUN156..PH202108-202208

SILVER,TRIM22

main58834-KK100-B1iGUN156..THP..GEN202108-202208

SILVER,TRIM0#,2#,3#,4#

main58834-KK100-B1iGUN156..THP..GEN202108-202208

SILVER,TRIM2#,4#

main58834-KK100-B1iGUN156..LHD..IDNP..GEN202108-202208

SILVER,TRIM22,3#

main58834-KK100-B1iGUN156..LHD..IDNP..GEN202108-202209

SILVER,TRIM2#,3#

main58834-KK100-B1iGUN156..LHD..IDNP..GEN202108-202304

SILVER,TRIM2#

main58834-KK100-B1iGUN156..AGTP..6FC..H202111-202210

SILVER,TRIM0#,22

main58834-KK100-B1iGUN156..AGTP..6FC..H202111-202210

SILVER,TRIM0#,2#

main58834-KK100-B2iGUN156..AGTP..6FC..H202108-202210

SMOKE SILVER METALLIC,TRIM24

main58834-KK110iGUN155,165,TGN156,166..THP..L202108-202304

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-KK030-C1iGUN165..S..TH202108-202208

BLACK/SILVER,TRIM2#,4#

main58903-KK030-C1iGUN156..H..ARL202108-202207

BLACK/SILVER,TRIM0#,2#,3#

main58903-KK030-C1iGUN156..H..ARL202108-202301

BLACK/SILVER,TRIM2#

main58903-KK030-C1iGUN155..RHD..GEN202108-202208

OCEANIA GENERAL (EURO 4 REGULATION),BLACK/SILVER,TRIM2#,4#

main58903-KK030-C1iGUN155..RHD..GEN202108-202208

OCEANIA GENERAL SPEC,BLACK/SILVER,TRIM2#,4#

main58903-KK030-C1iGUN155..RHD..GEN202108-202208

OCEANIA(EURO 5),BLACK/SILVER,TRIM2#,4#

main58903-KK030-C1iGUN156..6F..H..BZAGT202111-202210

BLACK/SILVER,TRIM0#,2#

main58903-KK040-C2iGUN155..RHD..GEN202108-202209

SILVER,TRIM2#,4#

main58903-KK040-C2iGUN15#,16#,TGN156,166..(H,S)..(IDN,MA,PH)202108-202304

SILVER,TRIM2#

main58903-KK040-C2iGUN156..6FC..IND202110-202209

SILVER,TRIM2#,3#,4#

main58903-KK050-C0iGUN155,165..L..(MA,PH)202108-202208

BLACK,TRIM2#,4#

main58903-KK050-C0iGUN156,TGN156,166..IDNP..L..(ARL,GEN)202108-202208

BLACK,TRIM4#

main58903-KK050-C0iGUN156,TGN156,166..IDNP..L..(ARL,GEN)202108-202304

BLACK,TRIM2#

main58903-KK060-C0iGUN165..IDNP..L..VN202108-202210

BLACK,TRIM2#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-KK020-C1iGUN15#,16#,TGN166..IDN202108-202208

BLACK/GRAY,TRIM2#

main58904-KK020-C1iGUN15#,165,TGN156,166..RHD..IDNP..(ARL,GEN)202108-202208

BLACK/GRAY,TRIM2#,4#

main58904-KK030-C1iGUN156..IDNP..GCC;TGN156,166..L..GEN;GGN155,GUN155,165,TGN156..LHD..IDNP..(H,S)..(GCC,GEN)202108-202208

BLACK/GRAY,TRIM4#

main58904-KK030-C1iGUN156..IDNP..(PH,VN)202108-202208

BLACK/GRAY,TRIM22

main58904-KK030-C1iGUN156..IDNP..(PH,VN)202108-202208

BLACK/GRAY,TRIM0#,2#,4#

main58904-KK030-C1iGUN156..IDNP..(PH,VN)202108-202208

BLACK/GRAY,TRIM2#,4#

main58904-KK030-C1iGUN156..IDNP..(PH,VN)202108-202209

BLACK/GRAY,TRIM2#

main58904-KK030-C2iGUN156,166..LHD..IDNP..(GEN,PH)202108-202209

BLACK/CRIMSON,TRIM3#

main58904-KK030-C3iGUN156..IDNP..(PH,VN)202108-202208

BLACK/GR RED,TRIM24

main58904-KK060-C2iGUN15#,16#..H..TH202108-202209

BLACK/CRIMSON,TRIM3#

main58904-KK060-C3iGUN156..TH202108-202207

BLACK,TRIM0#,22

main58904-KK060-C3iGUN156..TH202108-202209

BLACK,TRIM2#,4#

main58904-KK060-C3iGUN156..TH202108-202207

BLACK,TRIM0#,2#

main58904-KK060-C3iGUN156..TH202108-202301

BLACK,TRIM2#

main58904-KK060-C3iGUN156..PKN202110-202209

BLACK,TRIM22,4#

main58904-KK060-C4iGUN156..TH202108-202209

BLACK/GR RED,TRIM24

main58904-KK070-C2iGUN156..THP..GEN202108-202207

BLACK/CRIMSON NO.69,TRIM3#

main58904-KK070-C3iGUN155,165,TGN156..THP..L202108-202207

BLACK,TRIM0#,2#,4#

main58904-KK070-C3iGUN156..THP..GEN202108-202207

BLACK,TRIM4#

main58904-KK070-C3iGUN156..THP..GEN202108-202207

BLACK,TRIM2#,4#

main58904-KK070-C3iGUN156..AGTP..(L,S);GUN16#,TGN156,16#..AGTP202109-202304

BLACK,TRIM2#

main58904-KK070-C3iGUN156..AGTP..6FC..H202111-202210

BLACK,TRIM0#,22

main58904-KK070-C3iGUN156..AGTP..6FC..H202111-202210

BLACK,TRIM0#,2#

main58904-KK070-C4iGUN156..AGTP..6FC..H202111-202210

BLACK/GR RED,TRIM24

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-KK010-C7iGUN156..IDNP..ARL202108-202208

BLACK/BLACK,TRIM2#,4#

main58905-KK010-C7iGUN155,165..L..SA202109-202301

BLACK/BLACK,TRIM2#

main58905-KK020-C4iGUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN)202108-202208

BLACK/BLACK,TRIM4#

main58905-KK020-C4iGUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN)202108-202208

BLACK/BLACK,TRIM2#,4#

main58905-KK020-C4iGUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN)202108-202304

BLACK/BLACK,TRIM2#

main58905-KK030-20iGUN156..MA202109-202209

BLACK/CRIMSON,TRIM3#

sub58905-KK130

main58905-KK030-24iGUN156,TGN156..MA202109-202209

BLACK/GRAY,TRIM2#

sub58905-KK130

main58905-KK030-24iGUN156..6FC..IND202110-202209

BLACK/GRAY,TRIM22

sub58905-KK130

main58905-KK030-25iGUN156..6FC..IND202110-202209

BLACK/GR RED,TRIM24

sub58905-KK130

main58905-KK030-C6iGUN156,166,TGN166..IND202110-202209

BLACK/CHAMOIS,TRIM4#

sub58905-KK130

main58905-KK040-23iGGN155,GUN156..AGTP..H202111-202210

BLACK/FROMAGE,TRIM0#

sub58905-KK140

main58905-KK040-26iTGN156,166..H..LA;GUN156..6F..H..BZAGT;GGN155,GUN165,TGN168..AGTP..(H,S)202109-202304

BLACK/GRAY,TRIM2#

sub58905-KK140

main58905-KK040-26iGUN156..AGTP..6FC..H202111-202210

BLACK/GRAY,TRIM22

sub58905-KK140

main58905-KK040-27iGUN156..AGTP..6FC..H202111-202210

BLACK/GR RED,TRIM24

sub58905-KK140

main58905-KK110-C2iGUN15#,16#..H..TH202108-202207

BLACK/BLACK/CRIMSON,TRIM3#

main58905-KK110-C3iGUN156..H..ARL202108-202207

BLACK/CHAMOIS/IVORY,TRIM4#

main58905-KK110-C5iGUN156..TH202108-202207

BLACK/GRAY,TRIM0#,22

main58905-KK110-C5iGUN155,16#..H..TH202108-202207

BLACK/GRAY,TRIM2#

main58905-KK110-C5iGUN155,16#..H..TH202108-202207

BLACK/GRAY,TRIM0#,2#

main58905-KK110-C7iGUN156..TH202108-202207

BLACK/GR RED,TRIM24

main58905-KK120-C3iGGN155,GUN15#,TGN156..LHD..THP..(H,S)202108-202207

BLACK/CHAMOIS/IVORY,TRIM4#

main58905-KK120-C6iGUN156..THP..GEN202108-202207

BLACK/CRIMSON NO.69,TRIM3#

main58905-KK120-C7iGGN155,GUN15#,TGN156..THP..(H,S)..GCC202108-202207

BLACK/GRAY,TRIM2#

main58905-KK120-C7iGGN155,GUN15#,TGN156..THP..(H,S)..GCC202108-202207

BLACK/GRAY,TRIM0#,2#

main58905-KK130-C0iGUN15#,165,TGN156,166..RHD..GEN202108-202208

BLACK/CHAMOIS,TRIM4#

main58905-KK130-C2iGUN15#,16#,TGN156,166..RHD..(GEN,IDN)202108-202208

BLACK/GRAY,TRIM2#

main58905-KK140-C0iGGN155,GUN15#,165,TGN156..LHD..IDNP..(H,S)..(GCC,GEN)202108-202208

BLACK/CHAMOIS,TRIM4#

main58905-KK140-C2iGUN156..IDNP..(PH,VN)202108-202209

BLACK/GRAY,TRIM2#

main58905-KK140-C2iGUN156..IDNP..(PH,VN)202108-202208

BLACK/GRAY,TRIM22

main58905-KK140-C2iGUN156..IDNP..(PH,VN)202108-202208

BLACK/GRAY,TRIM0#,2#

main58905-KK140-C3iGUN156,165..VNP..H202108-202209

BLACK/CRIMSON,TRIM3#

main58905-KK140-C4iGUN156..IDNP..(PH,VN)202108-202208

BLACK/GR RED,TRIM24

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-KK010-C0iGUN15#,16#..H..TH202108-202208

BLACK,TRIM4#

main58907-KK010-C0iGUN15#,16#..H..TH202108-202209

BLACK,TRIM2#,4#

main58907-KK010-C0iGUN15#,16#..H..TH202108-202304

BLACK,TRIM2#

main58907-KK010-C0iGUN156..THP..GEN202108-202207

BLACK,TRIM0#,2#,3#

main58907-KK010-C0iGUN156..THP..GEN202108-202208

BLACK,TRIM0#,2#,3#,4#

main58907-KK010-C0iGUN156..LHD..IDNP..GEN202108-202301

BLACK,TRIM2#,3#

main58907-KK010-C0iGUN156..IND;GUN166..6FC..IND202110-202209

BLACK,TRIM2#,3#,4#

main58907-KK010-C0iGGN155,GUN156..AGTP..H202111-202210

BLACK,TRIM0#,2#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

58916MAT, BOX BOTTOM

main58916-KK010iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202304

58918ABRACKET, BOX SUPPORT

main58918-KK010iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202304

58921APANEL, REAR CONSOLE, UPPER

main58921-KK020-B0iGUN156..THP..H..(ARL,GCC,GEN);GGN155,GUN155,TGN156..THP..(H,S)..GCC202108-202209

SILVER,TRIM2#,4#

main58921-KK020-B0iGUN15#,16#..H..TH202108-202207

SILVER,TRIM0#,2#,3#

main58921-KK020-B0iGUN15#,16#..H..TH202108-202304

SILVER,TRIM2#

main58921-KK020-B0iGUN156..6FC..IND202110-202209

SILVER,TRIM2#,3#,4#

main58921-KK020-B0iGUN156..6F..H..BZAGT202111-202210

SILVER,TRIM0#,2#

main58921-KK030iGUN155,165,TGN166..(EPTP,SAP,VNP)..L202108-202304

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-KK010-C2iGUN156..THP..(L,S)202108-202208

BLACK,TRIM2#,4#

main58951-KK010-C2iGUN155,165..L..SA202109-202301

BLACK,TRIM2#

main58951-KK030-C3iGUN156,166..RHD..(PKN,SA)202109-202209

BLACK/CRIMSON,TRIM3#

sub58951-KK140

main58951-KK030-C5iGUN156,TGN156..MA202109-202209

BLACK/GRAY,TRIM2#

sub58951-KK140

main58951-KK030-C5iGUN156..6FC..IND202110-202209

BLACK/GRAY,TRIM22

sub58951-KK140

main58951-KK030-C6iGUN156..PKN202110-202209

BLACK/GR RED,TRIM24

sub58951-KK140

main58951-KK030-E3iGUN156,166,TGN166..IND202110-202209

CHAMOIS,TRIM4#

sub58951-KK140

main58951-KK070-C1iGUN155,165,TGN156,166..IDNP..(6F,6FC)..L..(GCC,GEN)202108-202208

BLACK,TRIM4#

main58951-KK070-C1iGUN165..IDNP..L..(PH,VN)202108-202208

BLACK,TRIM2#,4#

main58951-KK070-C1iTGN156,166..L..GEN202108-202304

BLACK,TRIM2#

main58951-KK090-A0iGGN155,GUN156..AGTP..H202111-202210

FROMAGE/WHITE NO.256,TRIM0#

sub58951-KK150

main58951-KK090-C5iGGN155,GUN15#,LAN155,TGN156..LHD..(EPT,SA)202109-202304

BLACK/GRAY,TRIM2#

sub58951-KK150

main58951-KK090-C5iGUN156..AGTP..6FC..H202111-202210

BLACK/GRAY,TRIM22

sub58951-KK150

main58951-KK090-C6iGUN156..AGTP..6FC..H202111-202210

BLACK/GR RED,TRIM24

sub58951-KK150

main58951-KK120-C1iGUN15#,16#..H..TH202108-202207

BLACK/CRIMSON,TRIM3#

main58951-KK120-C2iGUN165..S..TH;GUN156..H..ARL202108-202207

BLACK/GRAY,TRIM0#,2#

main58951-KK120-C2iGUN156..TH202108-202207

BLACK/GRAY,TRIM0#,22

main58951-KK120-C2iGUN156..TH202108-202207

BLACK/GRAY,TRIM2#

main58951-KK120-C4iGUN156..TH202108-202207

BLACK/GR RED,TRIM24

main58951-KK120-E1iGUN156..H..ARL202108-202207

CHAMOIS/IVORY,TRIM4#

main58951-KK130-C2iGUN156..THP..GEN202108-202207

BLACK/CRIMSON NO.69,TRIM3#

main58951-KK130-C3iGUN156..THP..GEN202108-202207

BLACK/GRAY,TRIM2#

main58951-KK130-C3iGUN156..THP..GEN202108-202207

BLACK/GRAY,TRIM0#,2#

main58951-KK130-E1iGGN155,GUN15#,TGN156..LHD..THP..(H,S)202108-202207

CHAMOIS/IVORY,TRIM4#

main58951-KK140-C0iGUN15#,16#,TGN156,166..RHD..(GEN,IDN)202108-202208

BLACK/GRAY,TRIM2#

main58951-KK140-E0iGUN15#,165,TGN156,166..RHD..GEN202108-202208

CHAMOIS/IVORY,TRIM4#

main58951-KK150-C0iGUN156..IDNP..GCC;GGN155,GUN155,16#,TGN156,166..LHD..IDNP..(H,S)202108-202208

BLACK/GRAY,TRIM0#,2#

main58951-KK150-C0iGUN156..LHD..IDNP..GEN202108-202209

BLACK/GRAY,TRIM2#

main58951-KK150-C0iGUN156..IDNP..GCC;GGN155,GUN155,16#,TGN156,166..LHD..IDNP..(H,S)202108-202208

BLACK/GRAY,TRIM22

main58951-KK150-C1iGUN156,166..LHD..IDNP..(GEN,PH)202108-202209

BLACK/CRIMSON,TRIM3#

main58951-KK150-C2iGUN156..IDNP..(PH,VN)202108-202208

BLACK/GR RED,TRIM24

main58951-KK150-E0iGGN155,GUN15#,165,TGN156..LHD..IDNP..(H,S)..(GCC,GEN)202108-202208

CHAMOIS/IVORY,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-04079iGUN165..VNP..L202108-202209

main90541-T0008iGGN155,TGN166..EPT202108-202304

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-KK020iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

90119T0314

main90119-T0314

9015960431

main90159-60431

90159T0014

main90159-T0014

90167T0004

main90167-T0004

90167T0007

main90167-T0007

90167T0012

main90167-T0012

9046705171

main90467-05171

9046710201

main90467-10201

9046712080

main90467-12080

9167380616

main91673-80616

9167380816

main91673-80816

9352054014

main93520-54014

9354054012

main93540-54012

9356855014

main93568-55014

33 parts on this diagram · 6 diagrams in section
