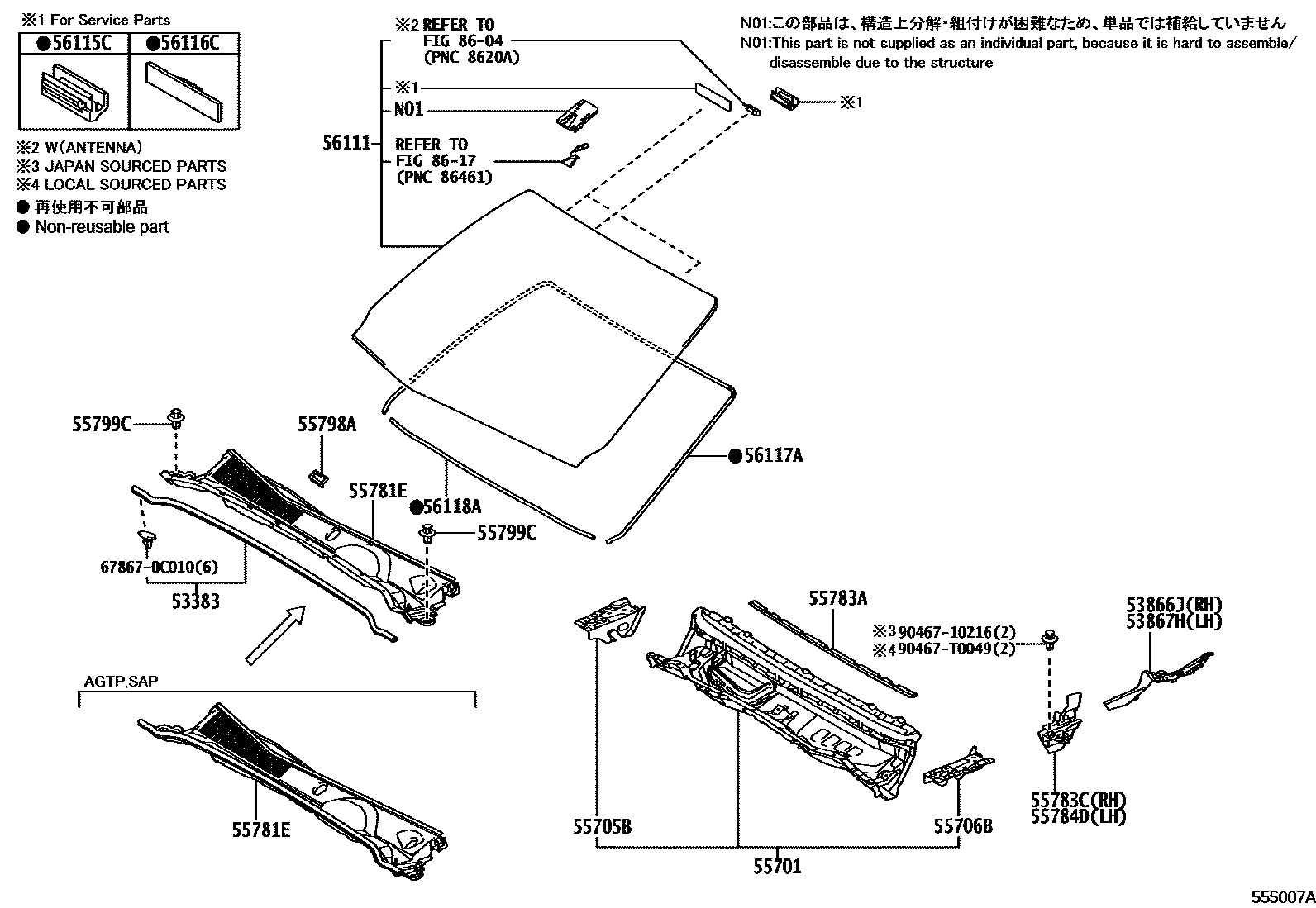

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55783APAD, COWL TOP SILENCER
55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH
55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH
55798ASUPPORT, COWL WATER EXTRACT SEAL
55799CCLIP, COWL TOP VENTILATOR LOUVER
(L),MADE IN IDN
(J)
(L)
56111GLASS, WINDSHIELD
main56101-0K410supersedes 56101-0KG40iGUN156..AGTP..L;GUN16#..(L,S)..LA;GUN156..6FC..S..BZAGT202111-202210
ACTIVE SAFETY PACKAGE-WITHOUT&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
AUDIO-AVN(8INCH) & *BT & DIGITAL TV
ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-*DA(FOR EMERGING MARKET)
AUDIO-AVN(8INCH) & *BT & DIGITAL TV
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
BACK GLASS-FIX TYPE(GREEN,*HSEA)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&SEATHEATER-WITHOUT & WITH(SEAT VENTILATION)
BACK GLASS-FIX TYPE(GREEN,*HSEA)
AUDIO-*DA(FOR EMERGING MARKET) & DAB
AUDIO-*DA(8INCH) & *BT & DAB
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
ACTIVE SAFETY PACKAGE-WITH&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-*DA(8INCH) & *BT
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
UAE SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)
ACTIVE SAFETY PACKAGE-WITH
UAE SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)
UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
AUDIO-AVN(8INCH) & *BT & DIGITAL TV
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-*DA(8INCH) & *BT
ACTIVE SAFETY PACKAGE-WITH&AUDIO-*DA(8INCH) & *BT & DAB
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=2620,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
L=1248,ACTIVE SAFETY PACKAGE-WITH&AUDIO-*DA(8INCH) & *BT & DAB
8604
8617
678670C010CLIP, DOOR WEATHERSTRIP
main67867-0C010
9046710216
main90467-10216
90467T0049
main90467-T0049
22 parts on this diagram · 2 diagrams in section
