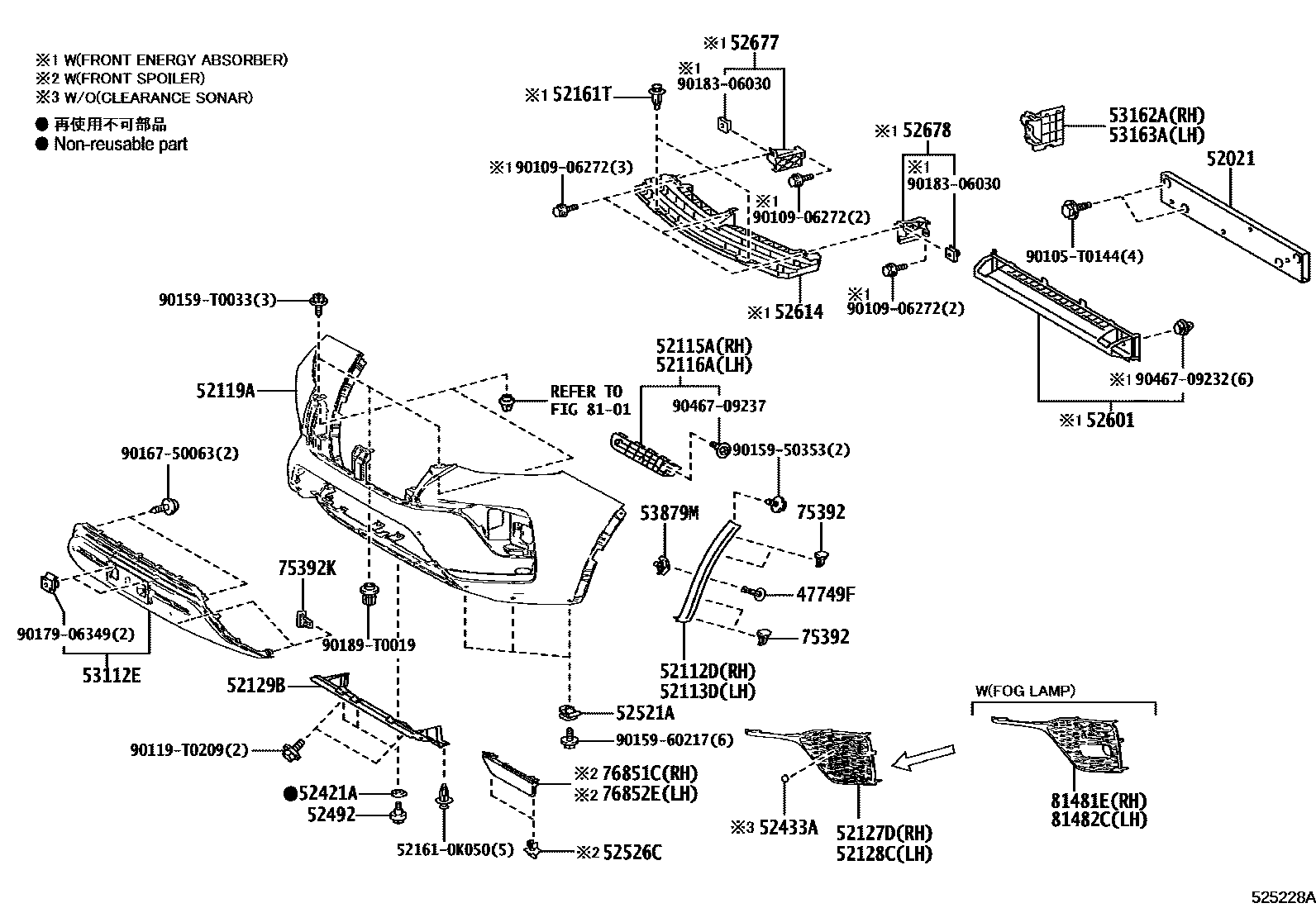

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52112DEXTENSION, FRONT BUMPER, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITHOUT&BACK MONITOR-WITHOUT
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
PAINT REQ.,GR SPORT&FRONT BUMPER-PAINTED(GR SPORT)&FRONT FOG LAMP-WITH(LED)
52113DEXTENSION, FRONT BUMPER, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
PAINT REQ.,GR SPORT&FRONT BUMPER-PAINTED(GR SPORT)&FRONT FOG LAMP-WITH(LED)
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)&BACK MONITOR-WITH(*PVM)
PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)&BACK MONITOR-WITH
PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
PAINT REQ.,MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&HEADLAMP- LED & WITH(SEQUENTIAL TURN)&FRONT FOG LAMP-WITH(LED)&BACK MONITOR-WITH(*PVM)
PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&HEADLAMP- LED & WITH(SEQUENTIAL TURN)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(
PAINT REQ.,GR SPORT&FRONT BUMPER-PAINTED(GR SPORT)&FRONT FOG LAMP-WITH(LED)
PAINT REQ.,GR SPORT&FRONT BUMPER-PAINTED(GR SPORT)&FRONT FOG LAMP-WITH(LED)
PAINT REQ.,GR SPORT & ACCESSORY&FRONT BUMPER-PAINTED(GR SPORT)&FRONT FOG LAMP-WITH(LED)&BACK MONITOR-WITH(*PVM)
52127DCOVER, FRONT BUMPER HOLE, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
52128CCOVER, FRONT BUMPER HOLE, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
52129BCOVER, FRONT BUMPER, LOWER
52161TPIECE, FRONT BUMPER
MLM PACKAGE
52421APAD, FRONT BUMPER
52433APLUG, FRONT BUMPER COVER HOLE
CLEARANCE & BACK SONAR-WITHOUT
CLEARANCE & BACK SONAR-WITHOUT
GR SPORT&FRONT BUMPER-PAINTED(GR SPORT)&FRONT FOG LAMP-WITH(LED)
GR SPORT & ACCESSORY&FRONT BUMPER-PAINTED(GR SPORT)&FRONT FOG LAMP-WITH(LED)
52492BOLT, BUMPER PAD, NO.2
52521ACLIP(FOR FRONT BUMPER RETAINER)
52526CRETAINER, FRONT BUMPER, LOWER
main52526-60030×4iGUN156..RHD..(IDNP,MAP);GUN156..IDNP..(GCC,PH,VN);TGN156..(IDNP,MAP)..(H,L);GUN155,16#,TGN166..IDNP,MAP202108-202208
52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
MLM PACKAGE
52614ABSORBER, FRONT BUMPER ENERGY, NO.2
52677SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52678SUPPORT, FRONT BUMPER SIDE, NO.2, LH
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,FRONT BUMPER- PAINTED & LOWER GRILLE(MATERIAL COLOR)&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.
BLUISH SILVER ME,040 ,070 ,1G3 ,218 ,3U5 ,4W9 ,8X8
SILVER ME.,1D6
BLUISH SILVER ME,040 ,070 ,1G3 ,218 ,2QJ ,4W9
SILVER ME.,1D6 ,2QY
BLUISH SILVER ME,000 ,040 ,070 ,1G3 ,218 ,220 ,4V8 ,4W9
SILVER ME.,1D6
BLUISH SILVER ME,040 ,070 ,1G3 ,218 ,220 ,4V8 ,4W9
SILVER ME.,1D6
BLUISH SILVER ME,000
BLUISH SILVER ME,040 ,1D4 ,1F8 ,218 ,4T3 ,4W9
FRONT BUMPER- PAINTED & LOWER GRILLE(PAINTED)&HEADLAMP-LED & WITH(*DRL)&FRONT FOGLAMP-WITH(LED),BLUISH SILVER ME,040 ,070 ,089 ,1G3 ,218 ,4W9 ,6X1 ,8X2
FRONT BUMPER- PAINTED & LOWER GRILLE(PAINTED)&HEADLAMP-LED & WITH(*DRL)&CLEARANCE& BACK SONAR-WITH,SILVER ME.,1D6
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITHOUT&BACK MONITOR-WITHOUT
NO PAINT REQ.,MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM)
NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&HEADLAMP- LED & WITH(SEQUENTIAL TURN)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WI
NO PAINT REQ.,MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
GR SPORT & ACCESSORY&FRONT BUMPER-PAINTED(GR SPORT)&FRONT FOG LAMP-WITH(LED)&BACKMONITOR-WITH,WHITE PEARL CS.,2QJ
GR SPORT & ACCESSORY&FRONT BUMPER-PAINTED(GR SPORT)&FRONT FOG LAMP-WITH(LED),ATTITUDE BLACK MC.,218
GR SPORT & ACCESSORY&FRONT BUMPER-PAINTED(GR SPORT)&FRONT FOG LAMP-WITH(LED)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH),WHITE PEARL CS.,2QJ
GR SPORT & ACCESSORY&FRONT BUMPER-PAINTED(GR SPORT)&FRONT FOG LAMP-WITH(LED)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH),ATTITUDE BLACK MC.,218
GR SPORT & ACCESSORY&FRONT BUMPER-PAINTED(GR SPORT)&FRONT FOG LAMP-WITH(LED)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH),EMOTIONAL RED 2,2SC
GR SPORT&FRONT BUMPER-PAINTED(GR SPORT)&FRONT FOG LAMP-WITH(LED)&BACK MONITOR-WITH(*PVM),WHITE PEARL CS.,070
GR SPORT & ACCESSORY&FRONT BUMPER-PAINTED(GR SPORT)&FRONT FOG LAMP-WITH(LED),ATTITUDE BLACK MC.,218
53162ADEFLECTOR, FRONT BUMPER STONE, RH
53163ADEFLECTOR, FRONT BUMPER STONE, LH
53879MRETAINER, FRONT FENDER LINER
75392RETAINER, OUTSIDE MOULDING
75392KRETAINER, OUTSIDE MOULDING, NO.2
76851CFRONT SPOILER
main76851-0K060iGUN156..RHD..IDNP;TGN156..IDNP..(H,L);GUN155,16#,TGN166..IDNP;GUN156..IDNP..(GCC,PH,VN)202108-202208
76852ESPOILER, FRONT, LH
main76852-0K060iGUN156..RHD..IDNP;TGN156..IDNP..(H,L);GUN155,16#,TGN166..IDNP;GUN156..IDNP..(GCC,PH,VN)202108-202208
8101
81481ECOVER, FOG LAMP, RH
FRONT BUMPER- PAINTED & LOWER GRILLE(PAINTED)&HEADLAMP-LED & WITH(*DRL)&FRONT FOGLAMP-WITH(LED)
FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITHOUT
FRONT FOG LAMP-WITH(LED)
FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&HEADLAMP- LED & WITH(SEQUENTIAL TURN)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(*PVM)
GR SPORT & ACCESSORY&FRONT BUMPER-PAINTED(GR SPORT)&FRONT FOG LAMP-WITH(LED)
81482CCOVER, FOG LAMP, LH
FRONT BUMPER- PAINTED & LOWER GRILLE(PAINTED)&HEADLAMP-LED & WITH(*DRL)&FRONT FOGLAMP-WITH(LED)
FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITHOUT
FRONT FOG LAMP-WITH(LED)
FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&HEADLAMP- LED & WITH(SEQUENTIAL TURN)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(*PVM)
GR SPORT & ACCESSORY&FRONT BUMPER-PAINTED(GR SPORT)&FRONT FOG LAMP-WITH(LED)&BACKMONITOR-WITH(*PVM)
521610K050CUSHION, REAR BUMPER GUARD, NO.1
main52161-0K050
90105T0144
main90105-T0144
9010906272
main90109-06272
90119T0209
main90119-T0209
9015950353
main90159-50353
9015960217
main90159-60217
90159T0033
main90159-T0033
9016750063
main90167-50063
9017906349
main90179-06349
9018306030
main90183-06030
90189T0019
main90189-T0019
9046709232
main90467-09232
9046709237
main90467-09237
44 parts on this diagram · 3 diagrams in section
