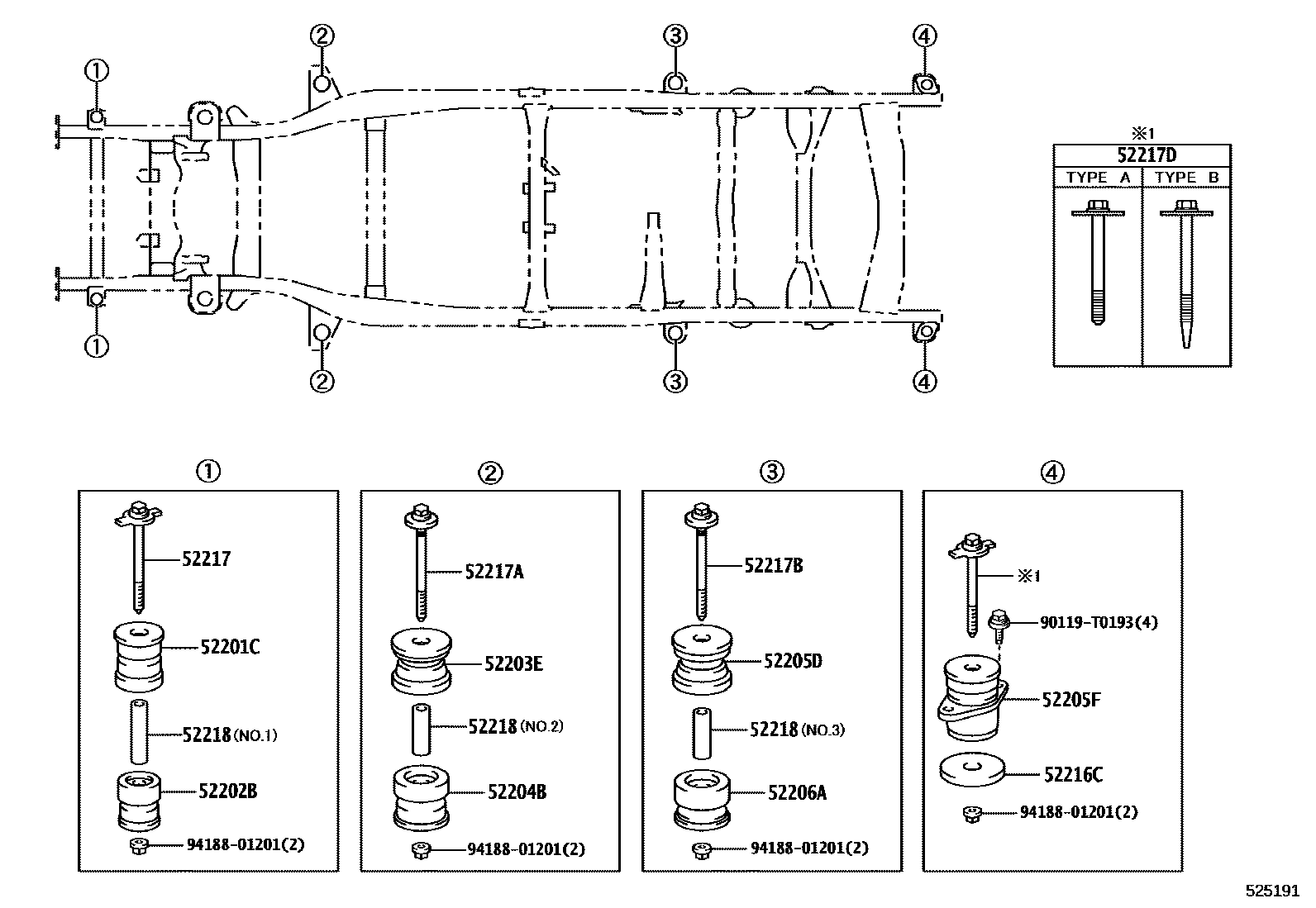

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K060×2iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main52201-0K070×2iGUN156,166,TGN166..IND202110-202209

main52201-0K100×2iGUN15#,TGN156..MA202108-202208

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K060×2iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main52202-0K070×2iGUN156,166,TGN166..IND202110-202209

main52202-0K100×2iGUN15#,TGN156..MA202108-202208

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K080×2iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main52203-0K090×2iGUN156,166,TGN166..IND202110-202209

main52203-0K130×2iGUN15#,TGN156..MA202108-202208

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K080×2iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main52204-0K090×2iGUN156,166,TGN166..IND202110-202209

main52204-0K130×2iGUN15#,TGN156..MA202108-202208

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K090×2iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main52205-0K100×2iGUN156,166,TGN166..IND202110-202209

main52205-0K180×2iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

52205FCUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52207-0K070×2iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main52207-0K080×2iGUN156,166,TGN166..IND202110-202209

main52207-0K090×2iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202210

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0K040×2iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main52206-0K050×2iGUN156,166,TGN166..IND202110-202209

main52206-0K140×2iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTP,PKNP,SAP,VNP202108-202304

52216CSTOPPER, CAB MOUNTING CUSHION

main52216-KK010×2iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202208

52217BOLT, BODY MOUNTING

main52217-0K010×2iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

52217ABOLT, BODY MOUNTING

main52217-0K020×2iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

52217BBOLT, BODY MOUNTING

main52217-0K020×2iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

52217DBOLT, BODY MOUNTING

main52217-0K050iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

TYPE A:REFER ILLUST.

main52217-0K060iGUN156,166,TGN166..IND202108-202209

TYPE B:REFER ILLUST.

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010×2iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202210

NO.1

main52219-0K010×2iGUN156,166,TGN166..IND202108-202209

NO.2

main52219-KK010×2iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTP,PKNP,SAP,VNP202108-202304

NO.3

90119T0193

main90119-T0193

9418801201

main94188-01201

15 parts on this diagram · 1 diagram in section
