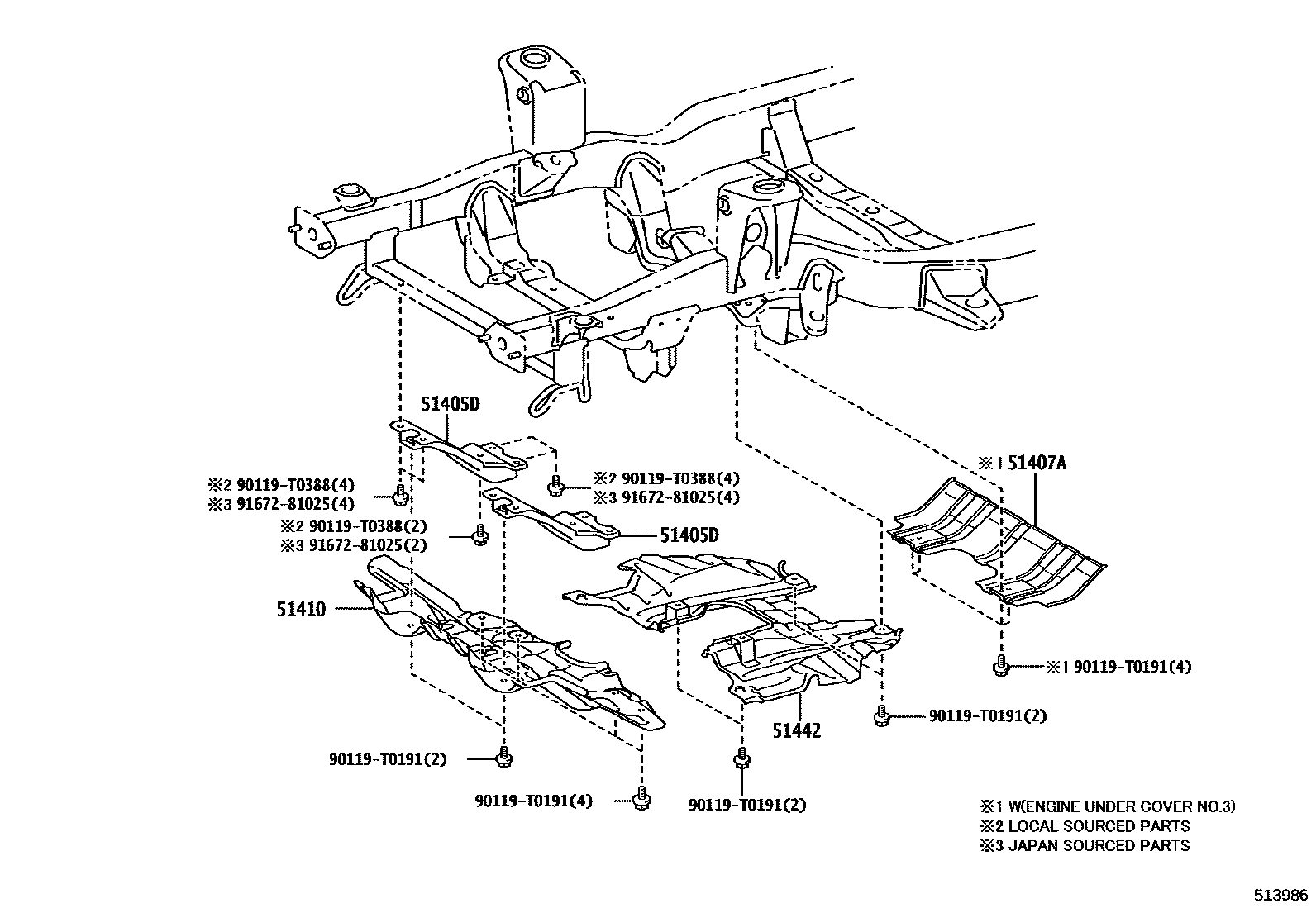

SUSPENSION CROSSMEMBER & UNDER COVER

51405DBRACE SUB-ASSY, ENGINE UNDER

main51405-KK030iGUN156,166,TGN166..IND202108-202304

51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3

main51407-0K020iTGN166..VNP;GGN155,TGN156..EPT,PKN,SA202108-202304

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-KK010iGUN15#,16#..TH202108-202208

ASEAN GENERAL SPEC

main51410-KK010iGUN15#,16#..TH202108-202207

CAMBODIA SPEC

main51410-KK010iGUN165..IDNP..(PH,VN);GUN155,165..RHD..(IDNP,MAP);GUN156,166,TGN156,166..(IDNP,MAP)..(IDN,MA,PH,VN)202108-202208

SINGAPORE SPEC

main51410-KK010iGUN165..IDNP..(PH,VN);GUN155,165..RHD..(IDNP,MAP);GUN156,166,TGN156,166..(IDNP,MAP)..(IDN,MA,PH,VN)202108-202208

BRUNEI SPEC

main51410-KK010iGUN165..IDNP..(PH,VN);GUN155,165..RHD..(IDNP,MAP);GUN156,166,TGN156,166..(IDNP,MAP)..(IDN,MA,PH,VN)202108-202208

OCEANIA GENERAL (EURO 4 REGULATION)

main51410-KK010iGUN165..IDNP..(PH,VN);GUN155,165..RHD..(IDNP,MAP);GUN156,166,TGN156,166..(IDNP,MAP)..(IDN,MA,PH,VN)202108-202208

OCEANIA GENERAL SPEC

main51410-KK010iGUN165..IDNP..(PH,VN);GUN155,165..RHD..(IDNP,MAP);GUN156,166,TGN156,166..(IDNP,MAP)..(IDN,MA,PH,VN)202108-202208

NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)

main51410-KK010iGUN165..IDNP..(PH,VN);GUN155,165..RHD..(IDNP,MAP);GUN156,166,TGN156,166..(IDNP,MAP)..(IDN,MA,PH,VN)202108-202208

OCEANIA(EURO 5)

main51410-KK010iGUN156,166,TGN166..IND202108-202209

main51410-KK020iGUN155..RHD..GEN202108-202304

51442COVER, ENGINE UNDER, NO.2

main51420-KK010iGUN156,165,TGN156,166..PKNP,VNP202108-202209

main51420-KK010iGUN15#,16#..TH202108-202207

CAMBODIA SPEC

main51420-KK010iGUN156..THP..GEN202108-202208

ASEAN GENERAL SPEC

main51420-KK010iGUN156..RHD..GEN202108-202208

OCEANIA GENERAL (EURO 4 REGULATION)

main51420-KK010iGUN156..RHD..GEN202108-202208

OCEANIA GENERAL SPEC

main51420-KK010iGUN156..RHD..GEN202108-202208

NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)

main51420-KK010iGUN156..RHD..GEN202108-202208

OCEANIA(EURO 5)

main51420-KK010iGUN165..IDNP..(PH,VN);GUN155,165..RHD..(IDNP,MAP);GUN156,166,TGN156,166..(IDNP,MAP)..(IDN,MA,PH,VN)202108-202208

SINGAPORE SPEC

main51420-KK010iGUN165..IDNP..(PH,VN);GUN155,165..RHD..(IDNP,MAP);GUN156,166,TGN156,166..(IDNP,MAP)..(IDN,MA,PH,VN)202108-202208

BRUNEI SPEC

main51420-KK020iGGN155,GUN15#,165,TGN156,166..THP..(ARL,GCC,GEN)202108-202304

90119T0191

main90119-T0191

90119T0388

main90119-T0388

9167281025

main91672-81025

7 parts on this diagram · 1 diagram in section
