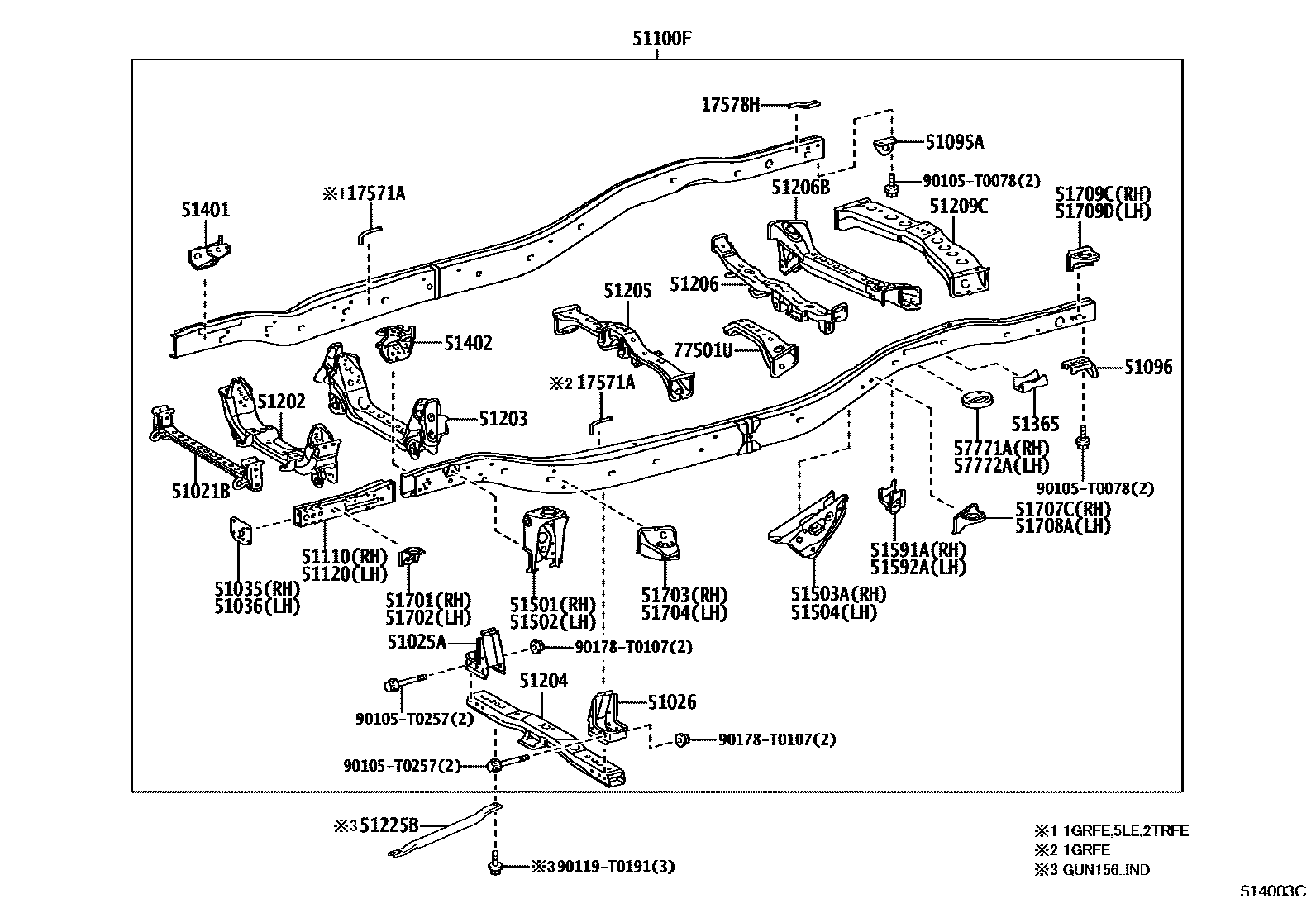

FRAME

0001 1 0002 1PROPELLER SHAFT GUARD 0003 1PROPELLER SHAFT GUARD

17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9

main17571-0L010i2TRFE..TGN156,166..THP202108-202304

17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10

main17505-0L020i1G#,2GDFTV,2TRFE..GGN155,GUN15#,16#,TGN156,166..THP202108-202304

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-KK010iGGN155,GUN15#,16#,LAN155,TGN156..EPT,PKN,SA202108-202304

main51021-KK020iGGN155,GUN156,16#,TGN156,16#..AGTP,VNP202108-202210

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-KK010iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202304

51095AHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-0K010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51096HOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-0K010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51100FFRAME SUB-ASSY

main51001-KK490iTGN156..MAP,THP202108-202202

sub51001-KK492

main51001-KK492iTGN156..MA202202-202210

sub51001-KK493

main51001-KK493iTGN156..PKN202211-202302

sub51001-KKL10

main51001-KK500iGGN155..THP202108-202202

sub51001-KK502

main51001-KK502iGGN155..THP202202-202302

sub51001-KK503

main51001-KK510iGUN15#..MAP,THP202108-202202

sub51001-KK512

main51001-KK512iGUN156..PKN202202-202210

sub51001-KK513

main51001-KK513iGUN156..PKN202211-202302

sub51001-KKK20

main51001-KK520iLAN155202109-202202

sub51001-KK522

main51001-KK522iLAN155202202-202301

main51001-KK530iTGN166..VNP202108-202209

sub51001-KK871

sub51001-KKD20

main51001-KK540iTGN166..L..GEN202108-202208

sub51001-KK880

sub51001-KK884

sub51001-KKD30

main51001-KK570iGUN165..VNP..6FC202108-202209

sub51001-KKA01

sub51001-KKC60

main51001-KK610iTGN156..SA202109-202202

sub51001-KK612

main51001-KK612iTGN156..SA202202-202301

sub51001-KKK30

main51001-KK630iGUN15#..SA202109-202202

sub51001-KK632

main51001-KK632iGUN15#..SA202202-202301

sub51001-KKK40

main51001-KK650iGUN16#..6F..SA202109-202202

sub51001-KK652

main51001-KK652iGUN16#..6F..SA202202-202301

main51001-KK660iGUN16#..6FC..SA202109-202202

sub51001-KK662

main51001-KK662iGUN16#..6FC..SA202202-202301

main51001-KK871iTGN166..THP202108-202202

sub51001-KK873

main51001-KK873iTGN166..EPT,PKN202202-202210

sub51001-KK874

main51001-KK874iTGN166..EPT202211-202306

sub51001-KK875

main51001-KK875iTGN166..PKN202307

main51001-KKA01iGUN16#..THP202108-202202

sub51001-KKA03

main51001-KKA03iGUN16#..THP202202-202207

sub51001-KKA04

sub51001-KKA05

main51001-KKB10iTGN156..IDNP202108-202208

main51001-KKB20iGGN155..IDNP202108-202208

main51001-KKB30iGUN15#..IDNP..(GCC,GEN,IDN,PH,VN)202108-202209

sub51001-KKD00

main51001-KKB50iGUN165..VNP..L202108-202209

sub51001-KKD40

main51001-KKC60iGUN16#..6FC..LA202110-202209

main51001-KKC70iTGN156..AGTP202111-202202

sub51001-KKC72

main51001-KKC72iTGN156..AGTP202202-202210

main51001-KKC90iGGN155..LA202111-202202

sub51001-KKC92

main51001-KKC92iGGN155..LA202202-202210

main51001-KKD00iGUN156..IND202110-202209

main51001-KKD20iTGN166..6FC..IND202110-202209

main51001-KKD30iTGN166..S..LA202110-202209

main51001-KKD40iGUN166..6F..IND202110-202209

main51001-KKG00iGUN156..AGTP202202-202210

main51001-KKG10iGUN16#..6FC..LA202202-202210

main51001-KKG20iTGN16#..AGTP..6FC202202-202210

main51001-KKG30iTGN166..S..LA202202-202210

main51001-KKG40iGUN166..6F..LA202202-202210

main51001-KKG50iGUN156..IDNP..ARL202202-202208

main51001-KKK20iGUN156202302

main51001-KKL10iTGN156202302

main51001-KKL20iGGN155202302

51110EXTENSION ASSY, SIDE RAIL, RH

main51110-KK901iLAN155202109-202301

sub51110-KK907

main51110-KK907iGUN156,166,TGN166..IND202108-202304

51120EXTENSION ASSY, SIDE RAIL, LH

main51122-KK901iLAN155202109-202301

sub51122-KK907

main51122-KK907iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-KK020iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTP,MAP,SAP,THP202108-202209

sub51201-KK050

main51201-KK050iGGN155,GUN15#,16#,TGN156,166..THP202202-202304

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-KK010iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202304

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-KK010iGUN16#,TGN166..(SAP,VNP)..6FC202108-202301

sub51203-KK100

main51203-KK020iTGN166..L..GEN202108-202208

sub51203-KK110

sub51203-KK230

main51203-KK030iGUN165..IDNP..6F202108-202301

main51203-KK040iGUN15#..PKNP,SAP,VNP202108-202302

sub51203-KK250

main51203-KK050iGGN155,TGN156..THP202108-202302

sub51203-KK260

main51203-KK120iGUN16#..6FC..LA202110-202210

sub51203-KK240

main51203-KK130iTGN166..5F..IND202110-202210

sub51203-KK230

main51203-KK140iGUN166..6F..IND202110-202210

main51203-KK150iGUN156..IND202110-202210

main51203-KK190iTGN166..6FC..IND202108-202307

sub51203-KK210

main51203-KK200iGGN155,TGN156..AGTP202111-202210

main51203-KK210iTGN166..PKN202307

main51203-KK250iGUN156202302

main51203-KK260iGGN155,TGN156202302

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-KK060iGGN155,GUN15#,LAN155,TGN156..EPTP,PKNP,SAP,VNP202108-202210

main51204-KK080iGUN16#,TGN166..IDNP202108-202304

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-KK050iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-KK020iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

main51225-KK010iGUN156..IND202110-202209

51365STOPPER, REAR BUMPER

main57081-KK010iGUN156,166,TGN166..IND202108-202304

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-KK010iLAN155202109-202301

main51401-KK020iTGN156,166..THP202108-202304

main51401-KK030iGGN155..THP202108-202210

main51401-KK040iGUN156,166..IND202108-202210

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-KK010iLAN155202109-202301

main51402-KK020iTGN156,166..IDNP,MAP202108-202304

main51402-KK030iGGN155..IDNP202108-202210

main51402-KK040iGUN15#,16#..IDNP,MAP202108-202210

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-KK020iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-KK020iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH

main51503-KK010iTGN166..EPT,PKN202108-202304

51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH

main51504-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51591ASUPPORT, STABILIZER, RH

main51508-KK010iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202304

51592ASUPPORT, STABILIZER, LH

main51509-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-KK010iTGN166..EPT,PKN202108-202304

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

main51707-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH

main51708-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51709CBRACKET SUB-ASSY, CAB MOUNTING, NO.5 RH

main51709-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

51709DBRACKET SUB-ASSY, CAB MOUNTING, NO.5 LH

main51709-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

57771APLATE, REAR SPRING, RH

main57771-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

57772APLATE, REAR SPRING, LH

main57771-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

77501UBRACKET SUB-ASSY, FUEL TANK

main77501-KK040iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

90105T0078

main90105-T0078

90105T0257

main90105-T0257

90119T0191

main90119-T0191

90178T0107

main90178-T0107

44 parts on this diagram · 3 diagrams in section
