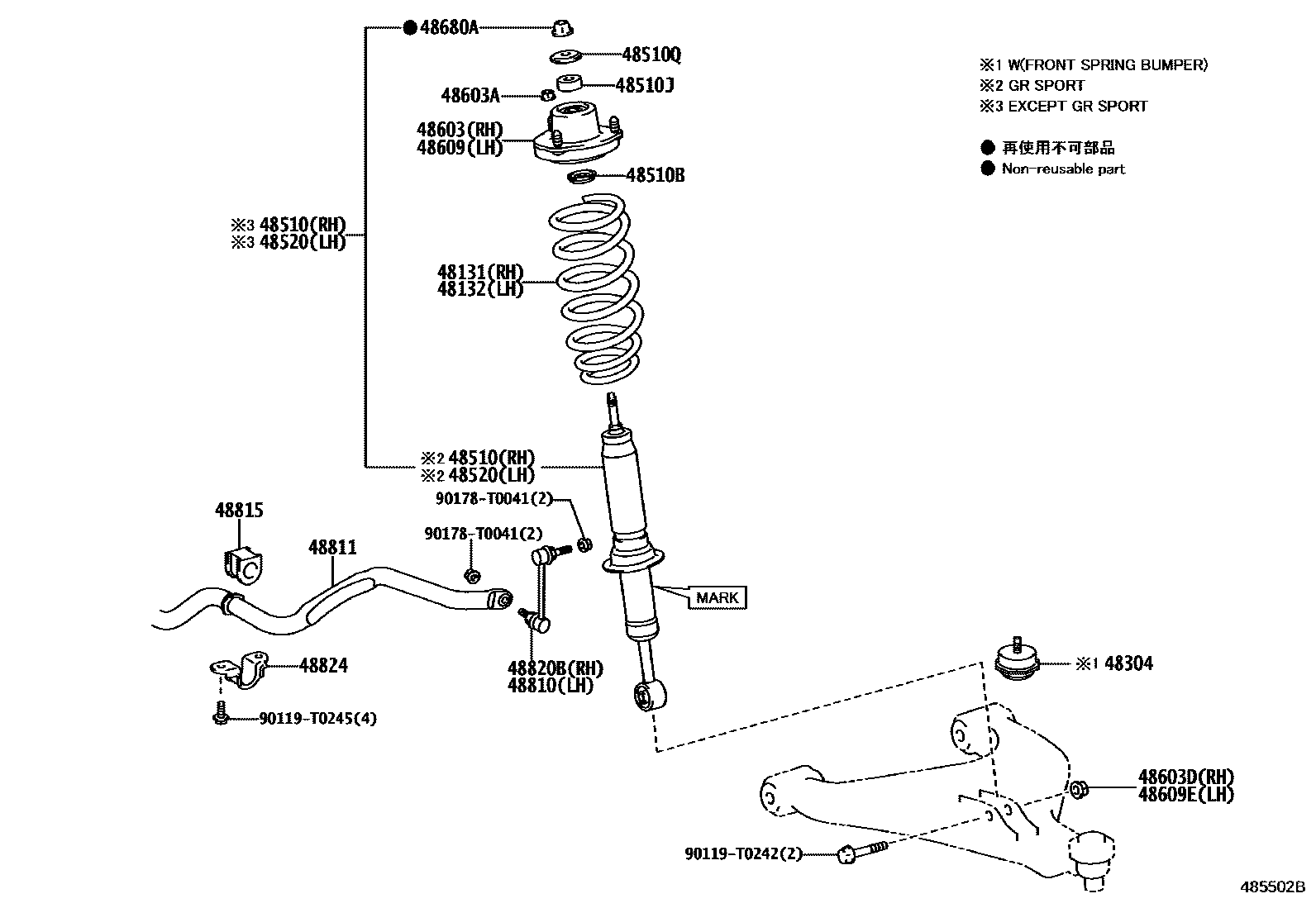

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-0KD00iGUN16#..LA202111-202210

main48131-0KG51iTGN166..IND202108-202209

main48131-0KG61iGUN165..THP..GCC202108-202207

main48131-0KG71iTGN156..PKN202108

main48131-0KG81iGGN155..THP202108-202207

main48131-0KG90iTGN16#..AGTP202111-202210

main48131-0KJ10iTGN156..AGTP202111-202210

main48131-0KJ20iGGN155..LA202111-202210

main48131-0KJ30iGUN156..AGTP202111-202210

main48131-0KJ60iTGN156..SA202109-202210

main48131-0KJ70iLAN155202109-202301

main48131-0KJ80iGUN155..SA;GUN156..LHD..SA202109-202301

main48131-0KJ90iTGN166..IDNP202108-202208

main48131-0KK00iGUN165..LHD..IDNP..(GCC,GEN,VN)202108-202208

main48131-0KK10iTGN156..IDNP;GUN165..RHD..IDNP202108-202208

main48131-0KK20iGGN155,GUN166..IDNP..(GCC,GEN,IDN)202108-202208

main48131-0KK30iGUN155..IDNP;GUN156..LHD..IDNP..(GCC,GEN,VN)202108-202208

main48131-0KN81iGUN15#..LHD..THP202108-202207

main48131-0KP91iGUN16#..TH202108-202207

main48131-0KQ11iGUN155..TH202108-202207

main48131-0KR50iGUN156..RHD..IDNP..H202108-202208

main48131-0KR80iTGN156..MA202110-202208

main48131-0KR90iGUN155..MA202110-202208

main48131-0KS10iGUN166..IND202110-202209

main48131-0KS30iGUN16#..PH202108-202208

main48131-0KS60iGUN156..IND202110-202209

main48131-0KS81iGUN156..IDNP..ARL202108-202208

main48131-0KT11iGUN16#..SA202109-202301

main48131-0KT20iGUN156..RHD..SA202109-202301

main48131-0KT40iGUN156..MA202110-202208

48132SPRING, FRONT COIL, LH

main48131-0KG51iTGN166..IND202108-202209

main48131-0KG71iGUN165,TGN156..THP..GCC202108-202207

main48131-0KG90iTGN16#..AGTP202111-202210

main48131-0KJ10iGUN16#,TGN156..AGTP202111-202210

main48131-0KJ30iGGN155..LA202111-202210

main48131-0KJ60iTGN156..SA202109-202210

main48131-0KJ80iLAN155;GUN155..L..SA202109-202301

main48131-0KJ90iTGN166..IDNP202108-202208

main48131-0KK10iGUN165,TGN156..IDNP..(GCC,GEN,IDN,VN)202108-202208

main48131-0KK20iGUN166..IDN202108-202208

main48131-0KK30iGGN155..IDNP;GUN155..RHD..IDNP202108-202208

main48131-0KK91iGUN15#..LHD..THP202108-202207

main48131-0KN81iGGN155..THP202108-202207

main48131-0KP91iGUN16#..TH202108-202207

main48131-0KQ11iGUN155..TH202108-202207

main48131-0KR50iGUN155..LHD..IDNP;GUN156..IDNP..(GCC,GEN,IDN,VN)202108-202208

main48131-0KR80iTGN156..MA202110-202208

main48131-0KR90iGUN155..MA202110-202208

main48131-0KS10iGUN166..IND202110-202209

main48131-0KS40iGUN16#..PH202108-202208

main48131-0KS60iGUN156..IND202110-202209

main48131-0KS81iGUN156..IDNP..ARL202108-202208

main48131-0KT11iGUN16#..SA202109-202301

main48131-0KT20iGUN15#..S..SA202109-202301

main48131-0KT30iGUN156..AGTP202111-202210

main48131-0KT40iGUN156..MA202110-202208

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-0K041×2iGUN15#,TGN156..MA202108-202208

main48304-0K101×2iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main48304-0K111×2iGUN156,165,TGN166..VNP202108-202209

main48304-0K121×2iGUN156,166,TGN166..IND202110-202209

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-79415iGUN156..6FC..(H,S)..BZAGT202111-202210

MARK 48510-71020

main48510-79425iTGN168202111-202210

MARK 48510-71010

main48510-8Z192iGUN15#,TGN156..MA202110-202208

MARK 48510-0KF50

main48510-8Z194iGUN16#,TGN156,16#..AGTP202108-202210

MARK 48510-0KA10

main48510-8Z195iGGN155,GUN15#..IDNP..(ARL,GCC,GEN,IDN,VN)202108-202208

MARK 48510-0KB40

main48510-8Z208iGGN155,GUN156..EPTP,VNP202108-202304

MARK 48510-0KA20

main48510-8Z244iGUN156..PH;GUN16#,TGN156,166..IDNP202108-202208

MARK 48510-0KG80

main48510-8Z480iTGN156,166..PKN202202

MARK 48510-0KC90

main48510-8Z494iGUN15#,LAN155..SA202109-202301

MARK 48510-0KD10

main48510-8Z495iGUN16#,TGN156..SA202109-202301

MARK 48510-0KD30

main48510-YY160iGUN156..6FC..H..BZAGT202111-202210

MARK 48511-YY050,GR SPORT & ACCESSORY

main48510-YY170iGUN156..TH202108-202202

MARK 48511-YY060,GR SPORT

main48510-YY171iGUN156..(IDNP,PKNP)..(PH,PKN,VN)202203-202206

MARK 48511-YY060,GR SPORT

main48510-YY172supersedes 48510-8Z479iGUN156..PKN202207

MARK 48511-YY060,GR SPORT

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-F2002×2iGUN15#,16#,LAN155,TGN156..SA202109-202301

main90948-T2003×2iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202210

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-S1003×2iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main90948-T1013×2iGUN156,166,TGN166..IND202109-202209

MADE IN THAILAND

main90948-T1014×2iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main90948-T1015×2iGUN15#,16#,LAN155,TGN156..SA202109-202301

MADE IN INDIA

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-F2003×2iGUN15#,16#,LAN155,TGN156..SA202109-202301

main90948-T2004×2iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202210

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-79415iGUN156..6FC..(H,S)..BZAGT202111-202210

MARK 48510-71020

main48510-79425iTGN168202111-202210

MARK 48510-71010

main48510-8Z192iGUN15#,TGN156..MA202110-202208

MARK 48510-0KF50

main48510-8Z194iGUN165,TGN166..VNP202108-202304

MARK 48510-0KA10

main48510-8Z195iGGN155,GUN15#..IDNP..(ARL,GCC,GEN,IDN,VN)202108-202208

MARK 48510-0KB40

main48510-8Z208iGUN156..IND202108-202209

MARK 48510-0KA20

main48510-8Z244iGUN156..PH;GUN16#,TGN156,166..IDNP202108-202208

MARK 48510-0KG80

main48510-8Z480iTGN156,166..PKN202202

MARK 48510-0KC90

main48510-8Z494iGUN15#,LAN155..SA202109-202301

MARK 48510-0KD10

main48510-8Z495iGUN16#,TGN156..SA202109-202301

MARK 48510-0KD30

main48510-YY160iGUN156..6FC..H..BZAGT202111-202210

MARK 48511-YY050,GR SPORT & ACCESSORY

main48510-YY170iGUN156..TH202108-202202

MARK 48511-YY060,GR SPORT

main48510-YY171iGUN156..(IDNP,PKNP)..(PH,PKN,VN)202203-202206

MARK 48511-YY060,GR SPORT

main48510-YY172supersedes 48510-8Z479iGUN156..PKN202207

MARK 48511-YY060,GR SPORT

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0K070iGGN155,GUN156,TGN156,166..EPT,PKN202108-202304

main48609-0K080iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main48609-0K110iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main48609-0K120iGUN156,166,TGN166..IND202110-202209

MADE IN INDIA

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-T0050×6iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202210

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0048iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202208

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0K070iGGN155,GUN156,TGN156,166..EPT,PKN202108-202304

main48609-0K080iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main48609-0K110iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main48609-0K120iGUN156,166,TGN166..IND202110-202209

MADE IN INDIA

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0048iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202210

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-T0015×2iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202208

48810LINK ASSY, FRONT STABILIZER, LH

main48810-0K010iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202208

main48810-0K020iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main48810-0K030iGUN156,166,TGN166..IND202110-202209

sub48810-0K031

48811BAR, STABILIZER, FRONT

main48811-0K170iGGN155,GUN156,TGN156,166..EPT,PKN202108-202304

main48811-0K180iGUN15#,16#,LAN155,TGN156..SA202109-202301

main48811-0K190iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main48811-0K200iGUN156,165,TGN166..VNP202108-202209

main48811-0K210iGUN156,166,TGN166..IND202110-202209

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0K090×2iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTP,PKNP,SAP,VNP202108-202304

main48815-0K120×2iGUN156,166,TGN166..IND202110-202209

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0K030iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

main48820-0K040iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main48820-0K060iGUN156,166,TGN166..IND202110-202209

sub48820-0K061

48824BRACKET, STABILIZER, FRONT

main48824-KK010×2iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

90119T0242

main90119-T0242

90119T0245

main90119-T0245

90178T0041

main90178-T0041

22 parts on this diagram · 1 diagram in section
