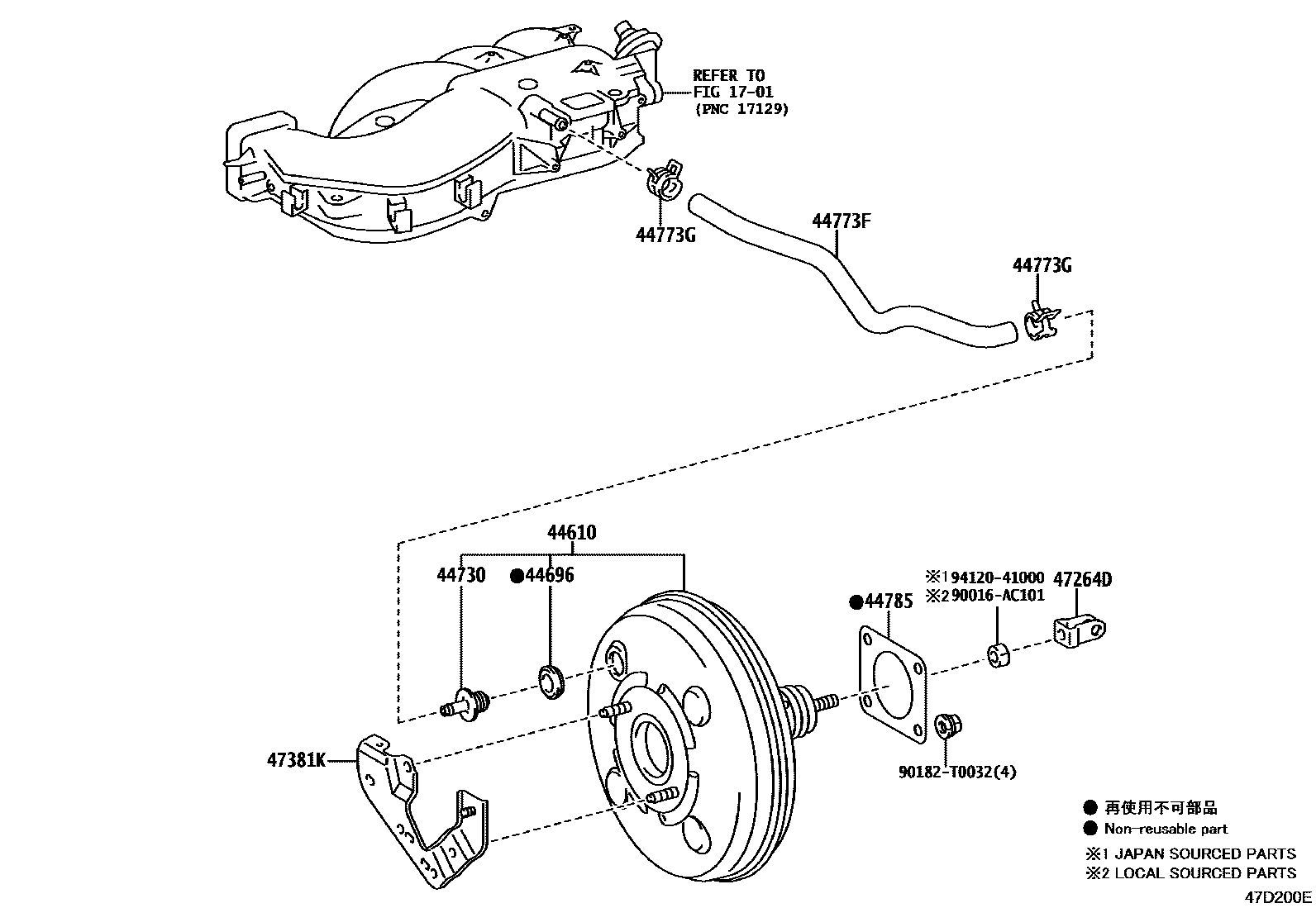

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1701

44610BOOSTER ASSY, BRAKE

main44610-0K270iTGN166..IND202110-202209

main44610-0K430iTGN166..VNP202108-202209

main44610-0K440iGGN155..IDNP202108-202208

main44610-0K450iGUN15#,16#..LHD..IDNP202108-202209

main44610-0K460iGUN15#,16#..RHD..IDNP202108-202208

main44610-0K550iGUN166..6FC..IND202110-202209

TOYOTA STOP & START SYSTEM-WITHOUT

main44610-0K560iTGN156,166..THP202108-202304

main44610-0K580iGUN15#,16#..RHD..(PKN,SA)202108-202208

main44610-0K580iGUN15#,16#..TH202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main44610-0K600iGUN15#,165..LHD..THP202108-202301

main44610-0K810iGGN155..THP202108-202304

main44610-0K880iGUN15#,16#..TH202108-202207

main44610-0K890iGUN15#,165..THP..GCC202108-202207

TOYOTA STOP & START SYSTEM-WITH

main44610-0KA00iGUN15#,165..IDNP..GCC202108-202208

TOYOTA STOP & START SYSTEM-WITH

main44610-0KA10iGUN156,166..6FC..IND202110-202209

main44610-0KA20iGUN155..S..IDN;GUN156,166..IDN202108-202208

TOYOTA STOP & START SYSTEM-WITH

main44610-71010iTGN156,16#..AGTP202111-202210

main44610-71020iGGN155..LA202111-202210

main44610-71030iGUN156,16#..AGTP202111-202210

44696GROMMET, CHECK VALVE

main90016-AT003iTGN156,166..PKNP,SAP,VNP202108-202304

main90480-24439iGGN155,GUN156,16#..AGTP202110-202210

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iTGN166..IND202108-202304

44773FHOSE, UNION TO CHECK VALVE

main44773-0K020iLAN155202109-202301

main44773-KK020iGGN155..LA202108-202304

main44773-KK030iGUN156,166..IND202108-202303

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-T0019iGUN15#,16#..IDNP,MAP202108-202303

NO.1

main90466-T0019iGGN155..EPT202108-202304

main90467-16014iGUN156,16#..AGTP202108-202303

NO.2

44785GASKET, BRAKE BOOSTER

main44785-17010iGGN155,TGN166..EPT202108-202304

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-04010iGUN15#,16#,LAN155,TGN156,166..PKN,SA202108-202304

main47264-0K070iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202209

main47264-0K080iGUN156,166..IND202110-202209

main47264-26030iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-0K050iGUN156,165,TGN166..VNP202108-202209

main47381-0K060iGUN156,166..IND202110-202209

main47381-0K071iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202304

90016AC101

main90016-AC101

90182T0032

main90182-T0032

9412041000

main94120-41000

12 parts on this diagram · 6 diagrams in section
