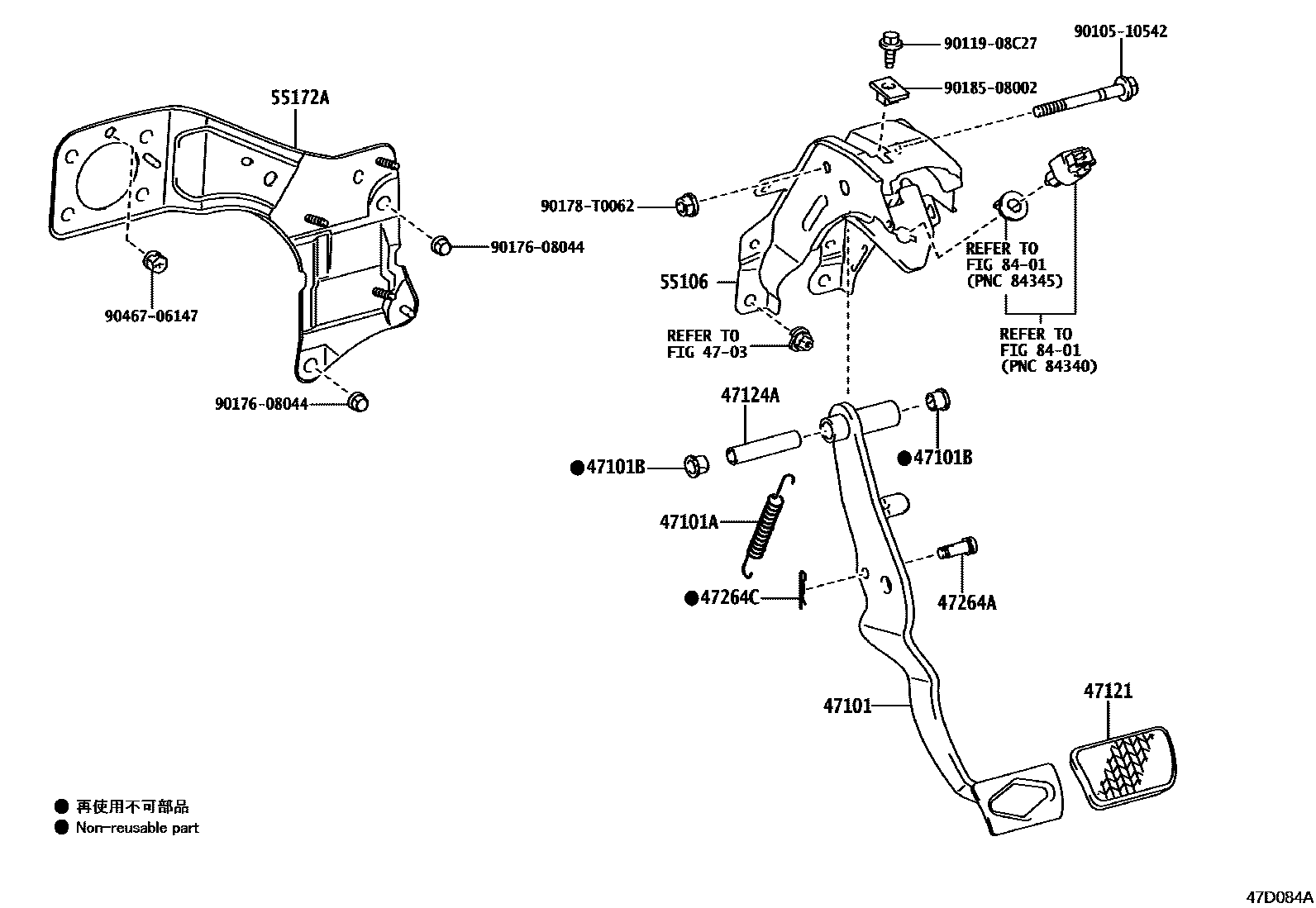

BRAKE PEDAL & BRACKET

0001 1 0002 1

4703

47101PEDAL SUB-ASSY, BRAKE

main47101-KK010iGUN165..6F..IDN202108-202301

main47101-KK020iGUN156,165,LAN155..LHD..(SAP,VNP)..MTM202108-202301

main47101-KK030iGUN15#,16#,TGN156,166..RHD..(IDNP,MAP)..6FC202108-202303

main47101-KK040iGGN155,GUN15#,16#,TGN156,166..LHD..IDNP..6FC202108-202304

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-T0002iGUN156,TGN156,166..PKN202108-202304

main90507-T0003iGUN156..TH202108-202210

GR SPORT & ACCESSORY

main90507-T0003iGUN156..IDNP..(PH,VN)202109-202208

GR SPORT

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

47121PAD, BRAKE PEDAL

main31321-02020iGUN156,166,TGN166..AGTP..MTM202108-202301

main47121-02030iGGN155,GUN15#,16#,TGN156,166..(IDNP,MAP)..6FC202108-202304

main47121-78010iGUN156..6FC..IND202108-202210

GR SPORT & ACCESSORY

main47121-78010iGUN156..IDNP..(PH,VN)202109-202208

GR SPORT

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10121iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

47264APIN(FOR PUSH ROD)

main47148-35010iGUN156,TGN156,166..PKN202108-202304

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-16012iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202304

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-KK010iGUN156,TGN156,166..PKN202108-202304

main55106-KK030iGUN156,16#,TGN166..INDP,VNP202108-202209

55172ABASE, BRAKE PEDAL SUPPORT

main55172-KK040iGUN156,166,TGN166..IND202108-202209

main55172-KK050iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202304

8401

9010510542

main90105-10542

9011908C27

main90119-08C27

9017608044

main90176-08044

90178T0062

main90178-T0062

9018508002

main90185-08002

9046706147

main90467-06147

17 parts on this diagram · 2 diagrams in section
