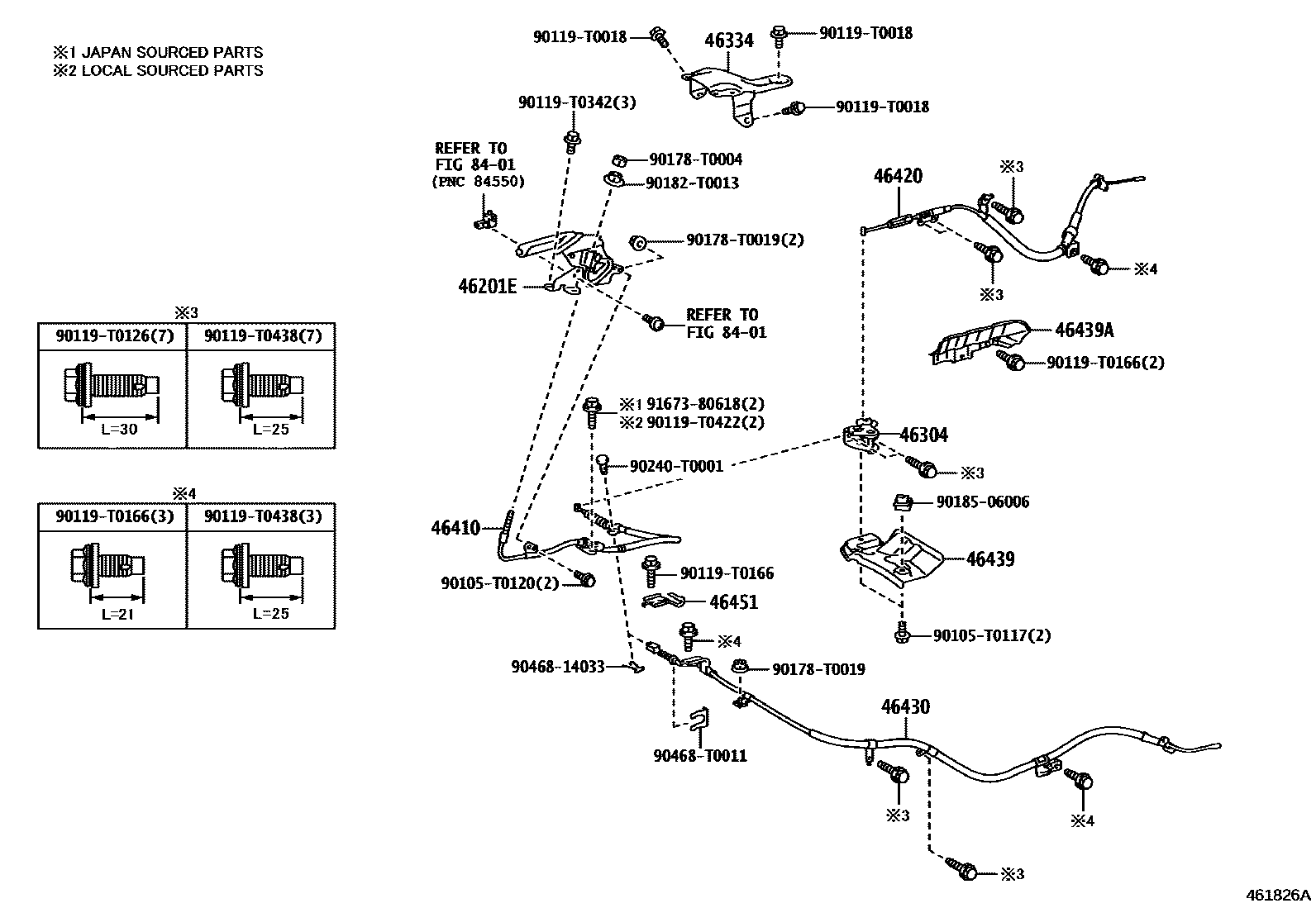

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K140-C0iGUN156,TGN156,166..IDNP..L..(ARL,GEN)202108-202209

BLACK,TRIM2#

main46201-0K140-C0iGUN156,TGN156,166..IDNP..L..(ARL,GEN)202108-202208

BLACK,TRIM4#

main46201-0K140-C0iGUN156,TGN156,166..IDNP..L..(ARL,GEN)202108-202208

BLACK,TRIM2#,4#

main46201-0K180-C2iGUN156..RHD..GEN;GUN156..IDNP..GCC;GGN155,GUN155,165,TGN156,166..IDNP..(H,S)..(GCC,GEN)202108-202209

BLACK /GRAY,TRIM2#

main46201-0K180-C2iGUN15#..IDN;GUN16#,TGN156,166..IDNP..(H,S)..(IDN,PH,VN)202108-202208

BLACK /GRAY,TRIM22

main46201-0K180-C2iGUN15#..IDN;GUN16#,TGN156,166..IDNP..(H,S)..(IDN,PH,VN)202108-202208

BLACK /GRAY,TRIM0#,2#,4#

main46201-0K180-C2iGUN15#..IDN;GUN16#,TGN156,166..IDNP..(H,S)..(IDN,PH,VN)202108-202208

BLACK /GRAY,TRIM2#,4#

main46201-0K180-C3iGUN156,166..LHD..IDNP..(GEN,PH)202108-202209

BRACK/CRIMSON,TRIM3#

main46201-0K180-C4iGUN156..IDNP..(PH,VN)202108-202208

BLACK/GR RED,TRIM24

main46201-0K190-C0iGUN156,16#,TGN156,166..(6F,6FC)..(L,S)..LA202111-202210

BLACK,TRIM2#

main46201-0K200-C3iGGN155..LA;GUN156..6F..H..BZAGT202111-202210

BLACK/GRAY,TRIM2#

main46201-0K200-C3iGGN155..LA;GUN156..6F..H..BZAGT202111-202210

BLACK/GRAY,TRIM0#,2#

main46201-0K200-C3iGGN155..LA;GUN156..6F..H..BZAGT202111-202210

BLACK/GRAY,TRIM0#,22

main46201-0K200-C4iGUN156..AGTP..6FC..H202111-202210

BLACK/GR RED,TRIM24

main46201-0K210-C0iGUN15#,16#,LAN155,TGN156..SA202109-202301

BLACK,TRIM2#

main46201-0K230-C0iGUN155,165,TGN156..THP..L202108-202207

BLACK,TRIM2#,4#

main46201-0K230-C0iGUN155,165,TGN156..THP..L202108-202207

BLACK,TRIM4#

main46201-0K230-C0iGUN155..MA202110-202208

BLACK,TRIM2#

main46201-0K240-C2iGUN15#,16#..THP..H..(GEN,TH)202108-202304

BLACK/CRIMSON NO.69,TRIM3#

main46201-0K240-C3iTGN156,166..PKN202108-202304

BLACK/GRAY,TRIM2#

main46201-0K240-C3iGUN156..TH202108-202207

BLACK/GRAY,TRIM0#,22

main46201-0K240-C3iGUN156..TH202108-202207

BLACK/GRAY,TRIM0#,2#,4#

main46201-0K240-C3iGUN156..TH202108-202207

BLACK/GRAY,TRIM0#,2#

main46201-0K240-C3iGUN156..TH202108-202304

BLACK/GRAY,TRIM2#,4#

main46201-0K240-C3iGUN156..6FC..IND202110-202304

BLACK/GRAY,TRIM22,4#

main46201-0K240-C4iGUN156..TH202108-202304

BLACK/GR RED,TRIM24

main46201-0K250-C0iTGN166..EPT202203-202304

BLACK,TRIM2#

main46201-0K260-C0iGUN156..L..BZAGT202111-202210

BLACK,TRIM2#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K050iGGN155,GUN156,165,TGN156,166..EPTP,PKNP,VNP202108-202304

main46304-0K090iGUN15#,16#,LAN155,TGN156..SA202109-202301

46334PROTECTOR, INTERMEDIATE LEVER

main46334-0K010iGUN156,166,TGN166..IND202108-202210

main46334-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K090iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202209

main46410-0K100iGGN155,GUN156,TGN156,166..EPT,PKN202108-202304

main46410-0K110iGUN156,166,TGN166..IND202109-202301

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K190iGUN15#,TGN156..MA202108-202209

MADE IN THAILAND

main46420-0K190iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

main46420-0K350iGUN156,165,TGN166..VNP202108-202209

MADE IN INDONESIA

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K190iGUN15#,TGN156..MA202108-202209

MADE IN THAILAND

main46430-0K190iGGN155,GUN15#,16#,LAN155,TGN156,166..EPT,PKN,SA202108-202304

main46430-0K260iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202209

MADE IN INDONESIA

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K090iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

46439AINSULATOR, PARKING BRAKE CABLE HEAT, NO.2

main46439-0K070iGGN155,GUN15#,16#,TGN156,166..THP202108-202304

46451BRACKET, CABLE SUPPORT

main46451-0K050iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTP,PKNP,SAP,VNP202108-202304

sub46451-0K051

main46451-0K051iGUN156,TGN156,166..PKN202306

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0018

main90119-T0018

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90119T0422

main90119-T0422

90119T0438

main90119-T0438

90178T0004

main90178-T0004

90178T0019

main90178-T0019

90182T0013

main90182-T0013

9018506006

main90185-06006

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

9167380618

main91673-80618

26 parts on this diagram · 2 diagrams in section
