REAR AXLE HOUSING & DIFFERENTIAL

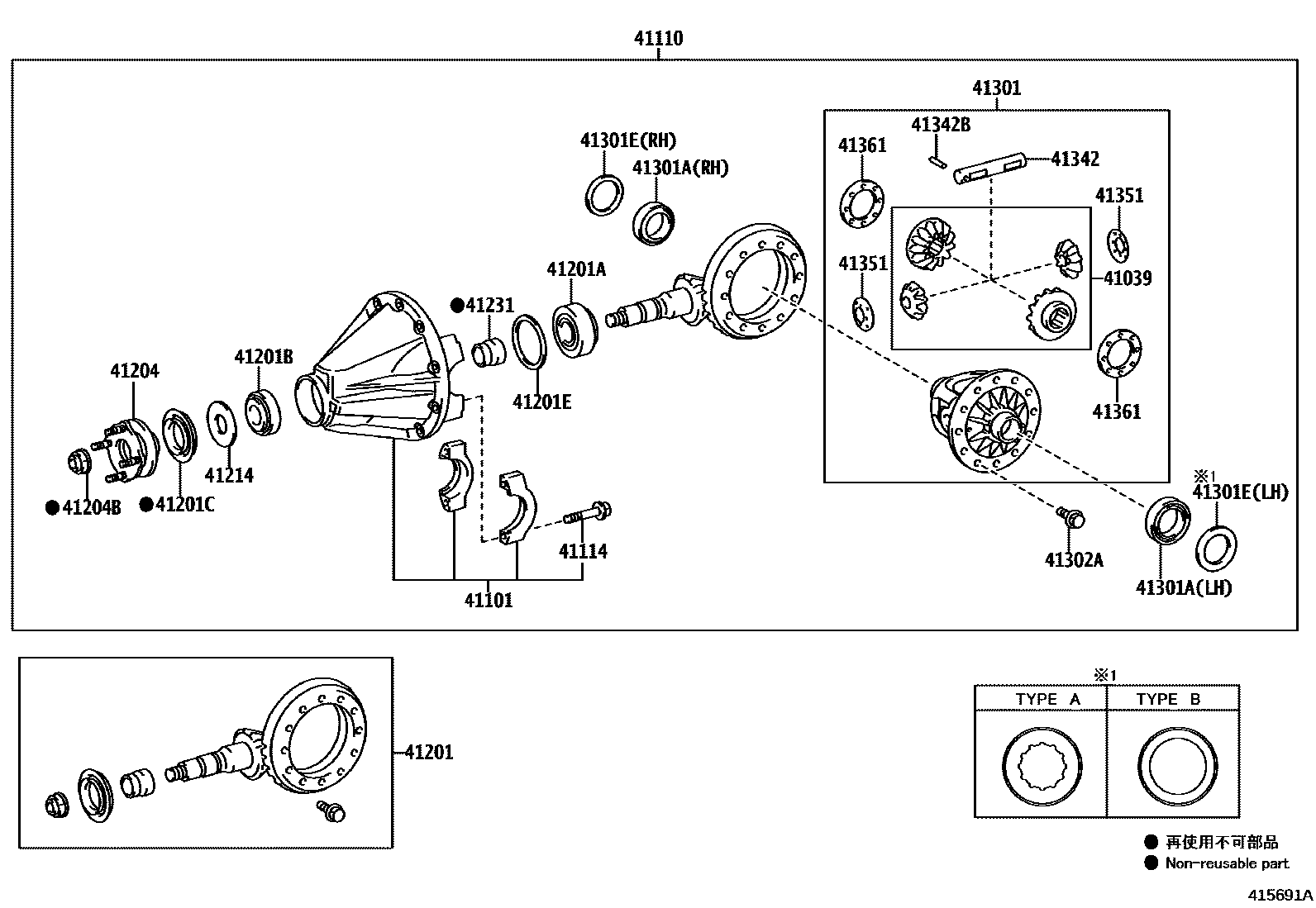

Parts diagram
41039GEAR KIT, DIFFERENTIAL, REAR
main41039-0K010i202108-202209
main41039-0K010i202108-202301
DIFFERENTIAL LOCK-WITH
main41039-0K040i202108-202209
main41039-71070i202108-202304
main41039-71070i202108-202208
DIFFERENTIAL LOCK-WITHOUT
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
main41101-0K070i202108-202208
DIFFERENTIAL LOCK-WITHOUT
main41101-0K070i202108-202304
main41101-0K080i202108-202209
main41101-0K080i202108-202208
DIFFERENTIAL LOCK-WITH
main41101-0K110i202111-202210
DIFFERENTIAL LOCK-WITHOUT
main41101-0K110i202109-202301
main41101-0K120i202109-202301
DIFFERENTIAL LOCK-WITH
main41101-0K140i202108-202209
41110CARRIER ASSY, DIFFERENTIAL, REAR
main41110-0K540i202108-202209
*FGR=41:9=4.555
main41110-0K570i202108-202209
*FGR=43:12=3.583
main41110-0K580i202108-202304
*FGR=43:11=3.909
main41110-0K590i202108-202209
*FGR=41:10=4.100
main41110-0K590i202108-202208
*FGR=41:10=4.100,DIFFERENTIAL LOCK-WITHOUT
main41110-0K610i202108-202304
*FGR=41:9=4.555
main41110-0K620i202110-202209
*FGR=43:12=3.583
main41110-0K630i202108-202208
*FGR=43:11=3.909,DIFFERENTIAL LOCK-WITH
main41110-0K630i202108-202209
*FGR=43:11=3.909
main41110-0K640i202108-202208
*FGR=41:10=4.100,DIFFERENTIAL LOCK-WITH
main41110-0K640i202108-202208
*FGR=41:10=4.100
main41110-0K660i202108-202208
*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITH
main41110-0K660i202108-202208
*FGR=41:9=4.555
main41110-0K670i202111-202210
*FGR=43:12=3.583
sub41110-0K671
main41110-0K680i202111-202210
*FGR=43:11=3.909
sub41110-0K681
main41110-0K710i202111-202210
*FGR=41:9=4.555
sub41110-0K711
main41110-0K710i202111-202210
*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITHOUT
sub41110-0K711
main41110-0K720i202111-202210
*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH
sub41110-0K721
main41110-0K730i202111-202210
*FGR=43:11=3.909,DIFFERENTIAL LOCK-WITH
sub41110-0K731
main41110-0K760i202111-202210
*FGR=41:9=4.555
sub41110-0K761
main41110-0K770i202109-202301
*FGR=43:12=3.583
sub41110-0K771
main41110-0K780i202109-202301
*FGR=43:11=3.909
sub41110-0K781
main41110-0K790i202109-202301
*FGR=41:10=4.100
sub41110-0K791
main41110-0K810i202109-202301
*FGR=41:9=4.555
sub41110-0K811
main41110-0K820i202109-202301
*FGR=43:12=3.583
sub41110-0K821
main41110-0K820i202109-202301
*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH
sub41110-0K821
main41110-0K830i202109-202301
*FGR=43:11=3.909,DIFFERENTIAL LOCK-WITH
sub41110-0K831
main41110-0K830i202109-202301
*FGR=43:11=3.909
sub41110-0K831
main41110-0K840i202109-202301
*FGR=41:10=4.100,DIFFERENTIAL LOCK-WITH
sub41110-0K841
main41110-0K840i202109-202301
*FGR=41:10=4.100
sub41110-0K841
main41110-0K860i202109-202301
*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITH
sub41110-0K861
main41110-0K880i202111-202210
*FGR=41:10=4.100
sub41110-0K881
main41110-0K890i202111-202210
*FGR=41:10=4.100,DIFFERENTIAL LOCK-WITH
sub41110-0K891
main41110-0K890i202111-202210
*FGR=41:10=4.100
sub41110-0K891
41114BOLT, REAR DIFFERENTIAL BEARING CAP
main90105-F0001i202109-202301
TYPE A:REFER ILLUST.
main90105-T0345i202108-202209
main90109-F0001i202109-202301
TYPE B:REFER ILLUST.
main90109-T0030i202108-202304
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
main41201-09B60i202108-202209
*FGR=43:12=3.583
main41201-09B70i202108-202304
*FGR=43:11=3.909
main41201-09B80i202108-202210
*FGR=41:10=4.100
main41201-09C10i202108-202304
*FGR=41:9=4.555
main41201-09E41i202109-202301
*FGR=43:12=3.583
sub41201-09E42
main41201-09E81i202109-202301
*FGR=41:9=4.555
sub41201-09E82
main41201-09F00i202108-202209
*FGR=41:9=4.555
main41201-09F50i202111-202210
*FGR=43:11=3.909
sub41201-09F51
main41201-09F70i202109-202301
*FGR=43:11=3.909
sub41201-09F71
main41201-09F80i202109-202301
*FGR=41:10=4.100
sub41201-09F81
main41201-09G00i202111-202210
sub41201-09G01
41201ABEARING (FOR REAR DRIVE PINION REAR)
main90366-S0016i202109-202301
main90366-T0065i202108-202304
main90366-T0109i202108-202209
41201BBEARING (FOR REAR DRIVE PINION FRONT)
main90366-S0013i202109-202301
main90366-T0062i202108-202304
main90366-T0110i202108-202209
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
main90311-S0001i202109-202301
sub90311-53001
main90311-T0065i202108-202304
main90311-T0089i202108-202209
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
main90564-78001i202108-202304
T=1.72
main90564-78002i202108-202304
T=1.74
main90564-78003i202108-202304
T=1.76
main90564-78004i202108-202304
T=1.78
main90564-78005i202108-202304
T=1.80
main90564-78006i202108-202304
T=1.82
main90564-78007i202108-202304
T=1.84
main90564-78008i202108-202304
T=1.86
main90564-78009i202108-202304
T=1.88
main90564-78010i202108-202304
T=1.90
main90564-78011i202108-202304
T=1.92
main90564-78012i202108-202304
T=1.94
main90564-78013i202108-202304
T=1.96
main90564-78014i202108-202304
T=1.98
main90564-78015i202108-202304
T=2.00
main90564-78016i202108-202304
T=2.02
main90564-78017i202108-202304
T=2.04
main90564-78018i202108-202304
T=2.06
main90564-78019i202108-202304
T=2.08
main90564-78020i202108-202304
T=2.10
main90564-78021i202108-202304
T=2.12
main90564-78022i202108-202304
T=2.14
main90564-78023i202108-202304
T=2.16
main90564-78024i202108-202304
T=2.18
main90564-S0001i202109-202301
T=1.025
main90564-S0002i202109-202301
T=1.050
main90564-S0003i202109-202301
T=1.075
main90564-S0004i202109-202301
T=1.100
main90564-S0005i202109-202301
T=1.125
main90564-S0006i202109-202301
T=1.150
main90564-S0007i202109-202301
T=1.175
main90564-S0008i202109-202301
T=1.200
main90564-S0009i202109-202301
T=1.225
main90564-S0010i202109-202301
T=1.250
main90564-S0011i202109-202301
T=1.275
main90564-S0012i202109-202301
T=1.300
main90564-S0013i202109-202301
T=1.325
main90564-S0014i202109-202301
T=1.350
main90564-S0015i202109-202301
T=1.375
main90564-S0016i202109-202301
T=1.400
main90564-S0017i202109-202301
T=1.425
main90564-S0018i202109-202301
T=1.450
main90564-S0019i202109-202301
T=1.475
main90564-T0067i202108-202209
T=1.70
main90564-T0068i202108-202209
T=1.73
main90564-T0069i202108-202209
T=1.76
main90564-T0070i202108-202209
T=1.79
main90564-T0071i202108-202209
T=1.82
main90564-T0072i202108-202209
T=1.85
main90564-T0073i202108-202209
T=1.88
main90564-T0074i202108-202209
T=1.91
main90564-T0075i202108-202209
T=1.94
main90564-T0076i202108-202209
T=1.97
main90564-T0077i202108-202209
T=2.00
main90564-T0078i202108-202209
T=2.03
main90564-T0079i202108-202209
T=2.06
main90564-T0080i202108-202209
T=2.09
main90564-T0081i202108-202209
T=2.12
main90564-T0082i202108-202209
T=2.15
main90564-T0083i202108-202209
T=2.18
main90564-T0084i202108-202209
T=2.21
main90564-T0085i202108-202209
T=2.24
main90564-T0086i202108-202209
T=2.27
main90564-T0087i202108-202209
T=2.30
main90564-T0088i202108-202209
T=2.33
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
main41204-0K110i202108-202304
main41204-0K131i202109-202301
main41204-0K140i202108-202209
41204BNUT (FOR REAR DRIVE PINION)
main90177-T0023i202108-202209
OD=39.5
main90178-F0001i202109-202301
OD=43.5
main90179-22029i202108-202304
OD=43
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
main41214-0K040i202108-202304
main41214-0K050i202109-202301
main41214-0K060i202108-202209
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
main41231-0K030i202109-202301
main41231-0K040i202108-202209
main41231-71010i202108-202304
41301CASE SUB-ASSY, REAR DIFFERENTIAL
main41301-0K100i202109-202301
main41301-0K100i202111-202210
DIFFERENTIAL LOCK-WITHOUT
main41301-0K120i202108-202208
DIFFERENTIAL LOCK-WITHOUT
main41301-0K120i202108-202304
main41301-0K230i202108-202209
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
main90366-S0019i202109-202301
LH
main90366-S0022i202109-202301
RH
main90366-T0068i202108-202304
LH
main90366-T0071i202108-202304
RH
main90366-T0108i202108-202209
41301ESHIM(FOR DIFFERENTIAL CASE)
main90201-52001i202108-202304
T=2.58,MARK 01,LH,TYPE A:REF.ILL.
main90201-52003i202108-202304
T=2.64,MARK 03,LH,TYPE A:REF.ILL.
main90564-46014i202108-202304
T=2.60,MARK 32,LH,TYPE A:REF.ILL.
main90564-46015i202108-202304
T=2.62,MARK 33,LH,TYPE A:REF.ILL.
main90564-46016i202108-202304
T=2.66,MARK 34,LH,TYPE A:REF.ILL.
main90564-46017i202108-202304
T=2.68,MARK 35,LH,TYPE A:REF.ILL.
main90564-46044i202108-202304
T=2.42,MARK 62,LH,TYPE A:REF.ILL.
main90564-46045i202108-202304
T=2.44,MARK 63,LH,TYPE A:REF.ILL.
main90564-46046i202108-202304
T=2.46,MARK 64,LH,TYPE A:REF.ILL.
main90564-46047i202108-202304
T=2.48,MARK 65,LH,TYPE A:REF.ILL.
main90564-46048i202108-202304
T=2.50,MARK 66,LH,TYPE A:REF.ILL.
main90564-46049i202108-202304
T=2.52,MARK 67,LH,TYPE A:REF.ILL.
main90564-46050i202108-202304
T=2.54,MARK 68,LH,TYPE A:REF.ILL.
main90564-46051i202108-202304
T=2.56,MARK 69,LH,TYPE A:REF.ILL.
main90564-46053i202108-202304
T=2.08,MARK 71,LH,TYPE A:REF.ILL.
main90564-46054i202108-202304
T=2.10,MARK 72,LH,TYPE A:REF.ILL.
main90564-46055i202108-202304
T=2.12,MARK 73,LH,TYPE A:REF.ILL.
main90564-46056i202108-202304
T=2.14,MARK 74,LH,TYPE A:REF.ILL.
main90564-46057i202108-202304
T=2.16,MARK 75,LH,TYPE A:REF.ILL.
main90564-46058i202108-202304
T=2.18,MARK 76,LH,TYPE A:REF.ILL.
main90564-46059i202108-202304
T=2.20,MARK 77,LH,TYPE A:REF.ILL.
main90564-46060i202108-202304
T=2.22,MARK 78,LH,TYPE A:REF.ILL.
main90564-46061i202108-202304
T=2.24,MARK 79,LH,TYPE A:REF.ILL.
main90564-46062i202108-202304
T=2.26,MARK 80,LH,TYPE A:REF.ILL.
main90564-46063i202108-202304
T=2.28,MARK 81,LH,TYPE A:REF.ILL.
main90564-46064i202108-202304
T=2.30,MARK 82,LH,TYPE A:REF.ILL.
main90564-46065i202108-202304
T=2.32,MARK 83,LH,TYPE A:REF.ILL.
main90564-46066i202108-202304
T=2.34,MARK 84,LH,TYPE A:REF.ILL.
main90564-46067i202108-202304
T=2.36,MARK 85,LH,TYPE A:REF.ILL.
main90564-46068i202108-202304
T=2.38,MARK 86,LH,TYPE A:REF.ILL.
main90564-46069i202108-202304
T=2.40,MARK 87,LH,TYPE A:REF.ILL.
main90564-59044i202108-202304
T=2.08,LH,TYPE B:REF.ILL.
main90564-59045i202108-202304
T=2.10,LH,TYPE B:REF.ILL.
main90564-59046i202108-202304
T=2.12,LH,TYPE B:REF.ILL.
main90564-59047i202108-202304
T=2.14,LH,TYPE B:REF.ILL.
main90564-59048i202108-202304
T=2.16,LH,TYPE B:REF.ILL.
main90564-59049i202108-202304
T=2.18,LH,TYPE B:REF.ILL.
main90564-59050i202108-202304
T=2.20,LH,TYPE B:REF.ILL.
main90564-59051i202108-202304
T=2.22,LH,TYPE B:REF.ILL.
main90564-59052i202108-202304
T=2.24,LH,TYPE B:REF.ILL.
main90564-59053i202108-202304
T=2.26,LH,TYPE B:REF.ILL.
main90564-59054i202108-202304
T=2.28,LH,TYPE B:REF.ILL.
main90564-59055i202108-202304
T=2.30,LH,TYPE B:REF.ILL.
main90564-59056i202108-202304
T=2.32,LH,TYPE B:REF.ILL.
main90564-59057i202108-202304
T=2.34,LH,TYPE B:REF.ILL.
main90564-59058i202108-202304
T=2.36,LH,TYPE B:REF.ILL.
main90564-59059i202108-202304
T=2.38,LH,TYPE B:REF.ILL.
main90564-59060i202108-202304
T=2.40,LH,TYPE B:REF.ILL.
main90564-59061i202108-202304
T=2.42,LH,TYPE B:REF.ILL.
main90564-59062i202108-202304
T=2.44,LH,TYPE B:REF.ILL.
main90564-59063i202108-202304
T=2.46,LH,TYPE B:REF.ILL.
main90564-59064i202108-202304
T=2.48,LH,TYPE B:REF.ILL.
main90564-59065i202108-202304
T=2.50,LH,TYPE B:REF.ILL.
main90564-59066i202108-202304
T=2.52,LH,TYPE B:REF.ILL.
main90564-59067i202108-202304
T=2.54,LH,TYPE B:REF.ILL.
main90564-59068i202108-202304
T=2.56,LH,TYPE B:REF.ILL.
main90564-59069i202108-202304
T=2.58,LH,TYPE B:REF.ILL.
main90564-59070i202108-202304
T=2.60,LH,TYPE B:REF.ILL.
main90564-59071i202108-202304
T=2.62,LH,TYPE B:REF.ILL.
main90564-59072i202108-202304
T=2.64,LH,TYPE B:REF.ILL.
main90564-59073i202108-202304
T=2.66,LH,TYPE B:REF.ILL.
main90564-59074i202108-202304
T=2.68,LH,TYPE B:REF.ILL.
main90564-59075i202108-202304
T=2.06,RH
main90564-59076i202108-202304
T=2.08,RH
main90564-59077i202108-202304
T=2.10,RH
main90564-59078i202108-202304
T=2.12,RH
main90564-59079i202108-202304
T=2.14,RH
main90564-59080i202108-202304
T=2.16,RH
main90564-59081i202108-202304
T=2.18,RH
main90564-59082i202108-202304
T=2.20,RH
main90564-59083i202108-202304
T=2.22,RH
main90564-59084i202108-202304
T=2.24,RH
main90564-59085i202108-202304
T=2.26,RH
main90564-59086i202108-202304
T=2.28,RH
main90564-59087i202108-202304
T=2.30,RH
main90564-59088i202108-202304
T=2.32,RH
main90564-59089i202108-202304
T=2.34,RH
main90564-59090i202108-202304
T=2.36,RH
main90564-59091i202108-202304
T=2.38,RH
main90564-59092i202108-202304
T=2.40,RH
main90564-59093i202108-202304
T=2.42,RH
main90564-59094i202108-202304
T=2.44,RH
main90564-59095i202108-202304
T=2.46,RH
main90564-59096i202108-202304
T=2.48,RH
main90564-59097i202108-202304
T=2.50,RH
main90564-59098i202108-202304
T=2.52,RH
main90564-59099i202108-202304
T=2.54,RH
main90564-59100i202108-202304
T=2.56,RH
main90564-59101i202108-202304
T=2.58,RH
main90564-59102i202108-202304
T=2.60,RH
main90564-59103i202108-202304
T=2.62,RH
main90564-59104i202108-202304
T=2.64,RH
main90564-59105i202108-202304
T=2.66,RH
main90564-59106i202108-202304
T=2.68,RH
main90564-S0025i202109-202301
T=2.832,LH
main90564-S0026i202109-202301
T=2.804,LH
main90564-S0027i202109-202301
T=2.777,LH
main90564-S0028i202109-202301
T=2.749,LH
main90564-S0029i202109-202301
T=2.721,LH
main90564-S0030i202109-202301
T=2.693,LH
main90564-S0031i202109-202301
T=2.665,LH
main90564-S0032i202109-202301
T=2.637,LH
main90564-S0033i202109-202301
T=2.609,LH
main90564-S0034i202109-202301
T=2.581,LH
main90564-S0035i202109-202301
T=2.553,LH
main90564-S0036i202109-202301
T=2.525,LH
main90564-S0037i202109-202301
T=2.497,LH
main90564-S0038i202109-202301
T=2.469,LH
main90564-S0039i202109-202301
T=2.441,LH
main90564-S0040i202109-202301
T=2.413,LH
main90564-S0041i202109-202301
T=2.385,LH
main90564-S0042i202109-202301
T=2.357,LH
main90564-S0043i202109-202301
T=2.329,LH
main90564-S0044i202109-202301
T=2.302,LH
main90564-S0045i202109-202301
T=2.274,LH
main90564-S0046i202109-202301
T=2.246,LH
main90564-S0047i202109-202301
T=2.218,LH
main90564-S0048i202109-202301
T=2.190,LH
main90564-S0049i202109-202301
T=2.162,LH
main90564-S0050i202109-202301
T=2.134,LH
main90564-S0051i202109-202301
T=2.860,LH
main90564-S0052i202109-202301
T=2.888,LH
main90564-S0053i202109-202301
T=2.916,LH
main90564-S0054i202109-202301
T=2.944,LH
main90564-S0055i202109-202301
T=0.76,RH
main90564-S0056i202109-202301
T=0.79,RH
main90564-S0057i202109-202301
T=0.81,RH
main90564-S0058i202109-202301
T=0.84,RH
main90564-S0059i202109-202301
T=0.86,RH
main90564-S0060i202109-202301
T=0.89,RH
main90564-S0061i202109-202301
T=0.91,RH
main90564-S0062i202109-202301
T=0.94,RH
main90564-S0063i202109-202301
T=0.97,RH
main90564-S0064i202109-202301
T=0.99,RH
main90564-S0065i202109-202301
T=1.02,RH
main90564-S0066i202109-202301
T=1.04,RH
main90564-S0067i202109-202301
T=1.07,RH
main90564-S0068i202109-202301
T=1.09,RH
main90564-S0069i202109-202301
T=1.12,RH
main90564-S0070i202109-202301
T=1.14,RH
main90564-S0071i202109-202301
T=1.17,RH
main90564-S0072i202109-202301
T=1.19,RH
main90564-S0073i202109-202301
T=1.22,RH
main90564-S0074i202109-202301
T=1.24,RH
main90564-S0075i202109-202301
T=1.27,RH
main90564-S0076i202109-202301
T=1.30,RH
main90564-S0077i202109-202301
T=1.32,RH
main90564-S0078i202109-202301
T=1.35,RH
main90564-S0079i202109-202301
T=1.37,RH
main90564-S0080i202109-202301
T=1.40,RH
main90564-S0081i202109-202301
T=1.42,RH
main90564-S0082i202109-202301
T=1.45,RH
main90564-S0083i202109-202301
T=1.47,RH
main90564-S0084i202109-202301
T=1.50,RH
main90564-S0085i202109-202301
T=1.52,RH
main90564-S0086i202109-202301
T=1.55,RH
main90564-S0087i202109-202301
T=1.57,RH
main90564-S0088i202109-202301
T=1.60,RH
main90564-S0089i202109-202301
T=1.63,RH
main90564-S0090i202109-202301
T=1.65,RH
main90564-S0091i202109-202301
T=1.68,RH
main90564-S0092i202109-202301
T=1.70,RH
main90564-S0093i202109-202301
T=1.73,RH
main90564-S0094i202109-202301
T=1.75,RH
main90564-S0095i202109-202301
T=1.78,RH
main90564-S0096i202109-202301
T=1.80,RH
main90564-S0097i202109-202301
T=1.83,RH
main90564-S0098i202109-202301
T=1.85,RH
main90564-S0099i202109-202301
T=1.88,RH
main90564-S0100i202109-202301
T=1.91,RH
main90564-S0101i202109-202301
T=1.93,RH
main90564-S0102i202109-202301
T=1.96,RH
main90564-S0103i202109-202301
T=1.98,RH
main90564-S0104i202109-202301
T=2.01,RH
main90564-S0105i202109-202301
T=2.03,RH
main90564-S0106i202109-202301
T=2.06,RH
main90564-S0107i202109-202301
T=2.08,RH
main90564-S0108i202109-202301
T=2.11,RH
main90564-S0109i202109-202301
T=2.13,RH
main90564-S0110i202109-202301
T=2.16,RH
main90564-S0111i202109-202301
T=2.18,RH
main90564-S0112i202109-202301
T=2.21,RH
main90564-S0113i202109-202301
T=2.24,RH
main90564-S0114i202109-202301
T=2.26,RH
main90564-S0115i202109-202301
T=2.29,RH
main90564-S0116i202109-202301
T=2.31,RH
main90564-S0117i202109-202301
T=2.34,RH
main90564-S0118i202109-202301
T=2.36,RH
main90564-S0119i202109-202301
T=2.39,RH
main90564-S0120i202109-202301
T=2.41,RH
main90564-S0121i202109-202301
T=2.44,RH
main90564-S0122i202109-202301
T=2.46,RH
main90564-S0123i202109-202301
T=2.49,RH
main90564-S0124i202109-202301
T=2.51,RH
main90564-S0125i202109-202301
T=2.54,RH
41302CASE SUB-ASSY, REAR DIFFERENTIAL
main41302-0K020i202108-202208
DIFFERENTIAL LOCK-WITH
main41302-0K020i202108-202209
main41302-0K030i202109-202301
DIFFERENTIAL LOCK-WITH
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
main90105-F0003i202109-202301
main90105-T0268i202108-202304
main90105-T0346i202108-202209
41342SHAFT, REAR DIFFERENTIAL PINION
main41342-0K070i202108-202304
main41342-0K070i202108-202208
DIFFERENTIAL LOCK-WITHOUT
main41342-0K080i202108-202301
DIFFERENTIAL LOCK-WITH
main41342-0K080i202108-202209
main41342-0K130i202108-202209
41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)
main90250-T0006i202108-202304
main90250-T0006i202108-202208
DIFFERENTIAL LOCK-WITHOUT
main90250-T0028i202108-202209
41351WASHER, REAR DIFFERENTIAL PINION THRUST
main41351-0K040i202108-202304
main41351-0K040i202108-202208
DIFFERENTIAL LOCK-WITHOUT
main41351-0K050i202108-202208
DIFFERENTIAL LOCK-WITH
main41351-0K050i202108-202209
main41351-0K060i202109-202301
DIFFERENTIAL LOCK-WITH
main41351-0K080i202108-202209
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-0K110i202108-202208
T=1.45,DIFFERENTIAL LOCK-WITHOUT
main41361-0K110i202108-202304
T=1.45
main41361-0K300i202108-202208
T=1.50,DIFFERENTIAL LOCK-WITHOUT
main41361-0K300i202108-202304
T=1.50
main41361-0K310i202108-202208
T=1.55,DIFFERENTIAL LOCK-WITHOUT
main41361-0K310i202108-202304
T=1.55
main41361-0K320i202108-202208
T=1.60,DIFFERENTIAL LOCK-WITHOUT
main41361-0K320i202108-202304
T=1.60
main41361-0K330i202108-202304
T=1.65
main41361-0K330i202108-202208
T=1.65,DIFFERENTIAL LOCK-WITHOUT
main41361-0K340i202108-202208
T=1.70,DIFFERENTIAL LOCK-WITHOUT
main41361-0K340i202108-202304
T=1.70
main41361-0K350i202108-202304
T=1.75
main41361-0K350i202108-202208
T=1.75,DIFFERENTIAL LOCK-WITHOUT
main41361-0K360i202108-202304
T=1.80
main41361-0K360i202108-202208
T=1.80,DIFFERENTIAL LOCK-WITHOUT
main41361-0K370i202108-202208
T=1.85,DIFFERENTIAL LOCK-WITHOUT
main41361-0K370i202108-202304
T=1.85
main41361-0K380i202108-202208
T=1.1,DIFFERENTIAL LOCK-WITH
main41361-0K380i202108-202209
T=1.1
main41361-0K390i202108-202208
T=1.2,DIFFERENTIAL LOCK-WITH
main41361-0K390i202108-202209
T=1.2
main41361-0K400i202108-202208
T=1.3,DIFFERENTIAL LOCK-WITH
main41361-0K400i202108-202209
T=1.3
main41361-0K410i202108-202209
T=1.4
main41361-0K410i202108-202208
T=1.4,DIFFERENTIAL LOCK-WITH
main41361-0K460i202109-202301
T=1.1
main41361-0K460i202109-202301
T=1.1,DIFFERENTIAL LOCK-WITH
main41361-0K470i202109-202301
T=1.2
main41361-0K470i202109-202301
T=1.2,DIFFERENTIAL LOCK-WITH
main41361-0K480i202109-202301
T=1.3,DIFFERENTIAL LOCK-WITH
main41361-0K480i202109-202301
T=1.3
main41361-0K490i202109-202301
T=1.4
main41361-0K490i202109-202301
T=1.4,DIFFERENTIAL LOCK-WITH
main41361-0K550i202108-202209
T=1.50
main41361-0K560i202108-202209
T=1.55
main41361-0K570i202108-202209
T=1.60
main41361-0K580i202108-202209
T=1.65
main41361-0K590i202108-202209
T=1.70
main41361-0K600i202108-202209
T=1.75
main41361-0K610i202108-202209
T=1.80
main41361-0K620i202108-202209
T=1.85
main41361-0K630i202108-202209
T=1.90

22 parts on this diagram · 8 diagrams in section

REAR AXLE HOUSING & DIFFERENTIAL — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
