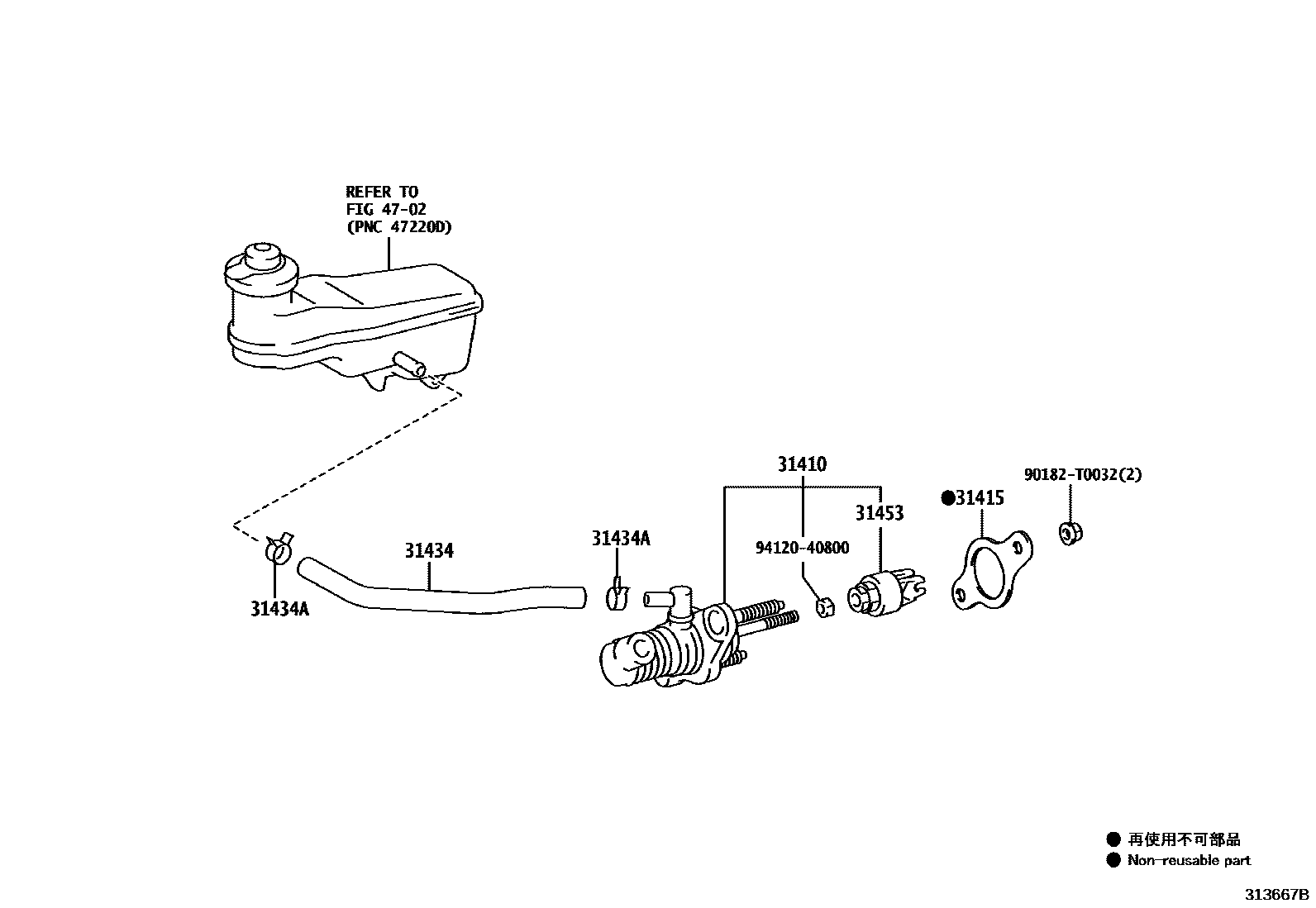

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0K014iLAN155202108-202301

main31420-0K061iGUN156,166..6F..IND202109-202301

main31420-0K071iGUN155,165..IDNP..6F202108-202301

31415GASKET, CLUTCH MASTER CYLINDER

main31415-0K010iGUN156,16#..RHD..6F..SA202108-202301

31434TUBE, CLUTCH RESERVOIR

main31434-0K041iGUN156,166..RHD..6F..SA202109-202301

main31434-0K050iGUN156..6F..BZAGT202111-202210

main31434-0K061iGUN165..6F..IDN202108-202208

main31434-0K071iGUN155,165,TGN156,166..IDNP..MTM..L202108-202208

main31434-0K081iGUN156,166..6F..IND202110-202209

main31434-0K091iGUN165..6F..SA202109-202301

main31434-0K101iTGN166..5F..IND202110-202209

main31434-0K110iGUN156,166,TGN166..MTM..LA202111-202210

main31434-0K111iGUN156,165,LAN155..LHD..(SAP,VNP)..MTM202109-202301

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-T0015iGUN156,166,TGN166..MTM..IND202108-202301

main90466-T0052iGUN156,166,TGN166..AGTP..MTM202111-202210

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-0K010iTGN156,166..L..GEN202108-202301

4702

90182T0032

main90182-T0032

9412040800

main94120-40800

8 parts on this diagram · 2 diagrams in section
