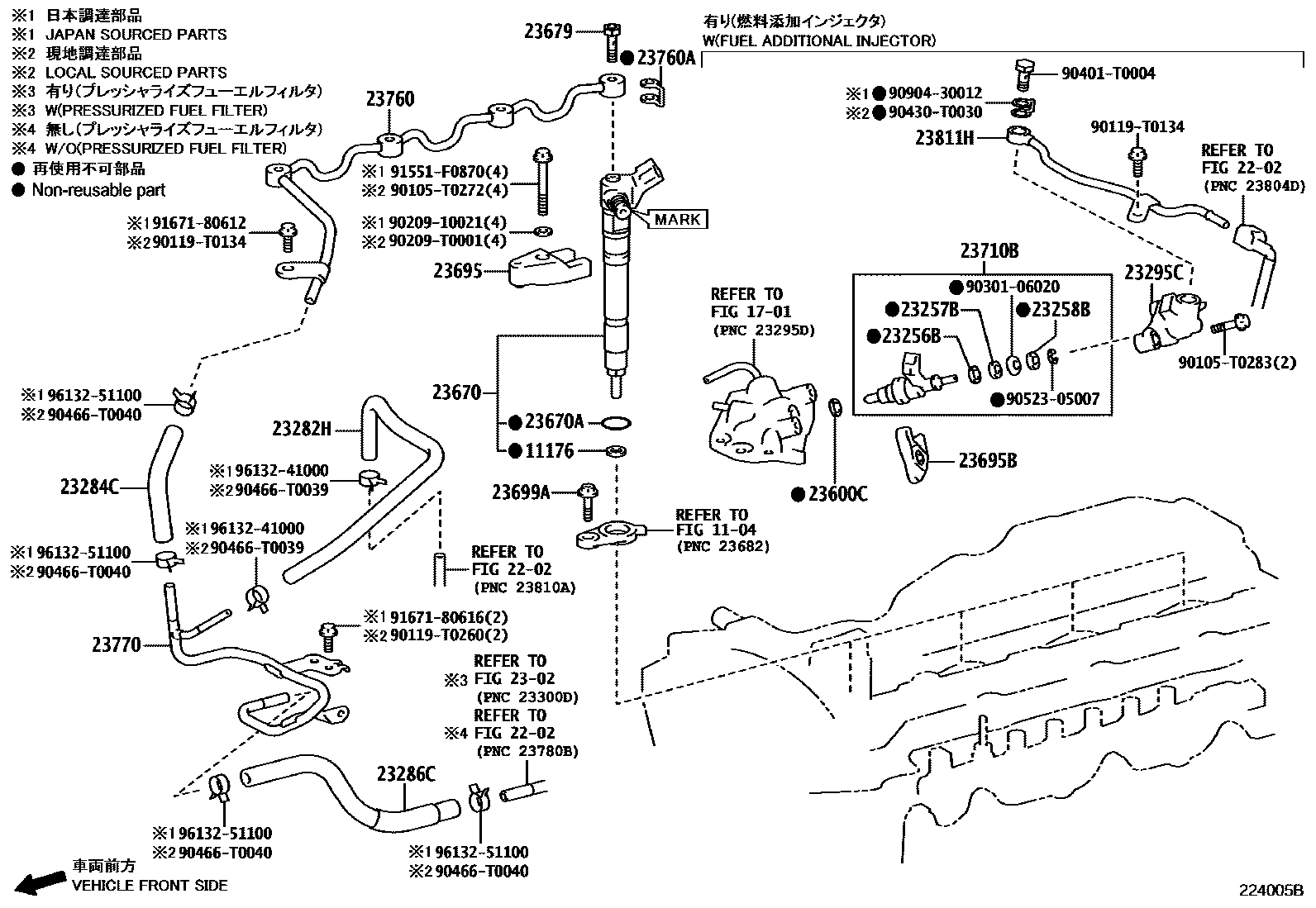

INJECTION NOZZLE

0001 1 0002 1

1104

11176SEAT, INJECTION NOZZLE

main11176-0E010i1GDFTV..GUN156,166..6F..LA;1GDFTV..GUN156,166..PKNP,SAP,VNP;2GDFTV..GUN155,165..AGTP,SAP,VNP202108-202303

(L)

main11176-33010i1GDFTV..GUN156,166..IND202108-202303

(J)

main11176-64010i5LE..LAN155202109-202301

1701

2202

2302

23256BRING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010i1GDFTV..GUN156..THP..ARL202108-202210

main23256-74010i1GDFTV..GUN156..IDNP..ARL202108-202208

OCEANIA(EURO 5)

23257BRING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010i1GDFTV..GUN156..BZAGT202108-202210

main23257-74010i1GDFTV..GUN156..IDNP..ARL202108-202208

OCEANIA(EURO 5)

23258BRING, FUEL INJECTOR BACK-UP, NO.3

main23258-28011i1GDFTV..GUN156..THP..ARL202108-202210

main23258-28011i1GDFTV..GUN156..IDNP..ARL202108-202208

OCEANIA(EURO 5)

23282HHOSE, FUEL, NO.4

main23282-0E012i1GDFTV,2GDFTV..GUN15#,16#..THP202108-202303

THA SOURCED PARTS

main23282-0E022i1GDFTV..GUN156..THP..ARL202108-202209

IND SOURCED PARTS

23284CHOSE, FUEL, NO.5

main23284-0E010i1GDFTV,2GDFTV..GUN15#,16#..THP202108-202303

THA SOURCED PARTS

main23284-0E020i1GDFTV..GUN156,166..IND202108-202209

IND SOURCED PARTS

main23284-11010i2GDFTV..GUN155,165..THP202108-202207

JAPAN SOURCED PARTS

23286CHOSE, FUEL, NO.6

main23286-0E011i1GDFTV,2GDFTV..GUN15#,16#..IDNP,MAP202108-202303

THA SOURCED PARTS

main23286-0E020i1GDFTV..GUN156,166..IND202108-202209

IND SOURCED PARTS

main23286-11011i2GDFTV..GUN155,165..THP202108-202207

JAPAN SOURCED PARTS

23295CHOLDER, INJECTOR

main23296-0E010i1GDFTV..GUN156..BZAGT202108-202210

main23296-0E010i1GDFTV..GUN156..IDNP..ARL202108-202208

OCEANIA(EURO 5)

23600HOLDER & NOZZLE SET, NOZZLE

main23600-59325i5LE..LAN155202109-202301

23600CGASKET(FOR HOLDER & NOZZLE SET)

main90430-T0019i1GDFTV..GUN156..THP..ARL202108-202210

THA SOURCED PARTS

main90430-T0019i1GDFTV..GUN156..IDNP..ARL202108-202208

OCEANIA(EURO 5),THA SOURCED PARTS

main90430-T0029i1GDFTV..GUN156,166..IND202108-202209

IND SOURCED PARTS

23670INJECTOR ASSY

main23670-09460i2GDFTV..GUN155,165..IDNP,MAP202108-202212

MARK 23670-0E070

main23670-09470i1GDFTV..GUN156,166..6FC..LA202108-202211

MARK 23670-0E060

main23670-09510i1GDFTV..GUN156,166..6FC..LA202207-202208

CHILE SPEC,MARK 23670-0E110

sub23670-09540

main23670-09510i1GDFTV..GUN156..6FC..BZAGT202108-202210

MARK 23670-0E110

sub23670-09540

main23670-09540i1GDFTV..GUN156..BZAGT202208-202210

CHILE SPEC,MARK 23670-08020

main23670-09540i1GDFTV..GUN156..THP..ARL202203-202210

MARK 23670-08020

main23670-09550i1GDFTV..GUN156,166..IND202206-202209

MARK 23670-08060

main23670-09580i1GDFTV..GUN156,166202211-202303

MARK 23670-08010

main23670-09590i2GDFTV..GUN155,165202212-202301

MARK 23670-08030

main23670-19065i2GDFTV..GUN155,165..THP202108-202208

MARK 23670-11040

sub23670-39495

23670ARING, O(FOR INJECTOR ASSY)

main96721-19017i1GDFTV..GUN156,166..THP202108-202303

23679SCREW, INJECTOR FOLLOW

main90401-06002i2GDFTV..GUN155,165..THP202108-202207

(J)

main90401-T0007i1GDFTV..GUN156,166..IND202108-202303

(L)

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0E010i1GDFTV,2GDFTV..GUN15#,16#..(IDNP,MAP)..(GCC,GEN,IDN,MA,PH,VN)202108-202303

(L)

main23695-11010i1GDFTV..GUN156,166..6F..LA;1GDFTV..GUN156,166..PKNP,SAP,VNP;2GDFTV..GUN155,165..AGTP,SAP,THP,VNP202108-202303

(J)

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-0E020i1GDFTV,2GDFTV..GUN156,165..IDNP..VN202108-202210

(L)

main23695-0E020i1GDFTV..GUN156..IDNP..ARL202108-202208

OCEANIA(EURO 5),(L)

main23695-28010i1GDFTV,2GDFTV..GUN156,165..IDNP..VN202108-202210

(J)

main23695-28010i1GDFTV,2GDFTV..GUN156,165..IDNP..VN202108-202208

OCEANIA(EURO 5),(J)

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-0E010i1GDFTV..GUN156..BZAGT;1GDFTV..GUN156,166..6FC..LA202108-202303

THA SOURCED PARTS

main23699-0E020i1GDFTV..GUN156,166..IND202108-202209

IND SOURCED PARTS

main23699-11010i2GDFTV..GUN155,165..THP202108-202208

JAPAN SOURCED PARTS

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-11010i1GDFTV..GUN156..THP..ARL202108-202210

main23710-11010i1GDFTV..GUN156..IDNP..ARL202108-202208

OCEANIA(EURO 5)

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-0E011i1GDFTV,2GDFTV..GUN15#,16#..THP202108-202303

THA SOURCED PARTS

main23760-0E011i2GDFTV..GUN155,165..THP202206-202207

JAPAN SOURCED PARTS

main23760-0E020i1GDFTV..GUN156,166..IND202108-202209

IND SOURCED PARTS

main23760-11010i2GDFTV..GUN155,165..THP202108-202206

JAPAN SOURCED PARTS

sub23760-0E011

main23760-54030i5LE..LAN155202109-202301

23760AGASKET

main90430-06013i2GDFTV..GUN155,165..THP202108-202207

(J)

main90430-T0017i1GDFTV,2GDFTV..GUN156,16#..AGTP202108-202303

(L)

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-0E011i1GDFTV,2GDFTV..GUN15#,16#..THP202108-202303

THA SOURCED PARTS

main23770-0E011i2GDFTV..GUN155,165..THP202206-202207

JAPAN SOURCED PARTS

main23770-0E021i1GDFTV..GUN156,166..IND202108-202209

main23770-11011i2GDFTV..GUN155,165..THP202108-202206

JAPAN SOURCED PARTS

sub23770-0E011

23811HPIPE, FUEL, NO.1

main23811-08010i1GDFTV..GUN156,166..LA202111-202210

THA SOURCED PARTS

main23811-08010i1GDFTV,2GDFTV..GUN156,165..IDNP..VN202111-202208

OCEANIA(EURO 5),THA SOURCED PARTS

main23811-08010i1GDFTV..GUN156..BZAGT202111-202210

CHILE SPEC,THA SOURCED PARTS

main23811-08020i1GDFTV..GUN156..THP..ARL202204-202209

IND SOURCED PARTS

main23811-0E010i1GDFTV,2GDFTV..GUN156,165..VN202108-202111

THA SOURCED PARTS

sub23811-08010

main23811-0E010i1GDFTV,2GDFTV..GUN156,165..VN202108-202110

OCEANIA(EURO 5),THA SOURCED PARTS

sub23811-08010

main23811-0E020i1GDFTV..GUN156,166..(INDP,THP)..(ARL,IND)202108-202203

IND SOURCED PARTS

sub23811-08020

90105T0272

main90105-T0272

90105T0283

main90105-T0283

90119T0134

main90119-T0134

90119T0260

main90119-T0260

9020910021

main90209-10021

90209T0001

main90209-T0001

9030106020

main90301-06020

90401T0004

main90401-T0004

90430T0030

main90430-T0030

90466T0039

main90466-T0039

90466T0040

main90466-T0040

9052305007

main90523-05007

9090430012

main90904-30012

91551F0870

main91551-F0870

9167180612

main91671-80612

9167180616

main91671-80616

9613241000

main96132-41000

9613251100

main96132-51100

43 parts on this diagram · 2 diagrams in section
