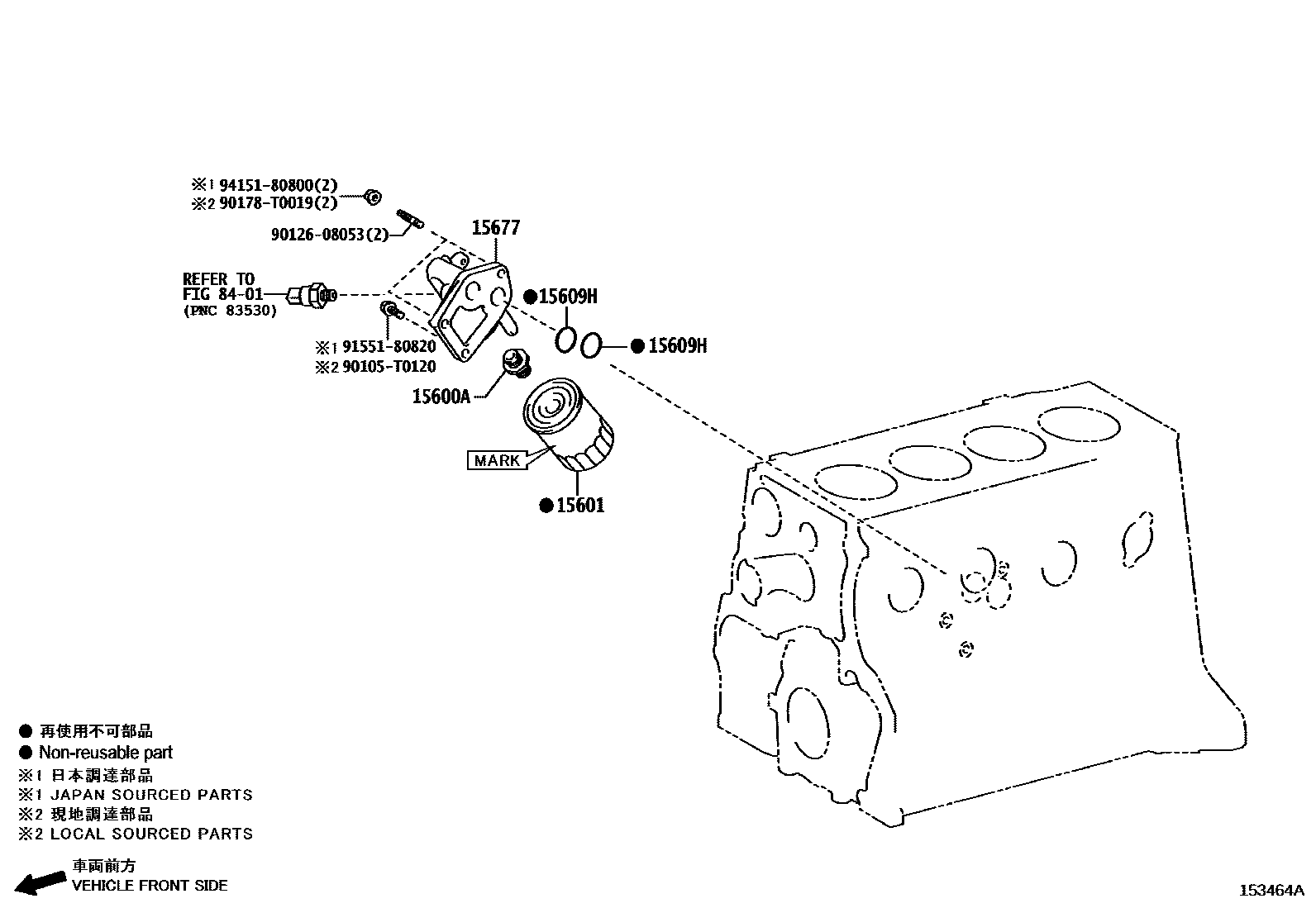

OIL FILTER

0001 1 0002 1 0003 1 0004 1W/O(OIL COOLER) 0005 1W(OIL COOLER)

15600AUNION(FOR OIL FILTER)

main90404-19011i5LE..LAN155202109-202301

main90404-19015i2GDFTV..GUN155,165..THP202108-202207

(J)

main90404-T0002i2TRFE..TGN156,166..IDNP,MAP202108-202303

(L)

main90404-T0002i2GDFTV..GUN165..L..LA;1GDFTV..GUN156,166..6F..LA202111-202203

CENTRAL AND SOUTH AMERICA SPEC,(L)

main90404-T0002i2TRFE..TGN156,166..EPTP,PKNP,VNP202108-202304

15601FILTER SUB-ASSY, OIL

main90915-20004i1GRFE..GGN155..IDNP202108-202304

main90915-20005i2GDFTV..GUN155,165..THP202108-202207

MARK 90915-20005

main90915-40002i5LE..LAN155202109-202301

main90915-TB001i1GDFTV..GUN156,166..IND202108-202303

MARK 90915-TB001

main90915-TB001i2GDFTV..GUN165..L..LA;1GDFTV..GUN156,166..6F..LA202111-202203

CENTRAL AND SOUTH AMERICA SPEC,MARK 90915-TB001

main90915-TB001i2TRFE..TGN156,166..EPTP,PKNP,SAP,VNP202108-202304

15609BRACKET SUB-ASSY, OIL FILTER

main15609-0C020i2TRFE..TGN156,166..THP202108-202207

MARK = 15609-0C020

main15609-0C090i2TRFE..TGN166..IND202108-202304

NO MARK

main15609-54014i5LE..LAN155202109-202301

main15670-31010i1GRFE..GGN155..EPT202108-202304

15609HRING, O(FOR OIL FILTER BRACKET)

main90301-17017i2TRFE..TGN156,16#..AGTP202108-202304

(J)

main90301-T0028i2TRFE..TGN156,16#..AGTP202108-202304

(L)

main90301-T0046i1GDFTV,2GDFTV..GUN15#,16#..PKNP,SAP,VNP202108-202303

THA SOURCED PARTS

main90301-T0046i2GDFTV..GUN165..L..LA;1GDFTV..GUN156,166..6F..LA202111-202203

CENTRAL AND SOUTH AMERICA SPEC,THA SOURCED PARTS

main90301-T0062i1GDFTV..GUN156,166..IND202108-202209

IND SOURCED PARTS

main96723-24030i2GDFTV..GUN155,165..THP202108-202207

JAPAN SOURCED PARTS

15677BRACKET, OIL FILTER

main15677-0E010i1GDFTV,2GDFTV..GUN156,16#..AGTP202108-202303

THA SOURCED PARTS

main15677-0E020i1GDFTV..GUN156,166..IND202108-202209

IND SOURCED PARTS

main15677-0E030i2GDFTV..GUN165..LA;1GDFTV..GUN156,166..AGTP..6F202111-202210

ARG SOURCED PARTS

main15677-0E030i2GDFTV..GUN165..L..LA;1GDFTV..GUN156,166..6F..LA202111-202203

CENTRAL AND SOUTH AMERICA SPEC,ARG SOURCED PARTS

main15677-11020i2GDFTV..GUN155,165..THP202108-202207

JAPAN SOURCED PARTS

8401

90105T0120

main90105-T0120

9012608053

main90126-08053

90178T0019

main90178-T0019

9155180820

main91551-80820

9415180800

main94151-80800

11 parts on this diagram · 5 diagrams in section
