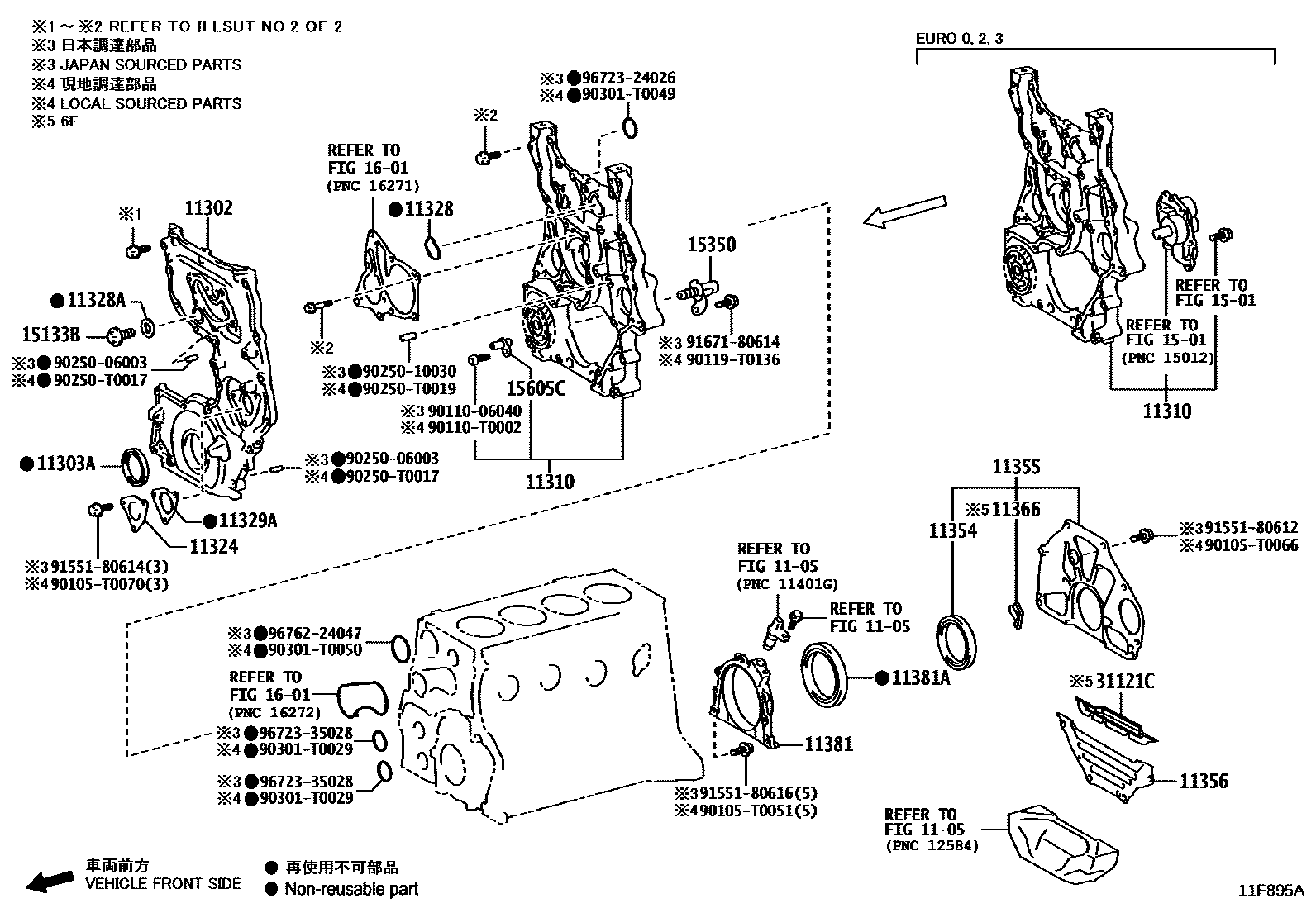

TIMING GEAR COVER & REAR END PLATE
1105
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
(L)
CENTRAL AND SOUTH AMERICA SPEC,THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
11303ASEAL, OIL(FOR CRANKSHAFT FRONT)
(J)
CENTRAL AND SOUTH AMERICA SPEC,(L)
(L)
IDN SOURCED PARTS
THA SOURCED PARTS
11310COVER ASSY, TIMING CHAIN
EXPORT FROM SA
main11310-0E010i2GDFTV..GUN155,165..SA;1GDFTV..GUN156,166..6F..SA;1GDFTV..GUN156..LHD..6FC..SA202108-202301
ASEAN GENERAL SPEC
CENTRAL AND SOUTH AMERICA SPEC
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
OCEANIA(EURO 5),THA SOURCED PARTS
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
THA SOURCED PARTS
OCEANIA GENERAL (EURO 4 REGULATION),THA SOURCED PARTS
OCEANIA GENERAL (EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARDDIAGNOSIS),THA SOURCED PARTS
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION),THA SOURCED PARTS
CENTRAL AND SOUTH AMERICA SPEC,THA SOURCED PARTS
IND SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
sub11310-35120
sub11310-35120
(J)
11324PLATE, TIMING CHAIN COVER
THA SOURCED PARTS
CENTRAL AND SOUTH AMERICA SPEC,THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
11328GASKET, TIMING GEAR OR CHAIN COVER
(L)
THA SOURCED PARTS
IND SOURCED PARTS
(J)
(J)
11328AGASKET, TIMING BELT COVER, NO.1
CENTRAL AND SOUTH AMERICA SPEC
11329GASKET, TIMING GEAR REAR COVER
(L)
(J)
11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2
CENTRAL AND SOUTH AMERICA SPEC,THA SOURCED PARTS
THA SOURCED PARTS
JAPAN SOURCED PARTS
11354SEAL, FLYWHEEL HOUSING DUST
(L)
CENTRAL AND SOUTH AMERICA SPEC,(L)
(J)
11355PLATE, REAR END
(L)
CENTRAL AND SOUTH AMERICA SPEC,THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
CENTRAL AND SOUTH AMERICA SPEC,THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
(J)
11356PLATE, REAR END, NO.2
THA SOURCED PARTS
ZAF SOURCED PARTS
ARG SOURCED PARTS
ARG SOURCED PARTS
11366SEAL, FLYWHEEL HOUSING UNDER COVER DUST
CENTRAL AND SOUTH AMERICA SPEC
11381RETAINER, ENGINE REAR OIL SEAL
IDN SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
CENTRAL AND SOUTH AMERICA SPEC,THA SOURCED PARTS
ARG SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
11381ASEAL, ENGINE REAR OIL
(J)
(L)
CENTRAL AND SOUTH AMERICA SPEC,(L)
IDN SOURCED PARTS
THA SOURCED PARTS
1501
15133BPLUG, OIL PUMP RELIEF VALVE
CENTRAL AND SOUTH AMERICA SPEC
15350VALVE ASSY, OIL PRESSURE SWITCHING
main15350-11010i1GDFTV,2GDFTV..GUN155,16#..LHD..IDNP;1GDFTV..GUN156..IDNP..(ARL,GCC,PH,VN)202108-202208
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
CENTRAL AND SOUTH AMERICA SPEC
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
main15350-11010i1GDFTV,2GDFTV..GUN155,16#..LHD..IDNP;1GDFTV..GUN156..IDNP..(ARL,GCC,PH,VN)202108-202208
OCEANIA GENERAL (EURO 4 REGULATION)
main15350-11010i1GDFTV,2GDFTV..GUN155,16#..LHD..IDNP;1GDFTV..GUN156..IDNP..(ARL,GCC,PH,VN)202108-202208
OCEANIA GENERAL (EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARDDIAGNOSIS)
main15350-11010i1GDFTV,2GDFTV..GUN155,16#..LHD..IDNP;1GDFTV..GUN156..IDNP..(ARL,GCC,PH,VN)202108-202208
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)
main15350-11010i1GDFTV,2GDFTV..GUN155,16#..LHD..IDNP;1GDFTV..GUN156..IDNP..(ARL,GCC,PH,VN)202108-202208
OCEANIA(EURO 5)
main15350-11010i1GDFTV,2GDFTV..GUN155,16#..LHD..IDNP;1GDFTV..GUN156..IDNP..(ARL,GCC,PH,VN)202108-202208
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
15605CVALVE SUB-ASSY, OIL CHECK
CENTRAL AND SOUTH AMERICA SPEC
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
main15605-30040i1GDFTV,2GDFTV..GUN155,16#..LHD..IDNP;1GDFTV..GUN156..IDNP..(ARL,GCC,PH,VN)202108-202208
OCEANIA GENERAL (EURO 4 REGULATION)
main15605-30040i1GDFTV,2GDFTV..GUN155,16#..LHD..IDNP;1GDFTV..GUN156..IDNP..(ARL,GCC,PH,VN)202108-202208
OCEANIA GENERAL (EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARDDIAGNOSIS)
main15605-30040i1GDFTV,2GDFTV..GUN155,16#..LHD..IDNP;1GDFTV..GUN156..IDNP..(ARL,GCC,PH,VN)202108-202208
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)
main15605-30040i1GDFTV,2GDFTV..GUN155,16#..LHD..IDNP;1GDFTV..GUN156..IDNP..(ARL,GCC,PH,VN)202108-202208
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
main15605-30040i1GDFTV,2GDFTV..GUN155,16#..LHD..IDNP;1GDFTV..GUN156..IDNP..(ARL,GCC,PH,VN)202108-202208
OCEANIA(EURO 5)
main15605-30040i1GDFTV,2GDFTV..GUN155,16#..LHD..IDNP;1GDFTV..GUN156..IDNP..(ARL,GCC,PH,VN)202108-202208
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
1601
31121CCOVER, CLUTCH HOUSING ADAPTER PLATE
90105T0051
main90105-T0051
90105T0066
main90105-T0066
90105T0070
main90105-T0070
9011006040
main90110-06040
90110T0002
main90110-T0002
90119T0136
main90119-T0136
9025006003
main90250-06003
9025010030
main90250-10030
90250T0017
main90250-T0017
90250T0019
main90250-T0019
90301T0029
main90301-T0029
90301T0049
main90301-T0049
90301T0050
main90301-T0050
9155180612
main91551-80612
9155180614
main91551-80614
9155180616
main91551-80616
9167180614
main91671-80614
9672324026
main96723-24026
9672335028
main96723-35028
9676224047
main96762-24047
41 parts on this diagram · 6 diagrams in section
