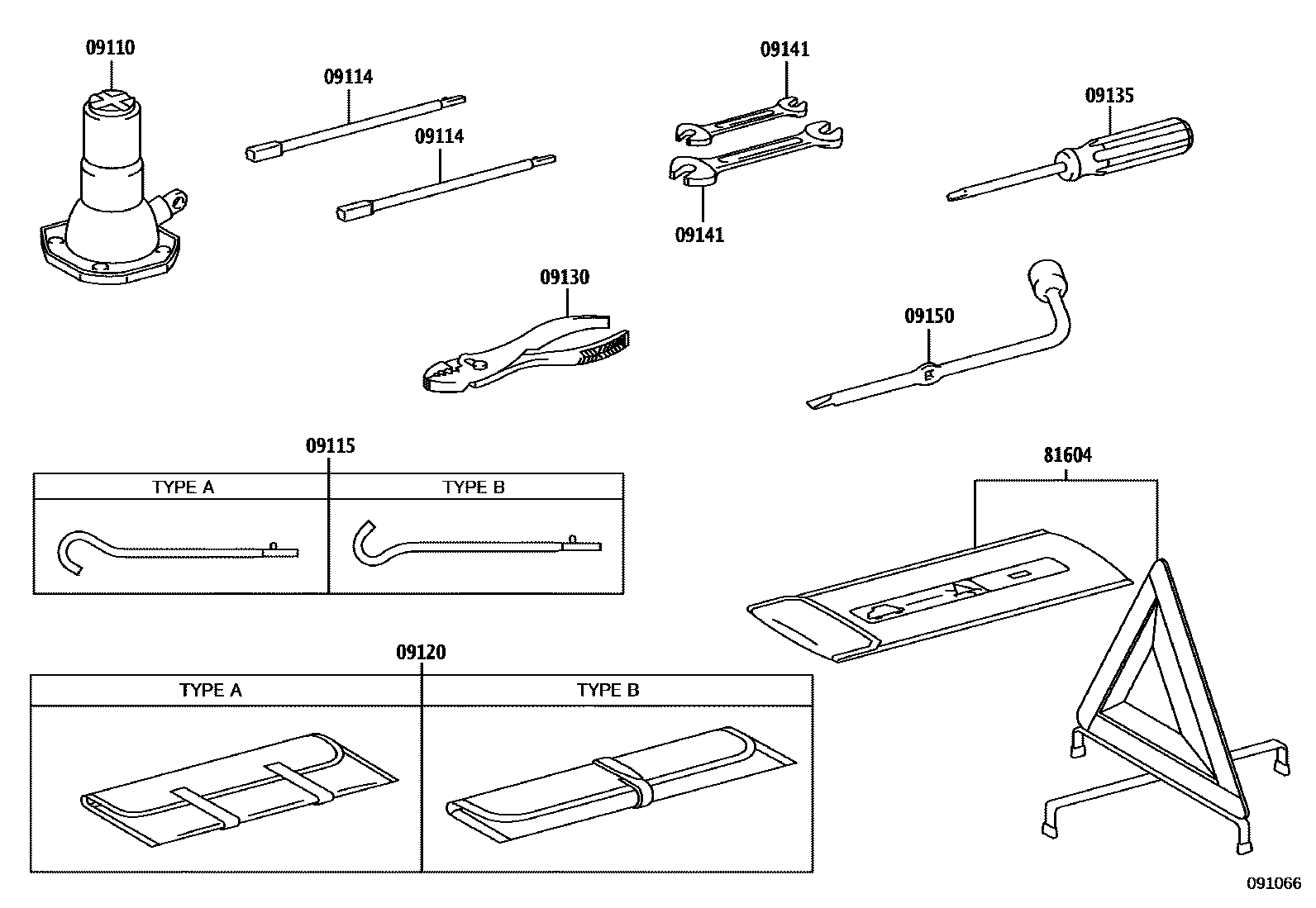

STANDARD TOOL

09110JACK ASSY

main09111-0K131iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main09111-0K161iGGN155,GUN15#,16#,LAN155,TGN156,166..INDP,MAP,SAP,THP¥5,500202108-202112

sub09111-0K162¥5,500

main09111-0K162iGUN156,166,TGN166..IND¥5,500202201-202304

main09111-0K190iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-0K160iGUN15#,TGN156..MA202108-202304

main09114-0K180iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main09114-0K200iGUN15#,16#,LAN155,TGN156..SA202109-202301

main09114-0K320iGUN156,165,TGN166..VNP202205-202209

main09114-0K340iGUN156,TGN156,166..PKN202202

main09114-0K360iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

09115ROD SUB-ASSY, JACK HANDLE

main09115-0K230iGUN15#,TGN156..MA202108-202304

main09115-0K230iGUN156,166,TGN166..IND202110-202209

TYPE B:REFER ILLUST.

main09115-0K240iGUN15#,16#,LAN155,TGN156..SA202109-202301

main09115-0K250iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

TYPE A:REFER ILLUST.

main09115-0K290iGUN156,165,TGN166..VNP202205-202209

TYPE B:REFER ILLUST.

main09115-0K310iGUN156,TGN156,166..PKN202202

main09115-0K340iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

09120BAG, TOOL

main09120-0K120iGUN156,TGN156,166..PKN202202

main09120-0K200iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

TYPE A:REFER ILLUST.

main09120-0K220iGUN156,166,TGN166..IND202110-202209

TYPE B:REFER ILLUST.

main09120-0K240iGUN15#,TGN156..MA¥1,180202108-202304

main09120-0K290iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main09120-0K310iGUN156,165,TGN166..VNP202205-202209

TYPE A:REFER ILLUST.

main09120-0K330iGUN15#,16#,LAN155,TGN156..SA202109-202301

09130PLIERS

main09130-0K020iGUN156,165,TGN166..VNP202205-202209

main90080-99020iGGN155,GUN156,16#,TGN156,166..LA202111-202210

main90089-99010iGUN156,TGN156,166..PKN¥440202108-202304

09135DRIVER, SCREW

main09135-0K020iGUN156,165,TGN166..VNP202205-202209

main09135-0K060iGUN156,166,TGN166..IND202110-202209

main09135-0K070iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main90089-99009iGGN155,TGN166..EPT¥500202108-202304

09141SPANNER

main09141-0K030iGGN155,GUN15#,16#,TGN156,166..THP¥530202108-202304

8 X 10

main09141-0K040iGUN15#,TGN156..MA¥800202108-202304

12 X 14

main09141-0K060iGUN156,165,TGN166..VNP202205-202209

8 X 10

main09141-0K070iGUN156,165,TGN166..VNP202205-202209

12 X 14

main09141-0K110iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

12 X 14

main09141-0K120iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

8 X 10

main09141-0K130iGUN156,166,TGN166..IND202110-202209

8 X 10

main90080-99015iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

8 X 10

main90080-99016iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

12 X 14

main90089-99006iGUN156,TGN156,166..PKN¥440202202

8 X 10

main90089-99007iGUN156,TGN156,166..PKN¥260202202

12 X 14

09150WRENCH, HUB NUT BOX

main09150-0B050iGUN15#,16#,LAN155,TGN156..SA202109-202301

main09150-0K010iGGN155,TGN166..EPT¥1,300202108-202304

main09150-0K010iGGN155,GUN156,16#,TGN156,16#..AGTP¥1,300202111-202210

PNC 09115=TYPE B

main09150-0K030iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

PNC 09115=TYPE A

main09150-0K070iGUN156,TGN156,166..PKN202202

main09150-0K090iGUN156,165,TGN166..VNP202205-202209

main09150-0K100iGUN156,166,TGN166..IND202110-202209

main09150-0K110iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

81604REFLECTOR SET, TRIANGLE

main81604-0D020iGUN156,166,TGN166..IND202110-202209

9 parts on this diagram · 1 diagram in section
