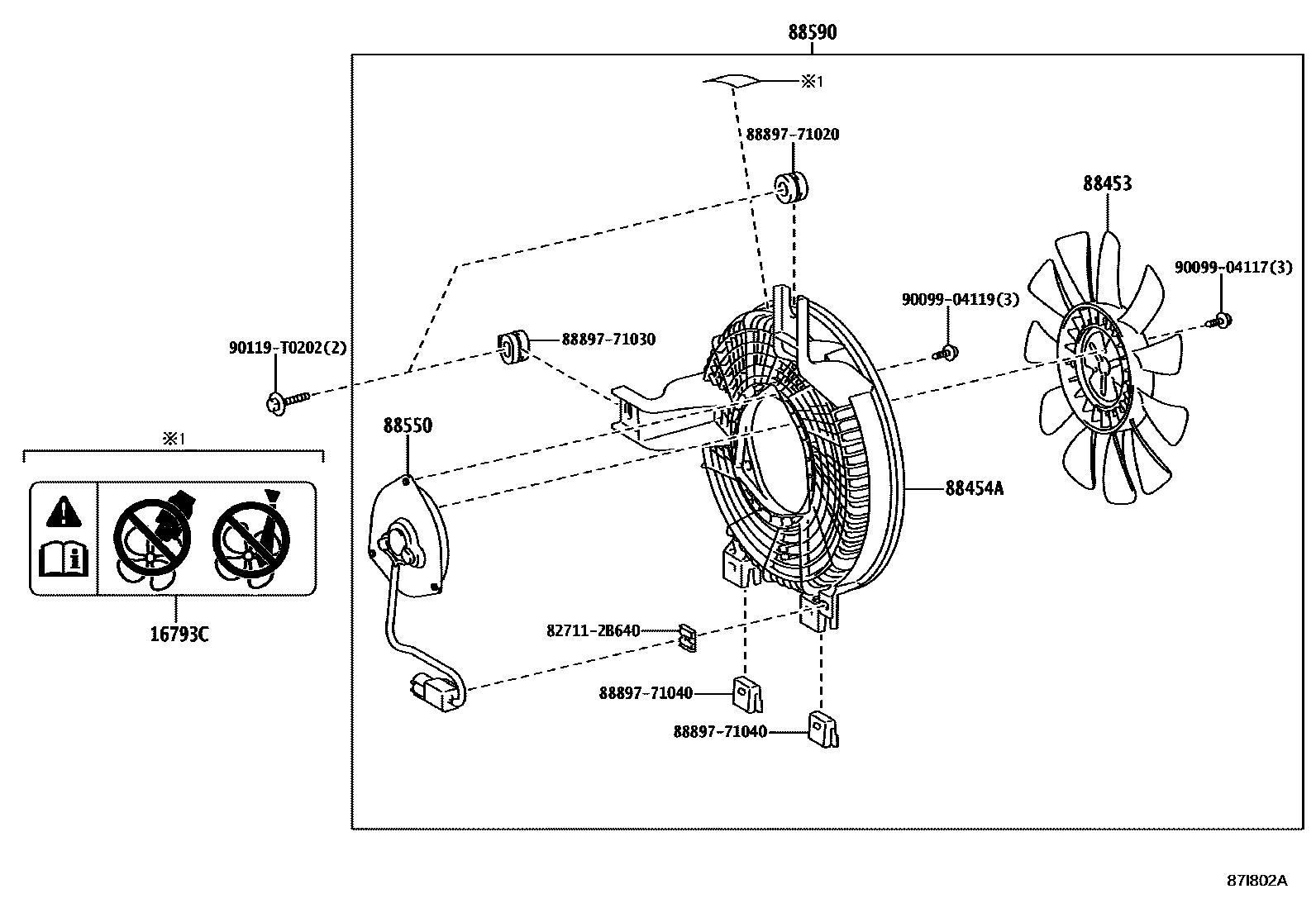

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1W(CONDENSER FAN) 0002 1FRONT W/O(SUB-COOL ACCELERATO0003 1FRONT W/O(SUB-COOL ACCELERATO0004 1FRONT W/O(SUB-COOL ACCELERATO0005 1EURO 6C OR EURO 6D-TEMP 0006 1FRONT W/O(SUB-COOL ACCELERATO0007 1FRONT W(SUB-COOL ACCELERATOR)0008 1FRONT W(SUB-COOL ACCELERATOR)0009 1FRONT W(SUB-COOL ACCELERATOR)0010 1FRONT W(SUB-COOL ACCELERATOR)0011 1 0012 1REAR

16793CLABEL, COOLING FAN CAUTION

main16793-31070i1GRFE,2TRFE..GGN155,TGN156,166..EPT,GCC202006-202203

88453FAN, COOLING (FOR CONDENSER)

main88453-60010iGGN155,TGN156,166..EPT,GCC202006-202203

88454ASHROUD, FAN

main88454-0K040iGGN155,TGN156,166..IDNSU..GCC202007-202108

main88454-0K050iGGN155,TGN156,166..EPTSU,THSUV202006-202203

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12160iGGN155,TGN156,166..EPT,GCC202006-202203

88590BLOWER ASSY, W/SHROUD

main88590-0K051iGGN155,TGN156,166..IDNSU..GCC202007-202108

main88590-0K061iGGN155,TGN156,166..EPTSU,THSUV202006-202203

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8889771020VALVE, COOLER MAGNET

main88897-71020

8889771030VALVE, COOLER MAGNET

main88897-71030

8889771040VALVE, COOLER MAGNET

main88897-71040

9009904117

main90099-04117

9009904119

main90099-04119

90119T0202

main90119-T0202

12 parts on this diagram · 12 diagrams in section
