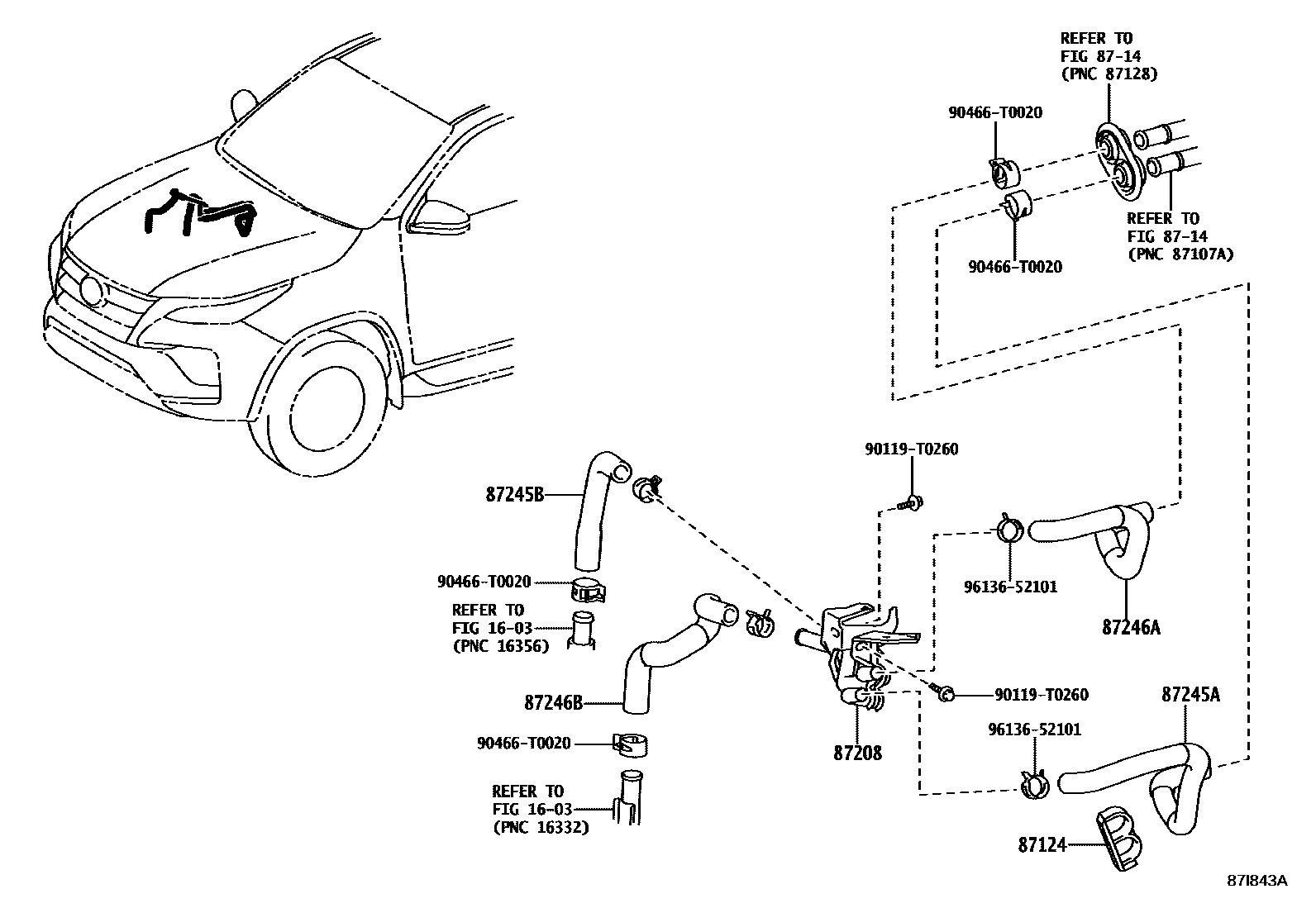

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603

87124CLAMP, HEATER

main87124-0K070iGGN155..EPTSU,THSUV202006-202203

main87124-0K110iGGN155..IDNSU202007-202108

main87124-0K130iGGN155..LA202011-202110

main87124-0K150iGUN15#,16#..SASUV,THSUV,VNSUV202006-202204

main87124-0K160iGUN156,165..AGTSU202011-202110

main87124-0K170iGUN156..MA202101-202110

main87124-0K290iGUN165..S..PH;GUN15#,166..IDNSU;GUN165..IDNSU..(GCC,GEN,IDN,VN)202007-202108

main87124-0K300iGUN156,166..IND202101-202109

main87124-42030iLAN155202009-202109

8714

87208PIPE SUB-ASSY, HEATER WATER

main87208-0K240iTGN166..IND202101-202109

main87208-0K260iTGN156,166..RHD..IDNSU202007-202108

main87208-0K270iTGN156,166..PKN202104-202201

main87208-0K280iTGN156,166..EPTSU,SASUV,THSUV,VNSUV202006-202204

main87208-0K290iTGN156,166..LHD..IDNSU202007-202108

main87208-0K300iTGN156,16#..AGTSU202011-202110

main87208-0K320iGGN155..EPTSU,THSUV202006-202203

main87208-0K330iGGN155..IDNSU202007-202108

main87208-0K340iGGN155..LA202011-202110

main87208-0K430iTGN156..MA202101-202110

87245AHOSE, HEATER WATER, INLET A

main87245-0KA61iGUN165..S..PH;GUN15#,166..IDNSU;GUN165..IDNSU..(GCC,GEN,IDN,VN)202007-202108

main87245-0KA70iTGN156,166..LHD..IDNSU202007-202108

main87245-0KB20iTGN156,166..EPTSU,SASUV,THSUV,VNSUV202006-202204

main87245-0KB40iTGN166..IND202101-202109

main87245-0KB82iGUN156..MA202101-202110

main87245-0KC20iTGN156,16#..AGTSU202011-202110

main87245-0KC80iTGN156,166..RHD..IDNSU202007-202108

main87245-0KD30iTGN156,166..PKN202104-202201

main87245-0KD70iTGN156..MA202101-202110

main87245-0KE02iGUN15#,16#..SASUV,THSUV,VNSUV202006-202204

main87245-0KE62iGUN156,165..AGTSU202011-202110

main87245-0KG60iGGN155..EPTSU,THSUV202006-202203

main87245-0KG80iGGN155..IDNSU202007-202108

main87245-0KJ00iGGN155..LA202011-202110

main87245-0KK30iLAN155202009-202109

main87245-0KL31iGUN156,166..IND202101-202109

main87245-0KD10iGUN156..LA202011-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

87245BHOSE, HEATER WATER, INLET B

main87245-0K290iGGN155..IDNSU202007-202108

main87245-0K480iGGN155..LA202011-202110

main87245-0K590iGGN155..EPTSU,THSUV202006-202203

main87245-0KF30iTGN156,166..EPTSU,INDSU,SASUV,THSUV,VNSUV202006-202204

main87245-0KF50iTGN156,166..IDNSU202007-202108

main87245-0KF70iTGN156,166..PKN202104-202201

main87245-0KF90iTGN156..MA202101-202110

main87245-0KG10iTGN156,16#..AGTSU202011-202110

87246AHOSE, HEATER WATER, OUTLET A

main87245-0K810iTGN156,166..RHD..IDNSU202007-202108

main87245-0K850iTGN166..IND202101-202109

main87245-0KA80iTGN156,166..LHD..IDNSU202007-202108

main87245-0KB30iTGN156,166..EPTSU,SASUV,THSUV,VNSUV202006-202204

main87245-0KB91iGUN156..MA202101-202110

main87245-0KC30iTGN156,16#..AGTSU202011-202110

main87245-0KD20iTGN156,166..PKN202104-202201

main87245-0KD60iTGN156..MA202101-202110

main87245-0KE11iGUN15#,16#..SASUV,THSUV,VNSUV202006-202204

main87245-0KE31iGUN165..S..PH;GUN15#,166..IDNSU;GUN165..IDNSU..(GCC,GEN,IDN,VN)202007-202108

main87245-0KE51iGUN156,166..IND202101-202109

main87245-0KE71iGUN156,165..AGTSU202011-202110

main87245-0KG70iGGN155..EPTSU,THSUV202006-202203

main87245-0KG90iGGN155..IDNSU202007-202108

main87245-0KJ10iGGN155..LA202011-202110

main87245-0KK40iLAN155202009-202109

main87245-0KF00iGUN156..LA202011-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

87246BHOSE, HEATER WATER, OUTLET B

main87245-0K450iGGN155..IDNSU202007-202108

main87245-0K490iGGN155..LA202011-202110

main87245-0K600iGGN155..EPTSU,THSUV202006-202203

main87245-0KF20iTGN156,166..EPTSU,INDSU,SASUV,THSUV,VNSUV202006-202204

main87245-0KF40iTGN156,166..IDNSU202007-202108

main87245-0KF60iTGN156,166..PKN202104-202201

main87245-0KF80iTGN156..MA202101-202110

main87245-0KG00iTGN156,16#..AGTSU202011-202110

90119T0260

main90119-T0260

90466T0020

main90466-T0020

9613652101

main96136-52101

11 parts on this diagram · 6 diagrams in section
