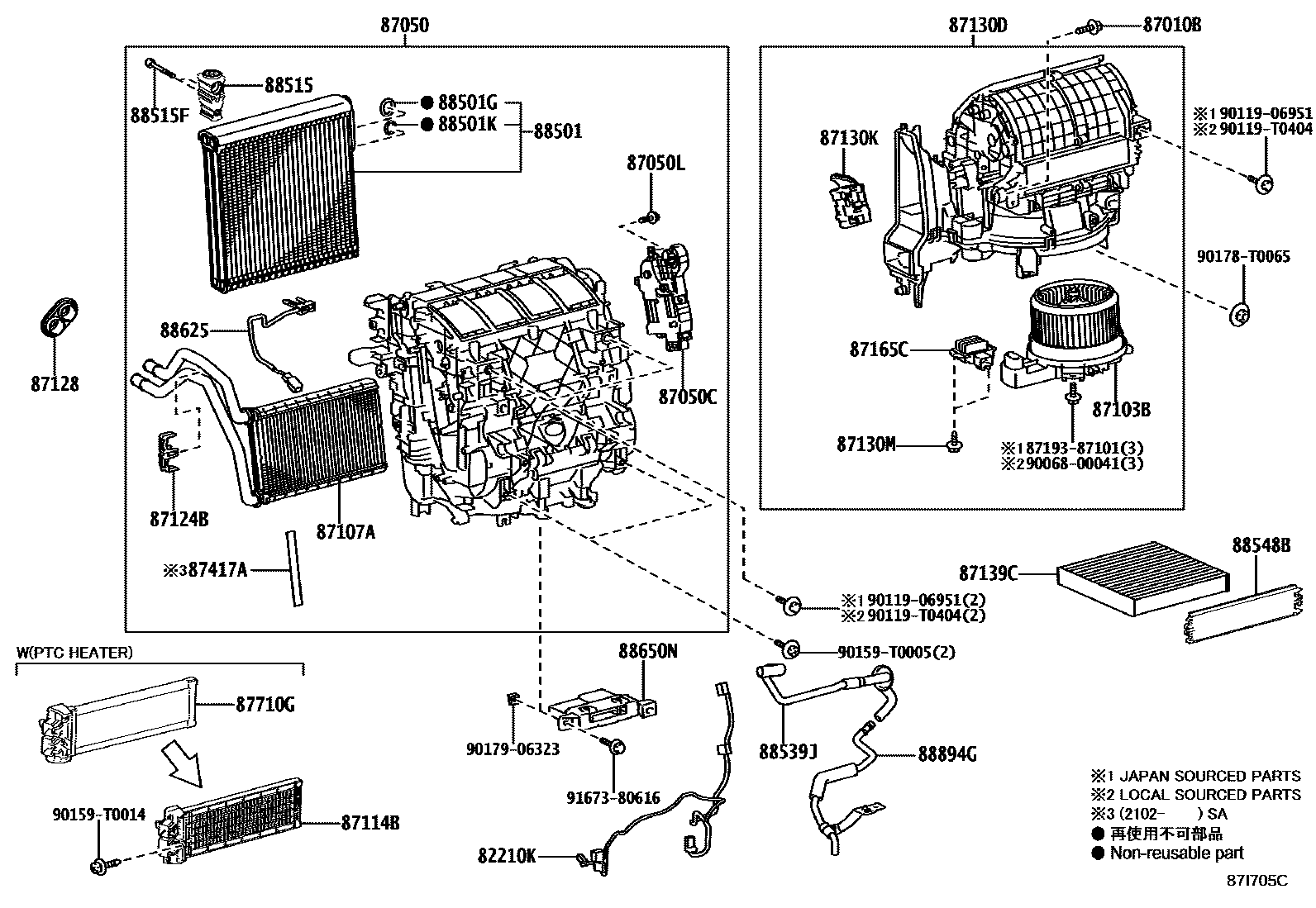

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT AUTO AIR CONDITIONER 0002 1FRONT MANUAL AIR CONDITIONER 0003 1MANUAL COOLER 0004 1FRONT AUTO AIR CONDITIONER 0005 1FRONT MANUAL AIR CONDITIONER 0006 1MANUAL COOLER 0007 1REAR AUTO COOLER 0008 1REAR MANUAL COOLER

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0K050iGUN156..H..ARL;GUN16#..(H,S)..(IDN,IND,SA,TH);GUN15#,TGN156,166..RHD..(H,S)..(GEN,IDN,IND,MA,PKN,SA,TH)202006-202201

main82212-0K060iTGN156..SA;TGN166..L..LA;TGN156..L..GCC;GUN165,LAN155..LHD..(GEN,LA,SA)202006-202110

FRONT AIR CONDITIONER-AUTO

87010BSCREW(FOR AIR CONDITIONER UNIT)

main88718-0A020×2iGUN156,165,TGN166..(THSUV,VNSUV)..(GEN,VN)202006-202204

main90068-00042×2iGGN155,GUN15#,16#,TGN156,166..(EPTSU,THSUV)..(ARL,EPT,GCC,TH)202006-202203

main90094-90426×2iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main90099-00968×2iGGN155,GUN15#,16#,TGN156,166..IDNSU,INDSU,MASUV202007-202110

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0KD10iGUN165..VNSUV..L202009-202204

main87050-0KD30iGUN155,165,TGN156,166..(EPTSU,THSUV)..L202006-202203

main87050-0KD60supersedes 87050-0KD00iGUN156..(L,S)..ARL202006-202108

FRONT AIR CONDITIONER-AUTO

main87050-0KD70iGUN156,165,TGN166..(THSUV,VNSUV)..6FC..(GEN,VN)202006-202204

main87050-0KE00iGGN155,GUN15#,TGN156..(EPTSU,THSUV)..(H,S)..(EPT,GCC)202006-202203

main87050-0KE30iGUN165..L..PH202007-202108

main87050-0KE40iGUN165..IDNSU..L..VN;GUN155,165,TGN156,166..LHD..(L,S)..GEN202007-202108

main87050-0KE50iGUN155,165,TGN156,166..IDNSU..L..GCC202007-202108

main87050-0KE60iGGN155,GUN15#,TGN156..IDNSU..(H,S)..GCC202007-202108

FRONT AIR CONDITIONER-AUTO

main87050-0KE70supersedes 87050-0KJ90iGUN15#,TGN156,166..RHD..GEN202007-202108

FRONT AIR CONDITIONER-AUTO

main87050-0KE80iTGN166..IND;GUN156,166..6F..IND202101-202109

main87050-0KE90iGUN156,165,TGN156,166..AGTSU..(L,S)202011-202110

main87050-0KF00iTGN168;GUN156,TGN156,166..AGTSU..H202011-202110

FRONT AIR CONDITIONER-AUTO

main87050-0KF70supersedes 87050-0KF30iGUN156..LHD..SA202009-202109

FRONT AIR CONDITIONER-AUTO

main87050-0KG20iGUN155,165..SA202009-202109

main87050-0KG50iGUN156,166..RHD..SA202009-202109

main87050-0KJ00iGUN155..MA202101-202110

main87050-0KJ10iGUN156,TGN156..MA202101-202110

main87050-0KJ30iGUN156,TGN156,166..PKN202104-202201

main87050-0KJ70iGUN165..LHD..GEN202007-202108

FRONT AIR CONDITIONER-AUTO

main87050-0KK40iGGN155..LA202011-202110

main87050-0KK90iGUN155,165,TGN166..IDN202008-202108

main87050-0KL10iGUN156,166..6FC..IND202101-202109

main87050-0KD40supersedes 87050-0KE10iGUN15#,16#..TH202006-202108

TOYOTA STOP & START SYSTEM-WITHOUT

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-0K210iGUN156,TGN156,166..PKN202006-202201

87050LSCREW(FOR AIR CONDITIONER RADIATOR)

main88718-0A020×13iGUN156,165,TGN166..(THSUV,VNSUV)..6FC..(GEN,VN)202006-202204

main90068-00042iGGN155,GUN15#,16#,TGN156,166..(EPTSU,THSUV)..(ARL,EPT,GCC,TH)202006-202203

main90069-32076×18iGUN156..LHD..SA202009-202109

FRONT AIR CONDITIONER-AUTO

main90094-90426iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main90099-00968×6iGUN155..MA202101-202110

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0K381iGUN15#,16#..RHD..THSUV202006-202108

main87103-0K391iGGN155,GUN15#,165,TGN156,166..LHD..(EPTSU,THSUV,VNSUV)202006-202204

main87103-0K421iGUN165..L..PH202007-202108

main87103-0K431iGUN15#,165,TGN156,166..RHD..IDNSU202007-202108

main87103-0K441iGUN165..S..PH;GUN165..LHD..IDNSU..(GCC,GEN,VN);GGN155,GUN15#,166,TGN156,166..LHD..IDNSU202007-202108

main87103-0K451iGUN156,166,TGN166..IND202101-202109

main87103-0K461iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main87103-0K491iGUN15#,16#..RHD..SA202009-202109

main87103-0K501iGUN156,LAN155,TGN156..LHD..SA202009-202109

main87103-0K531iGUN155..MA202101-202110

main87103-0K541iGUN156,TGN156..MA202101-202110

main87103-0K551iGUN156,TGN156,166..PKN202104-202201

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0K110iGGN155,GUN15#,16#,TGN156,166..EPTSU,THSUV,VNSUV202006-202204

main87107-0K130iGUN165..S..PH;GUN165..IDNSU..(GCC,GEN,VN);GGN155,GUN15#,166,TGN156,166..IDNSU..(GCC,GEN,PH,VN)202007-202108

main87107-0K140iGUN156,166,TGN166..IND202101-202109

main87107-0K150iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main87107-0K170iGUN15#,16#,LAN155,TGN156..SA202009-202109

main87107-0K180iGUN156,TGN156..MA202101-202110

main87107-0K190iGUN156,TGN156,166..PKN202104-202201

main87107-0K210iGUN155,165,TGN166..IDN202008-202108

87114BCOVER, HEATER

main87114-0K040iGGN155,GUN15#,16#,TGN156,166..EPTSU,THSUV,VNSUV202006-202204

main87114-0K050iGUN15#,16#,LAN155,TGN156..SA202009-202109

main87114-0K060iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main87114-0K070iGUN156..H..LA;GUN156..AGTSU..L;GGN155,GUN165,TGN156,16#..AGTSU202011-202110

main87114-0K080iGUN156,166,TGN166..IND202101-202109

main87114-0K090iGUN15#,TGN156..MA202101-202110

87124BCLAMP, HEATER

main87124-06140iGUN156,TGN156,166..PKN202006-202201

main87124-0K220iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main87124-0K230iGUN15#,16#,LAN155,TGN156..SA202009-202109

87128GROMMET, HEATER

main87128-0K140iGUN165..L..PH202007-202108

main87128-0K150iGUN165..S..PH;GUN165..IDNSU..(GCC,GEN,IDN,VN);GGN155,GUN15#,166,TGN156,166..IDNSU202007-202108

main87128-0K160iGUN156,166,TGN166..IND202101-202109

main87128-0K180iGGN155,GUN15#,16#,TGN156,166..EPTSU,THSUV,VNSUV202006-202204

main87128-0K190iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main87128-0K200iGUN15#,16#,LAN155,TGN156..SA202009-202109

main87128-0K210iGUN155..MA202101-202110

main87128-0K250iGUN156,TGN156..MA202101-202110

87130DBLOWER ASSY

main87130-0K591iGUN155,165,TGN156,166..(EPTSU,THSUV,VNSUV)..L202006-202204

main87130-0K601supersedes 87130-0K771iGUN156..LHD..SA202009-202109

FRONT AIR CONDITIONER-AUTO

main87130-0K621supersedes 87130-0K571iGUN155,16#..TH;GUN156..RHD..THSUV..H202006-202108

FRONT AIR CONDITIONER-AUTO

main87130-0K631iGGN155,GUN15#,165,TGN156,166..LHD..(EPTSU,THSUV,VNSUV)..(H,S)202006-202204

main87130-0K651iGUN165..L..PH202007-202108

main87130-0K661iGUN165..IDNSU..L..VN;GUN155,TGN156,166..IDNSU..L;GUN165..LHD..IDNSU..(GCC,GEN)202007-202108

main87130-0K681iGUN165..IDNSU..S..(PH,VN);GGN155,GUN15#,166,TGN156,166..LHD..IDNSU..(H,S)202007-202108

FRONT AIR CONDITIONER-AUTO

main87130-0K691supersedes 87130-0KA11iGUN165..RHD..GEN202007-202108

FRONT AIR CONDITIONER-AUTO

main87130-0K701iGUN156,166,TGN166..IND202101-202109

main87130-0K721iGUN156,165,TGN156,166..AGTSU..(L,S)202011-202110

main87130-0K731iGUN165,TGN166..L..LA202011-202110

FRONT AIR CONDITIONER-AUTO

main87130-0K801iGUN155,165..SA202009-202109

main87130-0K811iGUN156,166..RHD..SA202009-202109

main87130-0K841iGUN155..MA202101-202110

main87130-0K851iGUN156,TGN156..MA202101-202110

main87130-0K871iGUN156,TGN156,166..PKN202104-202201

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-0K220iGUN156,165,TGN156,166..AGTSU..(L,S)202006-202110

main87106-0K241iTGN156..SA;TGN166..L..LA;TGN156..L..GCC;GUN165,LAN155..LHD..(GEN,LA,SA)202006-202110

FRONT AIR CONDITIONER-AUTO

main87106-0K251iGUN156..H..ARL;GUN16#..(H,S)..(IDN,IND,SA,TH);GUN15#,TGN156,166..RHD..(H,S)..(GEN,IDN,IND,MA,PKN,SA,TH)202006-202201

87130MSCREW(FOR BLOWER)

main88718-0A020×5iGUN156,165,TGN166..(THSUV,VNSUV)..(GEN,VN)202006-202204

main90068-00042×5iGGN155,GUN15#,16#,TGN156,166..(EPTSU,THSUV)..(ARL,EPT,GCC,TH)202006-202203

main90094-90426iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main90099-00968×2iGUN156..LHD..SA202009-202109

FRONT AIR CONDITIONER-AUTO

87139CFILTER, CLEAN AIR

main87139-0K030iGUN15#,16#,TGN166..IDN,PH202007-202108

POLLEN FILTER

main87139-0K040iGGN155,GUN15#,165,TGN156,166..IDNSU..(GCC,GEN,VN)202007-202108

POLLEN FILTER

main87139-0K050iGUN156,166,TGN166..IND202101-202109

POLLEN FILTER

main87139-0K060iGUN15#,16#..TH202006-202108

POLLEN FILTER

main87139-0K070iGGN155,GUN15#,165,TGN156,166..(EPTSU,THSUV,VNSUV)..(ARL,EPT,GCC,GEN,VN)202006-202204

POLLEN FILTER

main87139-0K080iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

POLLEN FILTER

main87139-0K090iGUN15#,16#,LAN155,TGN156..SA202009-202109

POLLEN FILTER

main87139-0K100iGUN15#,TGN156..MA202101-202110

POLLEN FILTER

main87139-58010iGUN156,TGN156,166..PKN202006-202201

DEODORANT FILTER

87165CCONTROL, BLOWER MOTOR

main87165-0K060iGUN156..H..ARL;GUN165..(H,S)..(IDN,PH,TH,VN);TGN156..(IDNSU,MASUV,THSUV)..(H,S);GGN155,GUN15#,166,TGN166..(H,S)..(EPT,GCC,GEN,IDN,IND,MA,PH,SA,TH,VN)202006-202204

87417APACKING, AIR DUCT

main87417-0K050iGUN15#,16#,LAN155,TGN156..SA202102-202109

87710GQUICK HEATER ASSY

main87710-0K120iGUN156..(H,S)..BZAGT202011-202110

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0K320supersedes 88501-0K330iGUN156..ARL202006-202108

TOYOTA STOP & START SYSTEM-WITHOUT

main88501-0K390iGGN155,GUN15#,165,TGN156,166..LHD..(EPTSU,THSUV,VNSUV)202006-202204

main88501-0K410iTGN166..IND;GUN156,166..6F..IND202101-202109

main88501-0K420iGUN156,LAN155,TGN156..LHD..SA202009-202109

main88501-0K430iGUN15#,16#..RHD..SA202009-202109

main88501-0K450iGGN155,GUN15#,16#,TGN156,166..LHD..IDNSU202007-202108

main88501-0K460iGUN15#,165,TGN156,166..RHD..IDNSU202007-202108

main88501-0K480iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main88501-0K510iGUN15#,TGN156..MA202101-202110

main88501-0K520iGUN156,TGN156,166..PKN202104-202201

main88501-0K550iGUN156,166..6FC..IND202101-202109

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90068-14044iGGN155,GUN15#,16#,TGN156,166..(EPTSU,THSUV)..(ARL,EPT,GCC,TH)202006-202203

ID=10.2,OD=15.0

main90069-38042iGUN156..LHD..SA202009-202109

ID=13.4,OD=18.27,FRONT AIR CONDITIONER-AUTO

main90099-14121iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

ID=13.4,OD=18.2

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90068-14043iGGN155,GUN15#,16#,TGN156,166..(EPTSU,THSUV)..(ARL,EPT,GCC,TH)202006-202203

ID=13.4,OD=18.2

main90069-38041iGUN156..LHD..SA202009-202109

ID=10.8,OD=15.47

main90099-14120iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

ID=10.8,OD=15.6

88515VALVE, COOLER EXPANSION

main88515-0K580iGUN156,TGN156,166..PKN202006-202201

main88515-0K590iGUN156,166..6FC..(GCC,IND,TH);GGN155,GUN155,165,TGN156,166..EPT,GCC,TH202006-202203

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90068-04042×2iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main90068-04062×2iGGN155,GUN15#,16#,TGN156,166..(EPTSU,THSUV)..(ARL,EPT,GCC,TH)202006-202203

main90069-31107×2iGUN156..LHD..SA202009-202109

FRONT AIR CONDITIONER-AUTO

main90099-04542×2iGUN156..IDNSU..GCC;GUN156..GEN,IND,MA,PH,VN;GGN155,GUN155,16#,TGN156,166..IDNSU,INDSU,MASUV,VNSUV202006-202204

88539JHOSE, DRAIN COOLER

main88539-0K330iGGN155,GUN15#,16#,TGN156,166..LHD..IDNSU202007-202108

main88539-0K340iGUN15#,165,TGN156,166..RHD..IDNSU202007-202108

main88539-0K360iGUN156,166,TGN166..IND202101-202109

main88539-0K380iGGN155,GUN15#,165,TGN156,166..LHD..(EPTSU,THSUV,VNSUV)202006-202204

main88539-0K390iGUN15#,16#..RHD..THSUV202006-202108

main88539-0K410iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main88539-0K420iGUN156,LAN155,TGN156..LHD..SA202009-202109

main88539-0K430iGUN15#,16#..RHD..SA202009-202109

main88539-0K470iGUN15#,TGN156..MA202101-202110

main88539-0K490iGUN156,TGN156,166..PKN202104-202201

88548BCASE, AIR FILTER

main88548-0K091iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main88548-0K101iGUN156,166,TGN166..IND202101-202109

main88548-0K111iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main88548-0K121iGUN15#,16#,LAN155,TGN156..SA202009-202109

main88548-0K131iGUN15#,TGN156..MA202101-202110

main88899-06330iGUN156,TGN156,166..PKN202006-202201

88625THERMISTOR, COOLER, NO.1

main88620-0K010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

main88620-0K020iGUN15#,16#..6FC..(IND,TH)202006-202109

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0K420iTGN156..SA;GUN165..L..VN;GUN156..(L,S)..ARL;GUN155,TGN156..L..(GCC,GEN,SA);GUN165,LAN155,TGN166..(L,S)..(EPT,GCC,GEN,SA)202006-202204

main88650-0K470iGUN155,165..L..(MA,PH)202007-202110

main88650-0K490iGUN156,165,TGN156,166..AGTSU..(L,S)202011-202110

main88650-0K630iGUN156,TGN156,166..PKN202006-202201

main88650-0K670supersedes 88650-0K640iGGN155,GUN15#..H..GCC202006-202108

SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)

main88650-0K680iGUN165,TGN166..L..LA202011-202110

FRONT AIR CONDITIONER-AUTO

main88650-0K700iGUN156,166,TGN166..IND202101-202109

main88650-0K690iGUN15#,166,TGN156,166..H..(BZAGT,GEN,IND,PH)202006-202110

SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)

88894GCONNECTOR, DRAIN HOSE

main88894-0K010iGGN155,GUN15#,165,TGN156,166..LHD..(EPTSU,THSUV,VNSUV)202006-202204

main88894-0K020iGUN15#,16#,TGN156,166..RHD..(PKNSU,THSUV)202006-202201

main88894-0K040iGGN155,GUN15#,16#,TGN156,166..LHD..IDNSU202007-202108

main88894-0K050iGUN15#,165,TGN156,166..RHD..IDNSU202007-202108

main88894-0K070iGUN156,166,TGN166..IND202101-202109

main88894-0K090iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main88894-0K100iGUN156,LAN155,TGN156..LHD..SA202009-202109

main88894-0K110iGUN15#,16#..RHD..SA202009-202109

main88894-0K130iGUN15#,TGN156..MA202101-202110

8719387101

main87193-87101

9006800041

main90068-00041

9011906951

main90119-06951

90119T0404

main90119-T0404

90159T0005

main90159-T0005

90159T0014

main90159-T0014

90178T0065

main90178-T0065

9017906323

main90179-06323

9167380616

main91673-80616

36 parts on this diagram · 8 diagrams in section
