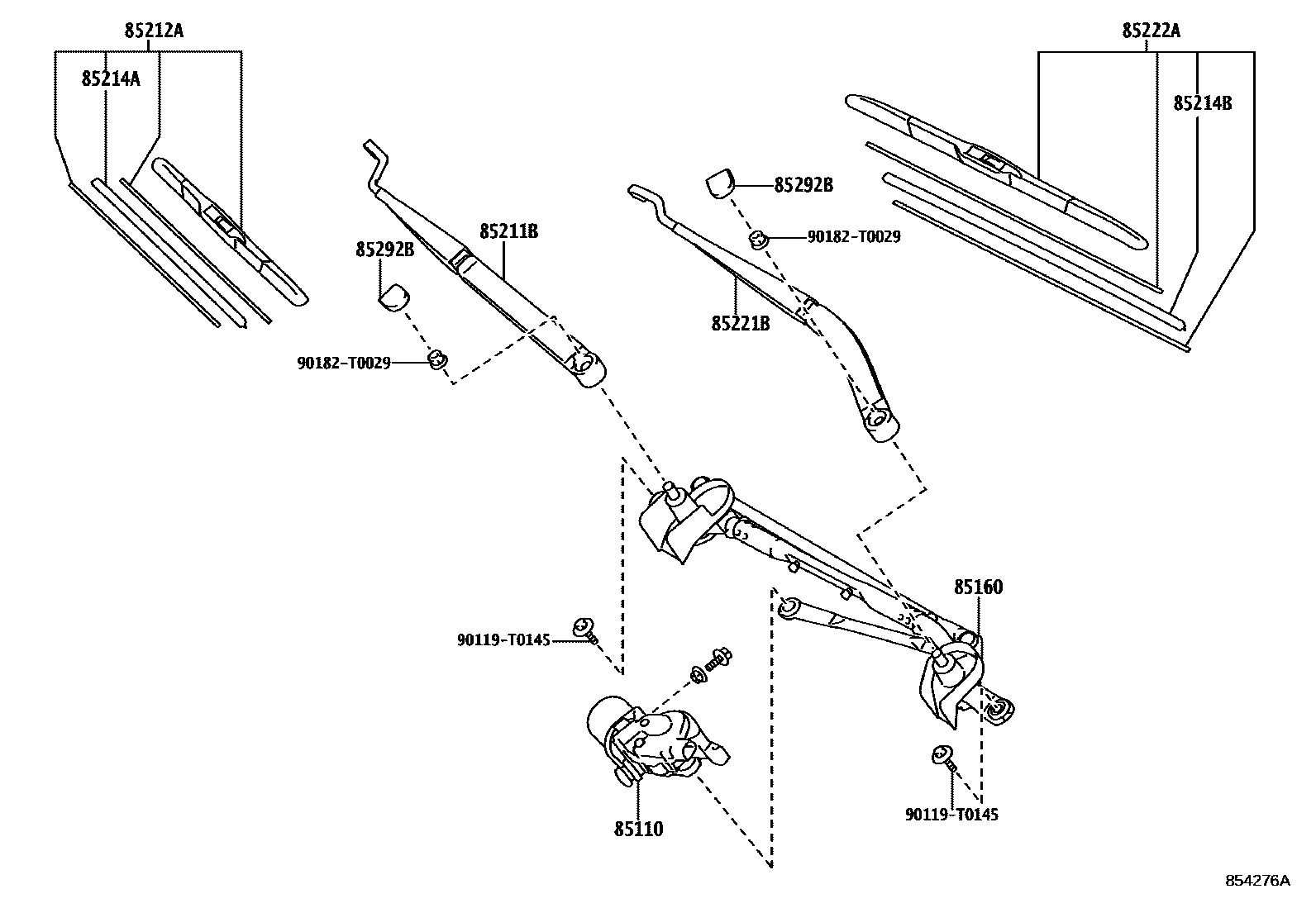

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0K171iGGN155,GUN15#,16#,LAN155,TGN156,166..LHD..(IDNSU,SASUV,THSUV,VNSUV)202006-202204

main85110-0K201iGUN15#,16#,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)202006-202201

main85110-0K222iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main85110-0K251iGUN156,166,TGN166..IND202101-202109

85160LINK ASSY, WINDSHIELD WIPER

main85150-0K140iGUN15#,16#..RHD..THSUV202006-202108

main85150-0K150iGGN155,GUN15#,165,TGN156,166..LHD..(EPTSU,THSUV)202006-202202

main85150-0K180iGUN15#,16#..RHD..SA202009-202109

main85150-0K190iGUN156,LAN155,TGN156..LHD..SA202009-202109

main85150-0K220iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main85150-0K230iGUN15#,165,TGN156,166..RHD..(IDNSU,MASUV,PKNSU)202007-202201

main85150-0K240iGGN155,GUN15#,16#,TGN156,166..LHD..(IDNSU,VNSUV)202007-202204

main85150-0K250iGUN156,166,TGN166..IND202101-202109

85211BARM, FRONT WIPER, RH

main85211-0K131iGUN15#,16#,TGN156,166..RHD202006-202201

main85211-0K140iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

85212ABLADE, FR WIPER, RH

main85212-42130iGGN155,GUN156,165,TGN156,16#..AGTSU¥1,810202006-202204

main85212-71010iGUN15#,16#,TGN156,166..RHD¥3,190202006-202201

85214ARUBBER, WIPER, RH

main85214-28090iGGN155,GUN156,165,TGN156,16#..AGTSU¥750202006-202204

main85214-53080iGUN15#,16#,TGN156,166..RHD¥850202006-202201

85214BRUBBER, WIPER, LH

main85214-28090iGUN15#,16#,TGN156,166..RHD¥750202006-202201

main85214-53080iGGN155,GUN156,165,TGN156,16#..AGTSU¥850202006-202204

85221BARM, FRONT WIPER, LH

main85221-0K130iGUN15#,16#,TGN156,166..RHD¥3,180202006-202201

main85221-0K141iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

85222ABLADE, FR WIPER, LH

main85222-42130iGUN15#,16#,TGN156,166..RHD¥1,800202006-202201

main85222-71010iGGN155,GUN15#,16#,LAN155,TGN156,166..LHD..(EPTSU,IDNSU,SASUV,THSUV,VNSUV)202006-202204

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030iGGN155,GUN156,165,TGN156,16#..AGTSU¥200202006-202204

90119T0145

main90119-T0145

90182T0029

main90182-T0029

11 parts on this diagram · 2 diagrams in section
