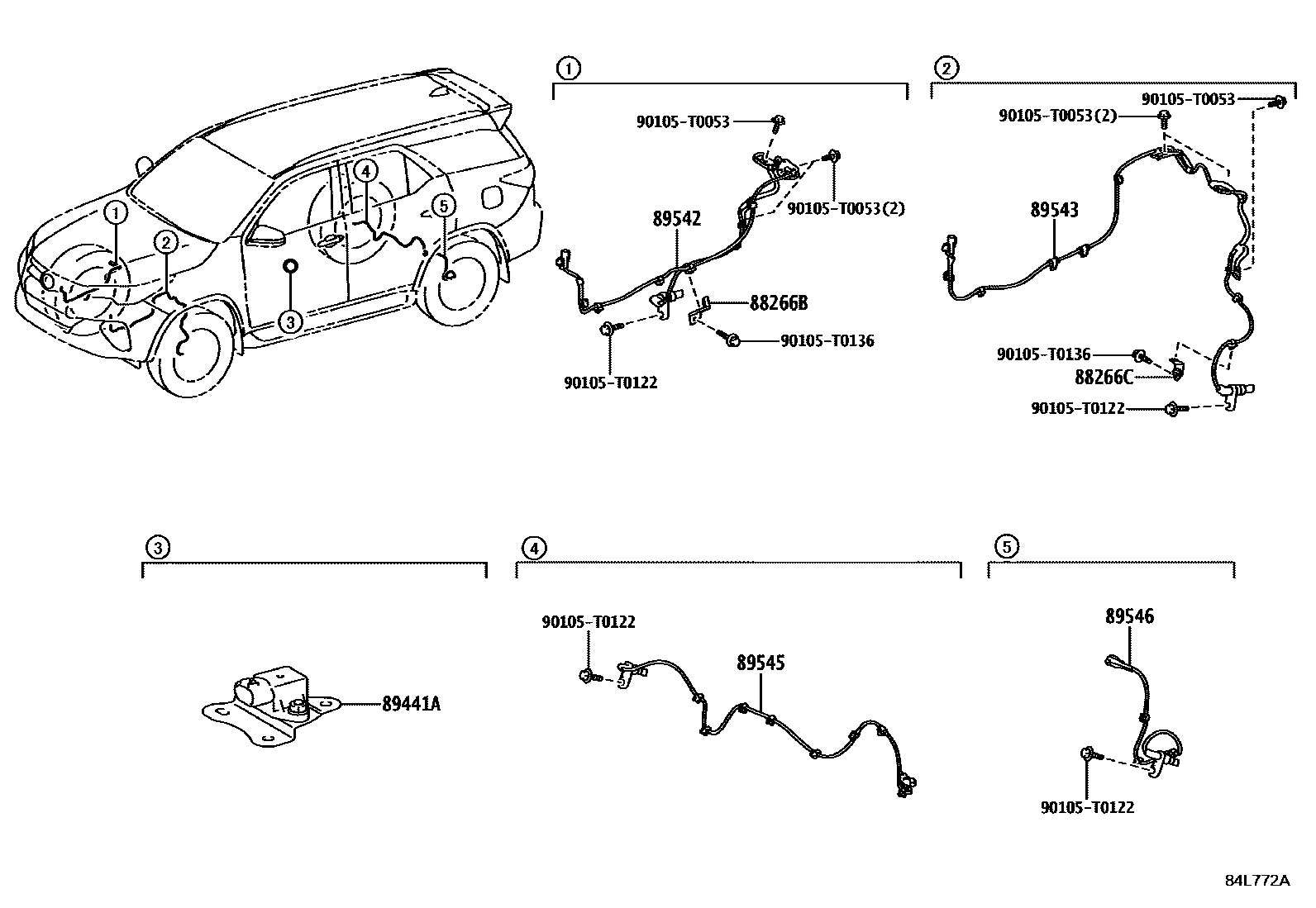

ABS & VSC

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-0K020iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-0K040iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

89441ASENSOR, DECELERATION

main89440-71040iLAN155202009-202109

89542SENSOR, SPEED, FRONT RH

main89542-0K060iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

main89542-0K070iGUN156,166,TGN166..IND202101-202109

main89542-0K080iGGN155,GUN15#,16#,LAN155,TGN156,166..IDNSU,MASUV,SASUV,VNSUV202007-202204

89543SENSOR, SPEED, FRONT LH

main89543-0K061iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

main89543-0K071iGUN156,166,TGN166..IND202101-202109

main89543-0K081iGGN155,GUN15#,16#,LAN155,TGN156,166..IDNSU,MASUV,SASUV,VNSUV202007-202204

89545SENSOR, SPEED, REAR RH

main89545-0K130iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

main89545-0K150iGUN156,166,TGN166..IND202101-202109

main89545-0K300iGGN155,GUN15#,16#,LAN155,TGN156,166..IDNSU,MASUV,SASUV,VNSUV202007-202204

89546SENSOR, SPEED, REAR LH

main89546-0K130iGGN155,GUN15#,16#,TGN156,166..EPTSU,THSUV202006-202203

main89546-0K150iGUN156,166,TGN166..IND202101-202109

main89546-0K300iGGN155,GUN15#,16#,LAN155,TGN156,166..IDNSU,MASUV,SASUV,VNSUV202007-202204

90105T0053

main90105-T0053

90105T0122

main90105-T0122

90105T0136

main90105-T0136

10 parts on this diagram · 1 diagram in section
