MOULDING

5353

62703GRETAINER SUB-ASSY, QUARTER WINDOW GLASS, REAR RH

main62703-0K011iGUN156,TGN156,166..PKN202006-202203

main62703-0K020iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main62703-0K030iGUN156,166,TGN166..IND202101-202109

main62703-0K040iGUN156,165,TGN166..VNSUV202009-202204

62704ARETAINER SUB-ASSY, QUARTER WINDOW GLASS, REAR LH

main62704-0K011iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,MASUV,SASUV,THSUV202006-202203

main62704-0K020iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main62704-0K030iGUN156,166,TGN166..IND202101-202109

main62704-0K040iGUN156,165,TGN166..VNSUV202009-202204

62775CCLIP, QUARTER WINDOW

main62775-76010iGUN156,TGN156,166..PKN¥170202006-202204

62791GMOULDING, QUARTER WINDOW, UPPER RH

main62791-0K010iGGN155,GUN15#,16#,TGN156,166..EPTSU,MASUV,THSUV202006-202203

main62791-0K020iGUN156,166,TGN166..IND202101-202109

main62791-0K030iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main62791-0K040iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main62791-0K050iGUN15#,16#,LAN155,TGN156..SA202009-202109

62792VMOULDING, QUARTER WINDOW, UPPER LH

main62792-0K010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202203

main62792-0K020iGUN156,166,TGN166..IND202101-202109

main62792-0K030iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main62792-0K050iGUN15#,16#,LAN155,TGN156..SA202009-202109

75039CLIP SUB-ASSY, OUTSIDE MOULDING

main9004A-46388iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV¥110202007-202204

MADE IN INDONESIA

main90467-07215iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,EPTSU,SASUV,THSUV¥80202006-202106

main90467-07215iGUN156,TGN156,166..PKN¥80202104-202203

(J)

main90467-T0050iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,INDSU,SASUV,THSUV202104-202203

(L)

main90467-T0050iGUN15#,TGN156..MA202106-202110

main90467-T0050iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202104-202204

MADE IN THAILAND

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-0K190iGUN156,TGN156,166..PKN202006-202203

NO PAINT REQ.

main75551-0K200iGUN156..L..ARL;GUN156,LAN155,TGN156..LHD..SA202006-202109

NO PAINT REQ.

main75551-0K210iGUN165..IDNSU..S..(PH,VN);GUN165..IDNSU..(GCC,GEN,IDN);GGN155,GUN15#,166,TGN156,166..IDNSU202007-202108

NO PAINT REQ.

main75551-0K210iGUN165..IDNSU..L..VN202007-202108

NO PAINT REQ.,ROOF RAIL-WITH

main75551-0K220iGGN155..GEN;GUN155,165,TGN156,166..IDNSU..(6F,6FC)..L..(GCC,GEN)202007-202108

NO PAINT REQ.,ROOF RAIL-WITHOUT

main75551-0K220iGUN165..IDNSU..L..(PH,VN)202007-202108

NO PAINT REQ.

main75551-0K230iGUN156,TGN156..AGTSU;GUN156..RHD..(IND,SA);GGN155,GUN155,16#,TGN16#..AGTSU,INDSU,SASUV202009-202110

NO PAINT REQ.

main75551-0K250iGUN15#,TGN156..MA202101-202110

NO PAINT REQ.

main75551-0K290iGUN156,165,TGN166..VNSUV..6FC202009-202204

NO PAINT REQ.

main75551-0K290iGUN156,165,TGN166..VNSUV..6FC202009-202204

NO PAINT REQ.,ROOF RAIL-WITH

main75551-0K300iGUN165..VNSUV..L202009-202204

NO PAINT REQ.

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-0K190iGUN156..THSUV..(H,S);GGN155,GUN155,16#,TGN156,166..EPTSU,THSUV202006-202203

NO PAINT REQ.

main75552-0K200iGUN156..L..ARL;GUN156,LAN155,TGN156..LHD..SA202006-202109

NO PAINT REQ.

main75552-0K210iGUN165..IDNSU..L..VN202007-202108

NO PAINT REQ.,ROOF RAIL-WITH

main75552-0K210iGUN165..IDNSU..L..VN202007-202108

NO PAINT REQ.

main75552-0K220iGGN155..GEN;GUN155,165,TGN156,166..IDNSU..(6F,6FC)..L..(GCC,GEN)202007-202108

NO PAINT REQ.,ROOF RAIL-WITHOUT

main75552-0K220iGUN165..IDNSU..L..(PH,VN)202007-202108

NO PAINT REQ.

main75552-0K230iGUN156,TGN156..AGTSU;GUN156..RHD..(IND,SA);GGN155,GUN155,16#,TGN16#..AGTSU,INDSU,SASUV202009-202110

NO PAINT REQ.

main75552-0K250iGUN15#,TGN156..MA202101-202110

NO PAINT REQ.

main75552-0K290iGUN156,165,TGN166..VNSUV..6FC202009-202204

NO PAINT REQ.,ROOF RAIL-WITH

main75552-0K290iGUN156,165,TGN166..VNSUV..6FC202009-202204

NO PAINT REQ.

main75552-0K300iGUN165..VNSUV..L202009-202204

NO PAINT REQ.

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52020iGGN155..GEN;GUN156..6FC..L..LA;GUN155,165,TGN156,166..(6F,6FC)..L..(GCC,GEN,LA)¥160202006-202110

ROOF RAIL-WITHOUT

main75561-52020iGUN156,TGN156,166..PKN¥160202006-202204

75573BMOULDING, BACK WINDOW, OUTSIDE

main75573-0K010iGGN155,GUN156,TGN156,166..AGTSU..H202006-202204

main75573-0K060iGUN156,165,TGN156,16#..AGTSU..(L,S)202006-202204

75601AMOULDING SUB-ASSY, FRONT FENDER, RH

main75601-0K021iGGN155,GUN15#,16#,TGN156,166..EPTSU,MASUV,THSUV202006-202203

NO PAINT REQ.

main75601-0K031iGUN15#,16#,LAN155,TGN156..SA202009-202109

NO PAINT REQ.

main75601-0K041iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

NO PAINT REQ.

main75601-0K051iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

NO PAINT REQ.

main75601-0K061iGUN156,166,TGN166..IND202101-202109

NO PAINT REQ.

75602AMOULDING SUB-ASSY, FRONT FENDER, LH

main75602-0K021iGUN156,TGN156,166..PKN202006-202203

NO PAINT REQ.

main75602-0K031iGUN15#,16#,LAN155,TGN156..SA202009-202109

NO PAINT REQ.

main75602-0K041iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

NO PAINT REQ.

main75602-0K051iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

NO PAINT REQ.

main75602-0K061iGUN156,166,TGN166..IND202101-202109

NO PAINT REQ.

75605AMOULDING SUB-ASSY, QUARTER OUTSIDE, RH

main75605-0K020iGGN155,GUN15#,16#,TGN156,166..EPTSU,MASUV,THSUV202006-202203

main75605-0K030iGUN15#,16#,LAN155,TGN156..SA202009-202109

main75605-0K040iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main75605-0K050iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main75605-0K060iGUN156,166,TGN166..IND202101-202109

75606AMOULDING SUB-ASSY, QUARTER OUTSIDE, LH

main75606-0K020iGUN156,TGN156,166..PKN202006-202203

main75606-0K030iGUN15#,16#,LAN155,TGN156..SA202009-202109

main75606-0K040iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main75606-0K050iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main75606-0K060iGUN156,166,TGN166..IND202101-202109

75693ARETAINER, QUARTER BELT MOULDING

main75693-0K010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

75693BRETAINER, QUARTER BELT REAR MOULDING, NO.1

main90467-08224iGUN156,TGN156,166..PKN¥60202006-202204

75694RETAINER, QUARTER BELT REAR MOULDING, NO.2

main75694-0K010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

75695PAD, QUARTER OUTSIDE MOULDING

main76655-0K010iGUN156,TGN156,166..PKN202006-202203

main76655-0K010iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

LH

main76655-0K030iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main76655-0K040iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

RH

main76655-0K050iGUN15#,16#,LAN155,TGN156..SA202009-202109

75710MOULDING ASSY, FRONT DOOR BELT, RH

main68160-0K010iGUN156,165,TGN156,16#..AGTSU..(L,S)¥2,880202006-202203

main68160-0K070iGGN155,GUN15#,16#,TGN156..(EPTSU,MASUV,THSUV)..H¥2,880202006-202203

main68160-0K100iGGN155,GUN15#,16#,TGN156,166..(IDNSU,VNSUV)..H202007-202204

main68160-0K110iGUN156,166,TGN166..IND202101-202109

main68160-0K120iGGN155,GUN155,165,TGN156,166..(IDNSU,VNSUV)..(L,S)202007-202204

75720MOULDING ASSY, FRONT DOOR BELT, LH

main68210-0K010iGUN156,165,TGN156,16#..AGTSU..(L,S)¥2,880202006-202203

main68210-0K070iGGN155,GUN156,TGN156,166..AGTSU..H¥2,880202006-202203

main68210-0K100iGGN155,GUN15#,16#,TGN156,166..(IDNSU,VNSUV)..H202007-202204

main68210-0K110iGUN156,166,TGN166..IND202101-202109

main68210-0K120iGGN155,GUN155,165,TGN156,166..(IDNSU,VNSUV)..(L,S)202007-202204

75723MOULDING, REAR DOOR BELT, REAR RH

main75723-0K020iGUN156,TGN156..PKN202006-202203

sub75723-0K021

main75723-0K050iGGN155,GUN15#,16#,TGN156,166..(IDNSU,VNSUV)..H202007-202204

main75723-0K060iGUN156,166,TGN166..IND202101-202109

sub75723-0K061

main75723-0K070iTGN166..PKN202006-202203

sub75723-0K071

main75723-0K100iGGN155,GUN155,165,TGN156,166..(IDNSU,VNSUV)..(L,S)202007-202204

sub75723-0K101

75724MOULDING, REAR DOOR BELT, REAR LH

main75724-0K020iGGN155,GUN15#,16#,TGN156..(EPTSU,MASUV,THSUV)..H202006-202203

sub75724-0K021

main75724-0K050iGGN155,GUN15#,16#,TGN156,166..(IDNSU,VNSUV)..H202007-202204

main75724-0K060iGUN156,166,TGN166..IND202101-202109

sub75724-0K061

main75724-0K070iGUN156,165,TGN156,16#..AGTSU..(L,S)202006-202203

sub75724-0K071

main75724-0K100iGGN155,GUN155,165,TGN156,166..(IDNSU,VNSUV)..(L,S)202007-202204

sub75724-0K101

75730MOULDING ASSY, REAR DOOR BELT, RH

main68180-0K040iGGN155,GUN15#,16#,LAN155,TGN156,166..(EPTSU,MASUV,SASUV,THSUV)..(L,S)202006-202203

main68180-0K050iGUN156,TGN156..PKN202006-202203

main68180-0K100iGGN155,GUN15#,16#,TGN156,166..(IDNSU,VNSUV)..H202007-202204

main68180-0K110iGUN156,166,TGN166..IND202101-202109

main68180-0K150iGGN155,GUN155,165,TGN156,166..(IDNSU,VNSUV)..(L,S)202007-202204

75740MOULDING ASSY, REAR DOOR BELT, LH

main68230-0K040iGUN156,165,TGN156,16#..AGTSU..(L,S)202006-202203

main68230-0K050iGGN155,GUN15#,16#,TGN156..(EPTSU,MASUV,THSUV)..H202006-202203

main68230-0K100iGGN155,GUN15#,16#,TGN156,166..(IDNSU,VNSUV)..H202007-202204

main68230-0K110iGUN156,166,TGN166..IND202101-202109

main68230-0K150iGGN155,GUN155,165,TGN156,166..(IDNSU,VNSUV)..(L,S)202007-202204

7652

76923BRETAINER, SIDE MUDGUARD

main76924-12040iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV¥110202006-202204

90159T0034

main90159-T0034

9046708224

main90467-08224¥60

9046708225

main90467-08225¥60

9046709237

main90467-09237¥80

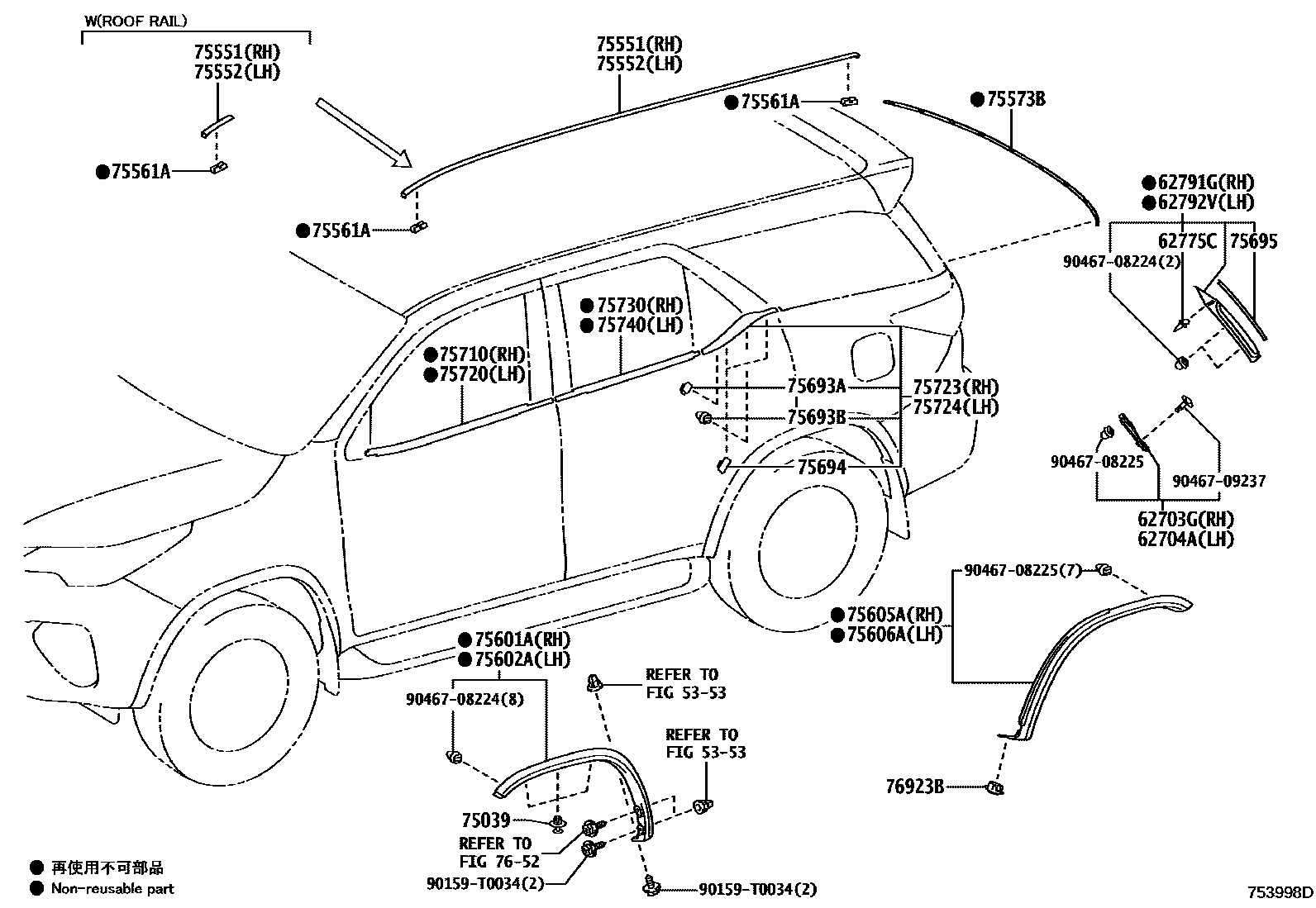

31 parts on this diagram · 1 diagram in section
