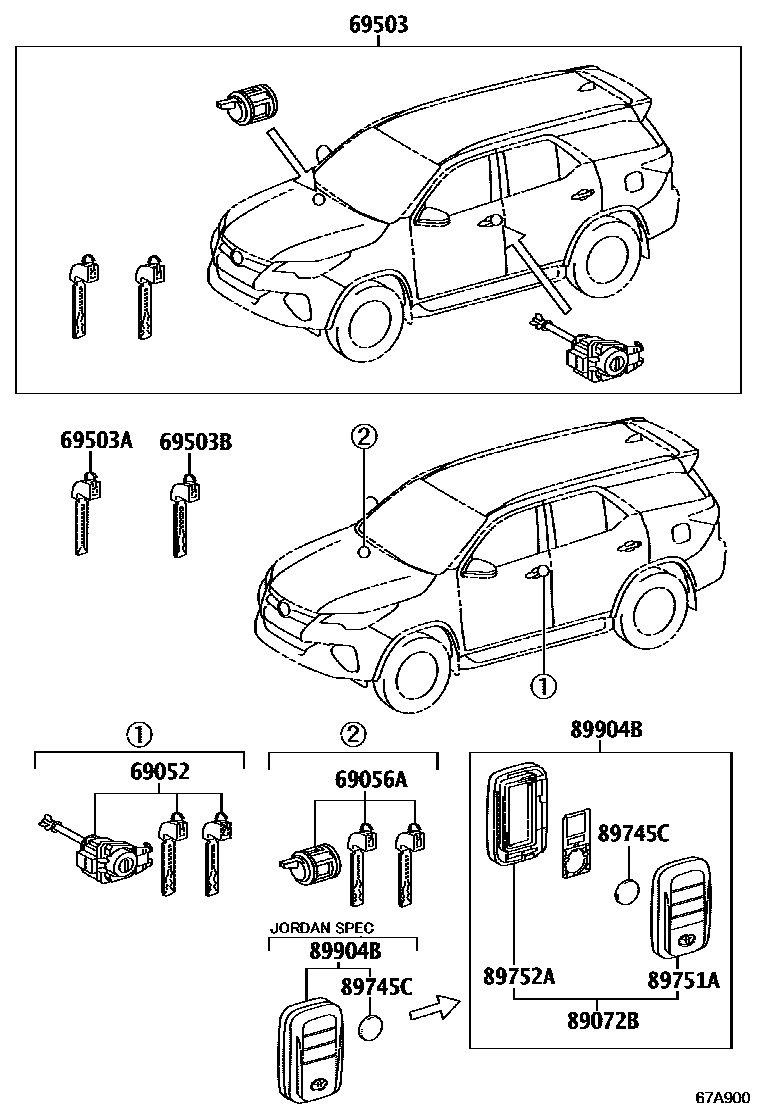

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-0K090iGUN165..6FC..VN;GUN166,TGN156,166..PH,VN;GGN155,GUN15#..LHD..(IDNSU,VNSUV)..H202007-202204
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-0K050iGUN156..(L,S)..ARL;GGN155,GUN15#,165,LAN155,TGN156,166..LHD..(EPTSU,SASUV,THSUV)..(L,S)202006-202203
main69056-0K080iGUN165..L..(PH,VN);GGN155,GUN155,165,TGN156,166..IDNSU..(L,S)..(GCC,GEN,IDN)202007-202204
main69056-0K090iGUN165..S..VN;TGN166..(IDNSU,VNSUV)..(H,S);GGN155,GUN15#,16#,TGN156..(IDNSU,VNSUV)..H202007-202204
69503CYLINDER SET, LOCK
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
main69005-0KF80iGUN165..6FC..VN;GUN166,TGN156,166..PH,VN;GGN155,GUN15#..LHD..(IDNSU,VNSUV)..H202007-202204
69503AKEY, BLANK
MASTER KEY,W(*68),SMART KEY,INSIDE CUT
main69515-33120iGUN165..S..VN;TGN166..(IDNSU,INDSU,VNSUV)..(H,S);GGN155,GUN15#,16#,TGN156..(IDNSU,INDSU,VNSUV)..H202007-202204
MASTER KEY,W(*68),FOR SMART KEY
69503BKEY, CUT
MASTER KEY,W(*68),SMART KEY,INSIDE CUT
MASTER KEY,W(*68),SMART KEY;INSIDE CUT
MASTER KEY,W(*68),FOR SMART KEY
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
sub89072-0K382
main89072-0K391iGUN165..6F..SA;GUN156..RHD..SA;GUN155,166,TGN166..SA,VN;GUN165..6FC..(L,S)..(SA,TH,VN)202006-202204
main89072-0K401iGUN155..RHD..GEN;GUN156..LHD..IDNSU..(GCC,GEN);GUN156..(MASUV,THSUV)..(GCC,GEN,MA);GGN155,GUN155,TGN156..H..(EPT,GCC,MA)202006-202203
sub89072-0K402
main89072-0K411iGUN155..TH;GUN156..PH,VN;GUN156..RHD..(GEN,TH);GGN155,GUN16#,TGN156,166..H..(GEN,PH,TH,VN)202006-202204
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&POWER BACK DOOR-WITH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
BRAZIL SPEC&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
89745CBATTERY, TRANSMITTER
main89745-0K010iGUN155..H..GCC;GUN165..6F..SA;GUN165..S..(TH,VN);GUN156..LHD..IDNSU;GUN156..RHD..(GEN,IND,MA,SA,TH);GUN156..(THSUV,VNSUV)..H..(ARL,GCC,GEN,VN);GGN155,TGN156..(EPTSU202006-202204
CR2032
CR2032,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
89751ACOVER, TRANSMITTER HOUSING
main89751-0K130iGUN165..6F..SA;GUN156..RHD..SA;GUN155,166,TGN166..SA,VN;GUN165..6FC..(L,S)..(SA,TH,VN)202006-202204
main89751-0K130iGUN165..RHD..GEN;TGN166..L..(GEN,LA);GUN156,165,TGN156..(L,S)..(ARL,LA)202006-202110
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
main89751-0K140iGUN155..H..(GCC,GEN,IDN);GUN156..LHD..IDNSU..(GCC,GEN);GUN156..(INDSU,MASUV,THSUV)..(GCC,GEN,IND,MA);GGN155,GUN16#,TGN156,166..H..(EPT,GCC,IDN,IND,MA)202006-202203
89752ACASE, TRANSMITTER HOUSING
sub89752-0K092
BRAZIL SPEC
BRAZIL SPEC&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
BRAZIL SPEC&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&POWER BACKDOOR-WITH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&POWER BACK DOOR-WITH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&POWER BACK DOOR-WITH
WIRELESS DOOR LOCK-WITH(*SES)
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
main89904-0K071iGUN155..RHD..GEN;GGN155,GUN155..IDNSU..H..GCC;GUN156..LHD..IDNSU..(GCC,GEN)202007-202108
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
POWER BACK DOOR-WITH
main89904-0K201iGUN156..RHD..GEN;GUN156..IDNSU..(PH,VN);GGN155,GUN166,TGN156,166..H..(GEN,PH,VN)202007-202108
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
main89904-0K231iGUN165..6F..SA;GUN156..RHD..SA;GUN155,166,TGN166..SASUV,VNSUV;GUN165..(SASUV,THSUV,VNSUV)..6FC..(L,S)..(SA,TH,VN)202006-202204
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&POWER BACK DOOR-WITH
BRAZIL SPEC&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
10 parts on this diagram · 6 diagrams in section
