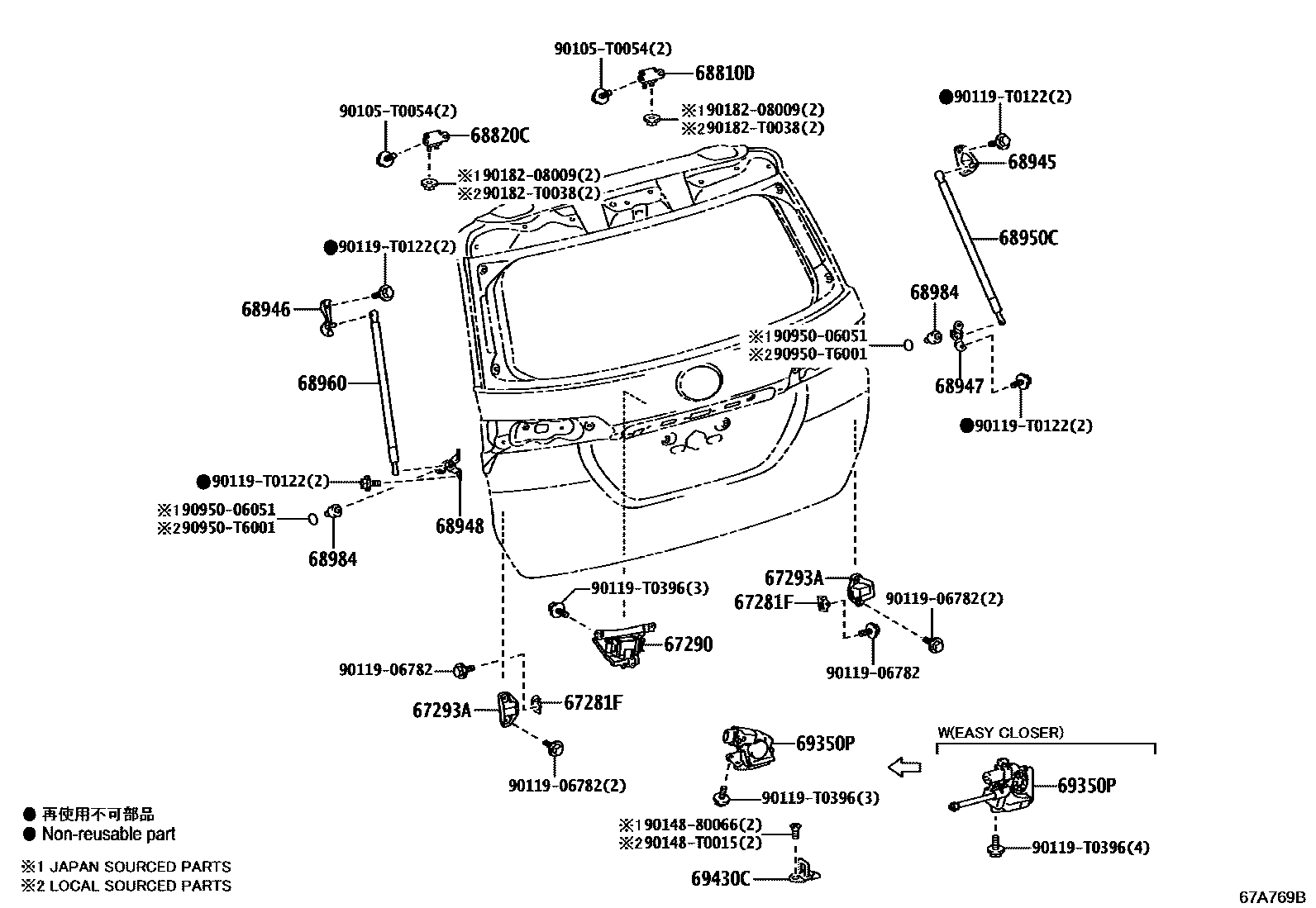

BACK DOOR LOCK & HINGE

0001 1W/O(POWER BACK DOOR) 0002 1W(POWER BACK DOOR)

67281FSTOPPER, BACK DOOR, LOWER

main67281-0K020iGUN156,TGN156,166..PKN202006-202204

67290DAMPER ASSY, BACK DOOR

main67290-0K030iGUN156,TGN156,166..PKN202006-202204

main67290-0K040iGUN156,166,TGN166..IND202101-202109

67293ACUSHION, BACK DOOR STOPPER

main67293-0K020iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV202006-202204

main67293-0K030iGUN156,166,TGN166..IND202101-202109

68810DHINGE ASSY, BACK DOOR, RH

main68810-0K070iGGN155,GUN15#,16#,TGN156,166..EPTSU,THSUV202006-202203

PAD T=1.6

main68810-0K100iGGN155,GUN15#,16#,TGN156,166..IDNSU,MASUV,VNSUV202007-202204

PAD T=1.6

main68810-0K140iGUN15#,16#,LAN155,TGN156,166..IND,SA202009-202109

PAD T=2.0

main68810-0K150iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

PAD T=1.0

main68810-0K180iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

PAD T=1.6

main68810-0K190iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-0K070iGGN155,GUN15#,16#,TGN156,166..EPTSU,THSUV202006-202203

PAD T=1.6

main68810-0K100iGGN155,GUN15#,16#,TGN156,166..IDNSU,MASUV,VNSUV202007-202204

PAD T=1.6

main68810-0K140iGUN15#,16#,LAN155,TGN156,166..IND,SA202009-202109

PAD T=2.0

main68810-0K150iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

PAD T=1.0

main68810-0K180iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

PAD T=1.6

main68810-0K190iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

PAD T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0K011iGGN155,GUN15#,16#,TGN156..(EPTSU,MASUV,THSUV)..H202006-202203

main68945-0K020iGGN155,GUN15#,16#,LAN155,TGN156,166..(EPTSU,MASUV,SASUV,THSUV)..(L,S)202006-202203

main68945-0K030iGUN165,TGN166..VNSUV..S202007-202204

POWER BACK DOOR-WITH

main68945-0K041iGGN155,GUN15#,16#,TGN156,166..(IDNSU,VNSUV)..H202007-202204

POWER BACK DOOR-WITH

main68945-0K051iTGN168..S;GUN156..6FC..(L,S)..BZAGT202011-202110

POWER BACK DOOR-WITH&SPEAKER-11SPEAKER & JBL

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-0K011iGUN156,TGN156..PKN202006-202203

main68946-0K020iGUN156,165,TGN156,16#..AGTSU..(L,S)202006-202203

main68946-0K030iGUN165,TGN166..VNSUV..S202007-202204

POWER BACK DOOR-WITH

main68946-0K041iGGN155,GUN15#,16#,TGN156,166..(IDNSU,VNSUV)..H202007-202204

POWER BACK DOOR-WITH

main68946-0K051iGGN155,GUN156,166,TGN156,166..(AGTSU,INDSU)..H202011-202110

POWER BACK DOOR-WITH&SPEAKER-11SPEAKER & JBL

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0K010iGUN156,TGN156,166..PKN202006-202203

main68947-0K020iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main68947-0K030iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,INDSU,SASUV202009-202110

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-0K010iGUN156,TGN156,166..PKN202006-202203

main68948-0K020iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main68948-0K030iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,INDSU,SASUV202009-202110

68950CSTAY ASSY, BACK DOOR, RH

main68950-0K371iGUN165..RHD..GEN202006-202204

main68950-0K381iGUN165..GCC,SA;GUN165..LHD..GEN;GGN155,GUN15#,166,LAN155,TGN156,166..(L,S)..(ARL,EPT,GCC,GEN,SA)202006-202203

main68950-0K391iGUN165..RHD..GEN202007-202201

main68950-0K391iGUN165,TGN166..S..(PH,VN)202007-202204

POWER BACK DOOR-WITH

main68950-0K401iTGN168..S202011-202110

68960STAY ASSY, BACK DOOR, LH

main68960-0K371iGUN165..L..(PH,VN);GUN155,165..(L,S)..(IDN,MA,TH)202006-202204

main68960-0K381iGUN165..GCC,SA;GUN165..LHD..GEN;GGN155,GUN15#,166,LAN155,TGN156,166..(L,S)..(ARL,EPT,GCC,GEN,SA)202006-202203

main68960-0K391iGUN165..RHD..GEN202007-202201

main68960-0K391iGUN165,TGN166..S..(PH,VN)202007-202204

POWER BACK DOOR-WITH

main68960-0K401iTGN168..S202011-202110

68984STOPPER, BACK DOOR STAY

main68984-42010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0K190iGUN165..LHD..GEN;GUN165..L..(PH,VN);GUN165..(L,S)..(GCC,IDN,SA,TH);GGN155,GUN15#,166,LAN155,TGN156,166..(L,S)..(ARL,EPT,GCC,GEN,IDN,MA,SA)202006-202204

main69350-0K290iGGN155,GUN15#,TGN156,166..(AGTSU,IDNSU)..S..(BZAGT,GCC)202006-202106

POWER BACK DOOR-WITHOUT & WITH(EASY CLOSER)

main69350-0K290iGUN165..RHD..GEN202006-202204

main69350-0K310iGUN156,166,TGN166..IND202101-202105

main69350-0K311iGUN156,166,TGN166..IND202106-202109

main69350-0K340iGUN165..RHD..GEN;GGN155,GUN15#,TGN156,166..(AGTSU,IDNSU)..S..(BZAGT,GCC)202106-202110

POWER BACK DOOR-WITH

main69350-0K340iGUN165..RHD..GEN;GGN155,GUN15#,TGN156,166..(AGTSU,IDNSU)..S..(BZAGT,GCC)202106-202110

POWER BACK DOOR-WITHOUT & WITH(EASY CLOSER)

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0K070iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,MASUV,SASUV,THSUV,VNSUV202006-202204

main69430-0K070iGUN156,166,TGN166..IND202101-202109

THAILAND PRODUCT

main69430-0K100iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main69430-0K120iGUN156,166,TGN166..IND202101-202109

INDIA PRODUCT

90105T0054

main90105-T0054

9011906782

main90119-06782

90119T0122

main90119-T0122

90119T0396

main90119-T0396

9014880066

main90148-80066

90148T0015

main90148-T0015

9018208009

main90182-08009

90182T0038

main90182-T0038

9095006051

main90950-06051

90950T6001

main90950-T6001

24 parts on this diagram · 2 diagrams in section
