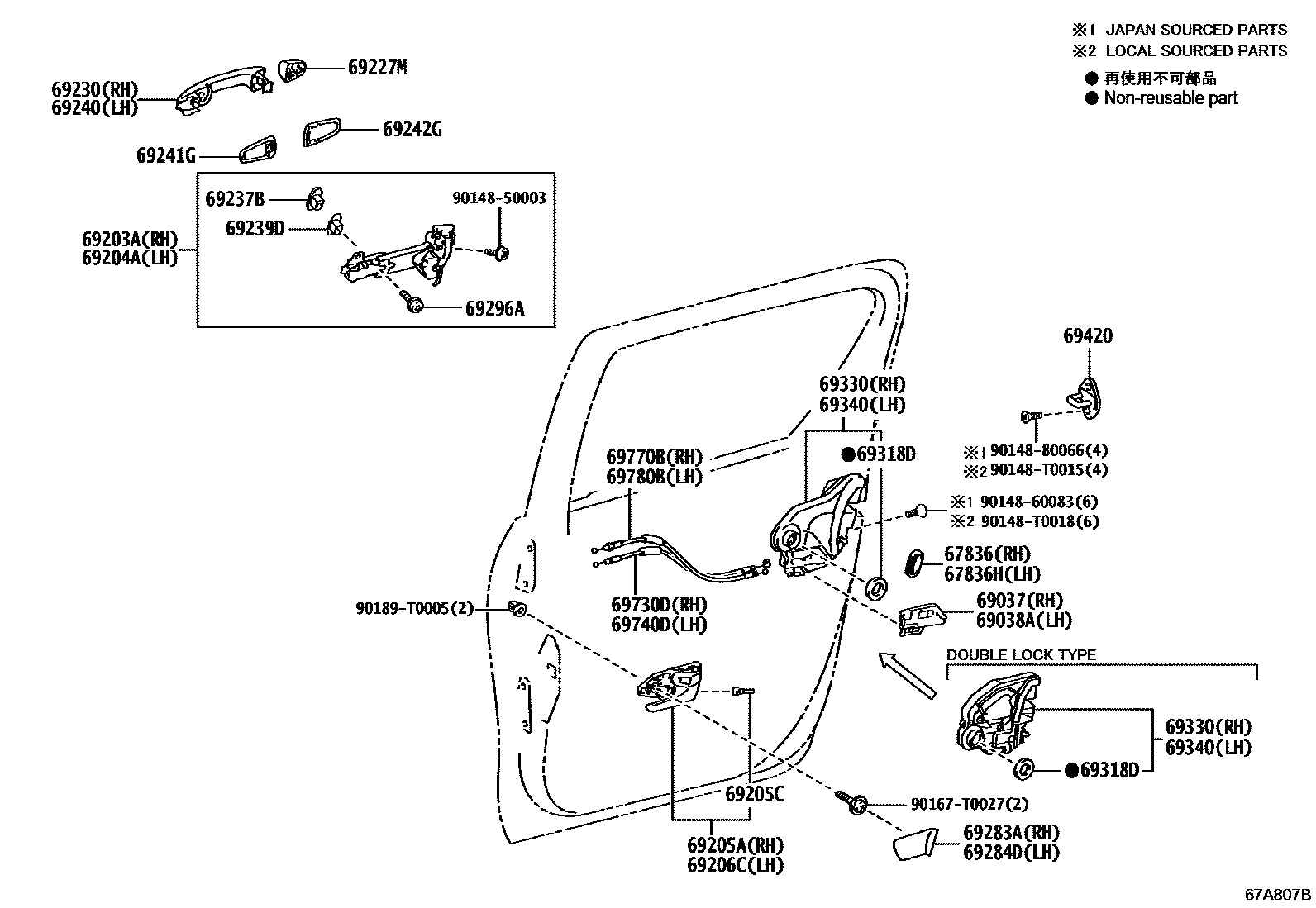

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
main67836-02030iGUN155..IDNSU,MASUV;GUN155..THSUV..(L,S);GGN155,GUN156..(L,S)..(ARL,GCC);GGN155,GUN156..(IDNSU,MASUV,VNSUV)..H;GUN16#,TGN156,166..EPT,GCC,GEN,IDN,MA,PH,VN202006-202204
EXPORT FROM SOUTH AFRICA&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),(L)
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
EXPORT FROM SOUTH AFRICA&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),(L)
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69203-0K070supersedes 69203-0K092iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,S);GGN155,GUN15#,166,TGN156,166..IDNSU,VNSUV202007-202204
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-0K070supersedes 69204-0K092iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,S);GGN155,GUN15#,166,TGN156,166..IDNSU,VNSUV202007-202204
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
main69205-0K110-C0iGUN165..S..TH;GUN156,TGN166..THSUV..(ARL,GCC);GGN155,GUN155,TGN156..LHD..(EPTSU,THSUV)..(H,S)202006-202203
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#,4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
main69227-0K140×2supersedes 69227-0K908iTGN166..L..GEN;GUN165..VNSUV..L;GUN165..RHD..GEN202007-202204
*CR
*CR
*CR
PLATED
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED(KEY CYLINDER DRIVER SIDE ONLY)
LESS COLOR
LESS COLOR
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATED
PLATED
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY)
NO PAINT REQ.
PAINT REQ.
PAINT REQ.
69237BNUT, REAR DOOR HANDLE
main69237-0E010×2supersedes 69237-0K040iGUN165..(IDNSU,SASUV)..L;GUN165..(IDNSU,VNSUV)..(H,S);GGN155,GUN15#,166,LAN155,TGN156,166..IDNSU,INDSU,SASUV,VNSUV202007-202204
69239DBUSH, REAR DOOR HANDLE
main69239-0K090×2supersedes 69239-0K090iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,S);GGN155,GUN15#,166,TGN156,166..IDNSU,VNSUV202007-202204
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATED
PLATED
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY)
NO PAINT REQ.
PAINT REQ.
PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
main69241-0K070×2supersedes 69241-0K070iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,S);GGN155,GUN15#,166,TGN156,166..IDNSU,VNSUV202007-202204
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
main69242-0K060×2supersedes 69242-0K060iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,S);GGN155,GUN15#,166,TGN156,166..IDNSU,VNSUV202007-202204
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
main69283-0K020-C0iGUN156..RHD..GEN;TGN156..IDNSU..S;TGN156,166..GEN,VN;GUN156..IDNSU..(GCC,VN);GUN165..(L,S)..(GEN,PH,VN);GGN155,GUN155..IDNSU..(H,S)..(GCC,GEN)202007-202204
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
main69284-0K010-C0iGUN156..RHD..GEN;TGN156..IDNSU..S;TGN156,166..GEN,VN;GUN156..IDNSU..(GCC,VN);GUN165..(L,S)..(GEN,PH,VN);GGN155,GUN155..IDNSU..(H,S)..(GCC,GEN)202007-202204
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM2#
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
main69318-51010×2iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204
69330LOCK ASSY, REAR DOOR, RH
main69050-0K020iGUN165..PH,VN;GUN165..RHD..IDNSU;GUN155..IDNSU..H..GCC;GUN155,TGN166..6FC..(GEN,IDN,VN);GGN155,GUN156,166,TGN156..(IDNSU,VNSUV)..H202007-202204
main69050-0K080iGUN16#..TH;GUN156,LAN155,TGN156..LHD..SA;GGN155,GUN15#..(EPTSU,THSUV)..H202006-202203
main69050-0K090iGUN156..BZAGT;GUN156..H..LA;GGN155,TGN168..AGTSU;TGN156,166..AGTSU..6FC..(H,S)202011-202110
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
69340LOCK ASSY, REAR DOOR, LH
main69060-0K070iGUN165..PH,VN;GUN165..RHD..IDNSU;GUN155..IDNSU..H..GCC;GUN155,TGN166..6FC..(GEN,IDN,VN);GGN155,GUN156,166,TGN156..(IDNSU,VNSUV)..H202007-202204
main69060-0K100iGUN156..BZAGT;GUN156..H..LA;GGN155,TGN168..AGTSU;TGN156,166..AGTSU..6FC..(H,S)202011-202110
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
main69770-0K180iGGN155,GUN15#,16#,TGN166..EPTSU,THSUV;GUN156,LAN155,TGN156..LHD..(SASUV,THSUV)..(L,S)202006-202203
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
34 parts on this diagram · 1 diagram in section
