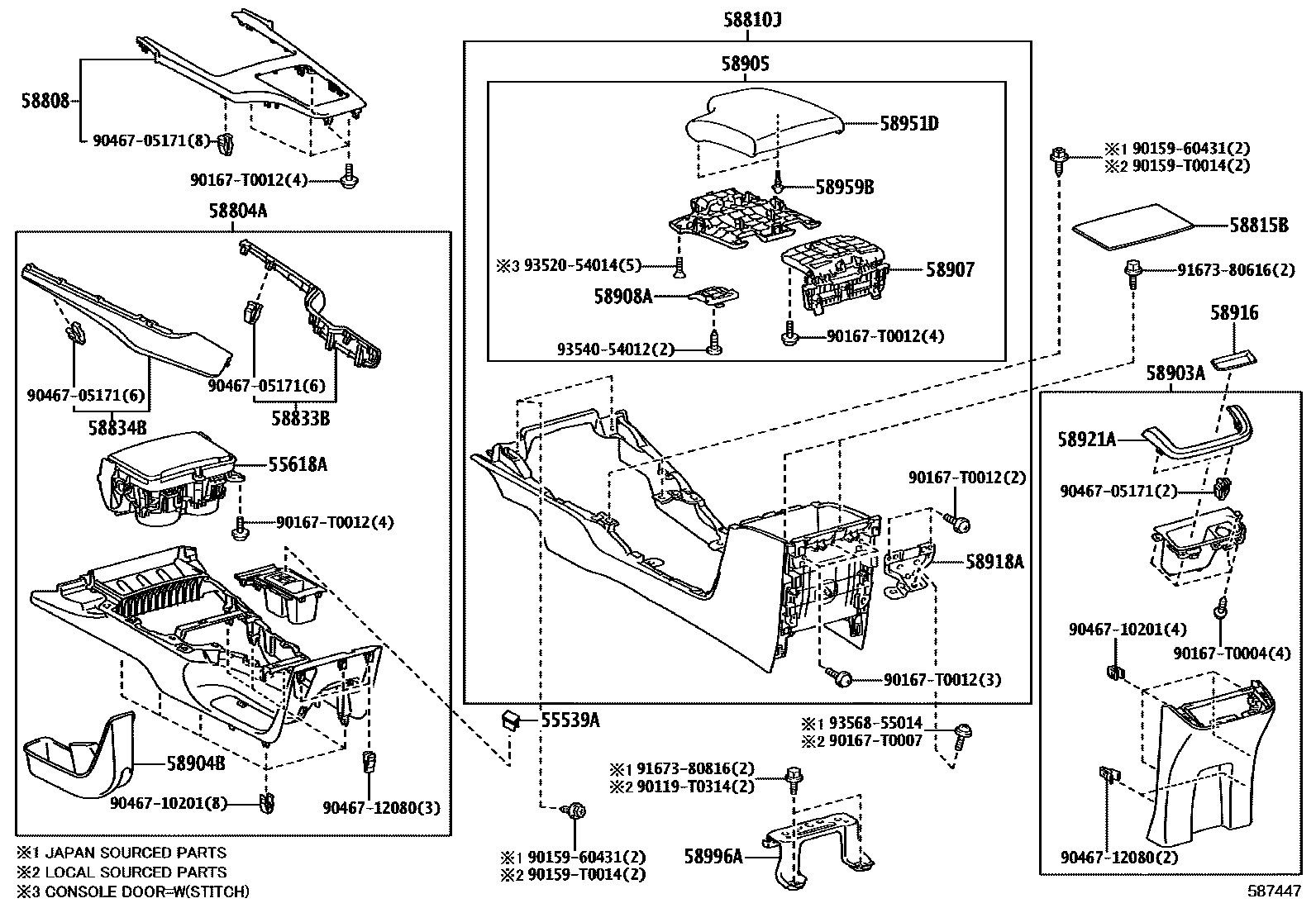

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

55539ACOVER, SPARE SWITCH HOLE

main55539-KK030-C0iGUN156..LHD..6F..SA;GUN156,166..6FC..(ARL,GCC,GEN,MA,PH,SA,VN);GGN155,GUN155,165,LAN155,TGN156,166..EPT,GCC,GEN,IDN,IND,MA,PH,SA,VN202006-202204

BLACK

main55539-KK030-C0iGUN156..LHD..6F..SA;GUN156,166..6FC..(ARL,GCC,GEN,MA,PH,SA,VN);GGN155,GUN155,165,LAN155,TGN156,166..EPT,GCC,GEN,IDN,IND,MA,PH,SA,VN202006-202204

BLACK,TRIM2#

main55539-KK030-C0iGUN156,166..PH;GUN156,165..(MASUV,VNSUV)..H202007-202204

BLACK,TRIM2#,3#

main55539-KK030-C0iGUN15#,16#..H..TH202006-202108

BLACK,TRIM0#,2#,3#,4#

main55539-KK030-C0iGUN15#,16#..H..TH202006-202108

BLACK,TRIM4#

main55539-KK030-C0iGUN156..LHD..GEN202006-202108

BLACK,TRIM0#,2#,3#

main55539-KK030-C0iGUN156..IND;GUN166..6FC..IND202101-202109

BLACK,TRIM2#,3#,4#

main55539-KK030-C0iGUN156,TGN156,166..PKN202006-202201

BLACK,TRIM2#,4#

55618AHOLDER, CONSOLE BOX CUP

main55620-0K010-B3iGUN15#,16#,TGN156,166..RHD..6FC..(H,S)..(IDN,MA,SA)202008-202110

SILVER,TRIM2#

main55620-0K010-B3iGUN165,TGN166..RHD..6FC..(GEN,IND,PKN,TH);GUN15#,166,TGN156..RHD..6FC..H..(ARL,GEN,IND,PKN,TH)202006-202201

SILVER,TRIM2#,4#

main55620-0K010-C2iGUN156,166..6FC..(IND,MA)202101-202109

GALAXY BLACK/SILVER,TRIM3#

main55620-0K010-C2iGUN15#,16#..H..TH202006-202108

GALAXY BLACK/SILVER,TRIM0#,3#

main55620-0K020-B2iGUN155,165..RHD..6FC..L202009-202110

SILVER,TRIM2#

main55620-0K020-B2iGUN156..(L,S)..ARL202006-202108

SILVER,TRIM2#,4#

main55620-0K050-B3iGGN155,GUN15#,165,TGN156..LHD..(H,S)..(EPT,GCC,GEN)202006-202203

SILVER,TRIM2#,4#

main55620-0K050-B3iGGN155,TGN168..AGTSU..(H,S);GUN156,TGN156,166..AGTSU..6FC..H202007-202204

SILVER,TRIM2#

main55620-0K050-C2iGUN156,166..PH;GUN156,165..VNSUV..H202007-202204

GALAXY BLACK,TRIM3#

main55620-0K050-C2iGUN156..LHD..GEN202006-202108

GALAXY BLACK,TRIM0#,3#

main55620-0K060-B1iTGN166..IDNSU..GCC;GUN155,165,TGN156..L..GCC202006-202108

SILVER,TRIM4#

main55620-0K060-B1iTGN166..THSUV202006-202108

SILVER,TRIM2#,4#

main55620-0K060-B1iGUN165,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..6FC..(L,S)202007-202203

SILVER,TRIM2#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-KK270-C2iGUN156,166..RHD..6F..SA202009-202109

BLACK,TRIM2#

main58804-KK270-C2iGUN156,166,TGN166..MTM..IND202101-202109

BLACK,TRIM2#,4#

main58804-KK280-C1iGUN165..6F..SA202009-202109

BLACK,TRIM2#

main58804-KK290-C4iGUN156,166,TGN156..RHD..6FC..(MA,SA)202009-202110

BLACK,TRIM2#

main58804-KK290-C4iGUN155,16#,TGN156,166..6FC..(IND,PKN,TH);GUN156..RHD..(INDSU,PKNSU,THSUV)..6FC..H202006-202201

BLACK,TRIM2#,4#

main58804-KK290-C5iGUN15#,16#..6FC..H..(IND,MA,TH)202006-202109

BLACK/CRIMSON,TRIM3#

main58804-KK290-C6iGUN15#,16#..H..TH202006-202108

BLACK/GRAY,TRIM0#

main58804-KK300-C1iGUN155,165..RHD..6FC..L202009-202110

BLACK,TRIM2#

main58804-KK300-C1iGUN156..(L,S)..ARL202006-202108

BLACK,TRIM2#,4#

main58804-KK310-C3iGUN156..6F..H..BZAGT;GUN156,LAN155..LHD..MTM..SA202009-202110

BLACK,TRIM2#

main58804-KK320-C1iGUN156,TGN166..AGTSU..MTM..(L,S)202011-202110

BLACK,TRIM2#

main58804-KK330-C4iGGN155,GUN15#,TGN156..LHD..(EPTSU,THSUV)..(H,S)202006-202203

BLACK,TRIM2#,4#

main58804-KK330-C4iGUN156,TGN156..LHD..6FC..SA202009-202109

BLACK,TRIM2#

main58804-KK330-C5iGUN156..THSUV..GEN202006-202108

BLACK/CRIMSON,TRIM3#

main58804-KK330-C6iGUN156..THSUV..GEN202006-202108

BLACK/GRAY,TRIM0#

main58804-KK340-C1iGUN155,165,TGN156..THSUV..L202006-202108

BLACK,TRIM2#,4#

main58804-KK340-C1iTGN166..THSUV202006-202108

BLACK,TRIM4#

main58804-KK340-C1iTGN166..EPT202103-202203

BLACK,TRIM2#

main58804-KK380-C3iGGN155,TGN168..AGTSU..(H,S);GUN156,TGN156,166..AGTSU..6FC..H202011-202110

BLACK,TRIM2#

main58804-KK390-C1iGUN165,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..6FC..(L,S)202011-202110

BLACK,TRIM2#

main58804-KK400-C1iGUN165..6F..IDN202008-202108

BLACK/GRAY,TRIM2#

main58804-KK410-C2iGUN15#,165,TGN156,166..RHD..GEN202007-202108

BLACK/GRAY,TRIM2#,4#

main58804-KK410-C2iGUN155,165,TGN166..6FC..IDN202008-202108

BLACK/GRAY,TRIM2#

main58804-KK420-C1iGUN165..LHD..6F202007-202204

BLACK/GRAY,TRIM2#

main58804-KK420-C1iGUN155..L..GEN202007-202108

BLACK/GRAY,TRIM4#

main58804-KK420-C1iGUN155..L..GEN202007-202108

BLACK/GRAY,TRIM2#,4#

main58804-KK440-C1iGUN165..6FC..L..PH202007-202108

BLACK/GRAY,TRIM4#

main58804-KK440-C1iGUN155,165,TGN156,166..IDNSU..L..GCC202007-202108

BLACK/GRAY,TRIM2#

main58804-KK450-C2iGGN155,GUN15#,165,TGN156..LHD..IDNSU..(H,S)..(GCC,GEN)202007-202108

BLACK/GRAY,TRIM2#,4#

main58804-KK450-C2iGUN156,16#,TGN156,166..(H,S)..(PH,VN)202007-202204

BLACK/GRAY,TRIM2#

main58804-KK450-C3iGUN156,165..VNSUV..H;GUN156,166..LHD..IDNSU..(GEN,PH)202007-202204

BLACK/CRIMSON,TRIM3#

main58804-KK450-C4iGUN156..LHD..IDNSU..GEN202007-202108

BLACK/GALAXY BLACK/GRAY,TRIM0#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-KK020-B1iGUN165,TGN166..RHD..6FC..(GEN,IND,PKN,TH);GUN15#,166,TGN156..RHD..6FC..H..(ARL,GEN,IND,PKN,TH)202006-202201

GRAY,TRIM2#,4#

main58808-KK020-B1iGUN15#,16#,TGN156,166..RHD..6FC..(H,S)..(IDN,MA,SA)202008-202110

GRAY,TRIM2#

main58808-KK020-C1iGUN15#,16#..H..TH202006-202108

GALAXY BLACK,TRIM0#,3#

main58808-KK020-C1iGUN156,166..6FC..(IND,MA)202101-202109

GALAXY BLACK,TRIM3#

main58808-KK030iGUN156..(L,S)..ARL;GUN155,165..RHD..6FC..L202006-202110

main58808-KK050-B1iGGN155,GUN15#,165,TGN156..LHD..(H,S)..(EPT,GCC,GEN)202006-202203

GRAY,TRIM2#,4#

main58808-KK050-B1iGUN156,16#,TGN156,166..LHD..6FC..(H,S)..(PH,SA,VN)202007-202204

GRAY,TRIM2#

main58808-KK050-C2iGUN156,166..PH;GUN156,165..VNSUV..H202007-202204

GALAXY BLACK,TRIM3#

main58808-KK050-C2iGUN156..LHD..GEN202006-202108

GALAXY BLACK,TRIM0#,3#

main58808-KK060iGUN155,165,TGN156,166..6FC..L..(EPT,GCC,PH)202006-202203

58810JBOX ASSY, CONSOLE

main58810-KK110-C0iGUN166,TGN166..MTM..IND202101-202109

BLACK,TRIM2#,3#,4#

main58810-KK110-C0iGUN156,16#,LAN155,TGN166..(AGTSU,SASUV)..MTM202009-202110

BLACK,TRIM2#

main58810-KK110-C0iGUN166,TGN166..MTM..IND202101-202109

BLACK,TRIM2#,4#

main58810-KK180-C0iGUN15#,16#..H..TH202006-202108

BLACK,TRIM0#,2#,3#,4#

main58810-KK180-C0iGUN156..RHD..6FC..SA;GUN155,16#,TGN156..RHD..6FC..(MA,SA)202009-202110

BLACK,TRIM2#

main58810-KK180-C0iGUN156,166..6FC..IND202101-202109

BLACK,TRIM2#,3#,4#

main58810-KK180-C0iGUN165..S..TH;GUN156,TGN156..PKN;TGN166..6FC..(IND,PKN)202006-202201

BLACK,TRIM2#,4#

main58810-KK180-C0iGUN156..MA202101-202110

BLACK,TRIM2#,3#

main58810-KK210-C0iGUN156..THSUV..GEN202006-202108

BLACK,TRIM4#

main58810-KK210-C0iGUN155,165,TGN156..THSUV..L202006-202108

BLACK,TRIM0#,2#,3#,4#

main58810-KK210-C0iGUN156,TGN156,166..LHD..6FC..(EPT,SA)202009-202203

BLACK,TRIM2#

main58810-KK210-C0iTGN166..THSUV;GGN155,GUN15#,TGN156..(EPTSU,THSUV)..(H,S)..(EPT,GCC)202006-202203

BLACK,TRIM2#,4#

main58810-KK250-C0iGUN156..ARL202006-202108

BLACK,TRIM2#,4#

main58810-KK431-C2iGUN165..6F..IDN202008-202108

BLACK/GRAY,TRIM2#

main58810-KK451-C2iGUN15#,165,TGN156,166..RHD..GEN202007-202108

BLACK/CHAMOIS,TRIM4#

main58810-KK451-C4iGUN15#,165,TGN156,166..RHD..IDNSU..6FC202007-202108

BLACK/GRAY,TRIM2#

main58810-KK460-C2iGUN165,TGN156,166..LHD..MTM..L202007-202204

BLACK,TRIM2#,4#

main58810-KK460-C2iGUN155..L..GEN202007-202108

BLACK,TRIM4#

main58810-KK480-C2iGUN165..6FC..L..PH202007-202108

BLACK,TRIM4#

main58810-KK480-C2iGUN155,165,TGN156,166..IDNSU..L..GCC202007-202108

BLACK,TRIM2#,4#

main58810-KK491-C2iGGN155,GUN15#,165,TGN156..LHD..IDNSU..(H,S)..(GCC,GEN)202007-202108

BLACK/CHAMOIS,TRIM4#

main58810-KK491-C4iGUN156..LHD..IDNSU..GEN202007-202108

BLACK/GRAY,TRIM0#,2#

main58810-KK491-C4iGUN156..(IDNSU,VNSUV)..(GCC,PH,VN);GGN155,GUN155,16#,TGN156,166..LHD..(IDNSU,VNSUV)..(H,S)202007-202204

BLACK/GRAY,TRIM2#

main58810-KK491-C5iGUN156,165..VNSUV..H;GUN156,166..LHD..IDNSU..(GEN,PH)202007-202204

BLACK/CRIMSON,TRIM3#

58815BCARPET, CONSOLE BOX

main58815-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-KK040iGUN156,16#,TGN166..RHD..MTM..(H,S)202008-202109

main58833-KK050iGUN165..6F..SA202009-202109

main58833-KK060iGUN156..6F..H..BZAGT;GUN156,LAN155..LHD..MTM..SA202009-202110

main58833-KK070iGUN155,165,TGN156,166..LHD..MTM..L202007-202204

main58833-KK130-B0iGUN156..MA202101-202110

SILVER,TRIM2#,3#

main58833-KK130-B0iGUN165..RHD..S..(GEN,TH);TGN166..6FC..(GEN,IND,PKN);GUN15#,TGN156..RHD..H..(ARL,GEN,PKN)202006-202201

SILVER,TRIM2#,4#

main58833-KK130-B0iGUN15#,16#..H..TH202006-202108

SILVER,TRIM0#,2#,3#,4#

main58833-KK130-B0iGUN156..RHD..6FC..SA;GUN155,16#,TGN156,166..RHD..6FC..(H,S)..(IDN,MA,SA)202008-202110

SILVER,TRIM2#

main58833-KK130-B0iGUN156,166..6FC..IND202101-202109

SILVER,TRIM2#,3#,4#

main58833-KK140iGUN156..(L,S)..ARL;GUN155,165..RHD..6FC..L202006-202110

main58833-KK150-B1iGUN156,166..PH;GUN156,165..VNSUV..H202007-202204

SILVER,TRIM2#

main58833-KK150-B1iGUN156..LHD..GEN202006-202108

SILVER,TRIM0#,2#,3#,4#

main58833-KK150-B1iGUN156..GCC;GGN155,GUN155,165,TGN156..LHD..(H,S)..(EPT,GCC,GEN)202006-202203

SILVER,TRIM2#,4#

main58833-KK150-B1iGUN156,166..PH;GUN156,165..VNSUV..H202007-202204

SILVER,TRIM2#,3#

main58833-KK160iGUN155,165,TGN156,166..6FC..L..(EPT,GCC,PH)202006-202203

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-KK040iGUN156,16#,TGN166..RHD..MTM..(H,S)202008-202109

main58834-KK050iGUN165..6F..SA202009-202109

main58834-KK060iGUN156..6F..H..BZAGT;GUN156,LAN155..LHD..MTM..SA202009-202110

main58834-KK070iGUN156,TGN166..AGTSU..MTM..(L,S)202007-202204

main58834-KK080-B0iGUN156..RHD..6FC..SA;GUN155,16#,TGN156,166..RHD..6FC..(H,S)..(IDN,MA,SA)202008-202110

SILVER,TRIM2#

main58834-KK080-B0iGUN15#,16#..H..TH202006-202108

SILVER,TRIM0#,2#,3#,4#

main58834-KK080-B0iGUN156,166..6FC..IND202101-202109

SILVER,TRIM2#,3#,4#

main58834-KK080-B0iGUN156..MA202101-202110

SILVER,TRIM2#,3#

main58834-KK080-B0iGUN165..RHD..S..(GEN,TH);TGN166..6FC..(GEN,IND,PKN);GUN15#,TGN156..RHD..H..(ARL,GEN,PKN)202006-202201

SILVER,TRIM2#,4#

main58834-KK090iGUN156..(L,S)..ARL;GUN155,165..RHD..6FC..L202006-202110

main58834-KK100-B1iTGN156,166..SA,VN;GUN165..S..(PH,VN);GUN156..LHD..(IDNSU,SASUV)..6FC..(SA,VN)202007-202204

SILVER,TRIM2#

main58834-KK100-B1iGUN156..GCC;GGN155,GUN155,165,TGN156..LHD..(H,S)..(EPT,GCC,GEN)202006-202203

SILVER,TRIM2#,4#

main58834-KK100-B1iGUN156..LHD..GEN202006-202108

SILVER,TRIM0#,2#,3#,4#

main58834-KK100-B1iGUN156,166..PH;GUN156,165..VNSUV..H202007-202204

SILVER,TRIM2#,3#

main58834-KK110iGUN165,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..6FC..(L,S)202006-202203

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-KK030-C1iGUN165..H..VN;GUN156,166..RHD..SA202009-202204

BLACK/SILVER,TRIM2#,3#,4#

main58903-KK030-C1iGUN15#,16#..H..TH202006-202103

MLM PACKAGE & ACCESSORY,BLACK/SILVER,TRIM0#,2#,3#,4#

main58903-KK030-C1iGUN15#,16#..H..TH202006-202108

BLACK/SILVER,TRIM0#,2#,3#,4#

main58903-KK030-C1iGUN156..RHD..GEN202007-202108

OCEANIA GENERAL(EURO 4 REGULATION),BLACK/SILVER,TRIM2#,4#

main58903-KK030-C1iGUN156..RHD..GEN202007-202108

OCEANIA GENERAL SPEC,BLACK/SILVER,TRIM0#,2#,3#,4#

main58903-KK030-C1iGUN156..RHD..GEN202007-202108

OCEANIA GENERAL SPEC,BLACK/SILVER,TRIM2#,4#

main58903-KK030-C1iGUN156..RHD..GEN202007-202108

OCEANIA(EURO 5 REGULATION),BLACK/SILVER,TRIM2#,4#

main58903-KK030-C1iGUN156..H..BZAGT202009-202204

BLACK/SILVER,TRIM2#

main58903-KK030-C1iGUN156,TGN156,166..PKN202006-202204

BLACK/SILVER,TRIM2#,4#

main58903-KK030-C1iGUN156..VNSUV202009-202204

MLM PACKAGE,BLACK/SILVER,TRIM2#,3#,4#

main58903-KK030-C1iGUN156..VNSUV202009-202204

MLM PACKAGE,BLACK/SILVER,TRIM2#

main58903-KK040-C2iGUN156..LHD..IDNSU..GEN202007-202103

OCEANIA GENERAL SPEC&MLM PACKAGE,SILVER,TRIM0#,2#,3#,4#

main58903-KK040-C2iGUN156,166..PH202007-202103

MLM PACKAGE,SILVER,TRIM2#,3#,4#

main58903-KK040-C2iGUN156..THSUV..GEN202006-202103

MLM PACKAGE & ACCESSORY,SILVER,TRIM0#,2#,3#,4#

main58903-KK040-C2iGUN156..THSUV..GEN202006-202103

MLM PACKAGE,SILVER,TRIM0#,2#,3#,4#

main58903-KK040-C2iGUN155..RHD..GEN202006-202203

SILVER,TRIM2#,4#

main58903-KK040-C2iGUN156..LHD..GEN202006-202108

SILVER,TRIM0#,2#,3#,4#

main58903-KK040-C2iGUN166..6FC..IND202101-202103

MLM PACKAGE & ACCESSORY,SILVER,TRIM2#,3#,4#

main58903-KK040-C2iGUN166..6FC..IND202101-202103

MLM PACKAGE,SILVER,TRIM2#,3#

main58903-KK040-C2iGUN156..MA202101-202110

SILVER,TRIM2#,3#

main58903-KK040-C2iGUN156..LHD..(H,S)..(LA,SA);TGN156,166..6FC..(H,S)..(IDN,LA,MA,SA);GGN155,GUN155,165,LAN155,TGN168..(H,S)..(BZAGT,IDN,LA,SA)202008-202110

SILVER,TRIM2#

main58903-KK040-C2iGUN156..RHD..SA202009-202109

EXPORT FROM SOUTH AFRICA,SILVER,TRIM2#

main58903-KK040-C2iGUN156..IND,PH;GUN166..6FC..(IND,PH)202007-202109

SILVER,TRIM2#,3#,4#

main58903-KK050-C0iGUN165..L..PH;TGN166..THSUV;GUN156,TGN156,166..(L,S)..(ARL,GEN)202006-202108

BLACK,TRIM2#,4#

main58903-KK050-C0iTGN166..IDNSU..GCC;GUN155,165,TGN156..(6F,6FC)..L..(GCC,GEN)202006-202108

BLACK,TRIM4#

main58903-KK050-C0iGUN155,165,TGN166..EPT,MA,SA202009-202203

BLACK,TRIM2#

main58903-KK060-C0iGUN156,TGN156,166..S..BZAGT202011-202110

BLACK,TRIM2#

main58903-KK060-C0iGUN165..L..VN202007-202204

BLACK,TRIM2#,4#

main58903-YP030-C0iGUN156..LHD..IDNSU..GEN202009-202108

OCEANIA GENERAL SPEC&MLM PACKAGE,BLACK,TRIM0#,3#

main58903-YP030-C0iGUN15#,16#..H..TH202007-202108

MLM PACKAGE & ACCESSORY,BLACK,TRIM0#,3#

main58903-YP030-C0iGUN156,165..VNSUV..H202010-202204

MLM PACKAGE,BLACK,TRIM3#

main58903-YP040-C0iGUN156..THSUV..GEN202007-202108

MLM PACKAGE & ACCESSORY,BLACK,TRIM0#,3#

main58903-YP040-C0iGUN156,166..MA,PH202009-202110

MLM PACKAGE,BLACK,TRIM3#

main58903-YP040-C0iGUN166..6FC..IND202101-202109

MLM PACKAGE & ACCESSORY,BLACK,TRIM3#

main58903-YP040-C0iGUN156..LHD..IDNSU..GEN202007-202108

MLM PACKAGE,BLACK,TRIM0#,3#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-KK020-C1iGUN15#,165,TGN156,166..RHD..GEN202007-202108

BLACK/GRAY,TRIM2#,4#

main58904-KK020-C1iGUN155,165,TGN166..IDN202008-202108

BLACK/GRAY,TRIM2#

main58904-KK030-C1iGUN156,16#,TGN156,166..PH,VN202007-202204

BLACK/GRAY,TRIM2#

main58904-KK030-C1iGUN156..IDNSU..GCC;TGN156,166..L..GEN;GGN155,GUN155,165,TGN156..LHD..IDNSU..(H,S)..(GCC,GEN)202007-202108

BLACK/GRAY,TRIM0#,2#,4#

main58904-KK030-C1iGUN156..IDNSU..GCC;TGN156,166..L..GEN;GGN155,GUN155,165,TGN156..LHD..IDNSU..(H,S)..(GCC,GEN)202007-202108

BLACK/GRAY,TRIM2#,4#

main58904-KK030-C1iGUN156..LHD..IDNSU..GEN202007-202108

BLACK/GRAY,TRIM4#

main58904-KK030-C2iGUN156,165..VNSUV..H;GUN156,166..LHD..IDNSU..(GEN,PH)202007-202204

BLACK/CRIMSON,TRIM3#

main58904-KK060-C2iGUN15#,16#..6FC..H..(IND,MA,TH)202006-202109

BLACK/CRIMSON,TRIM3#

main58904-KK060-C3iGUN165..S..TH;GUN156,166,TGN156,166..ARL,IND,PKN202006-202201

BLACK,TRIM2#,4#

main58904-KK060-C3iGUN15#,16#,TGN156..RHD..(MA,SA)202009-202110

BLACK,TRIM2#

main58904-KK060-C3iGUN15#,16#..H..TH202006-202108

BLACK,TRIM0#,2#,4#

main58904-KK070-C2iGUN156..THSUV..GEN202006-202108

BLACK/CRIMSON NO.69,TRIM3#

main58904-KK070-C3iGUN156..THSUV..GEN202006-202108

BLACK,TRIM0#,2#,4#

main58904-KK070-C3iGUN155,165,TGN156..THSUV..L202006-202108

BLACK,TRIM4#

main58904-KK070-C3iGGN155,GUN156,165,TGN156,16#..AGTSU202009-202203

BLACK,TRIM2#

main58904-KK070-C3iTGN166..THSUV;GGN155,GUN15#,TGN156..(EPTSU,THSUV)..(H,S)..(EPT,GCC)202006-202203

BLACK,TRIM2#,4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-KK010-C7iGUN156..(L,S)..ARL202006-202108

BLACK/BLACK,TRIM2#,4#

main58905-KK010-C7iGUN155,165..RHD..L202009-202110

BLACK/BLACK,TRIM2#

main58905-KK020-C4iGUN165,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)202011-202203

BLACK/BLACK,TRIM2#

main58905-KK020-C4iTGN166..IDNSU..GCC;GUN155,165,TGN156..(6F,6FC)..L..(GCC,GEN)202006-202108

BLACK/BLACK,TRIM4#

main58905-KK020-C4iTGN166..THSUV;GUN165,TGN156,166..L..(GEN,PH,VN)202006-202204

BLACK/BLACK,TRIM2#,4#

main58905-KK030-20iGUN156..IND,MA;GUN166..6FC..IND202101-202110

BLACK/CRIMSON,TRIM3#

sub58905-KK130

main58905-KK030-24iGUN156,166,TGN156,166..RHD..(IND,MA,PKN,SA)202009-202201

BLACK/GRAY,TRIM2#

sub58905-KK130

main58905-KK030-C6iGUN156,166,TGN156,166..IND,PKN202101-202201

BLACK/CHAMOIS,TRIM4#

sub58905-KK130

main58905-KK040-26iGGN155,TGN168..AGTSU..(H,S);GUN156,TGN156,166..AGTSU..H202009-202203

BLACK/GRAY,TRIM2#

sub58905-KK140

main58905-KK110-C2iGUN15#,16#..H..TH202006-202108

BLACK/BLACK/CRIMSON,TRIM3#

main58905-KK110-C3iGUN155,16#..TH;GUN156..RHD..THSUV..H202006-202108

BLACK/CHAMOIS/IVORY,TRIM4#

main58905-KK110-C5iGUN15#,16#..H..TH202006-202108

BLACK/GRAY,TRIM2#

main58905-KK110-C5iGUN15#,16#..H..TH202006-202108

BLACK/GRAY,TRIM0#,2#

main58905-KK120-C3iGGN155,GUN15#,TGN156..LHD..THSUV..(H,S)202006-202108

BLACK/CHAMOIS/IVORY,TRIM4#

main58905-KK120-C6iGUN156..THSUV..GEN202006-202108

BLACK/CRIMSON NO.69,TRIM3#

main58905-KK120-C7iGGN155,GUN15#,TGN156..THSUV..(H,S)..GCC202006-202108

BLACK/GRAY,TRIM0#,2#

main58905-KK120-C7iGUN156..THSUV..GEN202006-202108

BLACK/GRAY,TRIM2#

main58905-KK130-C0iGUN15#,165,TGN156,166..RHD..GEN202007-202108

BLACK/CHAMOIS,TRIM4#

main58905-KK130-C2iGUN15#,165,TGN156,166..RHD..IDNSU202007-202108

BLACK/GRAY,TRIM2#

main58905-KK140-C0iGGN155,GUN15#,165,TGN156..LHD..IDNSU..(H,S)..(GCC,GEN)202007-202108

BLACK/CHAMOIS,TRIM4#

main58905-KK140-C2iGUN156..(IDNSU,VNSUV)..(GCC,PH,VN);GGN155,GUN155,16#,TGN156,166..LHD..(IDNSU,VNSUV)..(H,S)202007-202204

BLACK/GRAY,TRIM2#

main58905-KK140-C2iGUN156..LHD..IDNSU..GEN202007-202108

BLACK/GRAY,TRIM0#,2#

main58905-KK140-C3iGUN156,165..VNSUV..H;GUN156,166..LHD..IDNSU..(GEN,PH)202007-202204

BLACK/CRIMSON,TRIM3#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-KK010-C0iGUN165..IDN,SA;GUN165..S..(PH,VN);GUN156..(IDNSU,SASUV)..(SA,VN);GUN155,166,LAN155,TGN156,166..EPT,IDN,MA,SA,VN202007-202204

BLACK,TRIM2#,3#

main58907-KK010-C0iGUN165..IDN,SA;GUN165..S..(PH,VN);GUN156..(IDNSU,SASUV)..(SA,VN);GUN155,166,LAN155,TGN156,166..EPT,IDN,MA,SA,VN202007-202204

BLACK,TRIM2#

main58907-KK010-C0iGUN156..LHD..IDNSU..GEN;GUN15#,16#..THSUV..H..(GEN,TH)202006-202108

BLACK,TRIM0#,2#,3#,4#

main58907-KK010-C0iGUN156..LHD..IDNSU..GEN;GUN15#,16#..THSUV..H..(GEN,TH)202006-202108

BLACK,TRIM4#

main58907-KK010-C0iGUN156..IND;GUN166..6FC..IND202101-202109

BLACK,TRIM2#,3#,4#

main58907-KK010-C0iGUN156,TGN156,166..PKN202006-202204

BLACK,TRIM2#,4#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-KK010iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

58916MAT, BOX BOTTOM

main58916-KK010iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

58918ABRACKET, BOX SUPPORT

main58918-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

58921APANEL, REAR CONSOLE, UPPER

main58921-KK020-B0iGUN156..LHD..GEN202006-202103

MLM PACKAGE,SILVER,TRIM0#,2#,3#,4#

main58921-KK020-B0iGUN156..VNSUV202007-202204

MLM PACKAGE,SILVER,TRIM2#,3#,4#

main58921-KK020-B0iGUN156..PH;GUN156..INDSU,VNSUV;GUN166..6FC..(IND,PH)202007-202204

SILVER,TRIM2#,3#,4#

main58921-KK020-B0iTGN156..MA,SA;GUN165..H..VN;GUN15#,16#,LAN155,TGN166..(H,S)..(IDN,SA)202008-202204

SILVER,TRIM2#

main58921-KK020-B0iGUN165..H..VN202009-202204

MLM PACKAGE,SILVER,TRIM2#

main58921-KK020-B0iGUN156..LHD..GEN202006-202103

MLM PACKAGE & ACCESSORY,SILVER,TRIM0#,2#,3#,4#

main58921-KK020-B0iGUN156,166..PH202007-202103

OCEANIA GENERAL SPEC&MLM PACKAGE,SILVER,TRIM0#,2#,3#,4#

main58921-KK020-B0iGUN156..MA202101-202103

MLM PACKAGE,SILVER,TRIM2#,3#

main58921-KK020-B0iGUN156..MA202101-202103

MLM PACKAGE & ACCESSORY,SILVER,TRIM2#,3#,4#

main58921-KK020-B0iGUN156..LHD..IDNSU..GEN;GUN15#,16#..THSUV..H..(GEN,TH)202006-202108

SILVER,TRIM0#,2#,3#,4#

main58921-KK020-B0iGUN156..MA202101-202110

SILVER,TRIM2#,3#

main58921-KK020-B0iGUN156,TGN156,166..PKN202006-202204

SILVER,TRIM2#,4#

main58921-KK030iGUN156..(L,S)..ARL;GUN155,165,TGN156,166..(EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV)..L202006-202204

main58921-YP030-B0iGUN15#,16#..THSUV..H..(GEN,TH)202007-202108

MLM PACKAGE & ACCESSORY,SILVER,TRIM0#,3#

main58921-YP030-B0iGUN156..LHD..IDNSU..GEN202009-202108

OCEANIA GENERAL SPEC&MLM PACKAGE,SILVER,TRIM0#,3#

main58921-YP030-B0iGUN156..THSUV..GEN202007-202108

MLM PACKAGE,SILVER,TRIM0#,3#

main58921-YP030-B0iGUN156,165..VNSUV..H202009-202204

MLM PACKAGE,SILVER,TRIM3#

main58921-YP030-B0iGUN166..6FC..IND202101-202109

MLM PACKAGE & ACCESSORY,SILVER,TRIM3#

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-KK010-C2iGUN155,165..RHD..L202009-202110

BLACK,TRIM2#

main58951-KK010-C2iGUN156..(L,S)..ARL202006-202108

BLACK,TRIM2#,4#

main58951-KK030-C3iGUN156..IND,MA;GUN166..6FC..IND202101-202110

BLACK/CRIMSON,TRIM3#

sub58951-KK140

main58951-KK030-C5iGUN156,166,TGN156,166..RHD..(IND,MA,PKN,SA)202009-202201

BLACK/GRAY,TRIM2#

sub58951-KK140

main58951-KK030-E3iGUN156,166,TGN156,166..IND,PKN202101-202201

CHAMOIS,TRIM4#

sub58951-KK140

main58951-KK070-C1iTGN166..EPT202011-202203

BLACK,TRIM2#

main58951-KK070-C1iTGN166..IDNSU..GCC;GUN155,165,TGN156..(6F,6FC)..L..(GCC,GEN)202006-202108

BLACK,TRIM4#

main58951-KK070-C1iTGN166..THSUV;GUN165,TGN156,166..L..(GEN,PH,VN)202006-202204

BLACK,TRIM2#,4#

main58951-KK090-C5iGGN155,TGN168..AGTSU..(H,S);GUN156,TGN156,166..AGTSU..H202009-202203

BLACK/GRAY,TRIM2#

sub58951-KK150

main58951-KK120-C1iGUN15#,16#..H..TH202006-202108

BLACK/CRIMSON,TRIM3#

main58951-KK120-C2iGUN165..S..TH;GUN156..H..ARL202006-202108

BLACK/GRAY,TRIM2#

main58951-KK120-C2iGUN15#,16#..H..TH202006-202108

BLACK/GRAY,TRIM0#,2#

main58951-KK120-E1iGUN155,16#..TH;GUN156..RHD..THSUV..H202006-202108

CHAMOIS/IVORY,TRIM4#

main58951-KK130-C2iGUN156..THSUV..GEN202006-202108

BLACK/CRIMSON NO.69,TRIM3#

main58951-KK130-C3iGGN155,GUN15#,TGN156..THSUV..(H,S)..GCC202006-202108

BLACK/GRAY,TRIM0#,2#

main58951-KK130-C3iGGN155,GUN15#,TGN156..THSUV..(H,S)..GCC202006-202108

BLACK/GRAY,TRIM2#

main58951-KK130-E1iGGN155,GUN15#,TGN156..LHD..THSUV..(H,S)202006-202108

CHAMOIS/IVORY,TRIM4#

main58951-KK140-C0iGUN15#,165,TGN156,166..RHD..IDNSU202007-202108

BLACK/GRAY,TRIM2#

main58951-KK140-E0iGUN15#,165,TGN156,166..RHD..GEN202007-202108

CHAMOIS/IVORY,TRIM4#

main58951-KK150-C0iGUN156..(IDNSU,VNSUV)..(GCC,PH,VN);GGN155,GUN155,16#,TGN156,166..LHD..(IDNSU,VNSUV)..(H,S)202007-202204

BLACK/GRAY,TRIM2#

main58951-KK150-C0iGUN156..LHD..IDNSU..GEN202007-202108

BLACK/GRAY,TRIM0#,2#

main58951-KK150-C1iGUN156,165..VNSUV..H;GUN156,166..LHD..IDNSU..(GEN,PH)202007-202204

BLACK/CRIMSON,TRIM3#

main58951-KK150-E0iGGN155,GUN15#,165,TGN156..LHD..IDNSU..(H,S)..(GCC,GEN)202007-202108

CHAMOIS/IVORY,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-T0008iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-KK020iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

90119T0314

main90119-T0314

9015960431

main90159-60431

90159T0014

main90159-T0014

90167T0004

main90167-T0004

90167T0007

main90167-T0007

90167T0012

main90167-T0012

9046705171

main90467-05171

9046710201

main90467-10201

9046712080

main90467-12080

9167380616

main91673-80616

9167380816

main91673-80816

9352054014

main93520-54014

9354054012

main93540-54012

9356855014

main93568-55014

33 parts on this diagram · 8 diagrams in section
