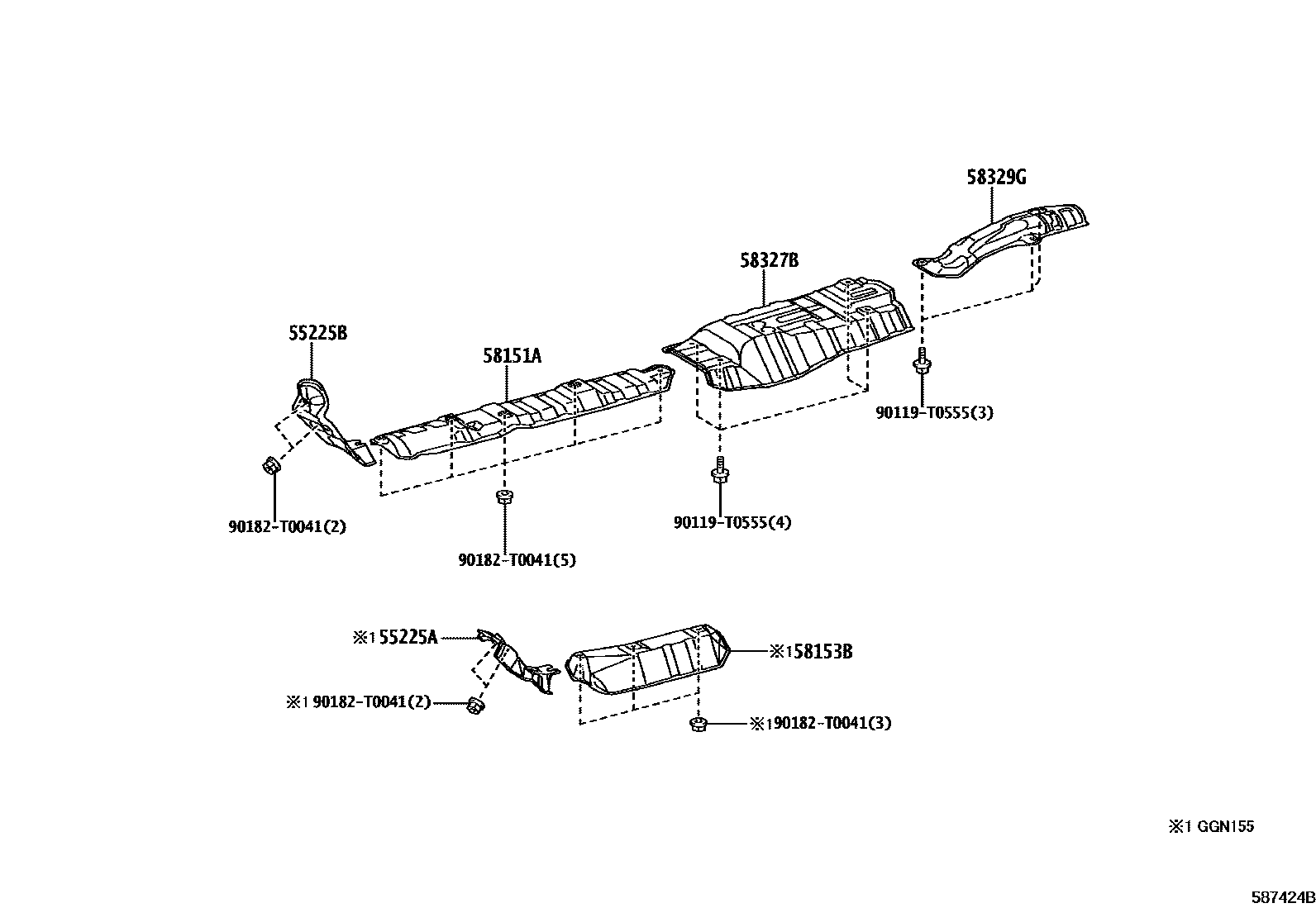

FLOOR INSULATOR

55225AINSULATOR, DASH PANEL HEAT, NO.1

main55225-0K021iGGN155..LA202006-202203

55225BINSULATOR, DASH PANEL HEAT

main55225-KK011iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

58151AINSULATOR, FLOOR HEAT, NO.1

main58151-KK011iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

sub58151-KK020

main58151-KK020iGUN156,TGN156,166..PKN202006-202204

58153BINSULATOR, FLOOR HEAT, NO.3

main58153-0K011iGGN155..LA202006-202203

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K030iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

58329GINSULATOR, MAIN MUFFLER HEAT, REAR UPPER

main58329-0K020iGGN155,GUN156,165,TGN156,16#..AGTSU202007-202204

sub58329-0K030

main58329-0K030iGGN155,GUN15#,16#,TGN156,166..EPTSU,THSUV202006-202203

90119T0555

main90119-T0555

90182T0041

main90182-T0041

8 parts on this diagram · 1 diagram in section
