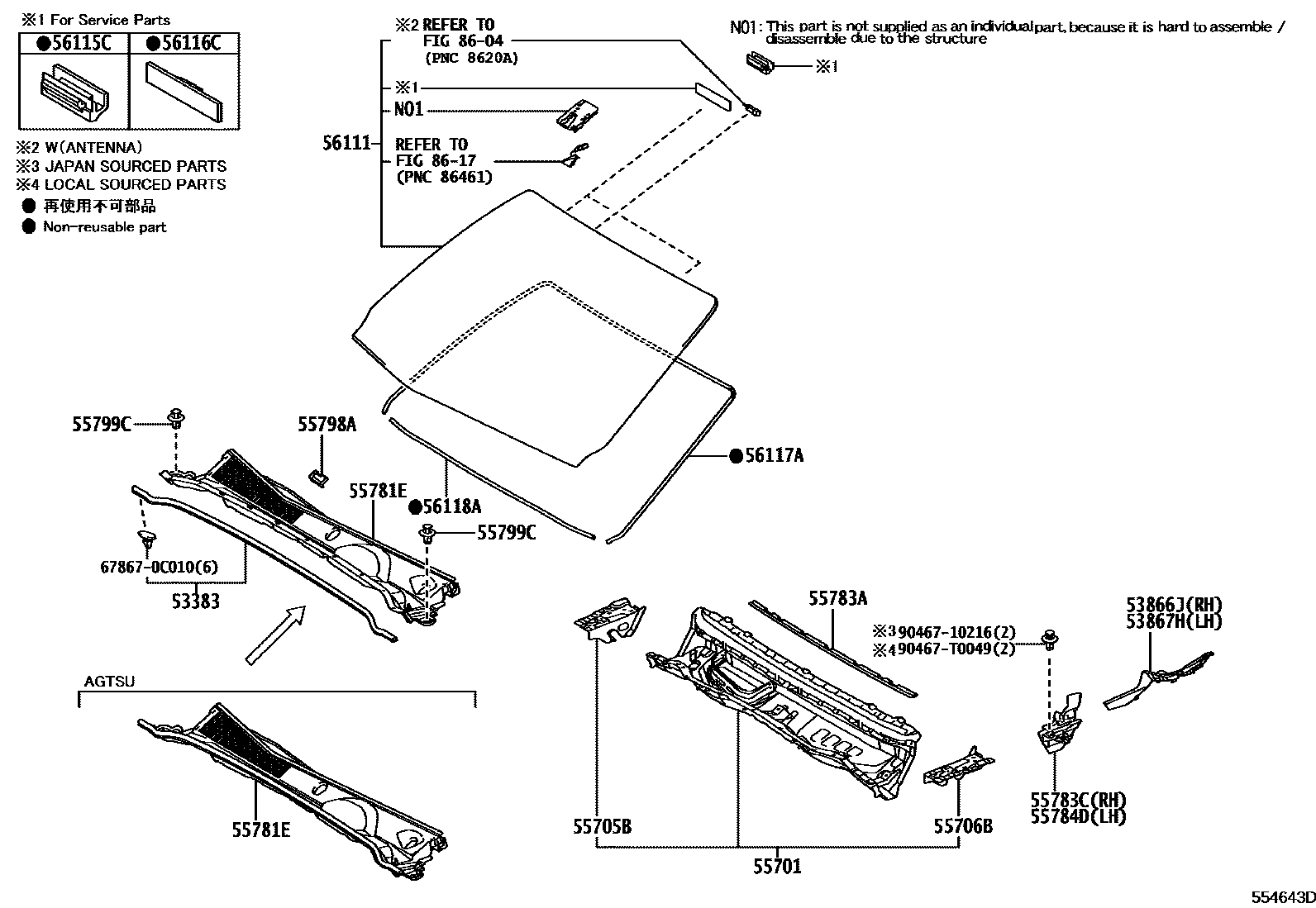

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
main55705-KK010iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55783APAD, COWL TOP SILENCER
55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH
55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH
55798ASUPPORT, COWL WATER EXTRACT SEAL
55799CCLIP, COWL TOP VENTILATOR LOUVER
(L),MADE IN IDN
56111GLASS, WINDSHIELD
ACTIVE SAFETY PACKAGE-WITHOUT
ACTIVE SAFETY PACKAGE-WITHOUT
main56101-0K760iGUN165..6FC..VN;GGN155,GUN15#,166,TGN156,166..LHD..(IDNSU,VNSUV)..6FC..(GEN,PH,VN)202007-202204
ACTIVE SAFETY PACKAGE-WITHOUT
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
ACTIVE SAFETY PACKAGE-WITHOUT&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-AVN(8INCH) & *BT & DIGITAL TV
BACK GLASS-FIX TYPE(GREEN, *HSEA)&AUDIO-*DA(8INCH) & *BT
BACK GLASS-FIX TYPE(GREEN, *HSEA)
UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-WITHOUT& WITH(AUDIO LESS COVER)
ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
ACTIVE SAFETY PACKAGE-WITH&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
BACK GLASS-FIX TYPE(GREEN, *HSEA)&AUDIO-*DA(8INCH) & *BT & DAB
ACTIVE SAFETY PACKAGE-WITH
BACK GLASS-FIX TYPE(GREEN, *HSEA)&AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-*DA(FOR EMERGING MARKET) & DAB
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-AVN(8INCH) & *BT & DIGITAL TV
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
ACTIVE SAFETY PACKAGE-WITH&AUDIO-*DA(8INCH) & *BT & DAB
ACTIVE SAFETY PACKAGE-WITH
56115CSTOPPER, WINDSHIELD GLASS
main56115-30100iGUN15#..IDNSU..H..GCC;GGN155..(EPTSU,IDNSU)..H;GGN155,GUN155..(L,S)..GCC;GUN15#..GEN,IDN,MA,PH,SA,TH,VN;GUN16#,LAN155,TGN156,166..EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSU202006-202204
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=2620
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
L=1248
8604
8617
678670C010CLIP, DOOR WEATHERSTRIP
main67867-0C010
9046710216
main90467-10216
90467T0049
main90467-T0049
22 parts on this diagram · 2 diagrams in section
