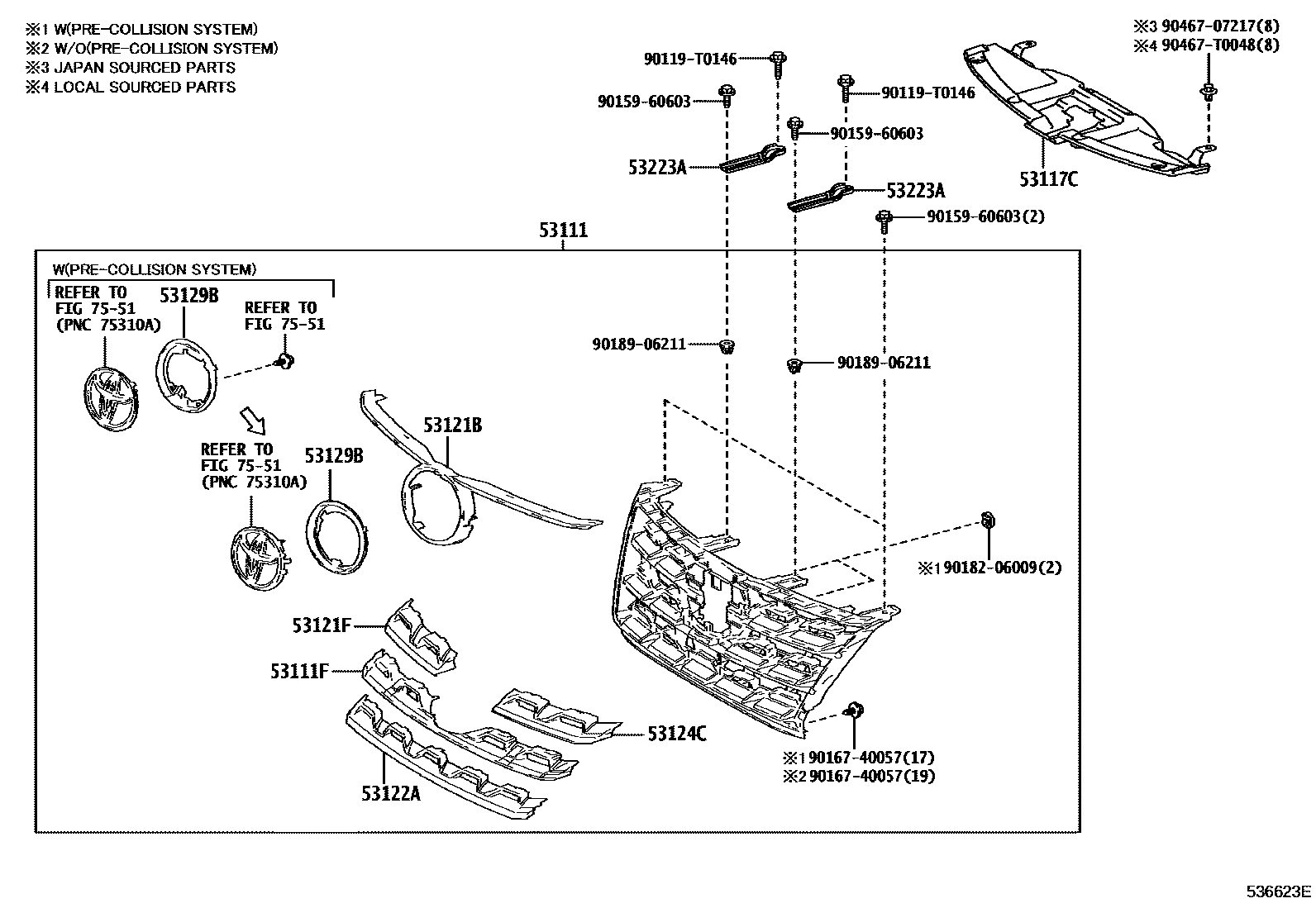

RADIATOR GRILLE
53111GRILLE, RADIATOR
PLATED
PLATED
PLATED
PLATED
PLATED
main53100-0KQ20iGUN165..L..PH;GUN165..(IDNSU,VNSUV)..(GCC,GEN,VN);GGN155,GUN155,TGN156,166..LHD..(IDNSU,VNSUV)..(L,S)202007-202204
PLATED
PLATED
PLATED
PLATED
PLATED,ACTIVE SAFETY PACKAGE-WITH
PLATED,ACTIVE SAFETY PACKAGE-WITH
PLATED,FRONT BUMPER- PAINTED & LOWER GRILLE(PAINTED)
PLATED,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER- PAINTED & LOWER GRILLE(PAINTED)
PLATED,ACTIVE SAFETY PACKAGE-WITH
NO PAINT REQ.,MLM PACKAGE & ACCESSORY&FRONT BUMPER-PAINTED(MLM)
NO PAINT REQ.,MLM PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)
sub53100-YP411
sub90182-06009
NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
NO PAINT REQ.,MLM PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)
NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
NO PAINT REQ.,MLM PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM)
53111FMOULDING, RADIATOR GRILLE, CENTER
FRONT BUMPER-PAINTED(MLM)
main53124-0K480iGUN165..L..PH;GUN165..(IDNSU,VNSUV)..(GCC,GEN,VN);GGN155,GUN155,TGN156,166..LHD..(IDNSU,VNSUV)..(L,S)202007-202204
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER- PAINTED & LOWER GRILLE(PAINTED)
53117CRETAINER, RADIATOR GRILLE, NO.1
FRONT BUMPER-PAINTED(MLM)
53121BMOULDING, RADIATOR GRILLE, UPPER
main53121-0K770iGUN165..L..PH;GUN165..(IDNSU,VNSUV)..(GCC,GEN,VN);GGN155,GUN155,TGN156,166..LHD..(IDNSU,VNSUV)..(L,S)202007-202204
FRONT BUMPER-PAINTED(MLM)
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER- PAINTED & LOWER GRILLE(PAINTED)
53121FMOULDING, RADIATOR GRILLE, UPPER RH
main53122-0K780iGUN165..L..PH;GUN165..(IDNSU,VNSUV)..(GCC,GEN,VN);GGN155,GUN155,TGN156,166..LHD..(IDNSU,VNSUV)..(L,S)202007-202204
FRONT BUMPER-PAINTED(MLM)
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER- PAINTED & LOWER GRILLE(PAINTED)
53122AMOULDING, RADIATOR GRILLE, LOWER
main53125-0K390iGUN165..L..PH;GUN165..(IDNSU,VNSUV)..(GCC,GEN,VN);GGN155,GUN155,TGN156,166..LHD..(IDNSU,VNSUV)..(L,S)202007-202204
FRONT BUMPER-PAINTED(MLM)
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER- PAINTED & LOWER GRILLE(PAINTED)
53124CMOULDING, RADIATOR GRILLE, UPPER LH
main53123-0K780iGUN165..L..PH;GUN165..(IDNSU,VNSUV)..(GCC,GEN,VN);GGN155,GUN155,TGN156,166..LHD..(IDNSU,VNSUV)..(L,S)202007-202204
FRONT BUMPER-PAINTED(MLM)
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER- PAINTED & LOWER GRILLE(PAINTED)
53129BMOULDING, RADIATOR GRILLE, NO.9
ACTIVE SAFETY PACKAGE-WITHOUT
FRONT BUMPER-PAINTED(MLM)
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER- PAINTED & LOWER GRILLE(PAINTED)
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
53223ABRACKET, RADIATOR GRILLE MOUNTING
FRONT BUMPER-PAINTED(MLM)
7551
90119T0146
main90119-T0146
9015960603
main90159-60603
9016740057
main90167-40057
9018206009
main90182-06009
9018906211
main90189-06211
9046707217
main90467-07217
90467T0048
main90467-T0048
17 parts on this diagram · 2 diagrams in section
