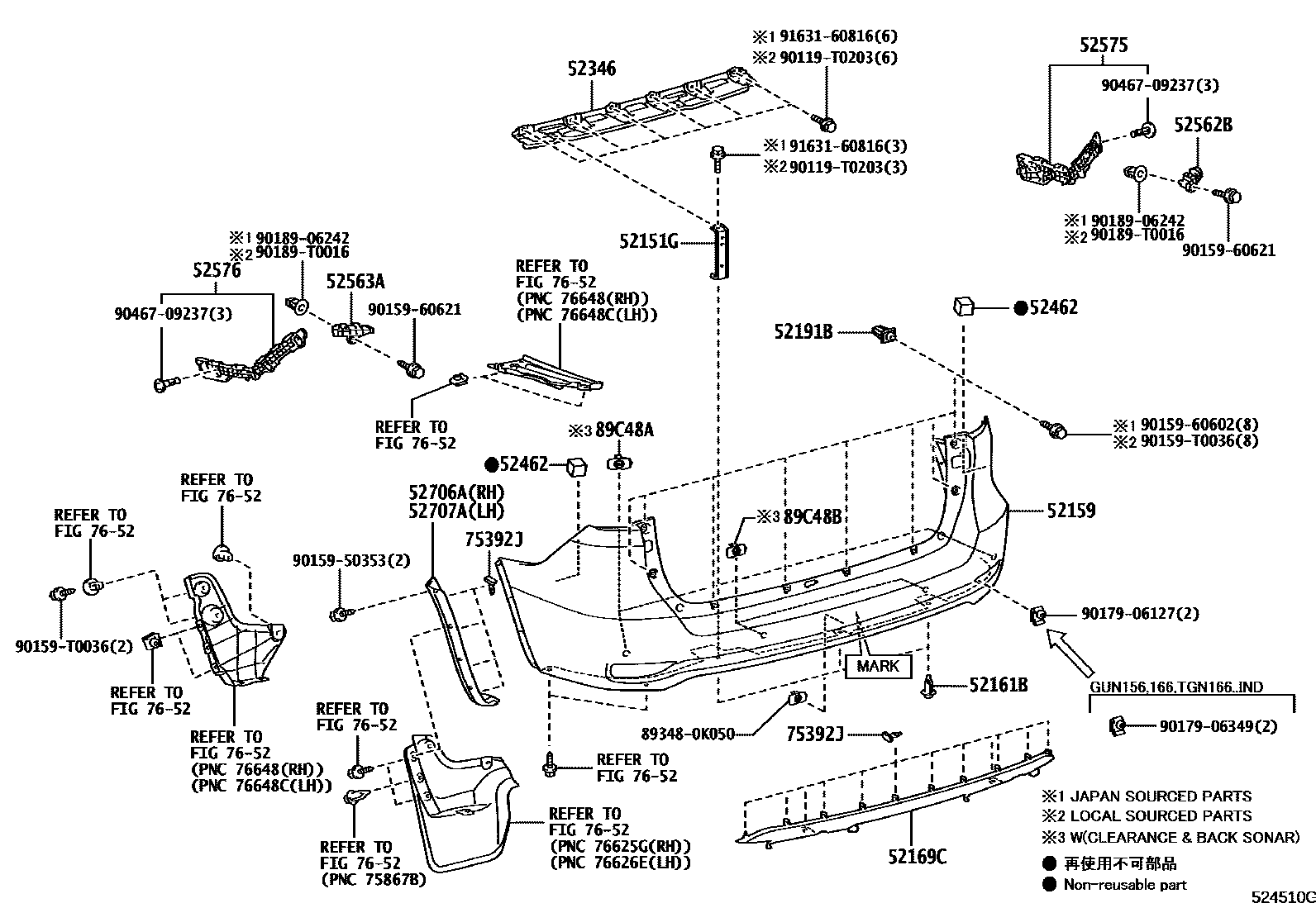

REAR BUMPER & BUMPER STAY
52151GEXTENSION, REAR BUMPER
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT
PAINT REQ.
PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT
PAINT REQ.,REAR FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT
PAINT REQ.
PAINT REQ.,MLM PACKAGE
main52159-0K951iGUN155..IDNSU..L..GCC;GGN155,GUN155..LHD..GEN;GUN165..LHD..IDNSU..(GCC,GEN);TGN156,166..IDNSU..(H,L)..(GCC,GEN)202007-202108
PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT
main52159-0K951iGUN155..IDNSU..L..GCC;GGN155,GUN155..LHD..GEN;GUN165..LHD..IDNSU..(GCC,GEN);TGN156,166..IDNSU..(H,L)..(GCC,GEN)202007-202108
PAINT REQ.
PAINT REQ.,REAR FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT
PAINT REQ.
PAINT REQ.,MLM PACKAGE & ACCESSORY
PAINT REQ.,REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.,SUB-SAHARAN AFRICA SPEC(EURO 2)&CLEARANCE & BACK SONAR-WITH
main52159-0K971iTGN168..S;GUN156..AGTSU..6F;GUN156..6FC..L..LA;GUN156..AGTSU..6FC..H;GGN155,GUN165,TGN156,166..AGTSU202011-202110
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.
PAINT REQ.,MLM PACKAGE
PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
PAINT REQ.,MLM PACKAGE & ACCESSORY
PAINT REQ.,MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.,REAR FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH
main52159-0K972iGUN165..THSUV..(H,L);GUN155,TGN156,166..THSUV..L;GGN155,GUN15#,166..(EPTSU,THSUV)..(ARL,EPT,GEN,TH)202006-202203
PAINT REQ.
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.,REAR FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
PAINT REQ.,MLM PACKAGE
main52159-0K973iTGN156..IDNSU..(H,L);GUN155..IDNSU..L..GCC;GUN165,TGN166..IDNSU,VNSUV;GGN155,GUN15#,166..(IDNSU,VNSUV)..(GEN,IDN,PH,VN)202007-202204
PAINT REQ.
PAINT REQ.,MARK=52159-0K580
PAINT REQ.,MLM PACKAGE & ACCESSORY
PAINT REQ.,MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT
PAINT REQ.,MLM PACKAGE
PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
PAINT REQ.,MLM PACKAGE
PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
PAINT REQ.,MLM PACKAGE
52161BPIECE, REAR BUMPER
MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT
MLM PACKAGE&REAR FOG LAMP-WITHOUT
MLM PACKAGE & ACCESSORY
MLM PACKAGE
MLM PACKAGE
MLM PACKAGE&REAR FOG LAMP-WITHOUT
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
NO PAINT REQ.,MLM PACKAGE
NO PAINT REQ.
NO PAINT REQ.,MLM PACKAGE
NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
NO PAINT REQ.,MLM PACKAGE & ACCESSORY
NO PAINT REQ.,MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
NO PAINT REQ.,MLM PACKAGE
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,MLM PACKAGE & ACCESSORY
NO PAINT REQ.
NO PAINT REQ.,MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT
NO PAINT REQ.,MLM PACKAGE & ACCESSORY
NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
NO PAINT REQ.,MLM PACKAGE
NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
NO PAINT REQ.,MLM PACKAGE
52191BGROMMET, REAR BUMPER STAY
52346FRAME, BACK STEP, REAR
52462PAD, REAR BUMPER, RH
MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT
NO PAINT REQ.,MLM PACKAGE
MLM PACKAGE&REAR FOG LAMP-WITHOUT
MLM PACKAGE & ACCESSORY
NO PAINT REQ.
NO PAINT REQ.
MLM PACKAGE&REAR FOG LAMP-WITHOUT
MLM PACKAGE
MLM PACKAGE & ACCESSORY
NO PAINT REQ.,MLM PACKAGE&REAR FOG LAMP-WITHOUT
NO PAINT REQ.
NO PAINT REQ.,MLM PACKAGE
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52706AMOULDING SUB-ASSY, REAR BUMPER SIDE, RH
MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT
MLM PACKAGE
MLM PACKAGE&REAR FOG LAMP-WITHOUT
MLM PACKAGE & ACCESSORY
MLM PACKAGE
MLM PACKAGE&REAR FOG LAMP-WITHOUT
MLM PACKAGE & ACCESSORY
MLM PACKAGE&REAR FOG LAMP-WITHOUT
MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT
MLM PACKAGE & ACCESSORY
MLM PACKAGE
52707AMOULDING SUB-ASSY, REAR BUMPER SIDE, LH
MLM PACKAGE
MLM PACKAGE & ACCESSORY
MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT
MLM PACKAGE&REAR FOG LAMP-WITHOUT
MLM PACKAGE
MLM PACKAGE&REAR FOG LAMP-WITHOUT
MLM PACKAGE & ACCESSORY
MLM PACKAGE&REAR FOG LAMP-WITHOUT
MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT
MLM PACKAGE & ACCESSORY
MLM PACKAGE
75392JRETAINER, OUTSIDE MOULDING
MLM PACKAGE,(L)
MLM PACKAGE&REAR FOG LAMP-WITHOUT,(L)
(L)
MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT,(L)
main75392-0K010iTGN168..S;GUN156..SA;GUN156..6F..BZAGT;GUN156..6FC..H..BZAGT;GUN155,16#,LAN155,TGN156,166..BZAGT,SA202009-202110
CLEARANCE & BACK SONAR-WITH
MLM PACKAGE & ACCESSORY,(L)
MLM PACKAGE
MLM PACKAGE&REAR FOG LAMP-WITHOUT,(J)
MLM PACKAGE & ACCESSORY&REAR FOG LAMP-WITHOUT,(J)
(J)
MLM PACKAGE & ACCESSORY,(J)
MLM PACKAGE,(J)
7652
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
CLEARANCE & BACK SONAR-WITHOUT
CLEARANCE & BACK SONAR-WITH
main89348-0K010iGUN165..H..TH;GUN155..L..GCC;TGN156..(IDNSU,THSUV)..(H,L);GUN165,TGN166..GCC,GEN,IDN,IND,PH,VN;GGN155,GUN15#,166..ARL,EPT,GEN,IDN,IND,PH,TH,VN202006-202204
MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
MLM PACKAGE & ACCESSORY
MLM PACKAGE
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
main89348-0K010iGUN155,165,TGN166..EPT,SA;GGN155,GUN15#,166,TGN156..(SASUV,THSUV)..(H,S)..(GCC,SA)202006-202203
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITHOUT
CLEARANCE & BACK SONAR-WITH,COLORED
main89348-0K020iGUN155..IDNSU..L..GCC;GGN155,GUN155..LHD..GEN;GUN165..LHD..IDNSU..(GCC,GEN);TGN156,166..IDNSU..(H,L)..(GCC,GEN)202007-202103
CLEARANCE & BACK SONAR-WITHOUT,COLORED
main89348-0K020iTGN156..IDNSU..(H,L);GUN155..IDNSU..L..GCC;GUN165,TGN166..IDNSU,VNSUV;GGN155,GUN15#,166..(IDNSU,VNSUV)..(GEN,IDN,PH,VN)202007-202204
COLORED
MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
MLM PACKAGE & ACCESSORY
MLM PACKAGE
893480K050RETAINER, ULTRASONIC SENSOR, NO.1
main89348-0K050
90119T0203
main90119-T0203
9015950353
main90159-50353
9015960602
main90159-60602
9015960621
main90159-60621
90159T0036
main90159-T0036
9017906127
main90179-06127
9017906349
main90179-06349
9018906242
main90189-06242
90189T0016
main90189-T0016
9046709237
main90467-09237
9163160816
main91631-60816
29 parts on this diagram · 2 diagrams in section
