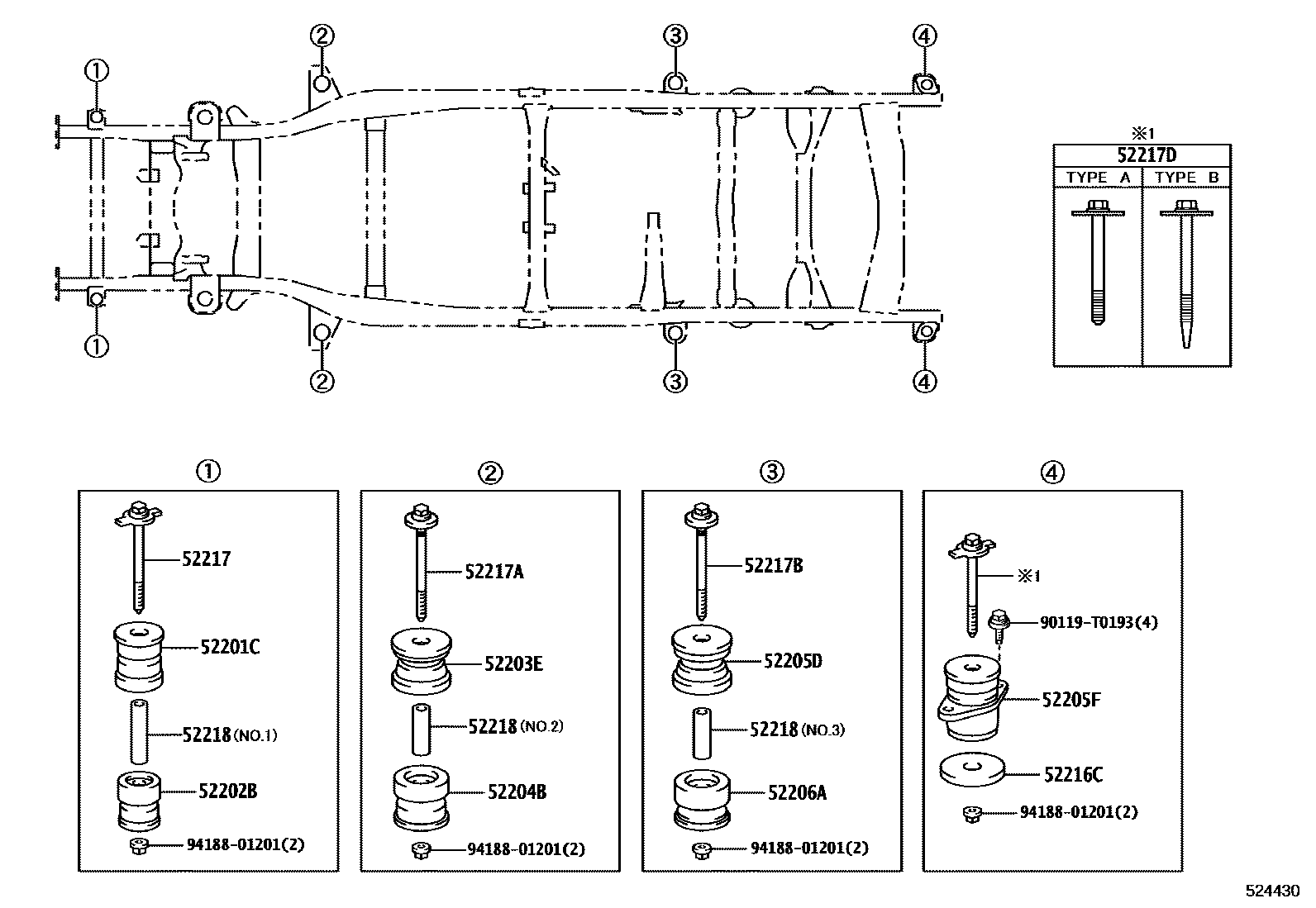

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K060iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main52201-0K070iGUN156,166,TGN166..IND202101-202109

main52201-0K100iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K060iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main52202-0K070iGUN156,166,TGN166..IND202101-202109

main52202-0K100iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K080iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main52203-0K090iGUN156,166,TGN166..IND202101-202109

main52203-0K130iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K080iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main52204-0K090iGUN156,166,TGN166..IND202101-202109

main52204-0K130iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K090iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main52205-0K100iGUN156,166,TGN166..IND202101-202109

main52205-0K180iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

52205FCUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52207-0K070iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main52207-0K080iGUN156,166,TGN166..IND202101-202109

main52207-0K090iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0K040iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main52206-0K050iGUN156,166,TGN166..IND202101-202109

main52206-0K140iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

52216CSTOPPER, CAB MOUNTING CUSHION

main52216-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

52217BOLT, BODY MOUNTING

main52217-0K010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

52217ABOLT, BODY MOUNTING

main52217-0K020iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

52217BBOLT, BODY MOUNTING

main52217-0K020iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

52217DBOLT, BODY MOUNTING

main52217-0K050iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

TYPE A:REFER ILLUST.

main52217-0K060iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

TYPE B:REFER ILLUST.

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010iGUN156,TGN156,166..PKN202006-202204

NO.1

main52219-0K010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

NO.2

main52219-KK010iGUN156,TGN156,166..PKN202006-202204

NO.3

90119T0193

main90119-T0193

9418801201

main94188-01201

15 parts on this diagram · 1 diagram in section
