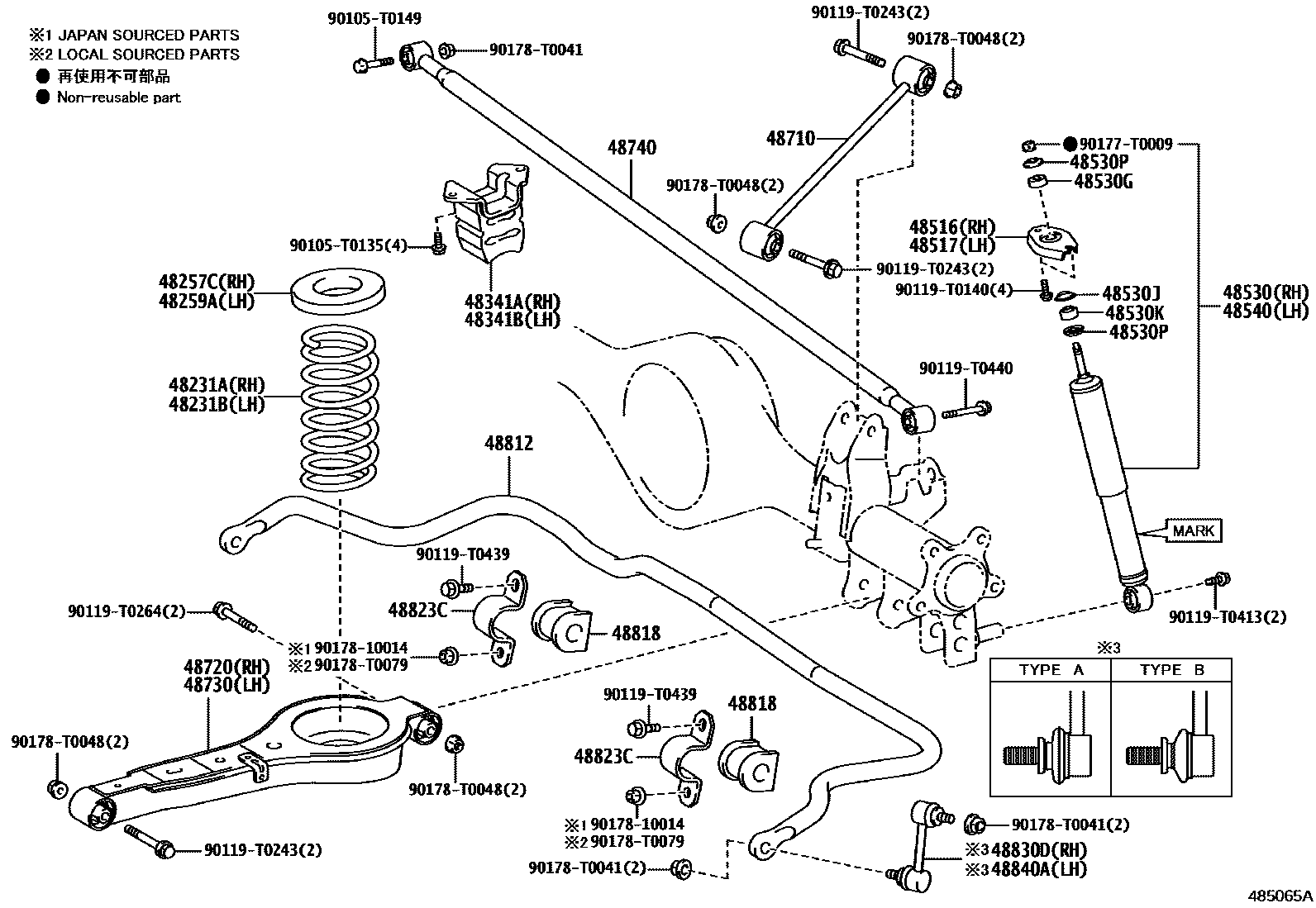

REAR SPRING & SHOCK ABSORBER

48231ASPRING, COIL, REAR RH

main48231-0K290iGUN15#,16#..TH202006-202108

main48231-0K341iGGN155,GUN15#,165,TGN156,166..(EPTSU,THSUV,VNSUV)..(ARL,EPT,GCC,GEN,VN)202006-202204

main48231-0K350iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main48231-0K360iGUN15#,16#,LAN155,TGN156..SA202009-202109

main48231-0K370iGGN155,GUN15#,165,TGN156,166..IDNSU..(GCC,GEN,IDN,VN)202007-202108

main48231-0K380iGUN156,166,TGN166..IND202101-202109

main48231-0K430iGUN156,TGN156,16#..BZAGT202011-202110

REAR NO.2 SEAT-WITHOUT

main48231-0K480iGUN15#,TGN156..MA202101-202110

main48231-0K500iGUN156,16#..PH202007-202108

48231BSPRING, COIL, REAR LH

main48231-0K290iGUN15#,16#..TH202006-202108

main48231-0K341iGGN155,GUN15#,165,TGN156,166..(EPTSU,THSUV,VNSUV)..(ARL,EPT,GCC,GEN,VN)202006-202204

main48231-0K350iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main48231-0K360iGUN15#,16#,LAN155,TGN156..SA202009-202109

main48231-0K370iGGN155,GUN15#,165,TGN156,166..IDNSU..(GCC,GEN,IDN,VN)202007-202108

main48231-0K380iGUN156,166,TGN166..IND202101-202109

main48231-0K430iGUN156,TGN156,16#..BZAGT202011-202110

REAR NO.2 SEAT-WITHOUT

main48231-0K480iGUN15#,TGN156..MA202101-202110

main48231-0K500iGUN156,16#..PH202007-202108

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0K010iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0K010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-0K110iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202203

main48341-0K130iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main48341-0K140iGUN156,166,TGN166..IND202101-202109

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-0K110iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202203

main48341-0K130iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main48341-0K140iGUN156,166,TGN166..IND202101-202109

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48516-0K010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48516-0K010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09Z80iGUN15#,16#..TH202006-202108

MARK 48530-0K090

main48530-09Z90iGGN155,GUN15#,165,TGN156,166..IDNSU..(GCC,GEN,IDN,VN)202007-202108

MARK 48530-0K060

sub48530-0K060

sub90177-T0009

main48530-79185iGUN156..6FC..(H,S)..BZAGT202011-202110

MARK 48530-71010

main48530-79185iTGN168;GUN156..L..BZAGT202011-202110

MARK 48530-71010,BRAZIL SPEC

main48530-8Z001iGUN15#,TGN156..MA202101-202110

MARK 48530-0K080

main48530-8Z002iGGN155,GUN15#,16#,LAN155,TGN156,166..(EPTSU,INDSU,SASUV,THSUV,VNSUV)..(ARL,EPT,GCC,GEN,IND,SA,VN)202006-202204

MARK 48530-0K030

main48530-8Z049iGUN156,16#..PH202007-202108

MARK 48530-0K140

sub48530-0K140

sub90177-T0009

main48530-8Z137iGUN156,TGN156,166..PKN202104-202201

MARK 48530-0K230

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-T1007iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

main90948-T1008iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main90948-T1009iGUN156,166,TGN166..IND202101-202109

48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)

main90948-T2005iGUN156,TGN156,166..PKN202006-202204

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main90948-T1010iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,MASUV,SASUV,THSUV,VNSUV202006-202204

main90948-T1011iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main90948-T1012iGUN156,166,TGN166..IND202101-202109

48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)

main90948-F2001iGUN15#,16#,LAN155,TGN156..SA202009-202109

main90948-T2008iGUN156,TGN156,166..PKN202006-202204

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-09Z80iGUN15#,16#..TH202006-202108

MARK 48530-0K090

main48530-09Z90iGGN155,GUN15#,165,TGN156,166..IDNSU..(GCC,GEN,IDN,VN)202007-202108

MARK 48530-0K060

sub48530-0K060

sub90177-T0009

main48530-79185iGUN156..6FC..(H,S)..BZAGT202011-202110

MARK 48530-71010,BRAZIL SPEC

main48530-79185iTGN168;GUN156..L..BZAGT202011-202110

MARK 48530-71010

main48530-8Z001iGUN15#,TGN156..MA202101-202110

MARK 48530-0K080

main48530-8Z002iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

MARK 48530-0K030

main48530-8Z049iGUN156,16#..PH202007-202108

MARK 48530-0K140

sub48530-0K140

sub90177-T0009

main48530-8Z137iGUN156,TGN156,166..PKN202104-202201

MARK 48530-0K230

48710ARM ASSY, UPPER CONTROL

main48710-0K110iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,MASUV,SASUV,THSUV202006-202203

RH

main48710-0K120iGUN156,TGN156,166..PKN202006-202203

LH

main48710-0K130iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

RH

main48710-0K140iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

LH

main48710-0K150iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

RH

main48710-0K160iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

LH

main48710-0K170iGUN156,166,TGN166..IND202101-202109

RH

main48710-0K180iGUN156,166,TGN166..IND202101-202109

LH

48720ARM ASSY, LOWER CONTROL, RH

main48720-0K010iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main48720-0K020iGUN156,166,TGN166..IND202101-202109

main48720-0K030iGUN15#,16#,LAN155,TGN156..SA202009-202109

main48720-0K041iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main48720-0K050iGUN156,TGN156,166..PKN202006-202204

48730ARM ASSY, LOWER CONTROL, LH

main48720-0K010iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main48720-0K020iGUN156,166,TGN166..IND202101-202109

main48720-0K030iGUN15#,16#,LAN155,TGN156..SA202009-202109

main48720-0K041iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main48720-0K050iGUN156,TGN156,166..PKN202006-202204

48740ROD ASSY, REAR LATERAL CONTROL

main48740-0K070iGUN156,TGN156,166..PKN202006-202203

main48740-0K080iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main48740-0K090iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main48740-0K100iGUN156,166,TGN166..IND202101-202109

48812BAR, STABILIZER, REAR

main48812-0K010iGUN156,TGN156,166..PKN202006-202203

main48812-0K020iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main48812-0K030iGUN15#,16#,LAN155,TGN156..SA202009-202109

main48812-0K040iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main48812-0K050iGUN156,166,TGN166..IND202101-202109

48818BUSH, STABILIZER, REAR

main48818-0K010iGUN156,TGN156,166..PKN202006-202204

main48818-0K040iGUN156,166,TGN166..IND202101-202109

48823CCOVER, REAR STABILIZER BRACKET

main48823-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

48830DLINK ASSY, REAR STABILIZER, RH

main48830-0K010iGUN156,TGN156,166..PKN202006-202204

main48830-0K010iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

TYPE A:REFER ILLUST.

main48830-0K020iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

TYPE B:REFER ILLUST.

main48830-0K040iGUN156,166,TGN166..IND202101-202109

sub48830-0K041

48840ALINK ASSY, REAR STABILIZER, LH

main48830-0K010iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

TYPE A:REFER ILLUST.

main48830-0K010iGUN156,TGN156,166..PKN202006-202204

main48830-0K020iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

TYPE B:REFER ILLUST.

main48830-0K040iGUN156,166,TGN166..IND202101-202109

sub48830-0K041

90105T0135

main90105-T0135

90105T0149

main90105-T0149

90119T0140

main90119-T0140

90119T0243

main90119-T0243

90119T0264

main90119-T0264

90119T0413

main90119-T0413

90119T0439

main90119-T0439

90119T0440

main90119-T0440

90177T0009

main90177-T0009

9017810014

main90178-10014

90178T0041

main90178-T0041

90178T0048

main90178-T0048

90178T0079

main90178-T0079

36 parts on this diagram · 1 diagram in section
