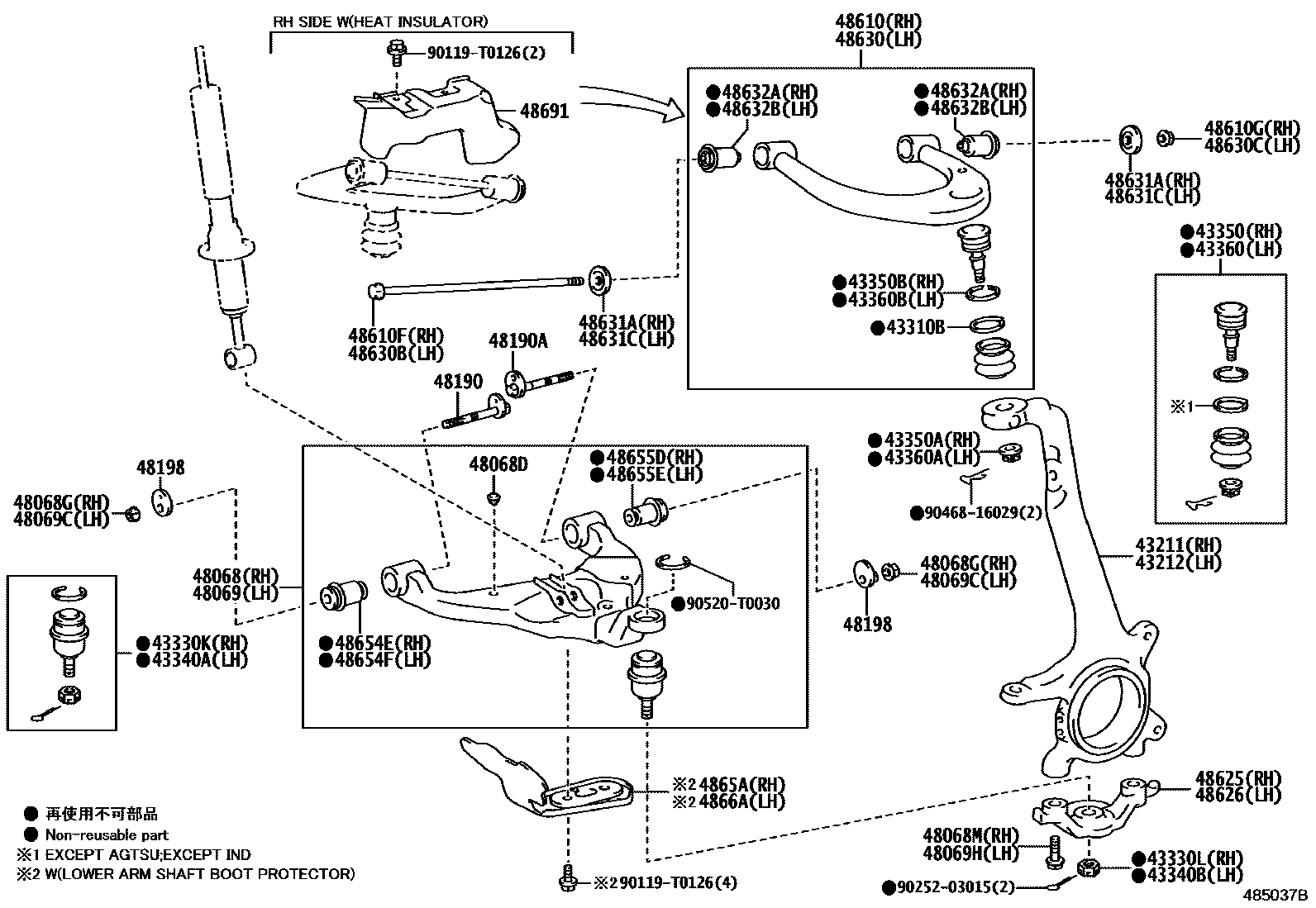

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

43212KNUCKLE, STEERING, LH

main43212-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

43310BRING, SET (FOR DUST COVER)

main90580-10001iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09500iGUN156,166,TGN166..IND202101-202109

main43330-09510iGUN156,TGN156,166..PKN202006-202204

main43330-09A20iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-T0003iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09500iGUN156,166,TGN166..IND202101-202109

main43330-09510iGUN156,TGN156,166..PKN202006-202204

main43330-09A20iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-T0003iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

43350JOINT ASSY, FRONT UPPER BALL, RH

main43310-09017iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV202006-202204

main43310-09030iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main43310-09040iGUN156,166,TGN166..IND202101-202109

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-T0001iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)

main90520-T0029iGUN156,TGN156,166..PKN202006-202204

43360JOINT ASSY, FRONT UPPER BALL, LH

main43310-09017iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV202006-202204

main43310-09030iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main43310-09040iGUN156,166,TGN166..IND202101-202109

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-T0001iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)

main90520-T0029iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0K090iGUN156,TGN156,166..PKN202006-202203

main48068-0K100iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main48068-0K112iGUN156,166,TGN166..IND202101-202109

main48068-0K121iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

48068DPLUG, HOLE(FOR FRONT SUSPENSION LOWER ARM)

main90950-T1018iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90178-T0073iGUN156,TGN156,166..PKN202006-202204

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-T0305iGUN156,TGN156,166..PKN202006-202204

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0K090iGUN156,TGN156,166..PKN202006-202203

main48069-0K100iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main48069-0K112iGUN156,166,TGN166..IND202101-202109

main48069-0K121iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90178-T0073iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-T0305iGUN156,TGN156,166..PKN202006-202204

48190CAM ASSY, CAMBER ADJUST

main48190-0K040iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

48190ACAM ASSY, CAMBER ADJUST, NO.2

main48190-0K050iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

48198CAM, CAMBER ADJUST, NO.2

main48198-0K030iGUN156,TGN156,166..PKN202006-202204

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-0K040iGUN156,TGN156,166..PKN202006-202203

main48610-0K051iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main48610-0K070iGUN15#,16#..PH,TH202006-202108

main48610-0K090iGUN156,166,TGN166..IND202101-202109

main48610-0K100iGGN155,GUN15#,165,TGN156,166..(IDNSU,VNSUV)..(GCC,GEN,IDN,VN)202007-202204

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90105-T0114iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90178-T0027iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

48625ATTACHMENT, FRONT LOWER BALL JOINT, RH

main48625-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

sub48625-KK040

48626ATTACHMENT, FRONT LOWER BALL JOINT, LH

main48626-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

sub48626-KK040

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-0K040iGGN155,GUN15#,16#,LAN155,TGN156,166..(EPTSU,MASUV,SASUV,THSUV)..(ARL,EPT,GCC,GEN,MA,SA)202006-202203

main48630-0K051iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main48630-0K070iGUN15#,16#..PH,TH202006-202108

main48630-0K090iGUN156,166,TGN166..IND202101-202109

main48630-0K100iGGN155,GUN15#,165,TGN156,166..(IDNSU,VNSUV)..(GCC,GEN,IDN,VN)202007-202204

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90105-T0114iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90178-T0027iGUN156,TGN156,166..PKN202006-202204

48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)

main90948-S2001iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main90948-T2007iGUN156,TGN156,166..PKN202006-202204

48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)

main90948-S2001iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main90948-T2007iGUN156,TGN156,166..PKN202006-202204

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-0K040iGUN156,TGN156,166..PKN202006-202203

main48632-0K050iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202109

sub48632-0K110

main48632-0K070iGUN15#,16#..PH,TH202006-202108

main48632-0K090iGUN156,166,TGN166..IND202101-202109

main48632-0K100iGGN155,GUN15#,165,TGN156,166..(IDNSU,VNSUV)..(GCC,GEN,IDN,VN)202007-202204

main48632-0K110iGGN155,GUN156,165,TGN156,16#..AGTSU202109-202110

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-0K040iGGN155,GUN15#,16#,LAN155,TGN156,166..(EPTSU,MASUV,SASUV,THSUV)..(ARL,EPT,GCC,GEN,MA,SA)202006-202203

main48632-0K050iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202109

sub48632-0K110

main48632-0K070iGUN15#,16#..PH,TH202006-202108

main48632-0K090iGUN156,166,TGN166..IND202101-202109

main48632-0K100iGGN155,GUN15#,165,TGN156,166..(IDNSU,VNSUV)..(GCC,GEN,IDN,VN)202007-202204

main48632-0K110iGGN155,GUN156,165,TGN156,16#..AGTSU202109-202110

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-0K080iGUN156,TGN156,166..PKN202006-202203

main48654-0K090iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main48654-0K102iGUN156,166,TGN166..IND202101-202109

main48654-0K110iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202106

sub48654-0K150

main48654-0K150iGGN155,GUN156,165,TGN156,16#..AGTSU202106-202110

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-0K080iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,MASUV,SASUV,THSUV202006-202203

main48654-0K090iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main48654-0K102iGUN156,166,TGN166..IND202101-202109

main48654-0K110iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202106

sub48654-0K150

main48654-0K150iGGN155,GUN156,165,TGN156,16#..AGTSU202106-202110

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-0K080iGUN156,TGN156,166..PKN202006-202203

main48655-0K090iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main48655-0K100iGUN156,166,TGN166..IND202101-202109

main48655-0K110iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202106

sub48655-0K130

main48655-0K130iGGN155,GUN156,165,TGN156,16#..AGTSU202106-202110

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-0K080iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,MASUV,SASUV,THSUV202006-202203

main48655-0K090iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main48655-0K100iGUN156,166,TGN166..IND202101-202109

main48655-0K110iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202106

sub48655-0K130

main48655-0K130iGGN155,GUN156,165,TGN156,16#..AGTSU202106-202110

4865APROTECTOR, FRONT LOWER ARM SHAFT BOOT, RH

main4865A-KK010iGUN15#,LAN155,TGN156..ARL,SA202006-202109

4866APROTECTOR, FRONT LOWER ARM SHAFT BOOT, LH

main4866A-KK010iGUN15#,LAN155,TGN156..ARL,SA202006-202109

48691INSULATOR, UPPER ARM BUSH, HEAT

main48691-KK010iGUN156,165..AGTSU202006-202204

90119T0126

main90119-T0126

9025203015

main90252-03015

9046816029

main90468-16029

90520T0030

main90520-T0030

46 parts on this diagram · 1 diagram in section
