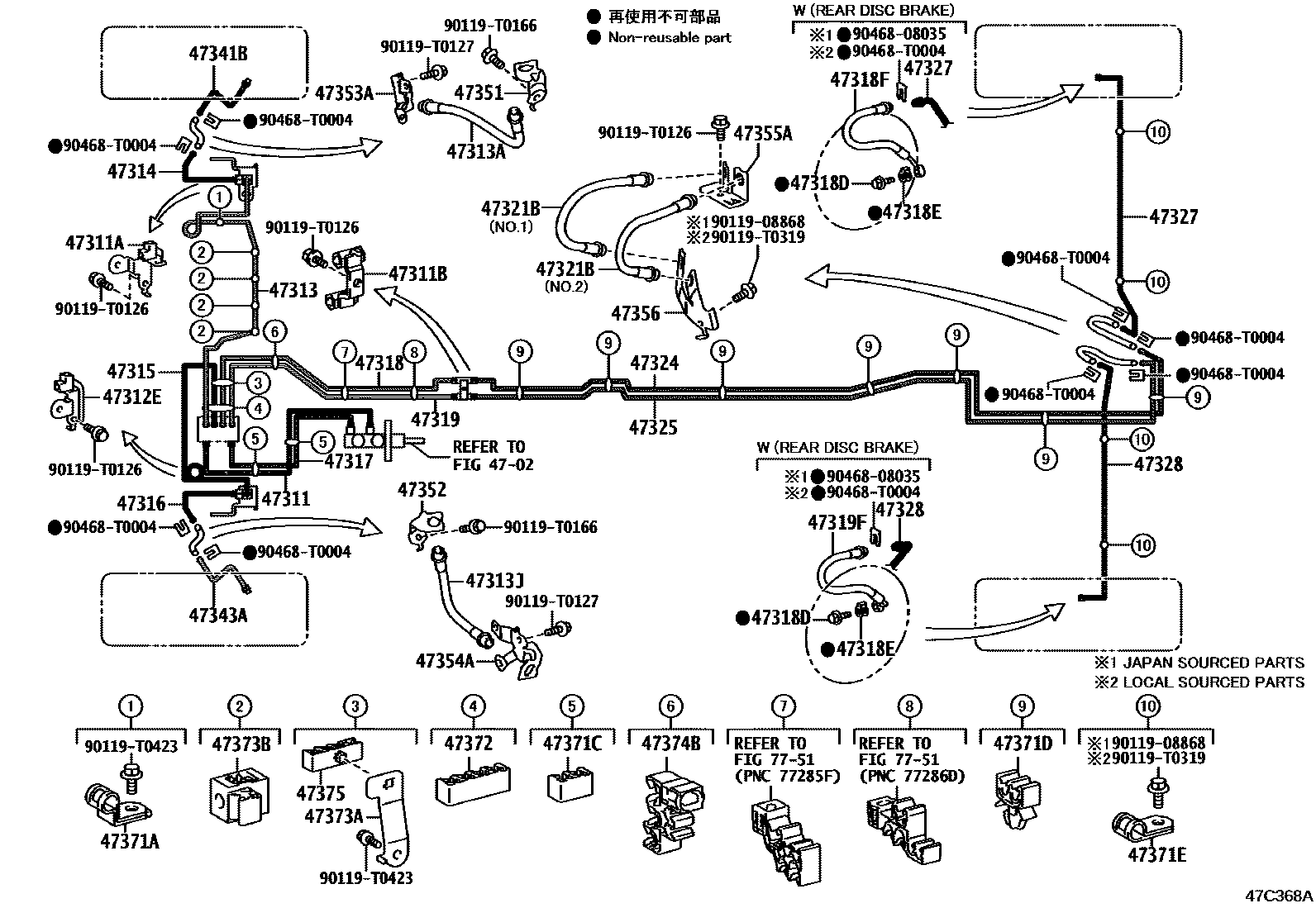

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE, W(VSC) 0002 1BRAKE TUBE, W(ABS) 0003 1BRAKE TUBE 0004 1BRAKE ACTUATOR 0005 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-KK020iGUN15#,16#,TGN156,166..RHD202006-202201

main47311-KK050iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

main47311-KK060iLAN155202009-202109

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10307iGUN156,TGN156,166..PKN202007-202201

main90412-T0009iGGN155,GUN15#,16#,TGN156,166..THSUV202006-202108

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10301iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,VNSUV202007-202204

main90412-T0007iGGN155,GUN15#,16#,TGN156,166..THSUV202006-202108

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10308iGGN155,GUN156,165,TGN156,16#..AGTSU202007-202110

main90412-T0010iGGN155,GUN15#,16#,TGN156,166..THSUV202006-202108

47313TUBE, FRONT BRAKE, NO.3

main47313-KK030iGUN15#,16#,TGN156,166..RHD202006-202201

main47313-KK040iLAN155202009-202109

main47313-KK060iGGN155,GUN15#,16#,TGN156,166..LHD..(EPTSU,IDNSU,SASUV,THSUV,VNSUV)202006-202204

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-T2098iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

main90947-T2122iGUN156,166,TGN166..IND202101-202109

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-T2098iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

main90947-T2122iGUN156,166,TGN166..IND202101-202109

47314TUBE, FRONT BRAKE, NO.4

main47314-KK020iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

47315TUBE, FRONT BRAKE, NO.5

main47315-KK030iGUN15#,16#,TGN156,166..RHD202006-202201

main47315-KK040iLAN155202009-202109

main47315-KK060iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

47316TUBE, FRONT BRAKE, NO.6

main47316-KK020iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

47317TUBE, FRONT BRAKE, NO.7

main47321-KK020iGUN15#,16#,TGN156,166..RHD202006-202201

main47321-KK030iLAN155202009-202109

main47321-KK040iGGN155,GUN15#,16#,TGN156,166..LHD..(EPTSU,IDNSU,SASUV,THSUV,VNSUV)202006-202204

47318TUBE, FRONT BRAKE, NO.8

main47322-KK010iGUN15#,16#,TGN156,166..RHD202006-202201

main47322-KK040iGGN155,GUN15#,16#,TGN156,166..LHD..(EPTSU,IDNSU,SASUV,THSUV,VNSUV)202006-202204

main47322-KK050iLAN155202009-202109

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iGUN156,TGN156,166..PKN202006-202201

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iGUN156,TGN156,166..PKN202006-202201

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-T2115iGUN156,TGN156,166..PKN202006-202201

main90947-T2125iGUN156,166,TGN166..IND202101-202109

47319TUBE, FRONT BRAKE, NO.9

main47323-KK030iGUN15#,16#,TGN156,166..RHD202006-202201

sub47323-KK180

main47323-KK080iGGN155,GUN15#,16#,TGN156,166..LHD..(EPTSU,IDNSU,SASUV,THSUV,VNSUV)202006-202204

main47323-KK090iLAN155202009-202109

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-T2116iGUN156,TGN156,166..PKN202006-202201

main90947-T2126iGUN156,166,TGN166..IND202101-202109

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-T2099iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

NO.1:REFER ILLUST.

main90947-T2103iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

NO.2:REFER ILLUST.

main90947-T2123iGUN156,166,TGN166..IND202101-202109

NO.1:REFER ILLUST.

main90947-T2124iGUN156,166,TGN166..IND202101-202109

NO.2:REFER ILLUST.

47324TUBE, REAR BRAKE, NO.4

main47324-KK030iGUN156,TGN156,166..PKN202006-202201

47325TUBE, REAR BRAKE, NO.5

main47325-KK050iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

47327TUBE, REAR BRAKE, NO.7

main47327-KK190iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

main47327-KK230iTGN166..IDN,VN202007-202204

47328TUBE, REAR BRAKE, NO.8

main47328-KK190iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

main47328-KK230iTGN166..IDN,VN202007-202204

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-0K070iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main47341-0K080iGUN156,TGN156,166..PKN202006-202201

main47341-0K090iGUN15#,16#,LAN155,TGN156..SA202009-202109

main47341-0K100iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main47341-0K110iGUN156,166,TGN166..IND202101-202109

main47341-0K130iGUN15#,TGN156..MA202101-202110

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-0K070iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main47343-0K080iGUN156,TGN156,166..PKN202006-202201

main47343-0K090iGUN15#,16#,LAN155,TGN156..SA202009-202109

main47343-0K100iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main47343-0K110iGUN156,166,TGN166..IND202101-202109

main47343-0K130iGUN15#,TGN156..MA202101-202110

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-KK010iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

47353ABRACKET, FLEXIBLE HOSE, FRONT RH NO.2

main47353-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

47354ABRACKET, FLEXIBLE HOSE, FRONT LH NO.2

main47354-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

47355ABRACKET, FLEXIBLE HOSE, NO.5

main47355-KK030iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

47356BRACKET, FLEXIBLE HOSE, NO.6

main47356-KK020iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

47371ACLAMP, BRAKE TUBE, NO.1

main90461-T0007iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

47371CCLAMP, BRAKE TUBE, NO.7

main90949-T1033×2iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

47371DCLAMP, BRAKE TUBE, NO.8

main90949-T1006×7iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

47371ECLAMP, BRAKE TUBE, NO.9

main90461-T0001×8iTGN166..6FC..IND202101-202109

47372CLAMP, BRAKE TUBE, NO.2

main90949-T1003iGUN15#,16#,TGN156,166..RHD202006-202201

main90949-T1028iGGN155,GUN15#,16#,TGN156,166..LHD..(EPTSU,IDNSU,SASUV,THSUV,VNSUV)202006-202204

main90949-T1029iLAN155202009-202109

47373ABRACKET, TUBE CLAMP

main90949-T2003iGGN155,GUN15#,16#,LAN155,TGN156,166..LHD..(EPTSU,IDNSU,SASUV,THSUV,VNSUV)202006-202204

47373BCLAMP, BRAKE TUBE, NO.3

main90949-T1016×3iGUN15#,16#,TGN156,166..RHD202006-202201

main90949-T1030×4iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

47374BCLAMP, BRAKE TUBE, NO.4

main90949-T1027iGUN15#,16#,TGN156,166..RHD202006-202201

main90949-T1032iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

47375CLAMP, BRAKE TUBE, NO.5

main90949-T1028iGUN15#,16#,TGN156,166..RHD202006-202201

main90949-T1031iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

7751

9011908868

main90119-08868

90119T0126

main90119-T0126

90119T0127

main90119-T0127

90119T0166

main90119-T0166

90119T0319

main90119-T0319

90119T0423

main90119-T0423

9046808035

main90468-08035

90468T0004

main90468-T0004

49 parts on this diagram · 5 diagrams in section
