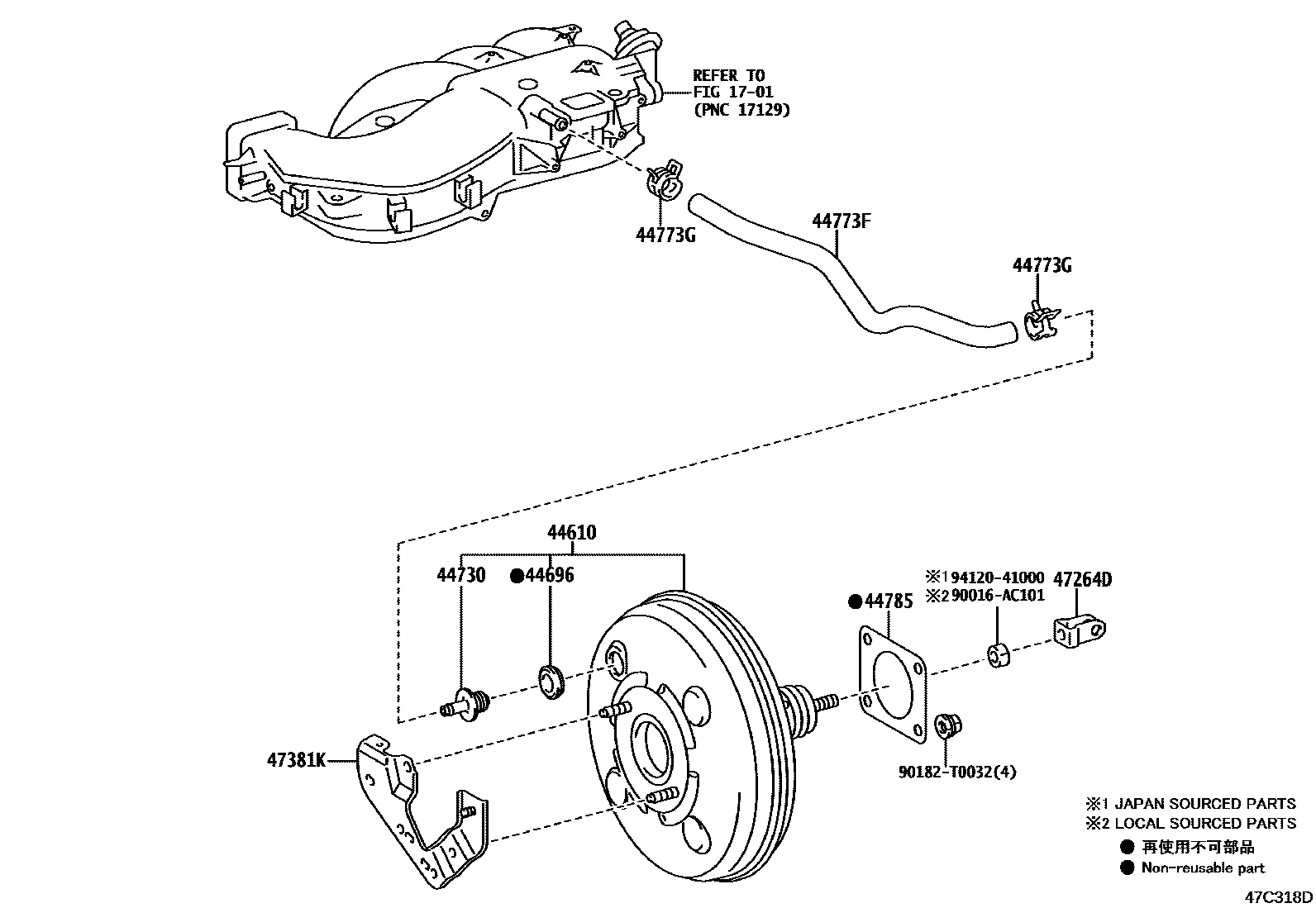

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1701

44610BOOSTER ASSY, BRAKE

main44610-0K270iTGN166..IND202101-202109

main44610-0K430iTGN156..PKN202007-202201

main44610-0K440iGGN155..IDNSU202007-202108

main44610-0K450iGUN15#,16#..LHD..(IDNSU,VNSUV)202007-202204

main44610-0K460iGUN15#,165..RHD..IDNSU202007-202108

main44610-0K550iGUN156,166..6F..IND202101-202109

main44610-0K560iTGN166..PKN202006-202201

main44610-0K580supersedes 44610-0K590iGUN15#,16#..RHD..(ARL,MA,PKN,SA)202006-202201

main44610-0K600iGUN15#,165,LAN155..LHD..(SASUV,THSUV)202006-202109

main44610-0K810iGGN155..EPTSU,THSUV202006-202203

main44610-0K840iGUN156,166..6FC..IND202101-202109

main44610-71010iTGN156,16#..AGTSU202011-202110

main44610-71020iGGN155..LA202011-202110

main44610-71030iGUN156,165..AGTSU202011-202110

main44610-0K610iGUN15#..THSUV..H..GCC202006-202108

TOYOTA STOP & START SYSTEM-WITH

main44610-0K870iGUN15#..IDNSU..H..GCC202007-202108

TOYOTA STOP & START SYSTEM-WITH

44696GROMMET, CHECK VALVE

main90016-AT003×2iGUN156..PKN202006-202201

main90480-24439×2iGGN155,GUN156,16#..AGTSU,INDSU202011-202110

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iGGN155,GUN15#,16#,LAN155..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

44773FHOSE, UNION TO CHECK VALVE

main44773-0K020iLAN155202009-202109

main44773-KK020iGGN155..LA202006-202110

main44773-KK030iGUN156,165..AGTSU202006-202110

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-T0019iGUN156,165..AGTSU202006-202110

NO.1

main90467-16014iGUN156,165..AGTSU202006-202110

NO.2

44785GASKET, BRAKE BOOSTER

main44785-17010iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-04010iGUN156,TGN166..PKN202006-202201

main47264-0K070iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main47264-0K080iGUN156,166..IND202101-202109

main47264-26030iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-0K050iTGN156..PKN202007-202201

main47381-0K060iGUN156,166..IND202101-202109

main47381-0K070iTGN166..AGTSU,INDSU,THSUV;GGN155,GUN15#,16#,LAN155,TGN156,168..AGTSU,MASUV,SASUV,THSUV202006-202102

main47381-0K071iGUN156,TGN166..PKN202102-202201

90016AC101

main90016-AC101

90182T0032

main90182-T0032

9412041000

main94120-41000

12 parts on this diagram · 6 diagrams in section
