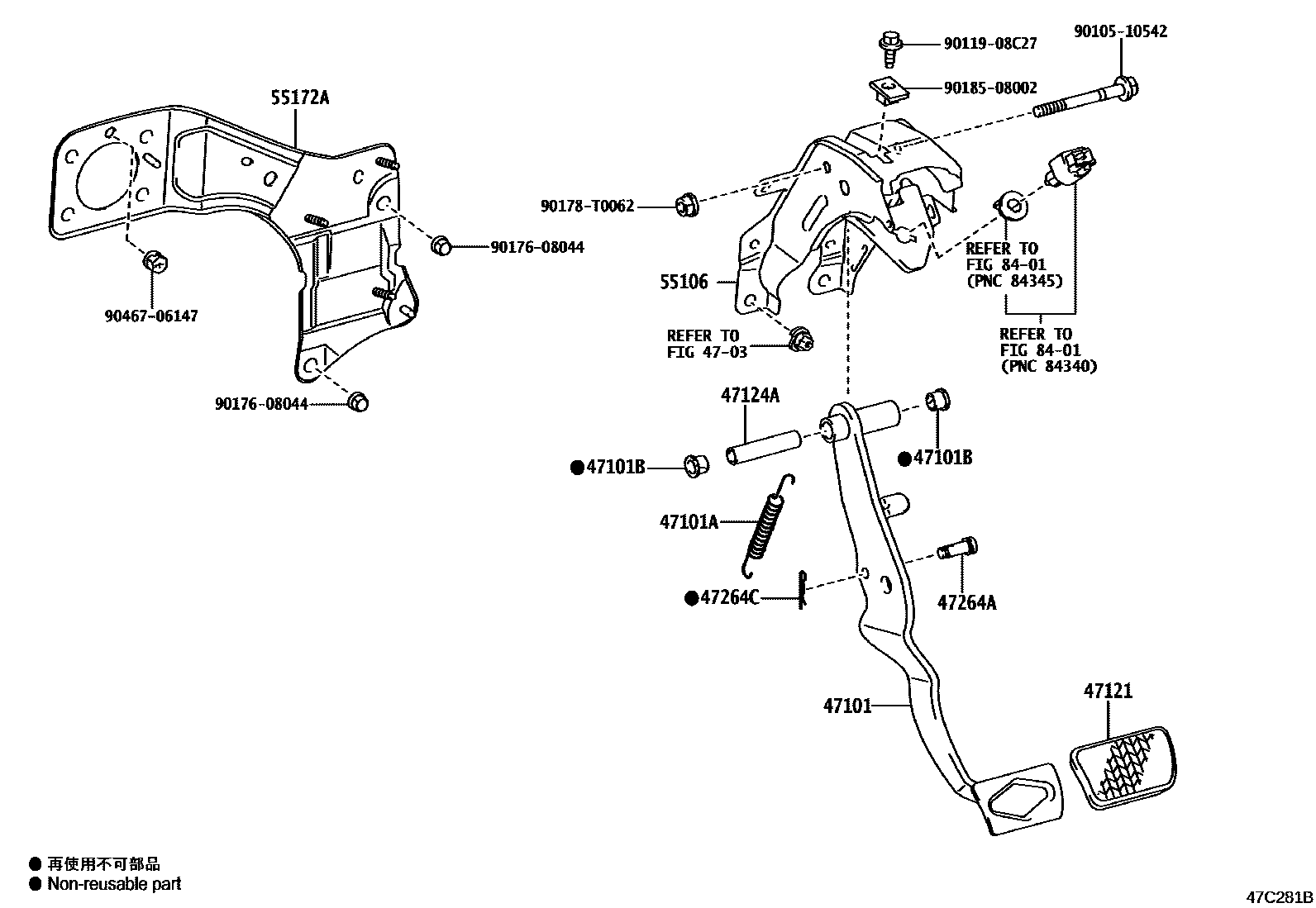

BRAKE PEDAL & BRACKET

0001 1 0002 1

4703

47101PEDAL SUB-ASSY, BRAKE

main47101-KK010iGUN156,16#,TGN166..RHD..MTM202008-202109

main47101-KK020iGUN156,TGN166..AGTSU..MTM202007-202204

main47101-KK030iGUN15#,16#,TGN156,166..RHD..6FC202006-202201

main47101-KK040iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC202006-202204

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-T0002iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

47121PAD, BRAKE PEDAL

main31321-02020iGUN15#,16#,LAN155,TGN156,166..(IDNSU,INDSU,SASUV,VNSUV)..MTM202007-202204

main47121-02030iGUN156,TGN156,166..PKN202006-202204

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10121iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

47264APIN(FOR PUSH ROD)

main47148-35010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-16012iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-KK010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202203

main55106-KK030iGGN155,GUN15#,16#,TGN156,166..IDNSU,INDSU,MASUV,VNSUV202007-202204

55172ABASE, BRAKE PEDAL SUPPORT

main55172-KK040iGUN15#,16#,TGN156,166..RHD202006-202201

main55172-KK050iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

8401

9010510542

main90105-10542

9011908C27

main90119-08C27

9017608044

main90176-08044

90178T0062

main90178-T0062

9018508002

main90185-08002

9046706147

main90467-06147

17 parts on this diagram · 2 diagrams in section
