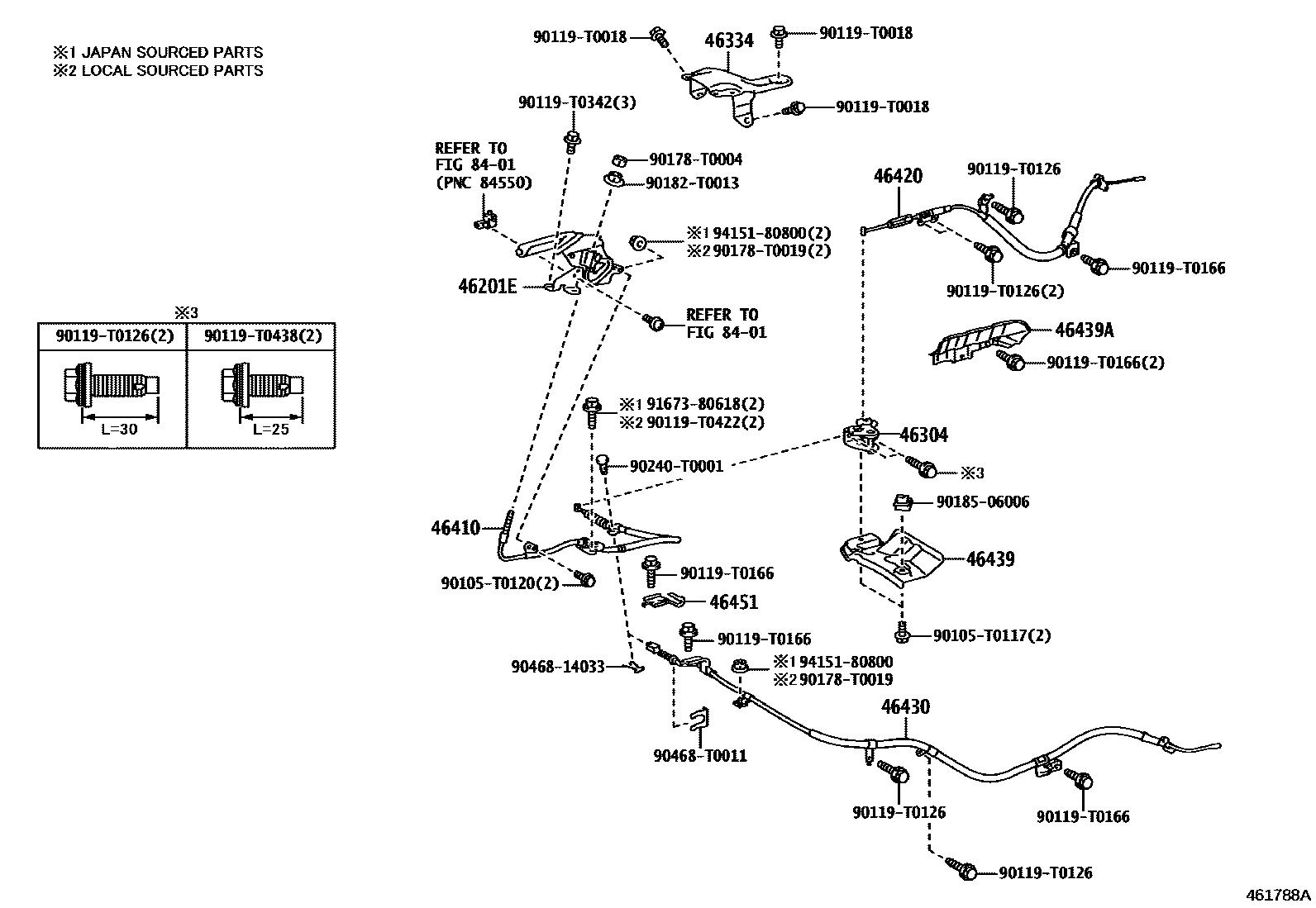

PARKING BRAKE & CABLE

0001 1PARKING BRAKE CABLE 0002 1REAR DISC BRAKE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K140-C0iGUN155,165,TGN156,166..IDNSU..(6F,6FC)..L..(GCC,GEN)202007-202108

BLACK,TRIM4#

main46201-0K140-C0iGUN165,TGN156,166..L..(GEN,PH,VN)202007-202204

BLACK,TRIM2#,4#

main46201-0K180-C2iGUN165..H..VN;GUN155,165,TGN166..IDN202008-202204

BLACK /GRAY,TRIM2#

main46201-0K180-C2iGUN156..RHD..GEN;GUN165..S..(GEN,PH,VN);GUN156..(IDNSU,VNSUV)..(GCC,PH,VN);GGN155,GUN155,166,TGN156,166..(IDNSU,VNSUV)..(H,S)..(GCC,GEN,PH,VN)202007-202204

BLACK /GRAY,TRIM2#,4#

main46201-0K180-C2iGUN156..LHD..IDNSU..GEN202007-202108

BLACK /GRAY,TRIM0#,2#,4#

main46201-0K180-C3iGUN156,165..VNSUV..H;GUN156,166..LHD..IDNSU..(GEN,PH)202007-202204

BRACK/CRIMSON,TRIM3#

main46201-0K190-C0iGUN156,165,TGN156,166..L..LA202011-202110

BLACK,TRIM2#

main46201-0K200-C3iGGN155,TGN168..AGTSU;GUN156,TGN156,166..AGTSU..(H,S)202011-202110

BLACK/GRAY,TRIM2#

main46201-0K210-C0iGUN15#,16#,LAN155,TGN156..SA202009-202109

BLACK,TRIM2#

main46201-0K230-C0iGUN155,165,TGN156..THSUV..L202006-202108

BLACK,TRIM4#

main46201-0K230-C0iGUN155,165,TGN156..THSUV..L202006-202108

BLACK,TRIM2#,4#

main46201-0K230-C0iGUN155..MA202101-202110

BLACK,TRIM2#

main46201-0K240-C2iGUN166..RHD..6FC..H;GUN15#,165..(INDSU,MASUV,THSUV)..H..(GEN,IND,MA,TH)202006-202110

BLACK/CRIMSON NO.69,TRIM3#

main46201-0K240-C3iGUN156,TGN156,166..PKN202006-202203

BLACK/GRAY,TRIM2#,4#

main46201-0K240-C3iGUN156,TGN156..MA202101-202110

BLACK/GRAY,TRIM2#

main46201-0K240-C3iGUN15#,16#..THSUV..H..(GEN,TH)202006-202108

BLACK/GRAY,TRIM0#,2#,4#

main46201-0K240-C3iGUN156,166..RHD..SA202009-202109

DOOR TRIM-LEATHER & PAINT(SILVER),BLACK/GRAY,TRIM2#

main46201-0K250-C0iTGN166..EPT202103-202203

BLACK,TRIM2#

main46201-0K260-C0iGUN156..L..BZAGT202011-202110

BLACK,TRIM2#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K050iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

main46304-0K090iGUN15#,16#,LAN155,TGN156..SA202009-202109

46334PROTECTOR, INTERMEDIATE LEVER

main46334-0K010iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K090iGGN155,GUN15#,16#,TGN156,166..IDNSU,MASUV,VNSUV202007-202204

main46410-0K100iGUN156,TGN156,166..PKN202006-202203

main46410-0K110iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,INDSU,SASUV202009-202110

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K190iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202203

main46420-0K190iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

MADE IN THAILAND

main46420-0K350iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

MADE IN INDONESIA

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K190iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

MADE IN THAILAND

main46430-0K190iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202203

main46430-0K260iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

MADE IN INDONESIA

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K090iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

46439AINSULATOR, PARKING BRAKE CABLE HEAT, NO.2

main46439-0K070iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

46451BRACKET, CABLE SUPPORT

main46451-0K050iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202204

sub46451-0K051

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0018

main90119-T0018

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90119T0422

main90119-T0422

90119T0438

main90119-T0438

90178T0004

main90178-T0004

90178T0019

main90178-T0019

90182T0013

main90182-T0013

9018506006

main90185-06006

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

9167380618

main91673-80618

9415180800

main94151-80800

27 parts on this diagram · 2 diagrams in section
