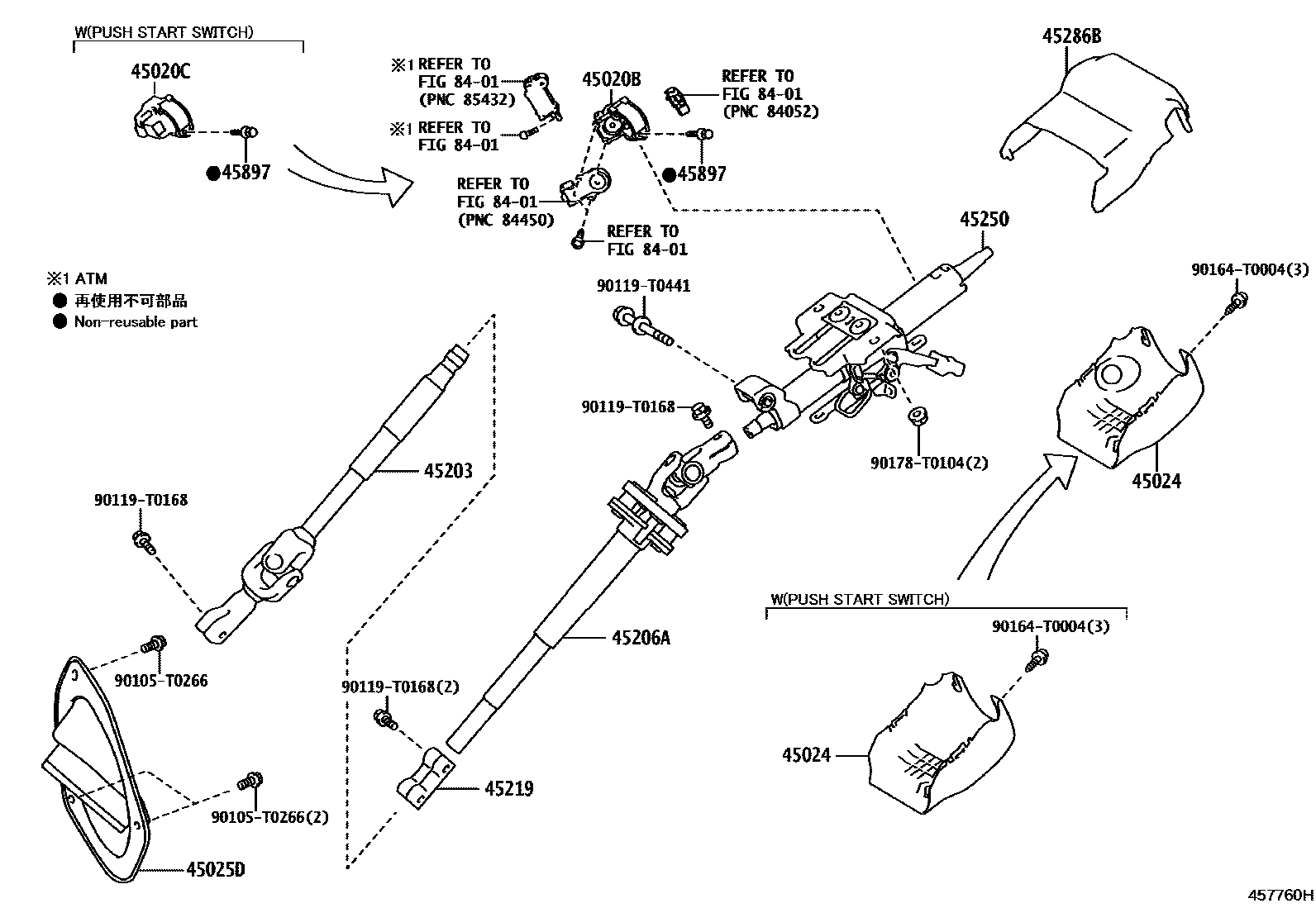

STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
main45280-0K120iGUN156..(L,S)..ARL;GGN155,GUN15#,165,TGN156,166..LHD..(EPTSU,SASUV,THSUV)..6FC..(L,S)202006-202203
main45280-0K160iGUN165..6FC..L..PH;GGN155,GUN155,165,TGN156,166..IDNSU..6FC..(L,S)..(GCC,GEN,IDN)202007-202108
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main45020-0K210iGUN165..IDNSU..S..VN;TGN166..IDNSU..(H,S);GGN155,GUN15#,16#,TGN156..IDNSU..H202007-202108
WIRELESS DOOR LOCK-WITH(*SES)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
45024COVER SUB-ASSY, STEERING COLUMN, LOWER
BLACK,TRIM2#,4#
sub45024-0K011
BLACK,TRIM4#
sub45024-0K011
BLACK,TRIM2#,4#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#,4#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),BLACK,TRIM2#,4#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
sub45024-0K031
BLACK,TRIM2#
sub45024-0K031
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
sub45024-0K051
BLACK,TRIM2#,4#
sub45024-0K051
BLACK,TRIM4#
sub45024-0K051
BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
sub45024-0K071
main45024-0K080-C0iGUN156..RHD..GEN;GUN156..IDNSU..GCC;GGN155,GUN155,TGN156,166..IDNSU..H..(GCC,GEN)202007-202108
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
sub45024-0K081
main45024-0K080-C0iGUN156..RHD..GEN;GUN156..IDNSU..GCC;GGN155,GUN155,TGN156,166..IDNSU..H..(GCC,GEN)202007-202108
WIRELESS DOOR LOCK-WITH(*SES),BLACK,TRIM2#,4#
sub45024-0K081
main45024-0K080-C0iGUN156..RHD..GEN;GUN156..IDNSU..GCC;GGN155,GUN155,TGN156,166..IDNSU..H..(GCC,GEN)202007-202108
WIRELESS DOOR LOCK-WITH(*SES),BLACK,TRIM4#
sub45024-0K081
main45024-0K080-C0iGUN156..RHD..GEN;GUN156..IDNSU..GCC;GGN155,GUN155,TGN156,166..IDNSU..H..(GCC,GEN)202007-202108
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),BLACK,TRIM2#,4#
sub45024-0K081
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#,4#
sub45024-0K081
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
sub45024-0K101
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
main45025-KK040iGGN155,GUN15#,16#,TGN156,166..LHD..(EPTSU,IDNSU,SASUV,THSUV,VNSUV)..6FC202006-202204
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45219YOKE, STEERING SLIDING
main45219-0K090iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV202006-202204
45250COLUMN ASSY, STEERING
main45250-0K080iGUN156,TGN156..LHD..SA;GUN165,TGN166..L..(GEN,VN);GUN156,165..RHD..(L,S)..(ARL,GEN)202006-202204
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#
main45286-0K040-C0iTGN166..THSUV,VNSUV;GUN156..THSUV..(ARL,GCC);GUN165..(THSUV,VNSUV)..(L,S)..(TH,VN);GGN155,GUN155,TGN156..LHD..(EPTSU,THSUV)..(H,S)202006-202204
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
45897BOLT, STEERING LOCK SET
8401
90105T0266
main90105-T0266
90119T0168
main90119-T0168
90119T0441
main90119-T0441
90164T0004
main90164-T0004
90178T0104
main90178-T0104
16 parts on this diagram · 1 diagram in section
