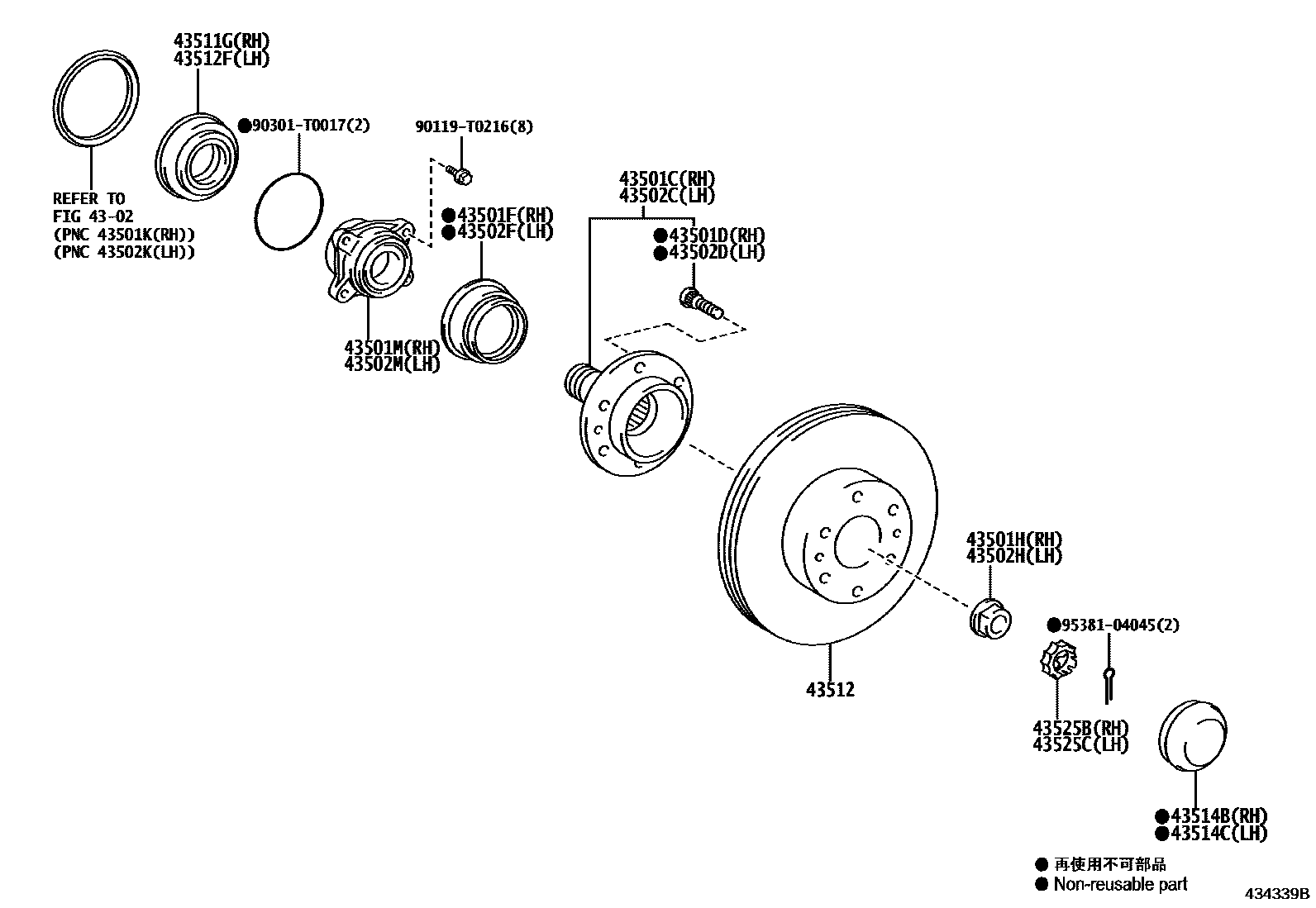

FRONT AXLE HUB

0001 1 0002 1

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-KK010iGUN156,TGN156..PKN202006-202201

main43502-KK020iTGN166..PKN202006-202201

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×6iGUN15#,16#,LAN155,TGN156..SA202009-202109

main90942-02081×6iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-T0001iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-T0113iGGN155,GUN156,TGN156..AGTSU202006-202110

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-F0002iGUN15#,16#,LAN155,TGN156..SA202009-202109

main90366-T0061iGUN156,TGN156,166..PKN202006-202201

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-KK010iGGN155,GUN156,TGN156..AGTSU202006-202110

main43502-KK020iGUN165,TGN16#..AGTSU202006-202110

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×6iGUN15#,16#,LAN155,TGN156..SA202009-202109

main90942-02081×6iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-T0001iGUN156,TGN156,166..PKN202006-202201

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-T0113iGUN156,TGN156..PKN202006-202201

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-F0002iGUN15#,16#,LAN155,TGN156..SA202009-202109

main90366-T0061iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)

main90316-T0002iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

43512DISC, FRONT

main43512-0K210×2iGUN156,TGN156,166..PKN202006-202201

main43512-0K250×2iGUN15#,16#,LAN155,TGN156..SA202009-202109

main43512-0K260×2iGUN156,166,TGN166..IND202101-202109

main43512-0K320×2iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

sub43512-0K220

43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)

main90316-T0002iGGN155,GUN156,TGN156..AGTSU202006-202110

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-0K010iGGN155,GUN156,TGN156..AGTSU202006-202110

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-0K010iGGN155,GUN156,TGN156..AGTSU202006-202110

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-71010iGGN155,GUN156,TGN156..AGTSU202006-202110

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-71010iGGN155,GUN156,TGN156..AGTSU202006-202110

90119T0216

main90119-T0216

90301T0017

main90301-T0017

9538104045

main95381-04045

21 parts on this diagram · 2 diagrams in section
