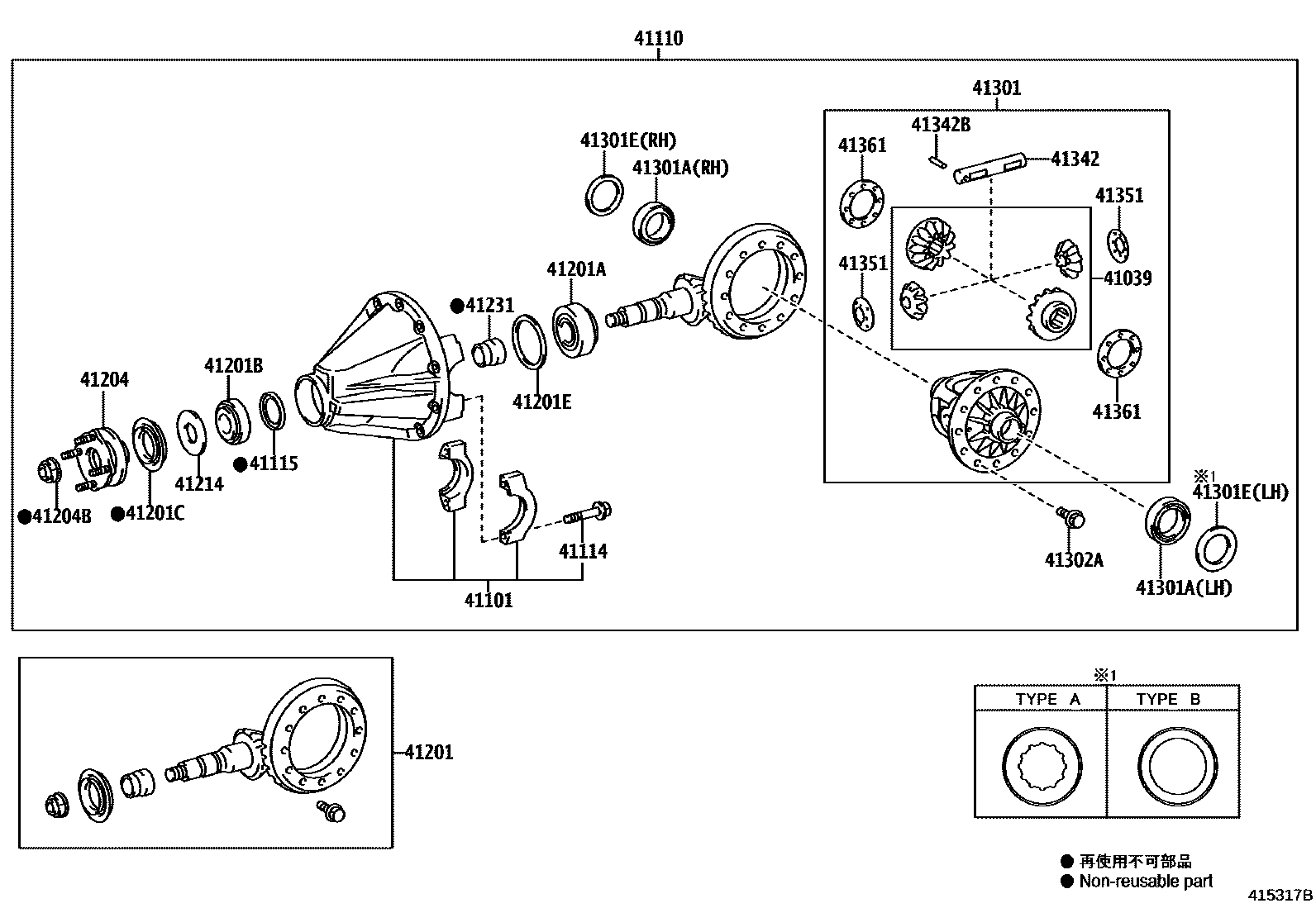

REAR AXLE HOUSING & DIFFERENTIAL

0001 1W/O(DIFFERENTIAL LOCK) 0003 1W/O(DIFFERENTIAL LOCK) 0004 1W(DIFFERENTIAL LOCK) 0006 1W(DIFFERENTIAL LOCK) 0007 1 0008 1W(DIFFERENTIAL LOCK) 0009 1 0010 1

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-0K010iGUN155..L..GCC;TGN166..H..GEN;GUN156..BZAGT,GEN,LA;GUN165..LHD..(GEN,LA);GUN156,TGN156..LHD..SA;TGN156..(H,L)..(GCC,GEN);GGN155,GUN155,LAN155,TGN168..LHD..(H,S)..(B202006-202110

DIFFERENTIAL LOCK-WITH

main41039-0K010iGUN156..PKN202006-202204

main41039-0K040iTGN166..IDN,VN202007-202204

main41039-71070iTGN156,166..PKN202006-202204

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-0K070iGUN155..MA,TH;GUN155..L..GCC;TGN166..5F..IND;GUN155..LHD..GEN;TGN156..(H,L)..(GCC,GEN);GGN155,GUN156..EPT,GEN,TH;TGN166..6FC..(EPT,GCC,GEN,IND);GUN16#..IDNSU,INDSU,202006-202204

main41101-0K080iTGN166..L..GEN;GUN155..RHD..IDNSU;GUN155,TGN156..(H,S)..(GCC,MA,VN);GGN155,GUN156..ARL,GCC,IND,MA,PH,VN202006-202204

main41101-0K110iTGN168..S;TGN156..SA;GGN155,GUN156,165,LAN155..LHD..(AGTSU,SASUV)202009-202110

main41101-0K120iTGN168..L;TGN156,166..AGTSU;GUN15#,16#..RHD..SA202009-202110

DIFFERENTIAL LOCK-WITH

main41101-0K140iTGN166..IDN,VN202007-202204

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-0K540iTGN166..IDN,VN202007-202204

*FGR=41:9=4.555

main41110-0K570iGUN155,16#..(IDNSU,INDSU,VNSUV)..6F202007-202204

*FGR=43:12=3.583

main41110-0K580iGUN166..6FC..H;GGN155,GUN156..EPT,GEN,TH202006-202203

*FGR=43:11=3.909

main41110-0K590iGUN155..MA,TH;GUN155..L..GCC;GUN155..LHD..H..GEN;GUN165..(IDNSU,THSUV,VNSUV)..6FC202006-202204

*FGR=41:10=4.100

main41110-0K610iTGN156,166..PKN202006-202203

*FGR=41:9=4.555

main41110-0K620iGUN156..6F..IND202101-202109

*FGR=43:12=3.583

main41110-0K630iGGN155,GUN156..6FC..(ARL,GCC,IND,MA,PH,VN)202006-202204

*FGR=43:11=3.909

main41110-0K640iGUN155..RHD..IDNSU;GUN155..(H,S)..GCC202006-202108

*FGR=41:10=4.100,DIFFERENTIAL LOCK-WITH

main41110-0K640iGUN155..RHD..IDNSU;GUN155..(H,S)..GCC202006-202108

*FGR=41:10=4.100

main41110-0K660iTGN166..L..GEN;TGN156..(H,S)..(GCC,MA,VN)202006-202110

*FGR=41:9=4.555

main41110-0K670iGUN156..AGTSU..6F202011-202110

*FGR=43:12=3.583

sub41110-0K671

main41110-0K680iGGN155,GUN156..AGTSU..6FC202011-202110

*FGR=43:11=3.909

sub41110-0K681

main41110-0K710iTGN168..L;TGN156,166..AGTSU..6FC202011-202110

*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITHOUT

sub41110-0K711

main41110-0K710iTGN168..S202011-202110

*FGR=41:9=4.555

sub41110-0K711

main41110-0K760iTGN168..S202011-202110

*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITH

sub41110-0K761

main41110-0K760iTGN168..S202011-202110

*FGR=41:9=4.555

sub41110-0K761

main41110-0K770iGUN156..LHD..6F..SA202009-202109

*FGR=43:12=3.583

sub41110-0K771

main41110-0K780iGUN156..LHD..6FC..SA202009-202109

*FGR=43:11=3.909

sub41110-0K781

main41110-0K810iLAN155,TGN156..SA202009-202109

*FGR=41:9=4.555

sub41110-0K811

main41110-0K820iGUN156,16#..RHD..6F..SA202009-202109

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

sub41110-0K821

main41110-0K820iGUN156,16#..RHD..6F..SA202009-202109

*FGR=43:12=3.583

sub41110-0K821

main41110-0K830iGUN156..LHD..6FC..SA202009-202109

*FGR=43:11=3.909

sub41110-0K831

main41110-0K830iGUN156..LHD..6FC..SA202009-202109

*FGR=43:11=3.909,DIFFERENTIAL LOCK-WITH

sub41110-0K831

main41110-0K840iGUN155,165..6FC..SA202009-202109

*FGR=41:10=4.100

sub41110-0K841

main41110-0K880iGUN165..LA202011-202110

*FGR=41:10=4.100

sub41110-0K881

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-F0001iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

TYPE A:REFER ILLUST.

main90105-T0345iTGN166..IDN,VN202007-202204

main90109-F0001iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

TYPE B:REFER ILLUST.

main90109-T0030iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

41115RING, DIFFERENTIAL OIL STORAGE

main41115-0K020iTGN166..EPT,GCC,GEN,IND,PKN;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,PKNSU,THSUV,VNSUV202006-202105

main41115-0K070iTGN166..IDN,VN202007-202204

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-09B60iGUN15#,16#..(IDNSU,INDSU,VNSUV)..6F202007-202204

*FGR=43:12=3.583

main41201-09B70iGUN156..PKN202006-202204

*FGR=43:11=3.909

main41201-09B80iGUN155,165..(IDNSU,MASUV,THSUV,VNSUV)..6FC202006-202204

*FGR=41:10=4.100

main41201-09C10iTGN156,166..PKN202006-202203

*FGR=41:9=4.555

main41201-09E41iGUN156,16#..(AGTSU,SASUV)..6F202009-202110

*FGR=43:12=3.583

sub41201-09E42

main41201-09E81iLAN155,TGN156,16#..AGTSU,SASUV202009-202110

*FGR=41:9=4.555

sub41201-09E82

main41201-09F00iTGN166..IDN,VN202007-202204

*FGR=41:9=4.555

main41201-09F50iGGN155,GUN156..AGTSU..6FC202011-202110

*FGR=43:11=3.909

sub41201-09F51

main41201-09F70iGUN156,166..6FC..SA202009-202109

*FGR=43:11=3.909

sub41201-09F71

main41201-09F80iGUN155,165..6FC..SA202009-202109

*FGR=41:10=4.100

sub41201-09F81

main41201-09G00iGUN165..LA202011-202110

sub41201-09G01

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-S0016iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

main90366-T0065iGUN156,TGN156,166..PKN202006-202204

main90366-T0109iTGN166..IDN,VN202007-202204

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-S0013iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

main90366-T0062iGUN156,TGN156,166..PKN202006-202204

main90366-T0110iTGN166..IDN,VN202007-202204

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-S0001iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

sub90311-53001

main90311-T0065iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

main90311-T0089iTGN166..IDN,VN202007-202204

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-78001iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=1.72

main90564-78002iGUN156,TGN156,166..PKN202006-202204

T=1.74

main90564-78003iGUN156,TGN156,166..PKN202006-202204

T=1.76

main90564-78004iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=1.78

main90564-78005iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=1.80

main90564-78006iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=1.82

main90564-78007iGUN156,TGN156,166..PKN202006-202204

T=1.84

main90564-78008iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=1.86

main90564-78009iGUN156,TGN156,166..PKN202006-202204

T=1.88

main90564-78010iGUN156,TGN156,166..PKN202006-202204

T=1.90

main90564-78011iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=1.92

main90564-78012iGUN156,TGN156,166..PKN202006-202204

T=1.94

main90564-78013iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=1.96

main90564-78014iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=1.98

main90564-78015iGUN156,TGN156,166..PKN202006-202204

T=2.00

main90564-78016iGUN156,TGN156,166..PKN202006-202204

T=2.02

main90564-78017iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.04

main90564-78018iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.06

main90564-78019iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.08

main90564-78020iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.10

main90564-78021iGUN156,TGN156,166..PKN202006-202204

T=2.12

main90564-78022iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.14

main90564-78023iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.16

main90564-78024iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.18

main90564-S0001iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.025

main90564-S0002iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.050

main90564-S0003iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.075

main90564-S0004iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.100

main90564-S0005iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.125

main90564-S0006iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.150

main90564-S0007iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.175

main90564-S0008iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.200

main90564-S0009iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.225

main90564-S0010iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.250

main90564-S0011iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.275

main90564-S0012iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.300

main90564-S0013iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.325

main90564-S0014iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.350

main90564-S0015iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.375

main90564-S0016iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.400

main90564-S0017iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.425

main90564-S0018iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.450

main90564-S0019iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.475

main90564-T0067iTGN166..IDN,VN202007-202204

T=1.70

main90564-T0068iTGN166..IDN,VN202007-202204

T=1.73

main90564-T0069iTGN166..IDN,VN202007-202204

T=1.76

main90564-T0070iTGN166..IDN,VN202007-202204

T=1.79

main90564-T0071iTGN166..IDN,VN202007-202204

T=1.82

main90564-T0072iTGN166..IDN,VN202007-202204

T=1.85

main90564-T0073iTGN166..IDN,VN202007-202204

T=1.88

main90564-T0074iTGN166..IDN,VN202007-202204

T=1.91

main90564-T0075iTGN166..IDN,VN202007-202204

T=1.94

main90564-T0076iTGN166..IDN,VN202007-202204

T=1.97

main90564-T0077iTGN166..IDN,VN202007-202204

T=2.00

main90564-T0078iTGN166..IDN,VN202007-202204

T=2.03

main90564-T0079iTGN166..IDN,VN202007-202204

T=2.06

main90564-T0080iTGN166..IDN,VN202007-202204

T=2.09

main90564-T0081iTGN166..IDN,VN202007-202204

T=2.12

main90564-T0082iTGN166..IDN,VN202007-202204

T=2.15

main90564-T0083iTGN166..IDN,VN202007-202204

T=2.18

main90564-T0084iTGN166..IDN,VN202007-202204

T=2.21

main90564-T0085iTGN166..IDN,VN202007-202204

T=2.24

main90564-T0086iTGN166..IDN,VN202007-202204

T=2.27

main90564-T0087iTGN166..IDN,VN202007-202204

T=2.30

main90564-T0088iTGN166..IDN,VN202007-202204

T=2.33

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-0K110iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

main41204-0K130iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202101

sub41204-0K131

main41204-0K131iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202101-202110

main41204-0K140iTGN166..IDN,VN202007-202204

41204BNUT (FOR REAR DRIVE PINION)

main90177-T0023iTGN166..IDN,VN202007-202204

OD=39.5

main90178-F0001iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

OD=43.5

main90179-22029iGUN156,TGN156,166..PKN202006-202204

OD=43

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-0K040iGUN156,TGN156,166..PKN202006-202204

main41214-0K050iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

main41214-0K060iTGN166..IDN,VN202007-202204

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-0K030iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

main41231-0K040iTGN166..IDN,VN202007-202204

main41231-71010iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-0K100iTGN168..S;TGN156..SA;GGN155,GUN156,165,LAN155..LHD..(AGTSU,SASUV)202009-202110

main41301-0K120iTGN156,166..PKN202006-202204

main41301-0K230iTGN166..IDN,VN202007-202204

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-S0019iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

LH

main90366-S0022iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

RH

main90366-T0068iGUN156,TGN156,166..PKN202006-202204

LH

main90366-T0071iGUN156,TGN156,166..PKN202006-202204

RH

main90366-T0108iTGN166..IDN,VN202007-202204

41301ESHIM(FOR DIFFERENTIAL CASE)

main90201-52001iGUN156,TGN156,166..PKN202006-202204

T=2.58,MARK 01,LH,TYPE A:REF.ILL.

main90201-52003iGUN156,TGN156,166..PKN202006-202204

T=2.64,MARK 03,LH,TYPE A:REF.ILL.

main90564-46014iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.60,MARK 32,LH,TYPE A:REF.ILL.

main90564-46015iGUN156,TGN156,166..PKN202006-202204

T=2.62,MARK 33,LH,TYPE A:REF.ILL.

main90564-46016iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.66,MARK 34,LH,TYPE A:REF.ILL.

main90564-46017iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.68,MARK 35,LH,TYPE A:REF.ILL.

main90564-46044iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.42,MARK 62,LH,TYPE A:REF.ILL.

main90564-46045iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.44,MARK 63,LH,TYPE A:REF.ILL.

main90564-46046iGUN156,TGN156,166..PKN202006-202204

T=2.46,MARK 64,LH,TYPE A:REF.ILL.

main90564-46047iGUN156,TGN156,166..PKN202006-202204

T=2.48,MARK 65,LH,TYPE A:REF.ILL.

main90564-46048iGUN156,TGN156,166..PKN202006-202204

T=2.50,MARK 66,LH,TYPE A:REF.ILL.

main90564-46049iGUN156,TGN156,166..PKN202006-202204

T=2.52,MARK 67,LH,TYPE A:REF.ILL.

main90564-46050iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.54,MARK 68,LH,TYPE A:REF.ILL.

main90564-46051iGUN156,TGN156,166..PKN202006-202204

T=2.56,MARK 69,LH,TYPE A:REF.ILL.

main90564-46053iGUN156,TGN156,166..PKN202006-202204

T=2.08,MARK 71,LH,TYPE A:REF.ILL.

main90564-46054iGUN156,TGN156,166..PKN202006-202204

T=2.10,MARK 72,LH,TYPE A:REF.ILL.

main90564-46055iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.12,MARK 73,LH,TYPE A:REF.ILL.

main90564-46056iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.14,MARK 74,LH,TYPE A:REF.ILL.

main90564-46057iGUN156,TGN156,166..PKN202006-202204

T=2.16,MARK 75,LH,TYPE A:REF.ILL.

main90564-46058iGUN156,TGN156,166..PKN202006-202204

T=2.18,MARK 76,LH,TYPE A:REF.ILL.

main90564-46059iGUN156,TGN156,166..PKN202006-202204

T=2.20,MARK 77,LH,TYPE A:REF.ILL.

main90564-46060iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.22,MARK 78,LH,TYPE A:REF.ILL.

main90564-46061iGUN156,TGN156,166..PKN202006-202204

T=2.24,MARK 79,LH,TYPE A:REF.ILL.

main90564-46062iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.26,MARK 80,LH,TYPE A:REF.ILL.

main90564-46063iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.28,MARK 81,LH,TYPE A:REF.ILL.

main90564-46064iGUN156,TGN156,166..PKN202006-202204

T=2.30,MARK 82,LH,TYPE A:REF.ILL.

main90564-46065iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.32,MARK 83,LH,TYPE A:REF.ILL.

main90564-46066iGUN156,TGN156,166..PKN202006-202204

T=2.34,MARK 84,LH,TYPE A:REF.ILL.

main90564-46067iGUN156,TGN156,166..PKN202006-202204

T=2.36,MARK 85,LH,TYPE A:REF.ILL.

main90564-46068iGUN156,TGN156,166..PKN202006-202204

T=2.38,MARK 86,LH,TYPE A:REF.ILL.

main90564-46069iGUN156,TGN156,166..PKN202006-202204

T=2.40,MARK 87,LH,TYPE A:REF.ILL.

main90564-59044iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.08,LH,TYPE B:REF.ILL.

main90564-59045iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.10,LH,TYPE B:REF.ILL.

main90564-59046iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.12,LH,TYPE B:REF.ILL.

main90564-59047iGUN156,TGN156,166..PKN202006-202204

T=2.14,LH,TYPE B:REF.ILL.

main90564-59048iGUN156,TGN156,166..PKN202006-202204

T=2.16,LH,TYPE B:REF.ILL.

main90564-59049iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.18,LH,TYPE B:REF.ILL.

main90564-59050iGUN156,TGN156,166..PKN202006-202204

T=2.20,LH,TYPE B:REF.ILL.

main90564-59051iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.22,LH,TYPE B:REF.ILL.

main90564-59052iGUN156,TGN156,166..PKN202006-202204

T=2.24,LH,TYPE B:REF.ILL.

main90564-59053iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.26,LH,TYPE B:REF.ILL.

main90564-59054iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.28,LH,TYPE B:REF.ILL.

main90564-59055iGUN156,TGN156,166..PKN202006-202204

T=2.30,LH,TYPE B:REF.ILL.

main90564-59056iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.32,LH,TYPE B:REF.ILL.

main90564-59057iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.34,LH,TYPE B:REF.ILL.

main90564-59058iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.36,LH,TYPE B:REF.ILL.

main90564-59059iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.38,LH,TYPE B:REF.ILL.

main90564-59060iGUN156,TGN156,166..PKN202006-202204

T=2.40,LH,TYPE B:REF.ILL.

main90564-59061iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.42,LH,TYPE B:REF.ILL.

main90564-59062iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.44,LH,TYPE B:REF.ILL.

main90564-59063iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.46,LH,TYPE B:REF.ILL.

main90564-59064iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.48,LH,TYPE B:REF.ILL.

main90564-59065iGUN156,TGN156,166..PKN202006-202204

T=2.50,LH,TYPE B:REF.ILL.

main90564-59066iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.52,LH,TYPE B:REF.ILL.

main90564-59067iGUN156,TGN156,166..PKN202006-202204

T=2.54,LH,TYPE B:REF.ILL.

main90564-59068iGUN156,TGN156,166..PKN202006-202204

T=2.56,LH,TYPE B:REF.ILL.

main90564-59069iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.58,LH,TYPE B:REF.ILL.

main90564-59070iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.60,LH,TYPE B:REF.ILL.

main90564-59071iGUN156,TGN156,166..PKN202006-202204

T=2.62,LH,TYPE B:REF.ILL.

main90564-59072iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.64,LH,TYPE B:REF.ILL.

main90564-59073iGUN156,TGN156,166..PKN202006-202204

T=2.66,LH,TYPE B:REF.ILL.

main90564-59074iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.68,LH,TYPE B:REF.ILL.

main90564-59075iGUN156,TGN156,166..PKN202006-202204

T=2.06,RH

main90564-59076iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.08,RH

main90564-59077iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.10,RH

main90564-59078iGUN156,TGN156,166..PKN202006-202204

T=2.12,RH

main90564-59079iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.14,RH

main90564-59080iGUN156,TGN156,166..PKN202006-202204

T=2.16,RH

main90564-59081iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.18,RH

main90564-59082iGUN156,TGN156,166..PKN202006-202204

T=2.20,RH

main90564-59083iGUN156,TGN156,166..PKN202006-202204

T=2.22,RH

main90564-59084iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.24,RH

main90564-59085iGUN156,TGN156,166..PKN202006-202204

T=2.26,RH

main90564-59086iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.28,RH

main90564-59087iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.30,RH

main90564-59088iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.32,RH

main90564-59089iGUN156,TGN156,166..PKN202006-202204

T=2.34,RH

main90564-59090iGUN156,TGN156,166..PKN202006-202204

T=2.36,RH

main90564-59091iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.38,RH

main90564-59092iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.40,RH

main90564-59093iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.42,RH

main90564-59094iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.44,RH

main90564-59095iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.46,RH

main90564-59096iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.48,RH

main90564-59097iGUN156,TGN156,166..PKN202006-202204

T=2.50,RH

main90564-59098iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.52,RH

main90564-59099iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.54,RH

main90564-59100iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.56,RH

main90564-59101iGUN156,TGN156,166..PKN202006-202204

T=2.58,RH

main90564-59102iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.60,RH

main90564-59103iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.62,RH

main90564-59104iGUN156,TGN156,166..PKN202006-202204

T=2.64,RH

main90564-59105iGUN156,TGN156,166..PKN202006-202204

T=2.66,RH

main90564-59106iTGN166..EPT,GCC,GEN,IND;GGN155,GUN15#,16#,TGN156..EPTSU,IDNSU,INDSU,MASUV,THSUV,VNSUV202006-202204

T=2.68,RH

main90564-S0025iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.832,LH

main90564-S0026iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.804,LH

main90564-S0027iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.777,LH

main90564-S0028iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.749,LH

main90564-S0029iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.721,LH

main90564-S0030iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.693,LH

main90564-S0031iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.665,LH

main90564-S0032iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.637,LH

main90564-S0033iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.609,LH

main90564-S0034iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.581,LH

main90564-S0035iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.553,LH

main90564-S0036iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.525,LH

main90564-S0037iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.497,LH

main90564-S0038iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.469,LH

main90564-S0039iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.441,LH

main90564-S0040iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.413,LH

main90564-S0041iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.385,LH

main90564-S0042iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.357,LH

main90564-S0043iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.329,LH

main90564-S0044iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.302,LH

main90564-S0045iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.274,LH

main90564-S0046iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.246,LH

main90564-S0047iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.218,LH

main90564-S0048iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.190,LH

main90564-S0049iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.162,LH

main90564-S0050iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.134,LH

main90564-S0051iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.860,LH

main90564-S0052iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.888,LH

main90564-S0053iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.916,LH

main90564-S0054iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.944,LH

main90564-S0055iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=0.76,RH

main90564-S0056iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=0.79,RH

main90564-S0057iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=0.81,RH

main90564-S0058iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=0.84,RH

main90564-S0059iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=0.86,RH

main90564-S0060iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=0.89,RH

main90564-S0061iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=0.91,RH

main90564-S0062iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=0.94,RH

main90564-S0063iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=0.97,RH

main90564-S0064iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=0.99,RH

main90564-S0065iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.02,RH

main90564-S0066iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.04,RH

main90564-S0067iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.07,RH

main90564-S0068iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.09,RH

main90564-S0069iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.12,RH

main90564-S0070iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.14,RH

main90564-S0071iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.17,RH

main90564-S0072iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.19,RH

main90564-S0073iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.22,RH

main90564-S0074iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.24,RH

main90564-S0075iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.27,RH

main90564-S0076iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.30,RH

main90564-S0077iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.32,RH

main90564-S0078iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.35,RH

main90564-S0079iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.37,RH

main90564-S0080iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.40,RH

main90564-S0081iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.42,RH

main90564-S0082iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.45,RH

main90564-S0083iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.47,RH

main90564-S0084iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.50,RH

main90564-S0085iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.52,RH

main90564-S0086iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.55,RH

main90564-S0087iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.57,RH

main90564-S0088iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.60,RH

main90564-S0089iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.63,RH

main90564-S0090iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.65,RH

main90564-S0091iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.68,RH

main90564-S0092iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.70,RH

main90564-S0093iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.73,RH

main90564-S0094iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.75,RH

main90564-S0095iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.78,RH

main90564-S0096iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.80,RH

main90564-S0097iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.83,RH

main90564-S0098iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.85,RH

main90564-S0099iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.88,RH

main90564-S0100iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.91,RH

main90564-S0101iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.93,RH

main90564-S0102iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.96,RH

main90564-S0103iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=1.98,RH

main90564-S0104iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.01,RH

main90564-S0105iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.03,RH

main90564-S0106iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.06,RH

main90564-S0107iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.08,RH

main90564-S0108iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.11,RH

main90564-S0109iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.13,RH

main90564-S0110iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.16,RH

main90564-S0111iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.18,RH

main90564-S0112iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.21,RH

main90564-S0113iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.24,RH

main90564-S0114iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.26,RH

main90564-S0115iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.29,RH

main90564-S0116iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.31,RH

main90564-S0117iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.34,RH

main90564-S0118iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.36,RH

main90564-S0119iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.39,RH

main90564-S0120iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.41,RH

main90564-S0121iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.44,RH

main90564-S0122iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.46,RH

main90564-S0123iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.49,RH

main90564-S0124iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.51,RH

main90564-S0125iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

T=2.54,RH

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-0K020iTGN166..L..GEN;GUN155..RHD..IDNSU;GUN155,TGN156..(H,S)..(GCC,MA,VN);GGN155,GUN156..ARL,GCC,IND,MA,PH,VN202006-202204

main41302-0K030iTGN168..S;TGN156..SA;GGN155,GUN156,165,LAN155..LHD..(AGTSU,SASUV)202009-202110

DIFFERENTIAL LOCK-WITH

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-F0003iGGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,SASUV202009-202110

main90105-T0268iGUN156,TGN156,166..PKN202006-202204

main90105-T0346iTGN166..IDN,VN202007-202204

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-0K070iTGN156,166..PKN202006-202204

main41342-0K080iTGN168..L;TGN156,166..AGTSU202006-202110

DIFFERENTIAL LOCK-WITH

main41342-0K080iGUN156..PKN202006-202204

main41342-0K130iTGN166..IDN,VN202007-202204

41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)

main90250-T0006iTGN156,166..PKN202006-202204

main90250-T0028iTGN166..IDN,VN202007-202204

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-0K040iTGN156,166..PKN202006-202204

main41351-0K050iGUN156..PKN202006-202204

main41351-0K060iTGN156..SA;GUN156..LHD..(AGTSU,SASUV);GGN155,LAN155,TGN168..(AGTSU,SASUV)..(H,S)202009-202110

DIFFERENTIAL LOCK-WITH

main41351-0K080iTGN166..IDN,VN202007-202204

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-0K110iTGN156,166..PKN202006-202204

T=1.45

main41361-0K300iTGN156,166..PKN202006-202204

T=1.50

main41361-0K310iTGN156,166..PKN202006-202204

T=1.55

main41361-0K320iTGN156,166..PKN202006-202204

T=1.60

main41361-0K330iTGN156,166..PKN202006-202204

T=1.65

main41361-0K340iTGN156,166..PKN202006-202204

T=1.70

main41361-0K350iGUN155..MA,TH;GUN155..L..GCC;TGN166..5F..IND;GUN155..LHD..GEN;TGN156..(H,L)..(GCC,GEN);GGN155,GUN156..EPT,GEN,TH;TGN166..6FC..(EPT,GCC,GEN,IND);GUN16#..IDNSU,INDSU,202006-202204

T=1.75

main41361-0K360iTGN156,166..PKN202006-202204

T=1.80

main41361-0K370iTGN156,166..PKN202006-202204

T=1.85

main41361-0K380iTGN166..L..GEN;GUN155..RHD..IDNSU;GUN155,TGN156..(H,S)..(GCC,MA,VN);GGN155,GUN156..ARL,GCC,IND,MA,PH,VN202006-202204

T=1.1

main41361-0K390iTGN166..L..GEN;GUN155..RHD..IDNSU;GUN155,TGN156..(H,S)..(GCC,MA,VN);GGN155,GUN156..ARL,GCC,IND,MA,PH,VN202006-202204

T=1.2

main41361-0K400iTGN166..L..GEN;GUN155..RHD..IDNSU;GUN155,TGN156..(H,S)..(GCC,MA,VN);GGN155,GUN156..ARL,GCC,IND,MA,PH,VN202006-202204

T=1.3

main41361-0K410iTGN166..L..GEN;GUN155..RHD..IDNSU;GUN155,TGN156..(H,S)..(GCC,MA,VN);GGN155,GUN156..ARL,GCC,IND,MA,PH,VN202006-202204

T=1.4

main41361-0K460iTGN168..L;TGN156,166..AGTSU;GUN15#,16#..RHD..SA202009-202110

T=1.1,DIFFERENTIAL LOCK-WITH

main41361-0K460iTGN168..S;TGN156..SA;GGN155,GUN156,165,LAN155..LHD..(AGTSU,SASUV)202009-202110

T=1.1

main41361-0K470iTGN168..L;TGN156,166..AGTSU;GUN15#,16#..RHD..SA202009-202110

T=1.2,DIFFERENTIAL LOCK-WITH

main41361-0K470iTGN168..S;TGN156..SA;GGN155,GUN156,165,LAN155..LHD..(AGTSU,SASUV)202009-202110

T=1.2

main41361-0K480iTGN168..L;TGN156,166..AGTSU;GUN15#,16#..RHD..SA202009-202110

T=1.3,DIFFERENTIAL LOCK-WITH

main41361-0K480iTGN168..S;TGN156..SA;GGN155,GUN156,165,LAN155..LHD..(AGTSU,SASUV)202009-202110

T=1.3

main41361-0K490iTGN168..L;TGN156,166..AGTSU;GUN15#,16#..RHD..SA202009-202110

T=1.4

main41361-0K490iTGN168..L;TGN156,166..AGTSU;GUN15#,16#..RHD..SA202009-202110

T=1.4,DIFFERENTIAL LOCK-WITH

main41361-0K550iTGN166..IDN,VN202007-202204

T=1.50

main41361-0K560iTGN166..IDN,VN202007-202204

T=1.55

main41361-0K570iTGN166..IDN,VN202007-202204

T=1.60

main41361-0K580iTGN166..IDN,VN202007-202204

T=1.65

main41361-0K590iTGN166..IDN,VN202007-202204

T=1.70

main41361-0K600iTGN166..IDN,VN202007-202204

T=1.75

main41361-0K610iTGN166..IDN,VN202007-202204

T=1.80

main41361-0K620iTGN166..IDN,VN202007-202204

T=1.85

main41361-0K630iTGN166..IDN,VN202007-202204

T=1.90

23 parts on this diagram · 8 diagrams in section
