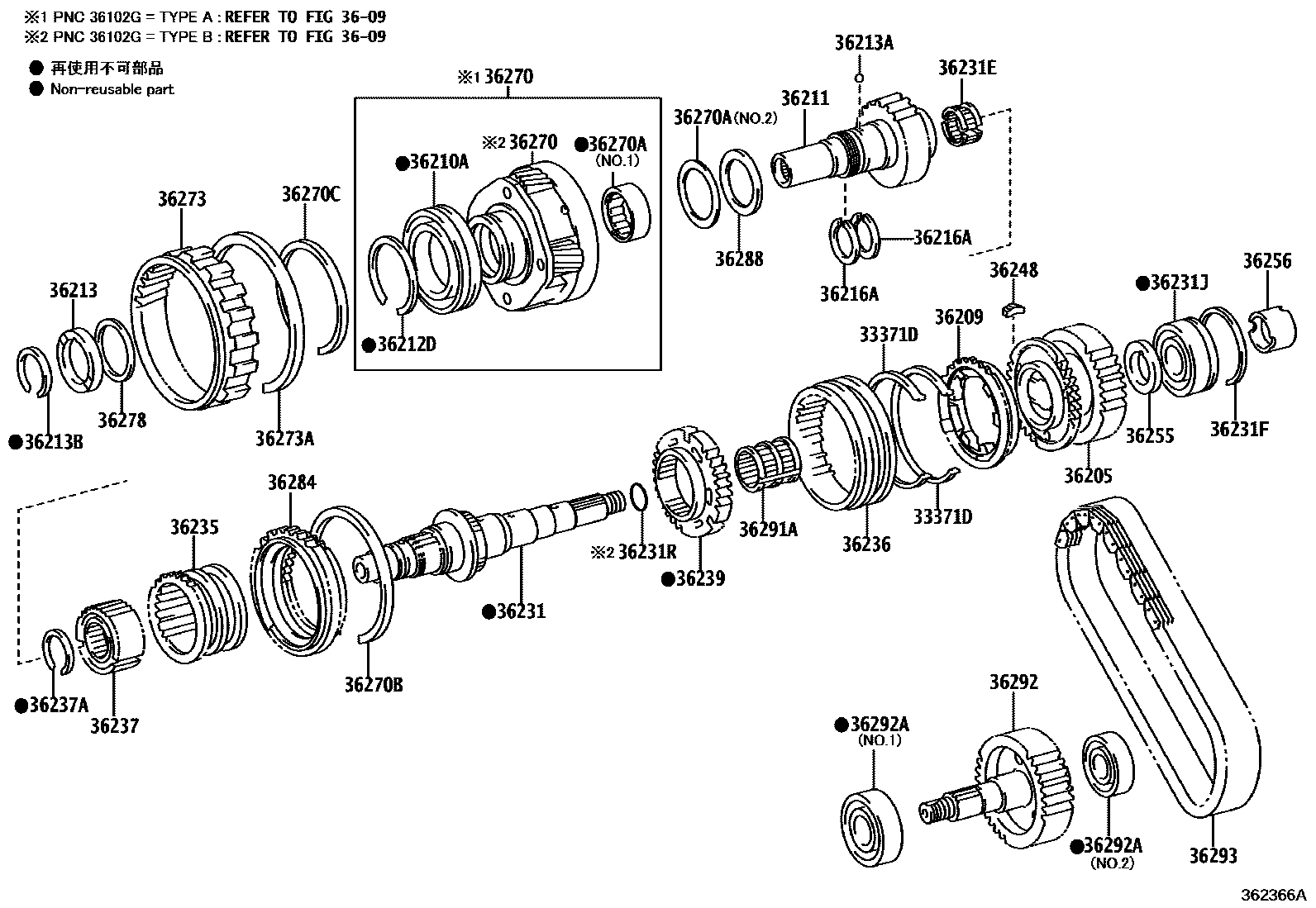

TRANSFER GEAR

33371DSPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER)

main33371-36030iGGN155,GUN156,TGN156..AGTSU202006-202204

*382,*381

3609

36205SPROCKET SUB-ASSY, TRANSFER DRIVE

main36205-0K040iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

*382

main36205-71010iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

*381

36209RING SET, TRANSFER SYNCHRONIZER

main36209-0K010iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

*382

main36209-35022iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

*381

36210ABEARING (FOR TRANSFER INPUT SHAFT)

main90363-75001iGUN156,TGN156..PKN202006-202204

*381

main90363-75001iGGN155,GUN156..LHD202201-202204

(J),*382

main90363-T0038iGGN155,GUN156,TGN156..AGTSU202006-202201

*382

main90363-T0038iGGN155,GUN156..LHD202201-202204

(L),*382

36211SHAFT, TRANSFER INPUT

main36201-0K070iGUN15#..6F202007-202110

*382

main36201-0K080iGGN155,GUN156,TGN156..AGTSU..6FC202006-202204

*382

main36201-0K090iLAN155,TGN156..5F202007-202109

*382

main36201-35130iGUN15#..6F202007-202110

*381

main36201-71010iGGN155,GUN15#,TGN156..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204

*381

main36201-71020iLAN155,TGN156..5F202007-202109

*381

36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)

main90520-72001iGUN156,TGN156..PKN202006-202204

T=1.45,MARK 1,*381

main90520-72002iGUN156,TGN156..PKN202006-202204

T=1.50,MARK 2,*381

main90520-72003iGUN156,TGN156..PKN202006-202204

T=1.55,MARK 3,*381

main90520-72004iGUN156,TGN156..PKN202006-202204

T=1.60,MARK 4,*381

main90520-72005iGUN156,TGN156..PKN202006-202204

T=1.65,MARK 5,*381

main90520-T0136iGGN155,GUN156,TGN156..AGTSU202006-202204

T=1.45,MARK 1,*382

main90520-T0137iGGN155,GUN156,TGN156..AGTSU202006-202204

T=1.50,MARK 2,*382

main90520-T0138iGGN155,GUN156,TGN156..AGTSU202006-202204

T=1.55,MARK 3,*382

main90520-T0139iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=1.60,MARK 4,*382

main90520-T0140iGGN155,GUN156,TGN156..AGTSU202006-202204

T=1.65,MARK 5,*382

36213STOPPER, TRANSFER INPUT GEAR

main36213-0K010iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

*382

main36213-35020iGUN156,TGN156..PKN202006-202204

*381

36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)

main90360-05012iGGN155,GUN156,TGN156..AGTSU202006-202204

*381

main90360-T0010iGUN156,TGN156..PKN202006-202204

*382

36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)

main90520-44003iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.10-2.15,*381

main90520-44004iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.15-2.20,*381

main90520-44005iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.20-2.25,*381

main90520-44006iGGN155,GUN156,TGN156..AGTSU202006-202204

T=2.25-2.30,*381

main90520-44007iGUN156,TGN156..PKN202006-202204

T=2.30-2.35,*381

main90520-44008iGGN155,GUN156,TGN156..AGTSU202006-202204

T=2.35-2.40,*381

main90520-44009iGGN155,GUN156,TGN156..AGTSU202006-202204

T=2.40-2.45,*381

main90520-44010iGGN155,GUN156,TGN156..AGTSU202006-202204

T=2.45-2.50,*381

main90520-44011iGUN156,TGN156..PKN202006-202204

T=2.50-2.55,*381

main90520-44012iGUN156,TGN156..PKN202006-202204

T=2.55-2.60,*381

main90520-44013iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.60-2.65,*381

main90520-44014iGUN156,TGN156..PKN202006-202204

T=2.65-2.70,*381

main90520-44015iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.70-2.75,*381

main90520-44016iGGN155,GUN156,TGN156..AGTSU202006-202204

T=2.75-2.80,*381

main90520-44017iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.80-2.85,*381

main90520-44018iGUN156,TGN156..PKN202006-202204

T=2.85-2.90,*381

main90520-44019iGUN156,TGN156..PKN202006-202204

T=2.90-2.95,*381

main90520-44020iGUN156,TGN156..PKN202006-202204

T=2.95-3.00,*381

main90520-44021iGUN156,TGN156..PKN202006-202204

T=3.00-3.05,*381

main90520-T0202iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.10-2.15,*382

main90520-T0203iGUN156,TGN156..PKN202006-202204

T=2.15-2.20,*382

main90520-T0204iGUN156,TGN156..PKN202006-202204

T=2.20-2.25,*382

main90520-T0205iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.25-2.30,*382

main90520-T0206iGUN156,TGN156..PKN202006-202204

T=2.30-2.35,*382

main90520-T0207iGGN155,GUN156,TGN156..AGTSU202006-202204

T=2.35-2.40,*382

main90520-T0208iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.40-2.45,*382

main90520-T0209iGUN156,TGN156..PKN202006-202204

T=2.45-2.50,*382

main90520-T0210iGUN156,TGN156..PKN202006-202204

T=2.50-2.55,*382

main90520-T0211iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.55-2.60,*382

main90520-T0212iGGN155,GUN156,TGN156..AGTSU202006-202204

T=2.60-2.65,*382

main90520-T0213iGUN156,TGN156..PKN202006-202204

T=2.65-2.70,*382

main90520-T0214iGUN156,TGN156..PKN202006-202204

T=2.70-2.75,*382

main90520-T0215iGGN155,GUN156,TGN156..AGTSU202006-202204

T=2.75-2.80,*382

main90520-T0216iGGN155,GUN156,TGN156..AGTSU202006-202204

T=2.80-2.85,*382

main90520-T0217iGUN156,TGN156..PKN202006-202204

T=2.85-2.90,*382

main90520-T0218iGUN156,TGN156..PKN202006-202204

T=2.90-2.95,*382

main90520-T0219iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.95-3.00,*382

main90520-T0220iGUN156,TGN156..PKN202006-202204

T=3.00-3.05,*382

36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1

main36216-35012iGUN156,TGN156..PKN202006-202204

*382,*381

36231SHAFT, TRANSFER OUTPUT, REAR

main36231-0K030iGGN155,GUN156,TGN156..AGTSU202006-202204

*382

main36231-71021iGGN155,GUN15#,LAN155,TGN156202006-202101

*381

sub36231-71022

main36231-71022iGGN155,GUN156,TGN156..AGTSU202101-202204

*381

36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)

main90364-28004iGGN155,GUN156,TGN156..AGTSU202006-202204

*381

main90364-C0016iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

*382

36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

main90520-78002iGGN155,GUN156,TGN156..AGTSU202006-202204

T=1.65,*381

main90520-T0187iGGN155,GUN156,TGN156..AGTSU202006-202204

T=1.65,ID=78.1,*382

36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)

main90363-37011iGGN155,GUN156,TGN156..AGTSU202006-202204

*381

main90363-T0042iGUN156,TGN156..PKN202006-202204

*382

36231RRING, O (FOR TRANSFER OUTPUT SHAFT)

main90301-T0053iGUN156,TGN156..PKN202006-202204

*382

36235SLEEVE, TRANSFER HIGH & LOW CLUTCH

main36235-0K030iGGN155..EPT202006-202204

*382

sub36235-04010

main36235-35022iGUN156,TGN156..PKN202006-202204

*381

36236SLEEVE, FRONT DRIVE CLUTCH

main36236-0K040iGUN156,TGN156..PKN202006-202204

*382

main36236-35070iGUN156,TGN156..PKN202006-202204

*381

36237HUB, TRANSFER CLUTCH

main36237-0K020iGGN155,GUN156,TGN156..AGTSU202006-202204

*382

main36237-35030iGGN155,GUN156,TGN156..AGTSU202006-202204

*381

36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)

main90520-39004iGUN156,TGN156..PKN202006-202204

T=2.10-2.15,MARK A,*381

main90520-39005iGUN156,TGN156..PKN202006-202204

T=2.15-2.20,MARK B,*381

main90520-39006iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.20-2.25,MARK C,*381

main90520-39007iGUN156,TGN156..PKN202006-202204

T=2.25-2.30,MARK D,*381

main90520-39008iGGN155,GUN156,TGN156..AGTSU202006-202204

T=2.30-2.35,MARK E,*381

main90520-39009iGGN155,GUN156,TGN156..AGTSU202006-202204

T=2.35-2.40,MARK F,*381

main90520-39010iGUN156,TGN156..PKN202006-202204

T=2.40-2.45,MARK G,*381

main90520-39011iGGN155,GUN156,TGN156..AGTSU202006-202204

T=2.45-2.50,MARK H,*381

main90520-39012iGUN156,TGN156..PKN202006-202204

T=2.50-2.55,MARK J,*381

main90520-39013iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.00-2.05,MARK K,*381

main90520-39014iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.05-2.10,MARK L,*381

main90520-T0191iGUN156,TGN156..PKN202006-202204

T=2.10-2.15,*382

main90520-T0192iGGN155,GUN156,TGN156..AGTSU202006-202204

T=2.15-2.20,*382

main90520-T0193iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.20-2.25,*382

main90520-T0194iGUN156,TGN156..PKN202006-202204

T=2.25-2.30,*382

main90520-T0195iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.30-2.35,*382

main90520-T0196iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.35-2.40,*382

main90520-T0197iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.40-2.45,*382

main90520-T0198iGUN156,TGN156..PKN202006-202204

T=2.45-2.50,*382

main90520-T0199iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.50-2.55,*382

main90520-T0200iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.00-2.05,*382

main90520-T0201iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=2.05-2.10,*382

36239HUB, TRANSFER DRIVE CLUTCH

main36239-0K050iGGN155,GUN156,TGN156..AGTSU202006-202204

*382

main36239-71010iGUN156,TGN156..PKN202006-202204

*381

36248KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1

main36248-0K010iGUN156,TGN156..PKN202006-202204

*382

main36248-35031iGGN155,GUN156,TGN156..AGTSU202006-202204

*381

36255SPACER, TRANSFER OUTPUT SHAFT, NO.1

main36255-0K020iGGN155,GUN156,TGN156..AGTSU202006-202204

*382

sub36255-04010

main36255-71010iGGN155,GUN156,TGN156..AGTSU202006-202204

*381

36256SPACER, TRANSFER OUTPUT SHAFT, NO.2

main36256-0K010iGGN155..EPT202006-202204

*382

main36256-71010iGUN156,TGN156..PKN202006-202204

*381

36270GEAR ASSY, TRANSFER LOW PLANETARY

main36270-0K020iGGN155,GUN156,TGN156..AGTSU202006-202204

*382

sub36270-04020

sub36227-0K011

main36270-35900iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

*381

36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)

main90364-47001iGUN156,TGN156..PKN202006-202204

*381,NO.1:REFER ILL.

sub90364-47013

main90364-T0033iGGN155,GUN156,TGN156..AGTSU202006-202204

*382,NO.1:REFER ILL.

sub90364-T0054

main90374-49001iGGN155,GUN156,TGN156..AGTSU202006-202204

*381,NO.2:REFER ILL.

main90374-C0017iGUN156,TGN156..PKN202006-202204

*382,NO.2:REFER ILL.

36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)

main90521-99056iGGN155,GUN15#,LAN155,TGN156..IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

T=1.8,*381

sub90520-T0190

main90521-99056iGGN155,GUN156,TGN156..AGTSU202006-202201

T=1.8,*382,*381

sub90520-T0190

main90521-99056iGGN155..EPT202006-202204

T=1.8,*382

sub90520-T0190

36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)

main90520-99072iGGN155,GUN156,TGN156..AGTSU202006-202204

*381

main90520-T0188iGGN155,GUN156,TGN156..AGTSU202006-202204

*382

36273GEAR, TRANSFER LOW PLANETARY RING

main36273-0K010iGGN155,GUN156,TGN156..AGTSU202006-202204

*382

main36273-35030iGUN156,TGN156..PKN202006-202204

*381

36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)

main90520-99078iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

*381

main90520-99078iGGN155,GUN156,TGN156..AGTSU202006-202201

*382,*381

main90520-99078iGGN155..EPT202006-202204

*382

36278WASHER, MANUAL TRANSFER PLANETARY CARRIER

main36278-0K010iGGN155,GUN156,TGN156..AGTSU202006-202204

T=0.95-1.05,*382

main36278-35020iGUN156,TGN156..PKN202006-202204

T=0.95-1.05,*381

36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE

main36284-0K030iGUN156,TGN156..PKN202006-202204

*382

main36284-34011iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

*381

36288RACE, TRANSFER THRUST BEARING, NO.1

main36288-0K010iGGN155,GUN156,TGN156..AGTSU202006-202204

*382

main36288-28010iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

*381

36291ABEARING (FOR TRANSFER DRIVE SPROCKET)

main90364-42008iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

*381

main90364-T0043iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

*382

36292SPROCKET, TRANSFER DRIVEN

main36292-0K020iGGN155,GUN156,TGN156..AGTSU202006-202204

*382

main36292-35070iGUN156,TGN156..PKN202006-202204

*381

36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)

main90363-28004iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

*381,NO.2:REFER ILL.

main90363-32037iGUN156,TGN156..PKN202006-202204

*381,NO.1:REFER ILL.

main90363-32037iGGN155,GUN156..LHD202201-202204

(J),*382,NO.1

main90363-T0036iGGN155,GUN15#,LAN155,TGN156..EPTSU,IDNSU,INDSU,MASUV,PKNSU,SASUV,THSUV,VNSUV202006-202201

*382,NO.1:REFER ILL.

main90363-T0036iGGN155,GUN156..LHD202201-202204

(L),*382,NO.1

main90363-T0037iGUN156,TGN156..PKN202006-202204

*382,NO.2:REFER ILL.

sub90363-T0061

36293CHAIN, TRANSFER FRONT DRIVE

main36293-35050iGGN155,GUN156,TGN156..AGTSU202006-202204

*382,*381

37 parts on this diagram · 1 diagram in section
