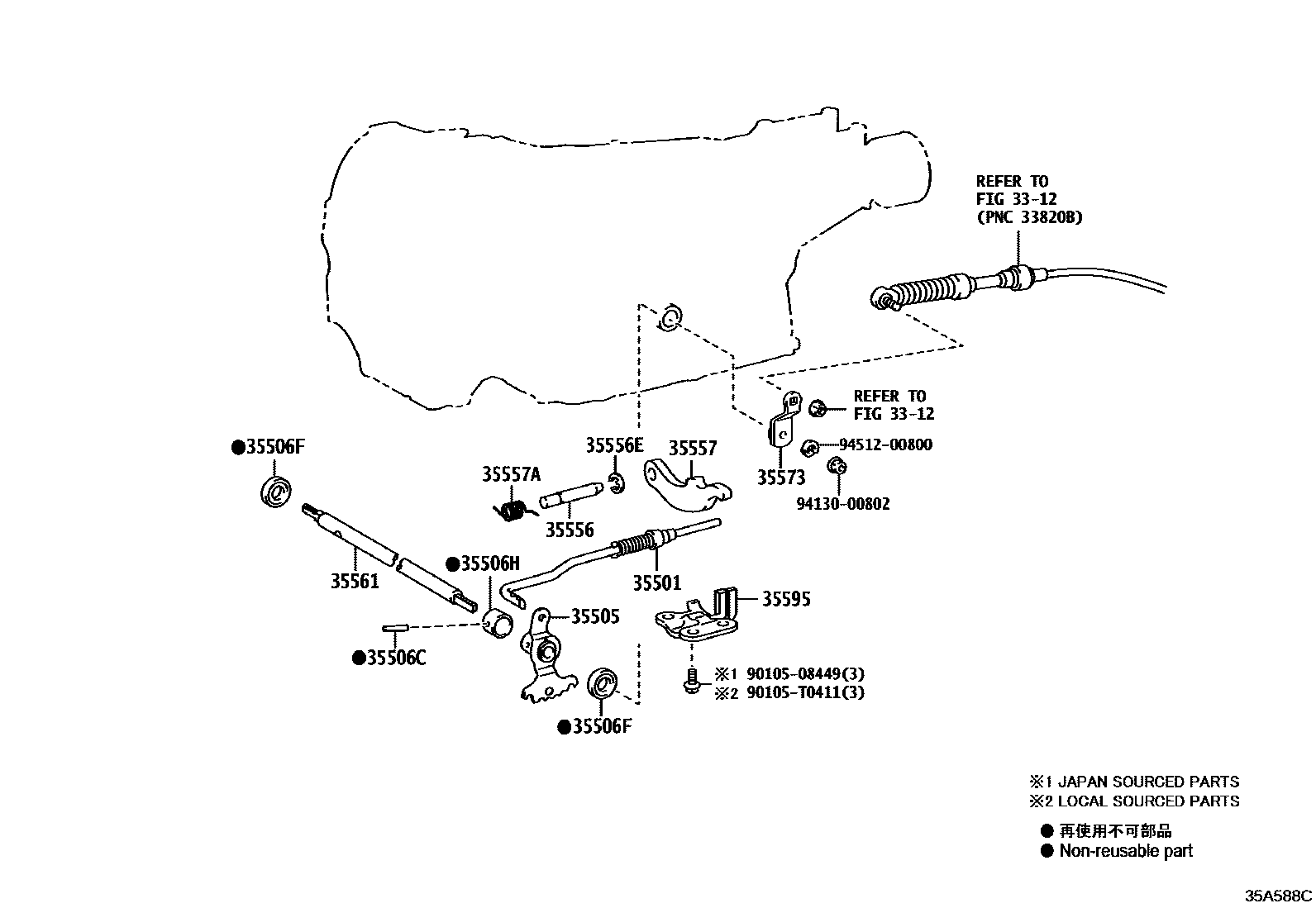

THROTTLE LINK & VALVE LEVER (ATM)

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-71020iGUN156,TGN156,166..PKN202006-202204

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-71020iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGUN156,TGN156,166..PKN202006-202204

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGUN156,TGN156,166..PKN202009-202203

main90311-12002iGUN156,165..TH202006-202108

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main90311-12002iGGN155,GUN15#,16#,TGN156,166..IDNSU..6FC202103-202108

(J)

main90311-T0093iGGN155,GUN15#,16#,TGN156,166..IDNSU..6FC202006-202108

(L)

main90311-T0093iGGN155,GUN155,166,TGN156,166..MASUV,THSUV,VNSUV;GUN156,165..(MASUV,THSUV,VNSUV)..6FC..(MA,TH,VN)202006-202204

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGUN156,TGN156,166..PKN202006-202204

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC202006-202204

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC202006-202204

35557PAWL, PARKING LOCK

main35557-71010iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC202006-202204

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iGUN156,TGN156,166..PKN202006-202204

35561SHAFT, MANUAL VALVE LEVER

main35561-60030iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-0K010iGGN155,GUN15#,16#,TGN156,166..(IDNSU,MASUV,THSUV,VNSUV)..6FC202006-202204

(L)

main35573-71010iGGN155,GUN15#,16#,TGN156,166..6FC..(EPT,IND,SA)202009-202203

main35573-71010iGGN155,GUN15#,16#,TGN156,166..(IDNSU,MASUV,THSUV,VNSUV)..6FC202006-202204

(J)

35595BRACKET, PARKING LOCK PAWL

main35595-71010iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC202006-202204

9010508449

main90105-08449

90105T0411

main90105-T0411

9413000802

main94130-00802

9451200800

main94512-00800

17 parts on this diagram · 1 diagram in section
