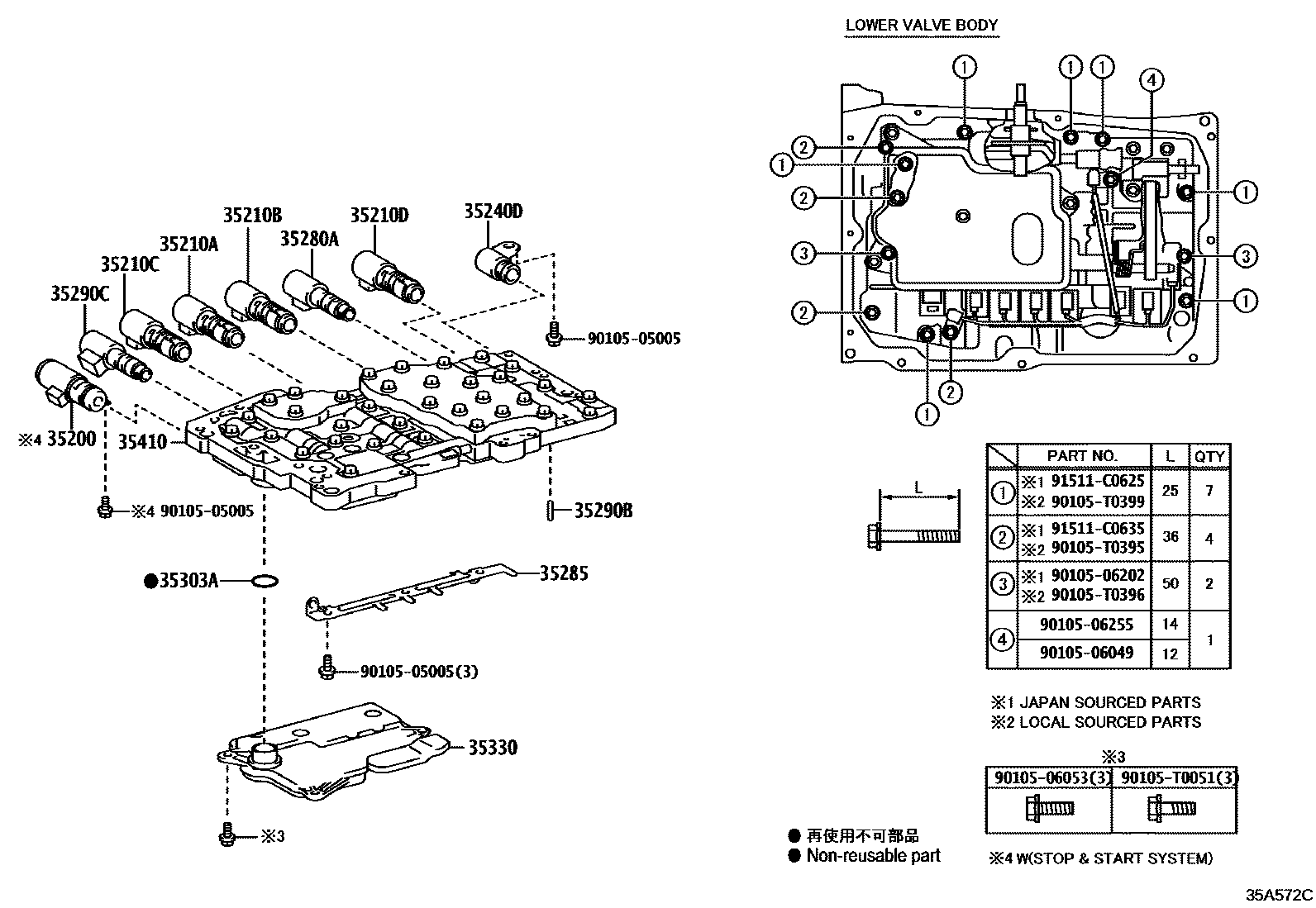

VALVE BODY & OIL STRAINER (ATM)

0001 1AC60E,AC60F 0002 1AC60E,AC60F

35200PUMP ASSY, OIL, W/SOLENOID

main35200-71010iGUN15#,16#..6FC..(IND,TH)202006-202109

35210AVALVE, SOLENOID(SL1)

main35210-71010iGUN156,TGN156,166..PKN202006-202201

35210BVALVE, SOLENOID(SL3)

main35210-71010iGUN156,TGN156,166..PKN202006-202201

35210CVALVE, SOLENOID(SL2)

main35210-71010iGUN156,TGN156,166..PKN202006-202201

35210DVALVE, SOLENOID(SL4)

main35210-71010iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204

35240DVALVE, SOLENOID(SL)

main35240-71010iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC202006-202204

35280AVALVE, SOLENOID(SLU)

main35280-0K010iGUN156,165,TGN166..6FC..(MA,VN)202108-202204

main35280-71010iGUN156,165..THSUV..(ARL,GCC,GEN)202006-202108

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

sub35280-71020

35285PLATE, SOLENOID LOCK

main35285-0K010iGUN156,165..TH202006-202108

TOYOTA STOP & START SYSTEM-WITHOUT,(L)

main35285-71010iGUN156,165..TH202006-202108

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)

main90250-03045×6iGUN156,TGN156,166..PKN202006-202201

35290CVALVE, SOLENOID(SLT)

main35290-0K010iGUN156,165,TGN166..6FC..(MA,VN)202108-202204

main35290-71020iGGN155,GUN15#,16#,TGN156,166..IDNSU..6FC202103-202108

(J)

35303ARING, O (FOR OIL STRAINER)

main90301-27010iGGN155,GUN15#,16#,TGN156,166..6FC..(EPT,IND,SA)202009-202203

main90301-T0071iGGN155,GUN155,166,TGN156,166..MASUV,THSUV,VNSUV;GUN156,165..(MASUV,THSUV,VNSUV)..6FC..(MA,TH,VN)202006-202204

35330STRAINER ASSY, VALVE BODY OIL

main35330-0K010iGGN155,GUN155,166,TGN156,166..MASUV,THSUV,VNSUV;GUN156,165..(MASUV,THSUV,VNSUV)..6FC..(MA,TH,VN)202009-202204

main35330-71010iGUN165..THSUV..GCC202006-202009

TOYOTA STOP & START SYSTEM-WITHOUT,(L)

35410BODY ASSY, TRANSMISSION VALVE

main35410-0K030iGUN155,166..TH202006-202108

TOYOTA STOP & START SYSTEM-WITHOUT

sub35410-0K031

main35410-0K040iGUN15#,16#..TH202006-202108

TOYOTA STOP & START SYSTEM-WITH

sub35410-0K041

main35410-71102iGUN156,165..TH202006-202108

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

sub35410-71103

main35410-71112iGUN156,166..6FC..IND202101-202109

sub35410-71113

9010505005

main90105-05005

9010506049

main90105-06049

9010506053

main90105-06053

9010506202

main90105-06202

9010506255

main90105-06255

90105T0051

main90105-T0051

90105T0395

main90105-T0395

90105T0396

main90105-T0396

90105T0399

main90105-T0399

91511C0625

main91511-C0625

91511C0635

main91511-C0635

24 parts on this diagram · 2 diagrams in section
