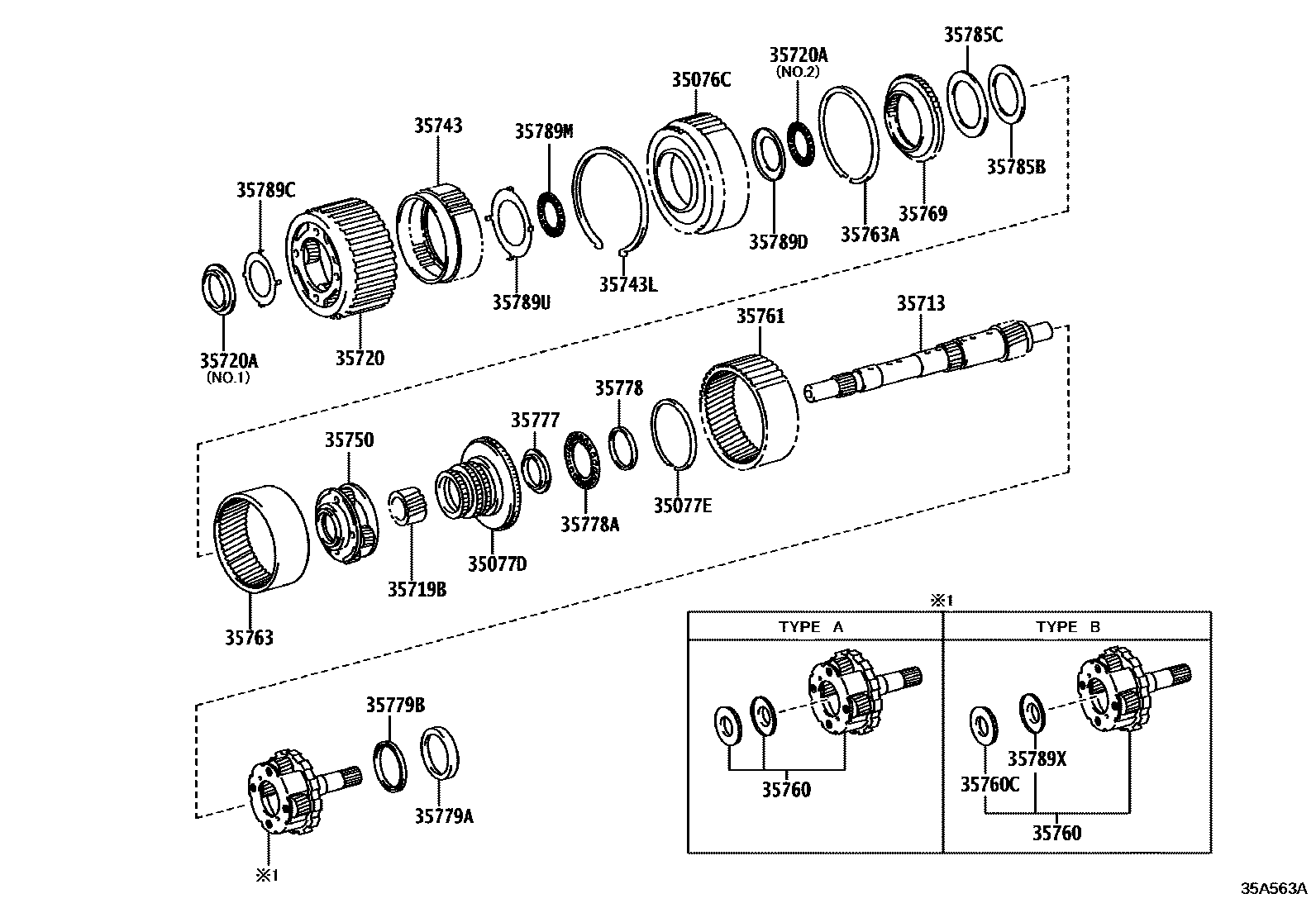

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1AC60F 0002 1AC60E

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR

main35076-71010iGUN156,TGN156,166..PKN¥5,800202006-202204

35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR

main35077-0K010iGGN155,GUN15#,16#,TGN156,166..(IDNSU,MASUV,THSUV,VNSUV)..6FC202006-202204

(L)

main35077-71010iGGN155,GUN15#,16#,TGN156,166..6FC..(EPT,IND,SA)¥8,200202009-202203

main35077-71010iGGN155,GUN15#,16#,TGN156,166..(IDNSU,MASUV,THSUV,VNSUV)..6FC¥8,200202006-202204

(J)

35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)

main90520-99073iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC¥190202009-202203

main90520-99073iGUN156,165..TH¥190202006-202108

(J)

main90520-99073iGUN156,165..TH¥190202006-202108

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main90520-T0293iGUN156..THSUV..GCC202006-202108

TOYOTA STOP & START SYSTEM-WITHOUT,(L)

main90520-T0293iGGN155,GUN15#,16#,TGN156,166..IDNSU..6FC202006-202204

main90520-T0293iGUN156,165..THSUV..(ARL,GCC,GEN)202006-202108

(L)

main90520-T0293iGUN156,165..THSUV..(ARL,GCC,GEN)202006-202108

TOYOTA STOP & START SYSTEM-WITH

35713SHAFT, INTERMEDIATE

main35713-0K010iGGN155,GUN155,165,TGN156,166..(IDNSU,MASUV,THSUV,VNSUV)..6FC202006-202204

(L)

main35713-0K020iGUN156,166..IDNSU,MASUV,THSUV,VNSUV202006-202204

(L)

main35713-60100iGUN156..AGTSU..6FC¥10,000202009-202201

main35713-60100iGUN156,166..IDNSU,MASUV,THSUV,VNSUV¥10,000202006-202204

(J)

main35713-71010iGGN155,GUN165,TGN156,16#..AGTSU..6FC¥10,000202009-202203

main35713-71010iGGN155,GUN155,165,TGN156,166..(IDNSU,MASUV,THSUV,VNSUV)..6FC¥10,000202006-202204

(J)

35719BGEAR, PLANETARY SUN

main35719-71010iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC¥4,250202006-202204

35720GEAR ASSY, FRONT PLANETARY

main35720-71010iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC¥30,300202006-202204

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-37009iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC¥1,120202006-202204

NO.1:REFER ILLUST.

main90374-63002iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC¥1,800202006-202204

NO.2:REFER ILLUST.

35743GEAR, FRONT PLANETARY RING

main35743-71010iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC¥8,500202006-202204

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99160iGUN156,TGN156,166..PKN¥190202006-202204

35750GEAR ASSY, CENTER PLANETARY

main35750-71010iGGN155,GUN156,165..AGTSU..6FC¥20,200202006-202204

main35750-71020iTGN156,16#..AGTSU..6FC¥20,200202006-202204

35760GEAR ASSY, REAR PLANETARY

main35760-0K060iGGN155,GUN155..IDNSU..6FC202103-202108

(L)

main35760-0K060iGGN155,GUN155..(IDNSU,MASUV,THSUV)..6FC202006-202110

TYPE A:REFER ILLUST.

main35760-0K070iTGN156..IDNSU..6FC202103-202108

(L)

main35760-0K070iTGN156..(IDNSU,MASUV,THSUV)..6FC202006-202110

TYPE A:REFER ILLUST.

main35760-0K090iGUN165..THSUV..GCC202006-202108

TOYOTA STOP & START SYSTEM-WITHOUT,(L)

main35760-0K090iGUN165..TH202006-202108

(L)

main35760-0K090iGUN165..(THSUV,VNSUV)..6FC..(TH,VN)202006-202204

main35760-0K100iTGN166..THSUV,VNSUV202006-202204

main35760-0K100iTGN166..IDNSU..6FC202103-202108

(L)

main35760-0K120iGUN166..PH202103-202108

(L)

main35760-0K120iGUN166..PH202006-202108

main35760-0K140iGUN156..IDNSU,MASUV,THSUV,VNSUV202006-202204

TYPE B:REFER ILLUST.

main35760-71030iGGN155,GUN155..IDNSU..6FC¥35,700202103-202108

(J)

main35760-71030iGGN155..LA¥35,700202009-202203

TYPE A:REFER ILLUST.

main35760-71040iGUN165..TH¥35,700202006-202108

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main35760-71040iGUN165..6FC..(LA,SA)¥35,700202009-202110

main35760-71040iGUN165..IDNSU..6FC¥35,700202006-202108

(J)

main35760-71060iTGN156..PKN,SA¥35,700202009-202201

main35760-71060iTGN156..IDNSU..6FC¥35,700202103-202108

(J)

main35760-71070iTGN166..IDNSU..6FC¥35,700202103-202108

(J)

main35760-71070iTGN166..6FC..(EPT,IND)¥35,700202011-202203

main35760-71090iGUN166..6FC..(IND,SA)202009-202109

main35760-71090iGUN166..PH202103-202108

(J)

main35760-71100iGUN156..IDNSU¥35,700202006-202201

TYPE A:REFER ILLUST.

35760CBEARING, THRUST NEEDLE ROLLER(FOR REAR PLANETARY GEAR)

main90374-21013iGUN156..IDNSU,MASUV,THSUV,VNSUV¥720202006-202204

TYPE B:REFER ILLUST.

35761GEAR, REAR PLANETARY RING

main35761-71010iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC¥8,500202006-202204

35763GEAR, CENTER PLANETARY RING

main35763-71010iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC¥6,700202006-202204

35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)

main90520-99161iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC¥190202006-202204

35769FLANGE, PLANETARY RING GEAR, CTR

main35769-71010iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC¥1,220202006-202204

35777RACE, THRUST BEARING, NO.7

main35777-60010iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC¥520202006-202204

35778RACE, THRUST BEARING, NO.8

main35778-60010iGUN156,TGN156,166..PKN¥1,020202006-202204

35778ABEARING, THRUST NEEDLE ROLLER

main90374-32010iGGN155,GUN165,TGN156,16#..AGTSU..6FC¥1,320202006-202204

main90374-32012iGUN156..AGTSU..6FC¥1,320202006-202204

35779ARACE, THRUST BEARING, NO.9

main35779-60011iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC¥670202006-202204

35779BBEARING, THRUST NEEDLE ROLLER

main90374-43007iGUN156,TGN156,166..PKN¥960202006-202204

35785BRACE, THRUST BEARING, NO.4

main35785-60010iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC¥1,300202006-202204

35785CBEARING, THRUST NEEDLE ROLLER

main90374-55004iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC¥1,200202006-202204

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-71030iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC¥640202006-202204

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-71050iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC¥700202006-202204

35789MBEARING, THRUST NEEDLE ROLLER

main90374-63002iGGN155,GUN15#,16#,TGN156,166..(EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV)..6FC¥1,800202006-202204

35789URACE, THRUST BEARING

main35789-71040iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC¥850202006-202204

35789XRACE, THRUST BEARING

main35789-71060iGUN156..IDNSU,MASUV,THSUV,VNSUV¥520202006-202204

TYPE B:REFER ILLUST.

28 parts on this diagram · 2 diagrams in section
