SHIFT LEVER & RETAINER

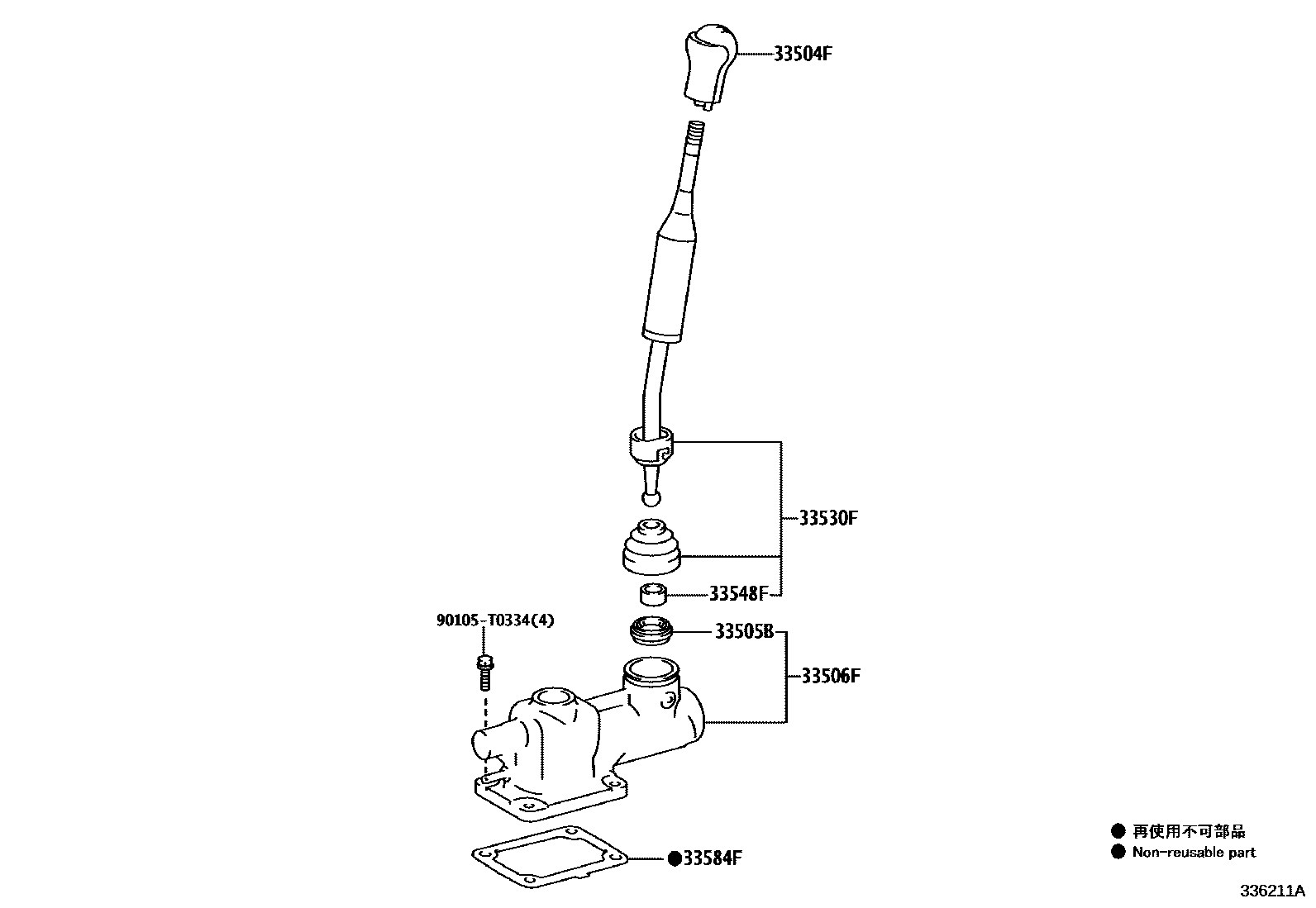

Parts diagram
33504FKNOB SUB-ASSY, SHIFT LEVER
main33504-0K050i202009-202109
STEERING WHEEL-LEATHER & WOOD LIKE
main33504-0K060-C0i202011-202110
BLACK,TRIM2#
main33504-0K090-C0i202011-202110
BLACK,TRIM2#
main33504-0K101-C0i202009-202110
BLACK,TRIM2#
main33504-0K101-C0i202009-202109
STEERING WHEEL-LEATHER & WOOD LIKE,BLACK,TRIM2#
main33504-0K131-C0i202006-202108
BLACK,TRIM4#
main33504-0K131-C0i202006-202108
BLACK,TRIM2#,4#
main33504-0K131-C0i202009-202203
BLACK,TRIM2#
main33504-0K150-C0i202007-202108
BLACK,TRIM2#,4#
main33504-0K160-C0i202009-202109
BLACK,TRIM2#
main33504-0K201-C0i202101-202109
BLACK,TRIM2#,4#
main33504-0K220-C0i202007-202108
BLACK,TRIM4#
main33504-0K220-C0i202007-202204
BLACK,TRIM2#,4#
main33504-0K230-C0i202009-202109
BLACK,TRIM2#
main33504-0K241-C0i202008-202108
BLACK,TRIM2#
main33504-0K261-C0i202101-202109
BLACK,TRIM2#,3#,4#
main33504-0K261-C0i202101-202109
BLACK,TRIM2#,4#
main33504-0K311-C1i202006-202108
BLACK,TRIM0#,2#,3#
main33504-0K311-C1i202006-202201
BLACK,TRIM2#,4#
main33504-0K311-C1i202006-202108
BLACK,TRIM0#,2#,3#,4#
main33504-0K311-C1i202006-202204
BLACK,TRIM2#
main33504-0K311-C1i202007-202204
BLACK,TRIM2#,3#
main33504-0K311-C1i202101-202109
BLACK,TRIM2#,3#,4#
main33504-0K311-C1i202009-202110
STEERING WHEEL-LEATHER & WOOD LIKE,BLACK,TRIM2#
33505BSEAT SUB-ASSY, SHIFT LEVER
main33505-0K010i202007-202204
TYPE B:REFER 33-01
main33505-0K010i202009-202109
main33505-0K010i202007-202110
TYPE C:REFER 33-01
main33505-0K010i202007-202110
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33505-0K010i202007-202204
TYPE A:REFER 33-01
main33505-35030i202007-202110
TYPE A:REFER 33-01
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
main33506-0K070i202007-202204
TYPE A:REFER 33-01
main33506-0K090i202007-202204
TYPE B:REFER 33-01
main33506-0K090i202009-202103
ACTIVE SAFETY PACKAGE-WITH,TYPE B:REFER 33-01
main33570-0K051i202007-202108
TYPE A:REFER 33-01
main33570-0K061i202007-202009
main33570-0K071i202009-202109
main33570-0K071i202007-202108
TYPE C:REFER 33-01
main33570-0K080i202007-202110
TYPE A:REFER 33-01
main33570-0K090i202007-202107
TYPE B:REFER 33-01
main33570-0K100i202007-202110
TYPE C:REFER 33-01
main33570-0K111i202007-202110
TYPE A:REFER 33-01
main33570-0K121i202007-202110
TYPE B:REFER 33-01
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
main33530-0K621i202011-202110
main33530-0K661i202007-202108
main33530-0K681i202009-202109
main33530-0K691i202009-202110
main33530-0K702i202007-202204
main33530-0K711i202007-202108
main33530-0K721i202101-202109
main33530-0K731i202101-202109
main33530-0K771i202007-202109
main33530-0K781i202009-202109
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
main33548-04010i202007-202110
main33548-22020i202007-202110
main33548-60040i202007-202204
33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
main33584-0K010i202007-202110
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33584-0K020i202007-202204
TYPE A:REFER 33-01
main33584-0K020i202007-202204
TYPE B:REFER 33-01
main33584-0K030i202007-202009
TYPE B:REFER 33-01
main33584-0K040i202007-202107
TYPE B:REFER 33-01
main33584-60070i202009-202109
main33584-60070i202007-202108
TYPE A:REFER 33-01,TYPE C:REFER 33-01
main33584-71010i202007-202110
TYPE A:REFER 33-01,TYPE C:REFER 33-01
90105T0334
main90105-T0334

7 parts on this diagram · 6 diagrams in section
