TRANSMISSION GEAR (MTM)

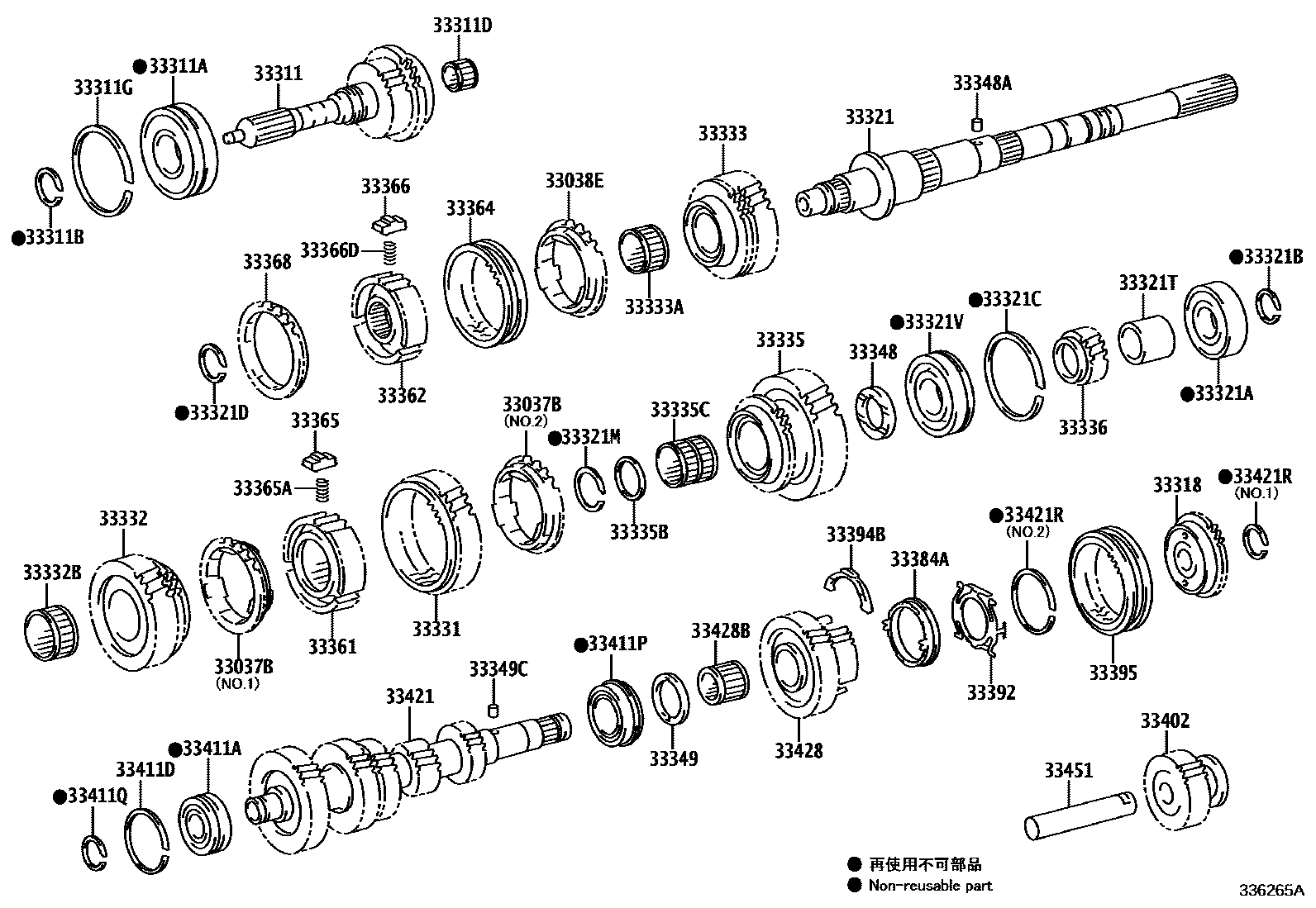

Parts diagram
33037BRING SET, SYNCHRONIZER, NO.1
main33037-0K010i202007-202110
T/P A:SEE 33-01,NO.2
main33037-0K030i202007-202110
T/P C:SEE 33-01,NO.2
sub33037-0K150
main33037-0K060i202007-202009
T/P B:SEE 33-01,NO.2
main33037-0K070i202007-202204
TYPE B:REFER 33-01
main33037-0K130i202007-202110
T/P A:SEE 33-01,NO.1
main33037-0K140i202007-202110
T/P C:SEE 33-01,NO.1
sub33037-0K160
main33037-35030i202007-202009
T/P B:SEE 33-01,NO.1
33038ERING SET, SYNCHRONIZER, NO.2
main33038-0K010i202104-202110
TYPE A:REFER 33-01
main33038-0K040i202007-202204
TYPE B:REFER 33-01
sub33038-0K090
main33038-0K050i202007-202010
TYPE A:REFER 33-01
main33038-0K060i202007-202009
TYPE B:REFER 33-01
main33038-0K070i202007-202110
TYPE C:REFER 33-01
33311SHAFT, INPUT
main33301-0K052i202007-202110
TYPE C:REFER 33-01
main33301-0K090i202007-202110
TYPE A:REFER 33-01
main33301-0K120i202007-202107
TYPE B:REFER 33-01
main33311-0K070i202007-202204
TYPE A:REFER 33-01
main33311-0K080i202007-202204
TYPE B:REFER 33-01
33311ABEARING (FOR INPUT SHAFT FRONT)
main90363-T0021i202007-202009
TYPE B:REFER 33-01
main90363-T0030i202007-202110
TYPE C:REFER 33-01
main90363-T0041i202007-202204
TYPE B:REFER 33-01
main90363-T0048i202007-202110
TYPE A:REFER 33-01
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
main90520-38008i202007-202110
T=2.10,MARK A,TYPE A:REFER 33-01
main90520-38009i202007-202110
T=2.15,MARK B,TYPE A:REFER 33-01
main90520-38010i202007-202110
T=2.20,MARK C,TYPE A:REFER 33-01
main90520-38011i202007-202110
T=2.25,MARK D,TYPE A:REFER 33-01
main90520-38012i202007-202110
T=2.30,MARK E,TYPE A:REFER 33-01
main90520-38013i202007-202110
T=2.35,MARK F,TYPE A:REFER 33-01
main90520-38014i202007-202110
T=2.40,MARK G,TYPE A:REFER 33-01
main90520-T0049i202007-202009
T=2.10,MARK A,TYPE B:REFER 33-01
main90520-T0050i202007-202107
T=2.15,MARK B,TYPE B:REFER 33-01
main90520-T0051i202007-202107
T=2.20,MARK C,TYPE B:REFER 33-01
main90520-T0052i202007-202009
T=2.25,MARK D,TYPE B:REFER 33-01
main90520-T0053i202007-202009
T=2.30,MARK E,TYPE B:REFER 33-01
main90520-T0054i202007-202009
T=2.35,MARK F,TYPE B:REFER 33-01
main90520-T0055i202007-202107
T=2.40,MARK G,TYPE B:REFER 33-01
main90520-T0142i202007-202204
T=2.65,MARK A,TYPE A:REFER 33-01
main90520-T0143i202007-202204
T=2.70,MARK B,TYPE B:REFER 33-01
main90520-T0144i202007-202204
T=2.75,MARK C,TYPE A:REFER 33-01
main90520-T0145i202007-202204
T=2.80,MARK D,TYPE A:REFER 33-01
main90520-T0146i202007-202204
T=2.85,MARK E,TYPE B:REFER 33-01
main90520-T0147i202007-202204
T=2.90,MARK F,TYPE A:REFER 33-01
main90520-T0239i202007-202110
T=2.10,MARK A,TYPE C:REFER 33-01
main90520-T0240i202007-202110
T=2.15,MARK B,TYPE C:REFER 33-01
main90520-T0241i202007-202110
T=2.20,MARK C,TYPE C:REFER 33-01
main90520-T0242i202007-202110
T=2.25,MARK D,TYPE C:REFER 33-01
main90520-T0243i202007-202110
T=2.30,MARK E,TYPE C:REFER 33-01
main90520-T0244i202007-202110
T=2.35,MARK F,TYPE C:REFER 33-01
main90520-T0245i202007-202110
T=2.40,MARK G,TYPE C:REFER 33-01
33311DBEARING, INPUT SHAFT
main90364-T0014i202007-202110
TYPE A:REFER 33-01
main90364-T0019i202007-202009
TYPE B:REFER 33-01
main90364-T0024i202007-202110
TYPE C:REFER 33-01
main90364-T0038i202007-202204
TYPE B:REFER 33-01
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
main90520-67003i202007-202204
TYPE A:REFER 33-01
main90520-88001i202007-202110
TYPE C:REFER 33-01
main90520-T0040i202007-202009
TYPE B:REFER 33-01
main90520-T0141i202007-202110
TYPE B:REFER 33-01
main90520-T0284i202007-202110
TYPE A:REFER 33-01
33318PIECE, GEAR SPLINE, NO.5
main33318-0K030i202007-202107
TYPE B:REFER 33-01
main33318-0K040i202007-202110
TYPE C:REFER 33-01
main33318-0K060i202007-202110
TYPE A:REFER 33-01
33321SHAFT, OUTPUT
main33302-0K010i202007-202110
TYPE A:REFER 33-01
main33302-0K020i202007-202204
TYPE A:REFER 33-01
main33302-0K030i202007-202110
TYPE B:REFER 33-01
main33302-0K040i202007-202105
TYPE B:REFER 33-01
main33321-0K041i202007-202009
TYPE B:REFER 33-01
main33321-0K051i202007-202107
TYPE B:REFER 33-01
main33321-0K061i202007-202110
TYPE C:REFER 33-01
main33321-0K071i202007-202109
TYPE C:REFER 33-01
main33321-0K121i202007-202110
TYPE A:REFER 33-01
main33321-0K131i202007-202108
TYPE A:REFER 33-01
33321ABEARING (FOR OUTPUT SHAFT REAR)
main90363-T0020i202007-202107
TYPE B:REFER 33-01
main90363-T0032i202007-202110
TYPE C:REFER 33-01
main90363-T0049i202007-202110
TYPE A:REFER 33-01
main90366-T0074i202007-202105
TYPE B:REFER 33-01
main90366-T0129i202007-202204
TYPE A:REFER 33-01
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
main90520-28031i202007-202110
T=2.65,MARK A,TYPE A:REFER 33-01
main90520-28032i202007-202110
T=2.70,MARK B,TYPE A:REFER 33-01
main90520-28033i202007-202110
T=2.75,MARK C,TYPE A:REFER 33-01
main90520-28034i202007-202110
T=2.80,MARK D,TYPE A:REFER 33-01
main90520-28035i202007-202110
T=2.85,MARK E,TYPE A:REFER 33-01
main90520-28037i202007-202110
T=2.90,MARK F,TYPE A:REFER 33-01
main90520-28039i202007-202110
T=2.95,MARK G,TYPE A:REFER 33-01
main90520-28042i202007-202110
T=3.00,MARK H,TYPE A:REFER 33-01
main90520-28043i202007-202110
T=3.05,MARK J,TYPE A:REFER 33-01
main90520-28045i202007-202110
T=3.10,MARK K,TYPE A:REFER 33-01
main90520-28046i202007-202110
T=3.15,MARK L,TYPE A:REFER 33-01
main90520-28047i202007-202110
T=3.20,MARK M,TYPE A:REFER 33-01
main90520-28048i202007-202110
T=3.25,MARK N,TYPE A:REFER 33-01
main90520-28049i202007-202110
T=3.30,MARK P,TYPE A:REFER 33-01
main90520-28050i202007-202110
T=3.35,MARK Q,TYPE A:REFER 33-01
main90520-28051i202007-202110
T=3.40,MARK R,TYPE A:REFER 33-01
main90520-28052i202007-202110
T=3.45,MARK S,TYPE A:REFER 33-01
main90520-T0110i202007-202009
T=2.65,MARK A,TYPE B:REFER 33-01
main90520-T0111i202007-202009
T=2.70,MARK B,TYPE B:REFER 33-01
main90520-T0112i202007-202107
T=2.75,MARK C,TYPE B:REFER 33-01
main90520-T0113i202007-202009
T=2.80,MARK D,TYPE B:REFER 33-01
main90520-T0114i202007-202009
T=2.85,MARK E,TYPE B:REFER 33-01
main90520-T0115i202007-202009
T=2.90,MARK F,TYPE B:REFER 33-01
main90520-T0116i202007-202009
T=2.95,MARK G,TYPE B:REFER 33-01
main90520-T0117i202007-202009
T=3.00,MARK H,TYPE B:REFER 33-01
main90520-T0118i202007-202107
T=3.05,MARK J,TYPE B:REFER 33-01
main90520-T0119i202007-202107
T=3.10,MARK K,TYPE B:REFER 33-01
main90520-T0120i202007-202107
T=3.15,MARK L,TYPE B:REFER 33-01
main90520-T0121i202007-202107
T=3.20,MARK M,TYPE B:REFER 33-01
main90520-T0122i202007-202009
T=3.25,MARK N,TYPE B:REFER 33-01
main90520-T0123i202007-202009
T=3.30,MARK P,TYPE B:REFER 33-01
main90520-T0124i202007-202009
T=3.35,MARK Q,TYPE B:REFER 33-01
main90520-T0125i202007-202107
T=3.40,MARK R,TYPE B:REFER 33-01
main90520-T0126i202007-202107
T=3.45,MARK S,TYPE B:REFER 33-01
main90520-T0252i202007-202110
T=2.65,MARK A,TYPE C:REFER 33-01
main90520-T0253i202007-202110
T=2.70,MARK B,TYPE C:REFER 33-01
main90520-T0254i202007-202110
T=2.75,MARK C,TYPE C:REFER 33-01
main90520-T0255i202007-202110
T=2.80,MARK D,TYPE C:REFER 33-01
main90520-T0256i202007-202110
T=2.85,MARK E,TYPE C:REFER 33-01
main90520-T0257i202007-202110
T=2.90,MARK F,TYPE C:REFER 33-01
main90520-T0258i202007-202110
T=2.95,MARK G,TYPE C:REFER 33-01
main90520-T0259i202007-202110
T=3.00,MARK H,TYPE C:REFER 33-01
main90520-T0260i202007-202110
T=3.05,MARK J,TYPE C:REFER 33-01
main90520-T0261i202007-202110
T=3.10,MARK K,TYPE C:REFER 33-01
main90520-T0262i202007-202110
T=3.15,MARK L,TYPE C:REFER 33-01
main90520-T0263i202007-202110
T=3.20,MARK M,TYPE C:REFER 33-01
main90520-T0264i202007-202110
T=3.25,MARK N,TYPE C:REFER 33-01
main90520-T0265i202007-202110
T=3.30,MARK P,TYPE C:REFER 33-01
main90520-T0266i202007-202110
T=3.35,MARK Q,TYPE C:REFER 33-01
main90520-T0267i202007-202110
T=3.40,MARK R,TYPE C:REFER 33-01
main90520-T0268i202007-202110
T=3.45,MARK S,TYPE C:REFER 33-01
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
main90520-T0041i202007-202107
T=2.41,TYPE B:REFER 33-01
main90520-T0285i202007-202110
T=1.7,TYPE C:REFER 33-01
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
main90520-30014i202007-202110
T=1.80,MARK A,TYPE A:REFER 33-01
main90520-30015i202007-202110
T=1.85,MARK B,TYPE A:REFER 33-01
main90520-30016i202007-202110
T=1.90,MARK C,TYPE A:REFER 33-01
main90520-30017i202007-202110
T=1.95,MARK D,TYPE A:REFER 33-01
main90520-30018i202007-202110
T=2.00,MARK E,TYPE A:REFER 33-01
main90520-30019i202007-202110
T=2.05,MARK F,TYPE A:REFER 33-01
main90520-30020i202007-202110
T=2.10,MARK G,TYPE A:REFER 33-01
main90520-T0063i202007-202107
T=1.80,MARK A,TYPE B:REFER 33-01
main90520-T0064i202007-202009
T=1.85,MARK B,TYPE B:REFER 33-01
main90520-T0065i202007-202107
T=1.90,MARK C,TYPE B:REFER 33-01
main90520-T0066i202007-202107
T=1.95,MARK D,TYPE B:REFER 33-01
main90520-T0067i202007-202107
T=2.00,MARK E,TYPE B:REFER 33-01
main90520-T0068i202007-202107
T=2.05,MARK F,TYPE B:REFER 33-01
main90520-T0069i202007-202009
T=2.10,MARK G,TYPE B:REFER 33-01
main90520-T0148i202007-202204
T=1.80,MARK A,TYPE B:REFER 33-01
main90520-T0149i202007-202204
T=1.85,MARK B,TYPE B:REFER 33-01
main90520-T0150i202007-202204
T=1.90,MARK C,TYPE A:REFER 33-01
main90520-T0151i202007-202204
T=1.95,MARK D,TYPE B:REFER 33-01
main90520-T0152i202007-202204
T=2.00,MARK E,TYPE A:REFER 33-01
main90520-T0153i202007-202110
T=2.05,MARK F,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0276i202007-202110
T=1.80,MARK A,TYPE C:REFER 33-01
main90520-T0277i202007-202110
T=1.85,MARK B,TYPE C:REFER 33-01
main90520-T0278i202007-202110
T=1.90,MARK C,TYPE C:REFER 33-01
main90520-T0279i202007-202110
T=1.95,MARK D,TYPE C:REFER 33-01
main90520-T0280i202007-202110
T=2.00,MARK E,TYPE C:REFER 33-01
main90520-T0281i202007-202110
T=2.05,MARK F,TYPE C:REFER 33-01
main90520-T0282i202007-202110
T=2.10,MARK G,TYPE C:REFER 33-01
33321MRING, SHAFT SNAP (FOR BEARING)
main90520-36007i202007-202110
T=2.30,MARK A,TYPE A:REFER 33-01
main90520-36008i202007-202110
T=2.35,MARK B,TYPE A:REFER 33-01
main90520-36009i202007-202110
T=2.40,MARK C,TYPE A:REFER 33-01
main90520-36010i202007-202110
T=2.45,MARK D,TYPE A:REFER 33-01
main90520-36011i202007-202110
T=2.50,MARK E,TYPE A:REFER 33-01
main90520-36012i202007-202110
T=2.55,MARK F,TYPE A:REFER 33-01
main90520-36013i202007-202110
T=2.60,MARK G,TYPE A:REFER 33-01
main90520-T0103i202007-202107
T=2.30,MARK A,TYPE B:REFER 33-01
main90520-T0104i202007-202009
T=2.35,MARK B,TYPE B:REFER 33-01
main90520-T0105i202007-202009
T=2.40,MARK C,TYPE B:REFER 33-01
main90520-T0106i202007-202009
T=2.45,MARK D,TYPE B:REFER 33-01
main90520-T0107i202007-202009
T=2.50,MARK E,TYPE B:REFER 33-01
main90520-T0108i202007-202107
T=2.55,MARK F,TYPE B:REFER 33-01
main90520-T0109i202007-202107
T=2.60,MARK G,TYPE B:REFER 33-01
main90520-T0269i202007-202110
T=2.30,MARK A,TYPE C:REFER 33-01
main90520-T0270i202007-202110
T=2.35,MARK B,TYPE C:REFER 33-01
main90520-T0271i202007-202110
T=2.40,MARK C,TYPE C:REFER 33-01
main90520-T0272i202007-202110
T=2.45,MARK D,TYPE C:REFER 33-01
main90520-T0273i202007-202110
T=2.50,MARK E,TYPE C:REFER 33-01
main90520-T0274i202007-202110
T=2.55,MARK F,TYPE C:REFER 33-01
main90520-T0275i202007-202110
T=2.60,MARK G,TYPE C:REFER 33-01
33321TSPACER (FOR OUTPUT SHAFT)
main35469-0K040i202007-202110
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main35469-0K050i202007-202204
TYPE B:REFER 33-01
main90387-T0007i202007-202110
TYPE A:REFER 33-01
main90387-T0010i202007-202110
TYPE C:REFER 33-01
main90387-T0011i202007-202009
TYPE B:REFER 33-01
33321VBEARING (FOR OUTPUT SHAFT CENTER)
main90363-T0022i202007-202009
TYPE B:REFER 33-01
main90363-T0047i202007-202110
TYPE A:REFER 33-01
33331GEAR, REVERSE
main33331-0K031i202007-202009
TYPE B:REFER 33-01
main33331-0K040i202007-202110
TYPE C:REFER 33-01
main33331-0K060i202007-202110
TYPE A:REFER 33-01
33332GEAR, 2ND
main33033-0K030i202007-202107
TYPE B:REFER 33-01
main33033-0K050i202007-202110
TYPE C:REFER 33-01
main33033-0K070i202007-202110
TYPE A:REFER 33-01
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
main90364-T0011i202007-202110
TYPE A:REFER 33-01
main90364-T0020i202007-202009
TYPE B:REFER 33-01
main90364-T0026i202007-202110
TYPE C:REFER 33-01
main90364-T0035i202007-202110
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33333GEAR, 3RD
main33034-0K070i202007-202009
TYPE B:REFER 33-01
main33034-0K080i202007-202110
TYPE C:REFER 33-01
main33034-0K090i202007-202204
TYPE A:REFER 33-01
sub33034-0K140
main33034-0K100i202007-202105
TYPE B:REFER 33-01
sub33369-26010
main33034-0K110i202007-202010
TYPE A:REFER 33-01
main33034-0K120i202101-202110
TYPE A:REFER 33-01
main33034-0K160i202202-202204
TYPE B:REFER 33-01
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
main90364-T0012i202007-202110
TYPE A:REFER 33-01
main90364-T0022i202007-202009
TYPE B:REFER 33-01
main90364-T0027i202007-202110
TYPE C:REFER 33-01
main90364-T0036i202007-202204
TYPE B:REFER 33-01
33335GEAR, 1ST
main33032-0K041i202007-202009
TYPE B:REFER 33-01
main33032-0K071i202007-202110
TYPE C:REFER 33-01
main33032-0K100i202007-202110
TYPE A:REFER 33-01
33335BSPACER(FOR 1ST GEAR BEARING)
main90560-39002i202007-202110
TYPE A:REFER 33-01
main90560-T0010i202007-202107
TYPE B:SEE 33-01,(L)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
main90364-T0010i202007-202110
TYPE A:REFER 33-01
main90364-T0021i202007-202107
TYPE B:REFER 33-01
main90364-T0025i202007-202110
TYPE C:REFER 33-01
main90364-T0034i202007-202204
TYPE B:REFER 33-01
33336GEAR, 5TH
main33036-0K010i202007-202204
TYPE A:REFER 33-01
main33036-0K020i202009-202110
TYPE A:REFER 33-01
main33036-0K030i202007-202204
TYPE B:REFER 33-01
main33036-0K040i202009-202105
TYPE B:REFER 33-01
main33336-0K032i202007-202110
TYPE C:REFER 33-01
main33336-0K110i202007-202009
TYPE B:REFER 33-01
main33336-0K130i202007-202110
TYPE A:REFER 33-01
33348WASHER, 1ST GEAR THRUST
main33348-0K010i202007-202009
TYPE B:REFER 33-01
main33348-0K020i202007-202110
TYPE C:REFER 33-01
sub33348-0K040
main33348-0K030i202007-202110
TYPE A:REFER 33-01
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
main90250-05026i202007-202110
TYPE A:REFER 33-01
main90250-T0021i202007-202009
TYPE B:REFER 33-01
33349WASHER, 5TH GEAR THRUST
main33346-0K020i202007-202107
TYPE B:SEE 33-01,(L)
main33346-0K030i202007-202110
TYPE A:REFER 33-01
main33346-71010i202007-202009
TYPE B:SEE 33-01,(J)
33349CPIN (FOR 5TH GEAR THRUST WASHER)
main90250-05026i202007-202110
TYPE A:REFER 33-01
33361HUB, TRANSMISSION CLUTCH, NO.1
main33361-0K031i202007-202009
TYPE B:REFER 33-01
main33361-0K050i202007-202110
TYPE C:REFER 33-01
main33361-0K070i202007-202204
TYPE B:REFER 33-01
main33361-0K090i202007-202110
TYPE A:REFER 33-01
33362HUB, TRANSMISSION CLUTCH, NO.2
main33362-0K031i202007-202009
TYPE B:REFER 33-01
main33362-0K040i202007-202204
TYPE B:REFER 33-01
main33362-0K050i202007-202110
TYPE A:REFER 33-01
33364SLEEVE, TRANSMISSION HUB, NO.2
main33364-0K020i202007-202009
TYPE B:REFER 33-01
main33364-0K030i202007-202110
TYPE C:REFER 33-01
main33364-0K040×2i202007-202204
TYPE A:REFER 33-01
main33364-0K050×2i202007-202110
TYPE B:REFER 33-01
main33364-0K060i202007-202110
TYPE A:REFER 33-01
33365KEY, SYNCHROMESH SHIFTING, NO.1
main33365-0K010×3i202007-202107
TYPE B:REFER 33-01
main33365-0K020×3i202007-202110
TYPE A:REFER 33-01
main33365-0K030×9i202007-202204
TYPE B:REFER 33-01
main33365-35060×3i202007-202110
TYPE C:REFER 33-01
33365ASPRING, COMPRESSION
main90501-08212×3i202007-202110
TYPE C:SEE 33-01,(J)
main90501-T0023×3i202007-202107
TYPE B:REFER 33-01
main90501-T0051×3i202007-202110
TYPE A:REFER 33-01
main90501-T0063×3i202007-202110
TYPE C:SEE 33-01,(L)
33366KEY, SYNCHROMESH SHIFTING, NO.2
main33365-30060×3i202007-202107
TYPE B:REFER 33-01
33366DSPRING, COMPRESSION
main90501-08212×3i202007-202110
TYPE C:SEE 33-01,(J)
main90501-T0023×3i202007-202009
TYPE B:REFER 33-01
main90501-T0051×3i202007-202110
TYPE A:REFER 33-01
main90501-T0063×3i202007-202110
TYPE C:SEE 33-01,(L)
33368RING, SYNCHRONIZER, NO.2
main33368-0K090i202007-202009
TYPE B:REFER 33-01
main33368-0K220i202007-202110
TYPE A:REFER 33-01
main33368-0K230i202007-202110
TYPE C:REFER 33-01
sub33368-0K270
33384ARING, SYNCHRONIZER, OUTER NO.3
main33384-0K011i202007-202110
TYPE A:REFER 33-01
main33384-0K021i202007-202009
TYPE B:REFER 33-01
main33384-0K031i202007-202110
TYPE C:REFER 33-01
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
main33392-0K010i202007-202110
TYPE A:REFER 33-01
main33392-35010i202007-202204
TYPE B:REFER 33-01
main33392-60040i202007-202110
TYPE C:REFER 33-01
33394KEY, SYNCHROMESH SHIFTING, NO.3
main33394-20020×2i202007-202110
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33394BKEY, SYNCHROMESH SHIFTING, NO.3
main33394-0K010×2i202007-202110
TYPE A:REFER 33-01
main33394-0K020×2i202007-202110
TYPE C:REFER 33-01
main33394-0K030×2i202007-202107
TYPE B:REFER 33-01
33395SLEEVE, TRANSMISSION HUB, NO.3
main33395-0K040i202007-202009
TYPE B:REFER 33-01
main33395-0K050i202007-202110
TYPE C:REFER 33-01
main33395-0K060i202007-202110
TYPE A:REFER 33-01
33402GEAR SUB-ASSY, REVERSE IDLER
main33402-0K050i202007-202110
TYPE A:REFER 33-01
main33402-0K060i202007-202110
TYPE C:REFER 33-01
main33402-0K070i202007-202009
TYPE B:REFER 33-01
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
main90365-T0004i202007-202009
TYPE B:REFER 33-01
main90365-T0006i202007-202009
TYPE C:REFER 33-01
main90365-T0011i202009-202110
TYPE C:REFER 33-01
main90369-T0011i202007-202204
TYPE B:REFER 33-01
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
main90520-56002i202007-202110
T=1.07,OD=62,TYPE C:REFER 33-01
main90520-T0087i202007-202009
T=1.07,OD=62,TYPE B:REFER 33-01
33411PBEARING, COUNTERSHAFT CENTER
main90365-T0003i202007-202107
TYPE B:REFER 33-01
main90365-T0007i202007-202009
TYPE C:REFER 33-01
main90365-T0009i202007-202105
TYPE B:REFER 33-01
main90365-T0012i202009-202110
TYPE C:REFER 33-01
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
main90520-23057i202007-202110
T=2.10,MARK A,TYPE A:REFER 33-01
main90520-23058i202007-202110
T=2.15,MARK B,TYPE A:REFER 33-01
main90520-23059i202007-202110
T=2.20,MARK C,TYPE A:REFER 33-01
main90520-23060i202007-202110
T=2.25,MARK D,TYPE A:REFER 33-01
main90520-23061i202007-202110
T=2.30,MARK E,TYPE A:REFER 33-01
main90520-23062i202007-202110
T=2.35,MARK F,TYPE A:REFER 33-01
main90520-T0097i202007-202107
T=2.10,MARK A,TYPE B:REFER 33-01
main90520-T0098i202007-202107
T=2.15,MARK B,TYPE B:REFER 33-01
main90520-T0099i202007-202107
T=2.20,MARK C,TYPE B:REFER 33-01
main90520-T0100i202007-202107
T=2.25,MARK D,TYPE B:REFER 33-01
main90520-T0101i202007-202009
T=2.30,MARK E,TYPE B:REFER 33-01
main90520-T0102i202007-202107
T=2.35,MARK F,TYPE B:REFER 33-01
main90520-T0246i202007-202110
T=2.10,MARK A,TYPE C:REFER 33-01
main90520-T0247i202007-202110
T=2.15,MARK B,TYPE C:REFER 33-01
main90520-T0248i202007-202110
T=2.20,MARK C,TYPE C:REFER 33-01
main90520-T0249i202007-202110
T=2.25,MARK D,TYPE C:REFER 33-01
main90520-T0250i202007-202110
T=2.30,MARK E,TYPE C:REFER 33-01
main90520-T0251i202007-202110
T=2.35,MARK F,TYPE C:REFER 33-01
33421GEAR, COUNTER
main33421-0K082i202007-202110
TYPE C:REFER 33-01
main33421-0K100i202007-202204
TYPE A:REFER 33-01
main33421-0K110i202009-202110
TYPE A:REFER 33-01
main33421-0K120i202007-202204
TYPE B:REFER 33-01
main33421-0K130i202009-202105
TYPE B:REFER 33-01
main33421-0K140i202007-202107
TYPE B:REFER 33-01
main33421-0K160i202007-202110
TYPE A:REFER 33-01
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
main90520-22016i202007-202110
T=2.85,MARK A,T/P A:SEE 33-01,NO.1
main90520-22017i202007-202110
T=2.90,MARK B,T/P A:SEE 33-01,NO.1
main90520-22018i202007-202110
T=2.95,MARK C,T/P A:SEE 33-01,NO.1
main90520-22019i202007-202110
T=3.00,MARK D,T/P C:SEE 33-01,NO.1
main90520-22020i202007-202110
T=3.05,MARK E,T/P C:SEE 33-01,NO.1
main90520-22021i202007-202110
T=3.10,MARK F,T/P C:SEE 33-01,NO.1
main90520-22022i202007-202110
T=3.15,MARK G,T/P A:SEE 33-01,NO.1
main90520-33021i202007-202110
T=1.00,T/P C:SEE 33-01,NO.2
main90520-T0127i202007-202009
T=2.85,MARK A,T/P B:SEE 33-01,NO.1
main90520-T0128i202007-202009
T=2.90,MARK B,T/P B:SEE 33-01,NO.1
main90520-T0129i202007-202009
T=2.95,MARK C,T/P B:SEE 33-01,NO.1
main90520-T0130i202007-202009
T=3.00,MARK D,T/P B:SEE 33-01,NO.1
main90520-T0131i202007-202009
T=3.05,MARK E,T/P B:SEE 33-01,NO.1
main90520-T0132i202007-202107
T=3.10,MARK F,T/P B:SEE 33-01,NO.1
main90520-T0133i202007-202107
T=3.15,MARK G,T/P B:SEE 33-01,NO.1
33428GEAR, COUNTERSHAFT 5TH
main33428-0K062i202007-202110
TYPE C:REFER 33-01
main33428-0K100i202007-202009
TYPE B:REFER 33-01
main33428-0K120i202007-202110
TYPE A:REFER 33-01
33428BBEARING (FOR COUNTER 5TH GEAR)
main90364-T0013i202007-202110
TYPE A:REFER 33-01
main90364-T0023i202007-202107
TYPE B:REFER 33-01
main90364-T0028i202007-202110
TYPE C:REFER 33-01
33451SHAFT, REVERSE IDLER GEAR
main33450-0K010i202007-202204
TYPE B:REFER 33-01
main33451-0K010i202007-202110
TYPE A:REFER 33-01
main33451-0K030i202007-202009
TYPE B:REFER 33-01
main33451-0K040i202007-202110
TYPE C:REFER 33-01

52 parts on this diagram · 4 diagrams in section

TRANSMISSION GEAR (MTM) — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
